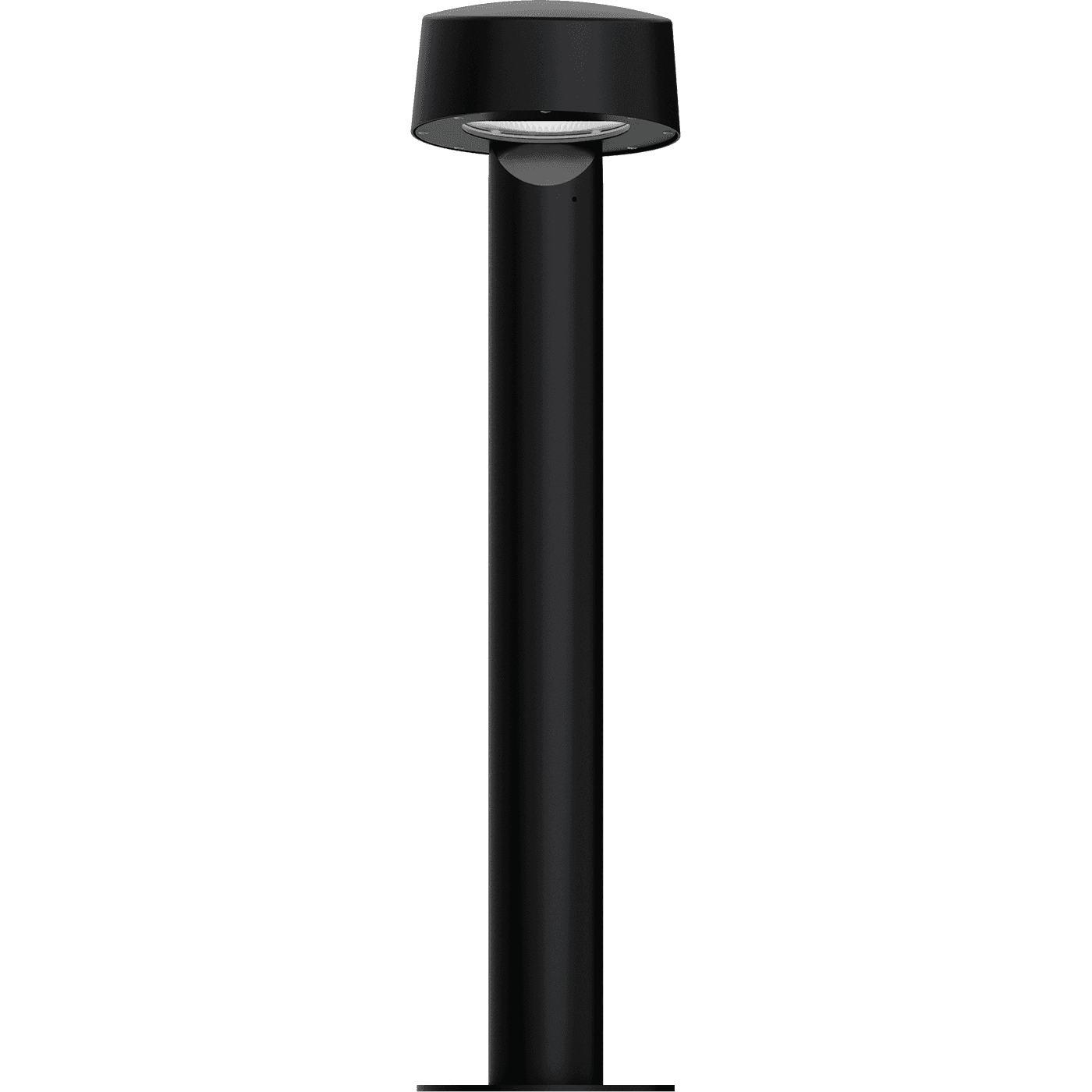

PHAROS LED 17W 827 RAL7016
PHAROS LED 17W 827 RAL7016
17 Wluminaire power
450 lmlight flow
26 lm/Wenergy efficiency
code1799000040
beam angleD120
color temperature2700
weight17 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
26 lm/Wcolor rendition index (CRI)
>80light flow
450 lmflickering factor
<1%beam angle
D120color temperature
2700light source type
LEDemission color
Белыйilluminating
energy efficiency
26 lm/W
color rendition index (CRI)
>80
light flow
450 lm
flickering factor
<1%
beam angle
D120
color temperature
2700
light source type
LED
emission color
Белый
electrical
luminaire power
17 W
electric shock protection
I
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable, sq. mm
4
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
climatic performance
УХЛ1*
width, mm
195 mm
height, mm
903 mm
installation width, mm
150 mm
installation length, mm
180 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
230 mm
material
Сталь
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
weight
17 kg
common
code
1799000040
warranty
36 month
energy efficiency class
B
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
model files
model files
photometric files
сертификаты
photometric files
ies107 kB
jpg75.9 kB
ldt45.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
