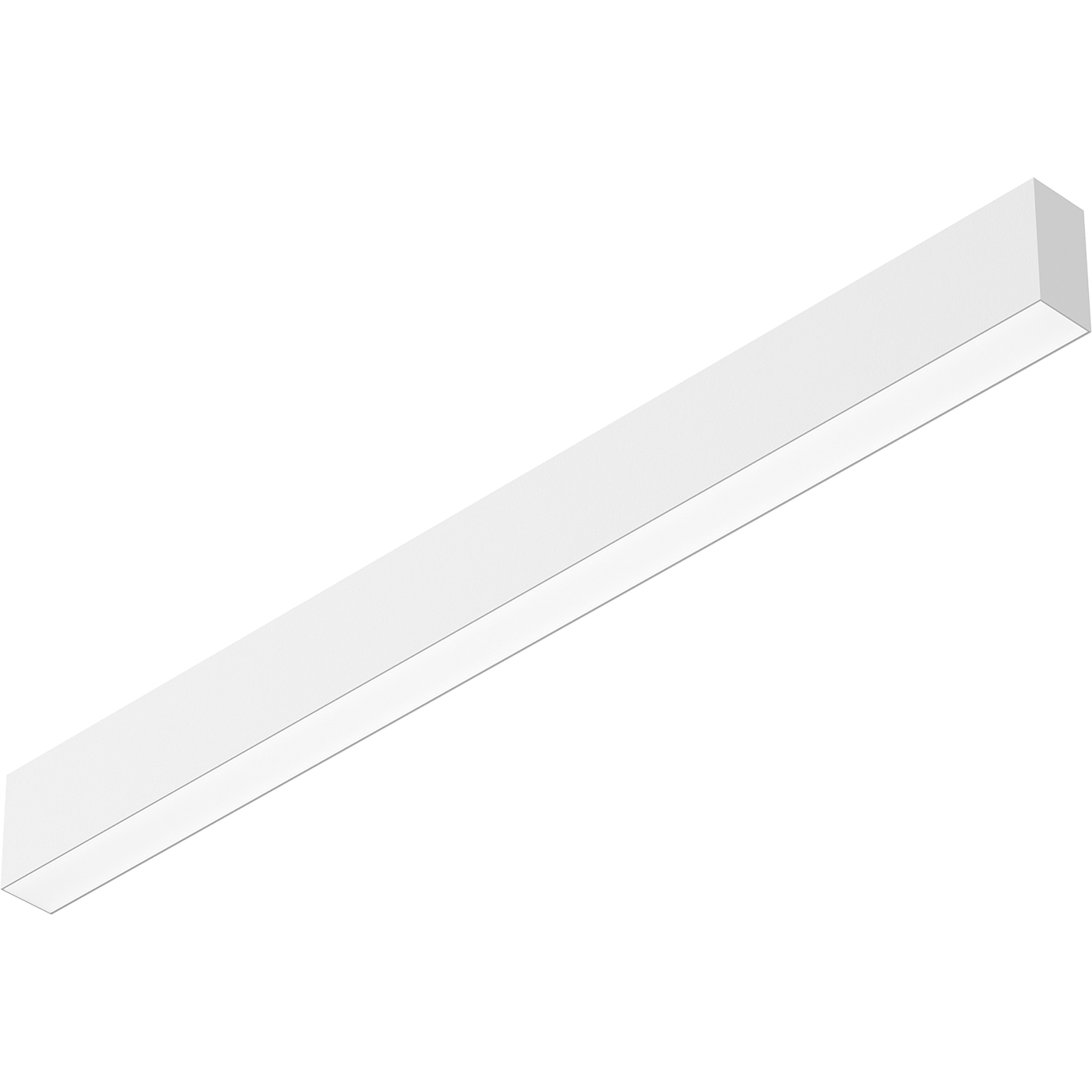

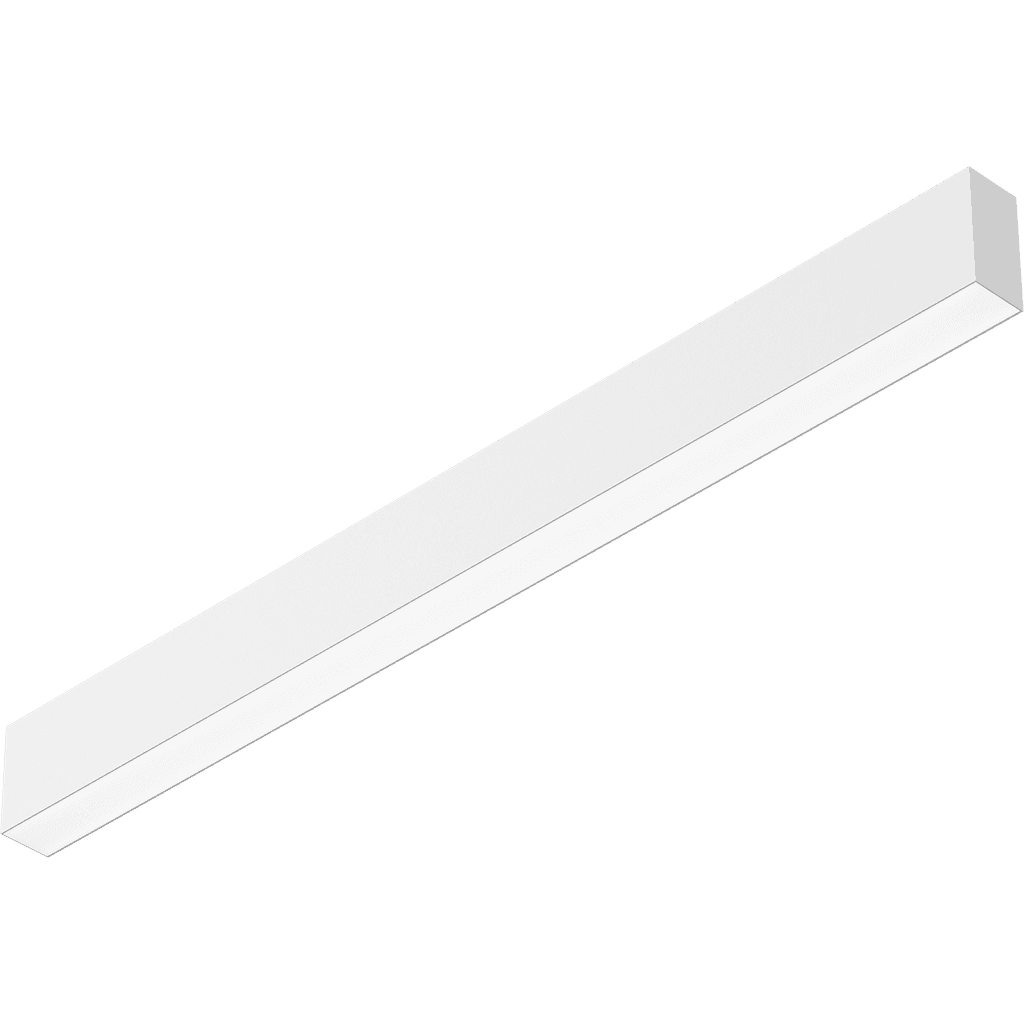

PROFILE 60H S DR LED 1200 4000K

PROFILE 60H S DR LED 1200 4000K
add to favorites
28 Wluminaire power
2500 lmlight flow
89 lm/Wenergy efficiency
code1248001220
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. PROFILE 60H LED
  7. PROFILE 60H S DR LED 1200 4000K
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
28 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
28 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
weight
2.8 kg
length, mm
1208 mm
width, mm
60 mm
height, mm
120 mm
housing color
Металлик
installation length, mm
1208 mm
installation width, mm
60 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1248001220
illuminating
color rendition index (CRI)
>80
light flow
2500 lm
flickering factor
<5%
energy efficiency
89 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

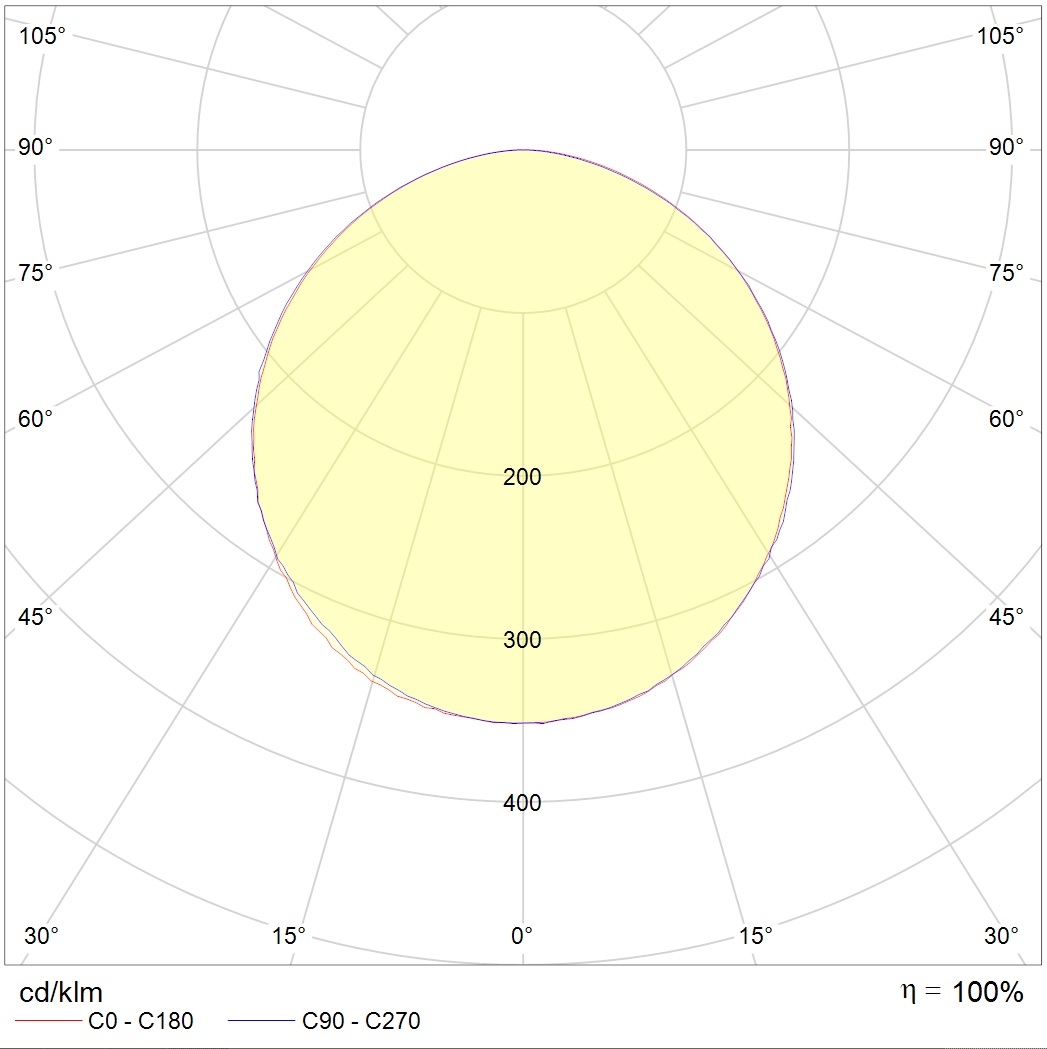

photometric files
ies263.2 kB
jpg116 kB
ldt165.9 kB
documents
passport1.9 mB
сертификаты
Russian origin287.1 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
photometric files
ies263.2 kB
jpg116 kB
ldt165.9 kB
documents
passport1.9 mB
сертификаты
Russian origin287.1 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
accessories
PROFILE 60H end cap (set of 2 pcs)0.175kgarticle: 2398000140
Diffusor LINER LED TH 13500 mm (in package)1.65kgarticle: 2473000100
Diffusor LINER LED TH 9000 mm (in package)1.1kgarticle: 2473000090
