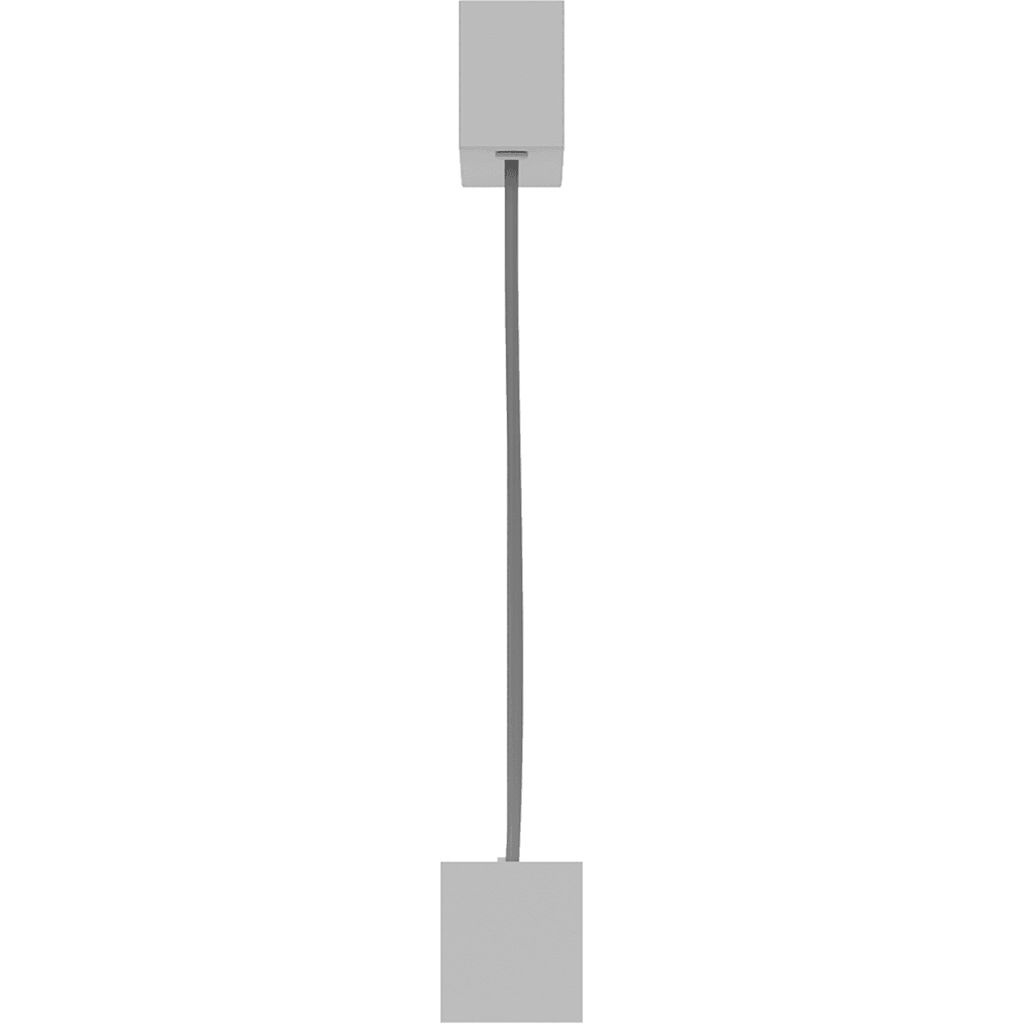

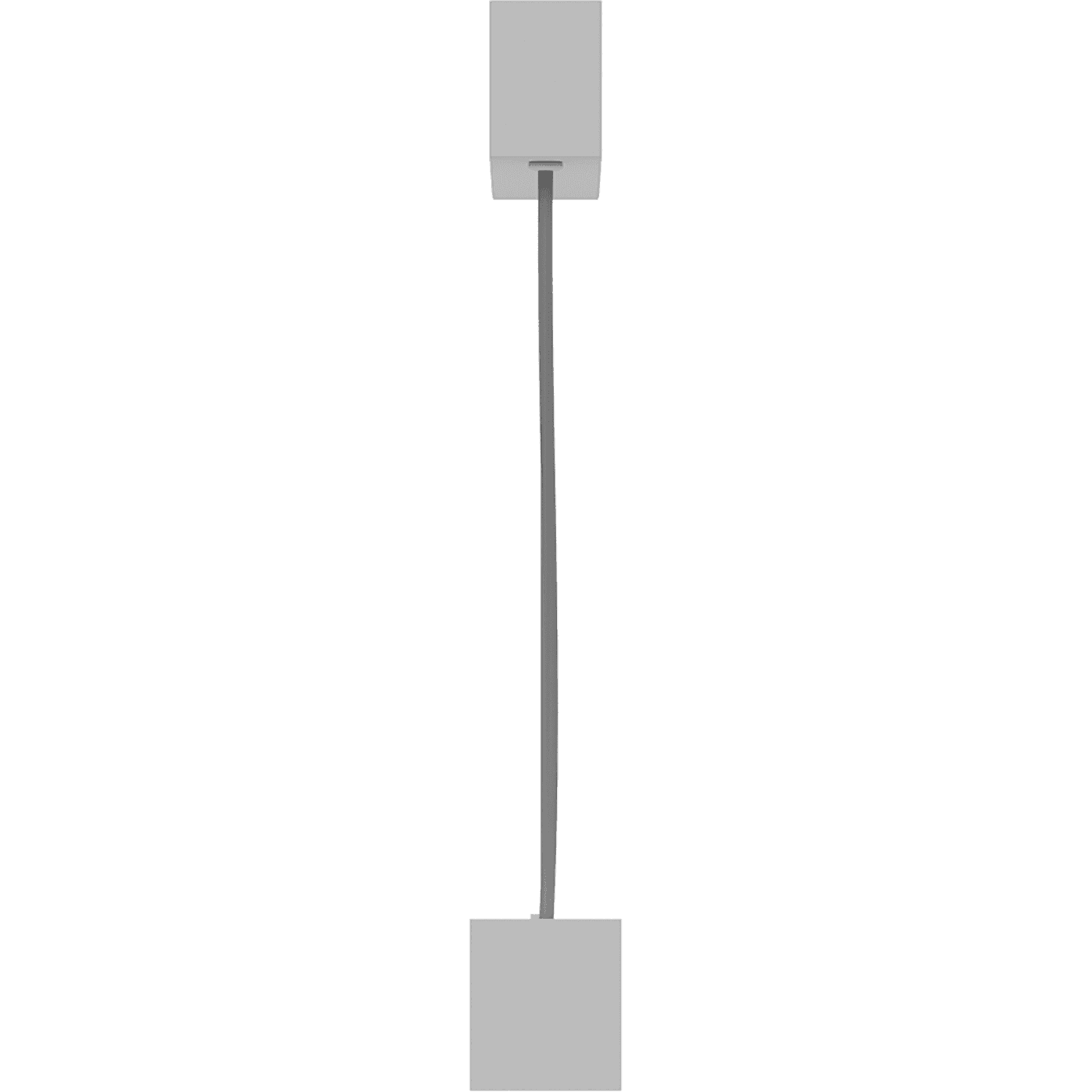

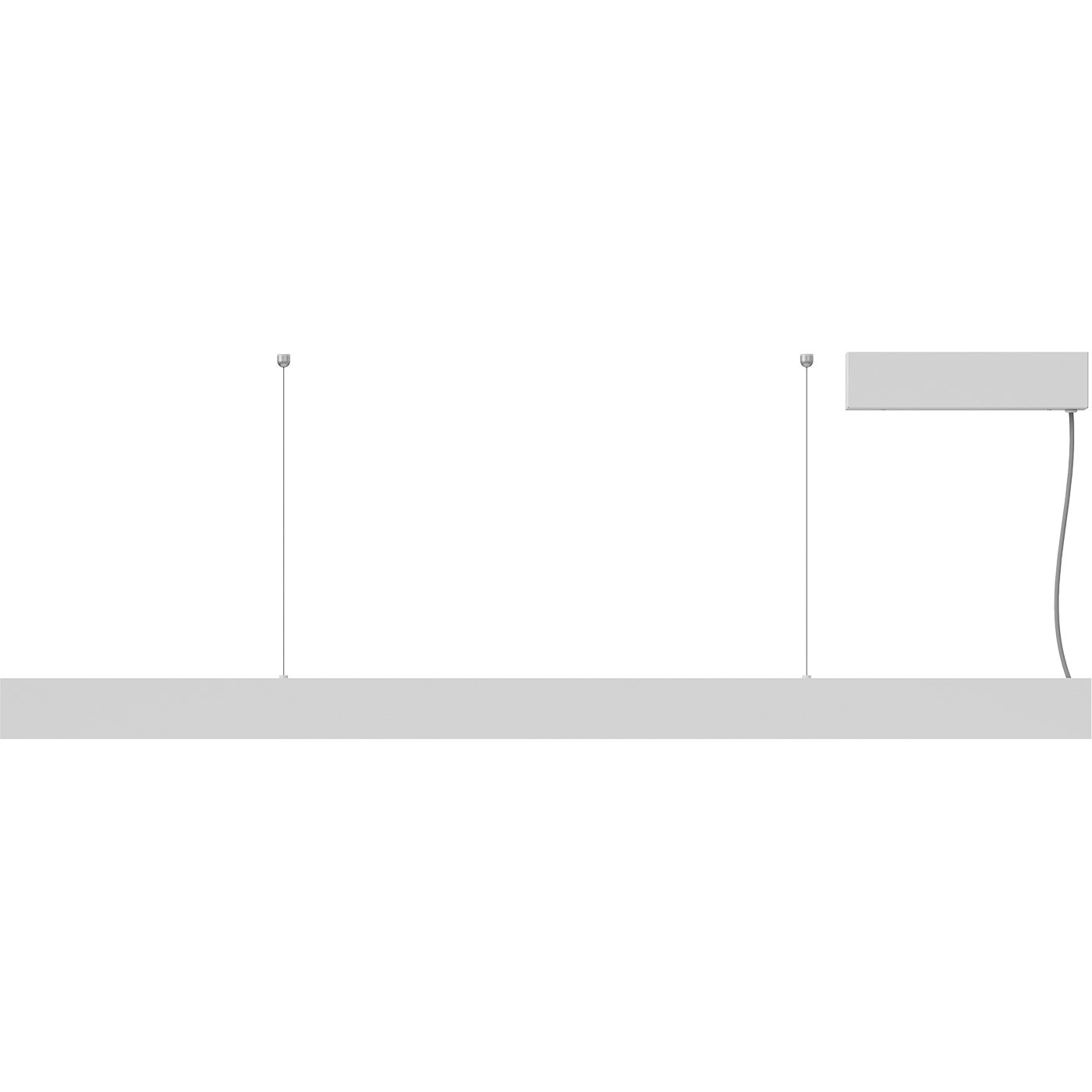

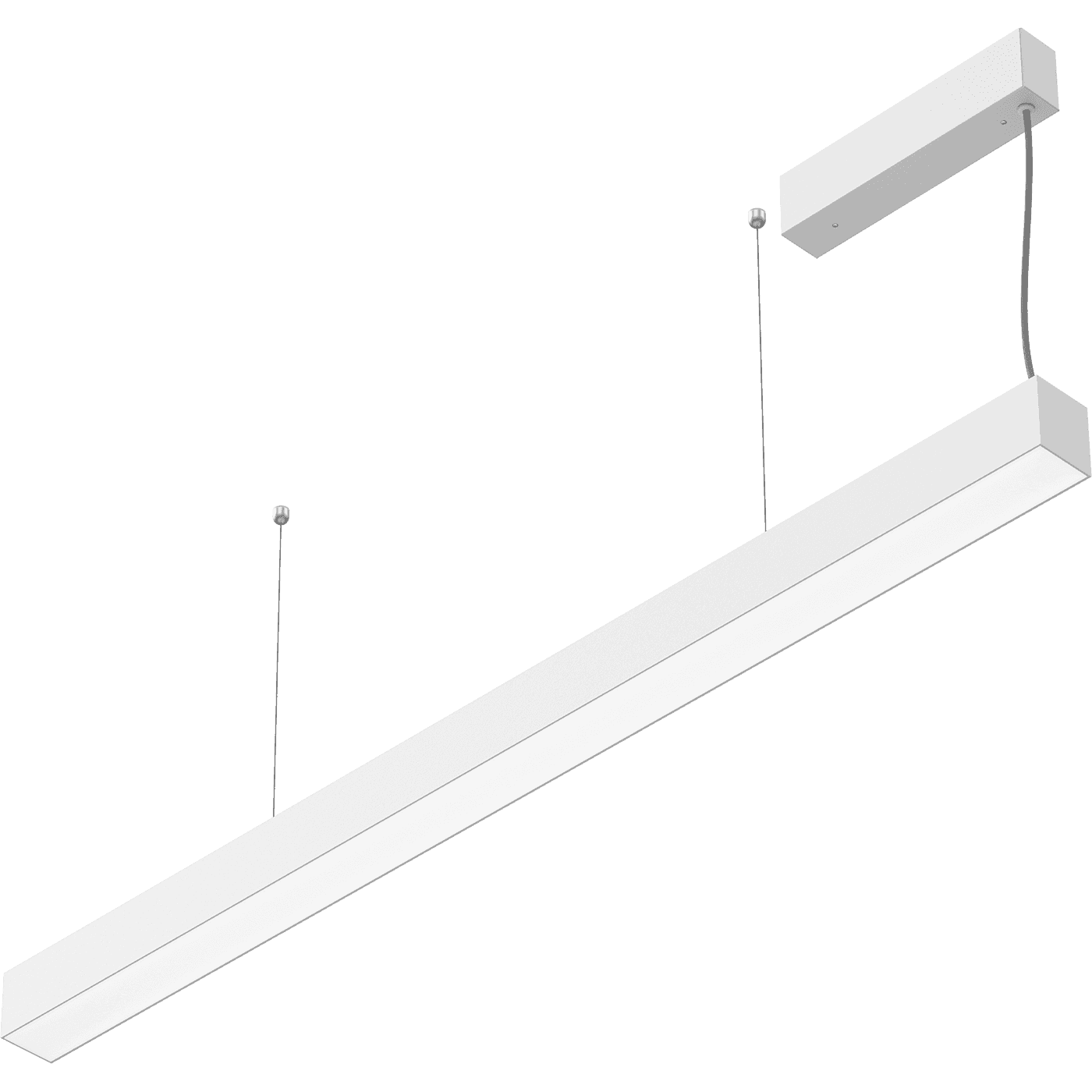

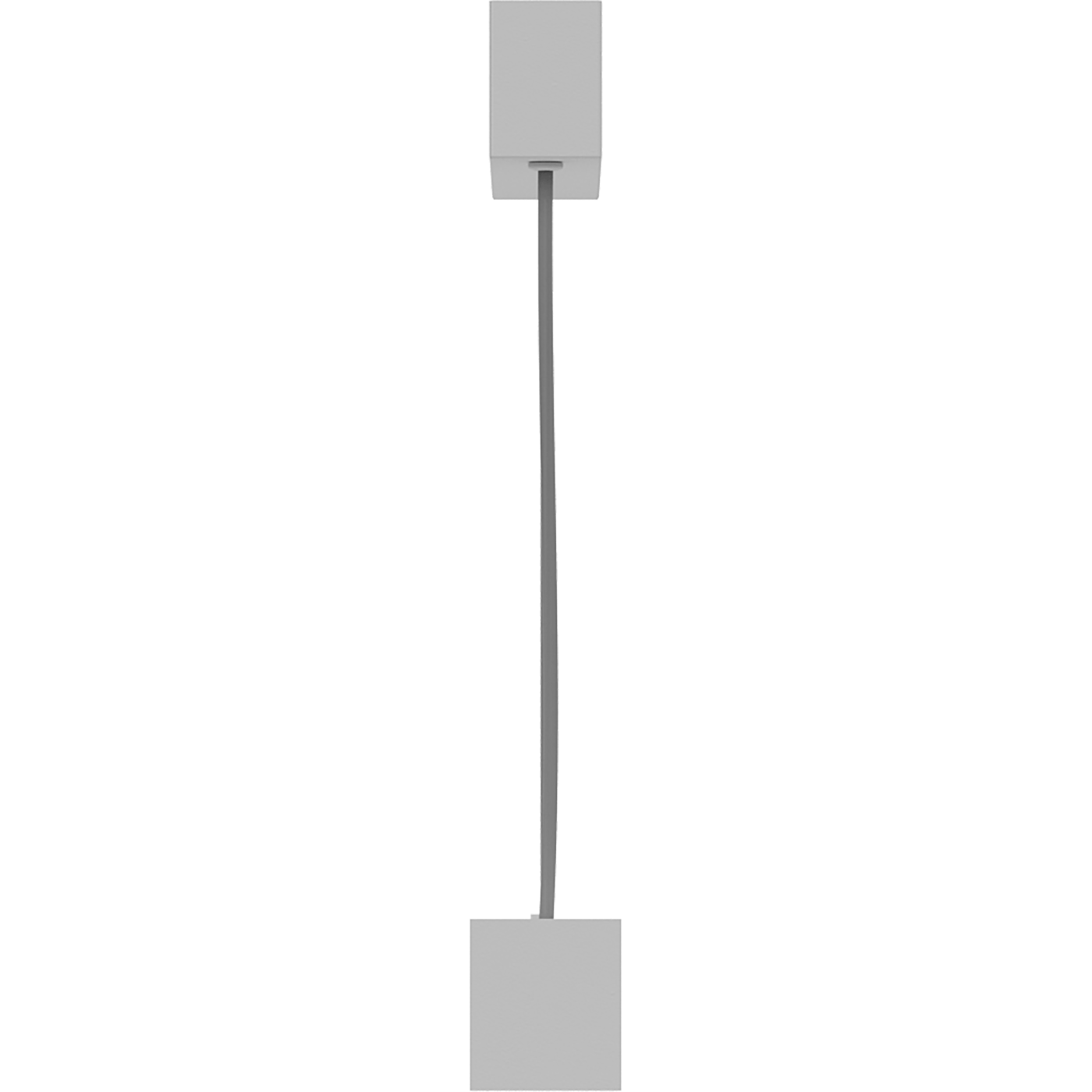

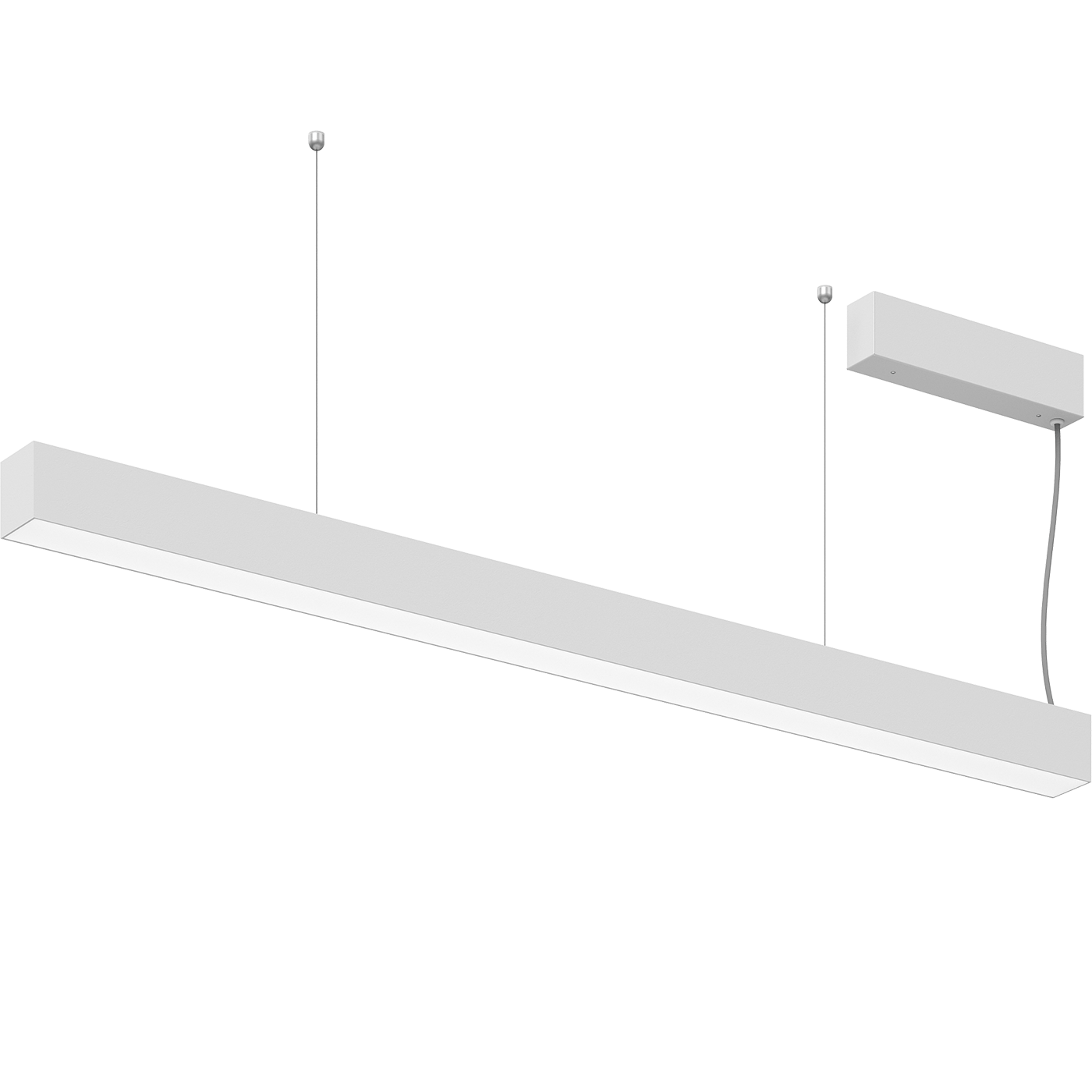

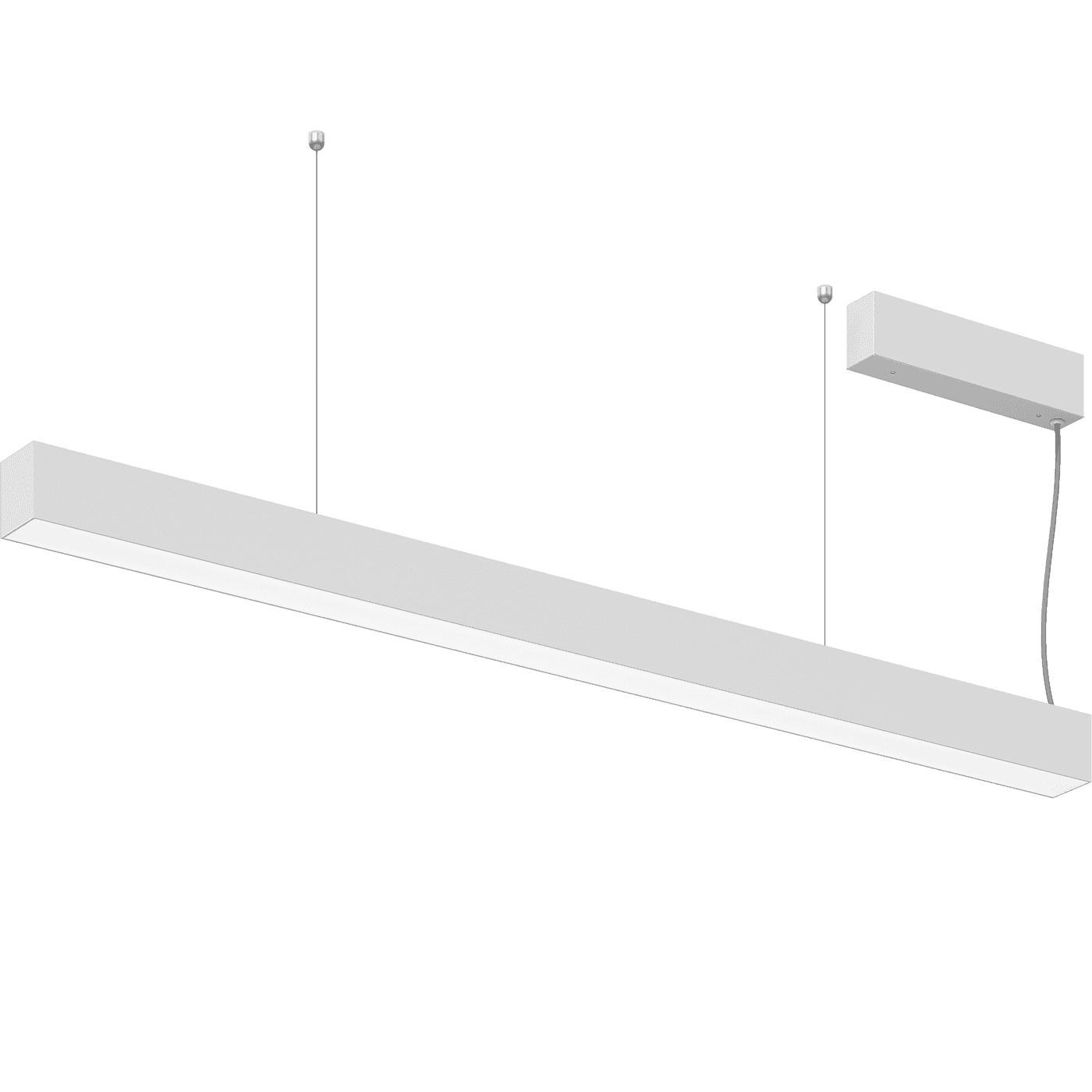

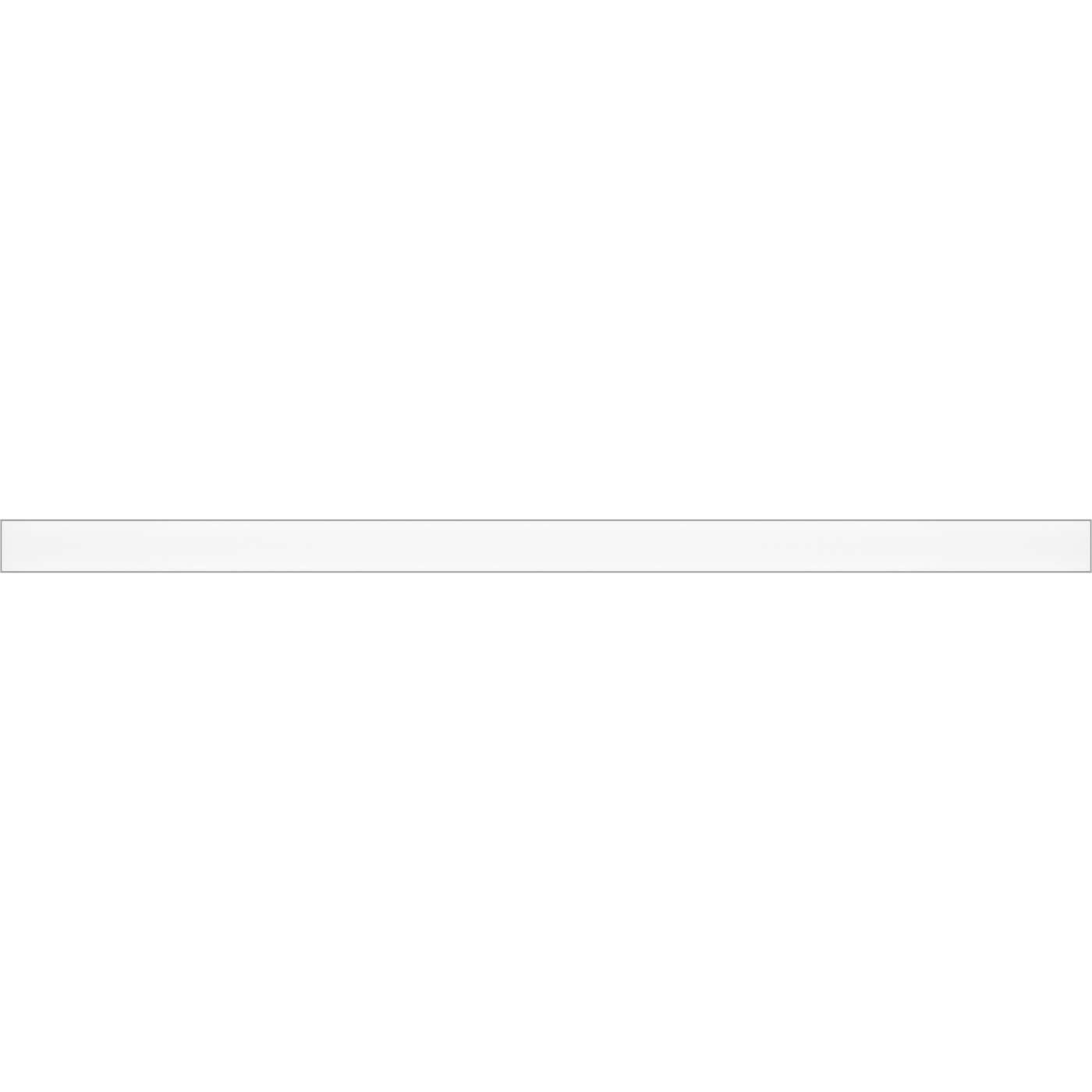

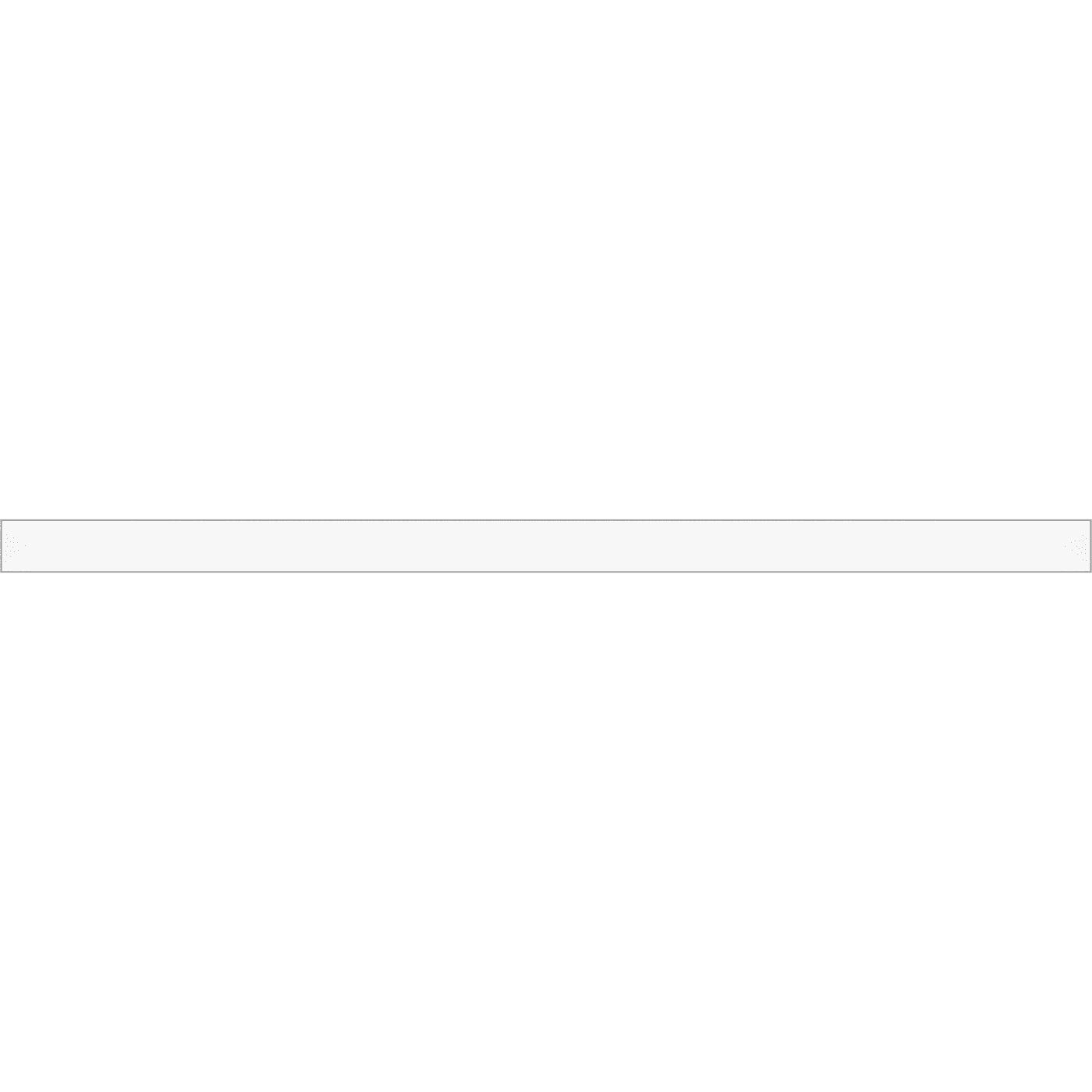

PROFILE 60L P DR LED 1800 4000K
archive
archive
PROFILE 60L P DR LED 1800 4000K
42 Wluminaire power
3800 lmlight flow
90 lm/Wenergy efficiency
code1248006500
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
42 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
42 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
weight
4.3 kg
length, mm
1814 mm
width, mm
60 mm
height, mm
68 mm
housing color
Металлик
installation length, mm
1500 mm
installation width, mm
235 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1248006500
illuminating
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
energy efficiency
90 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg116 kB
ldt165.9 kB
documents
passport1.3 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
