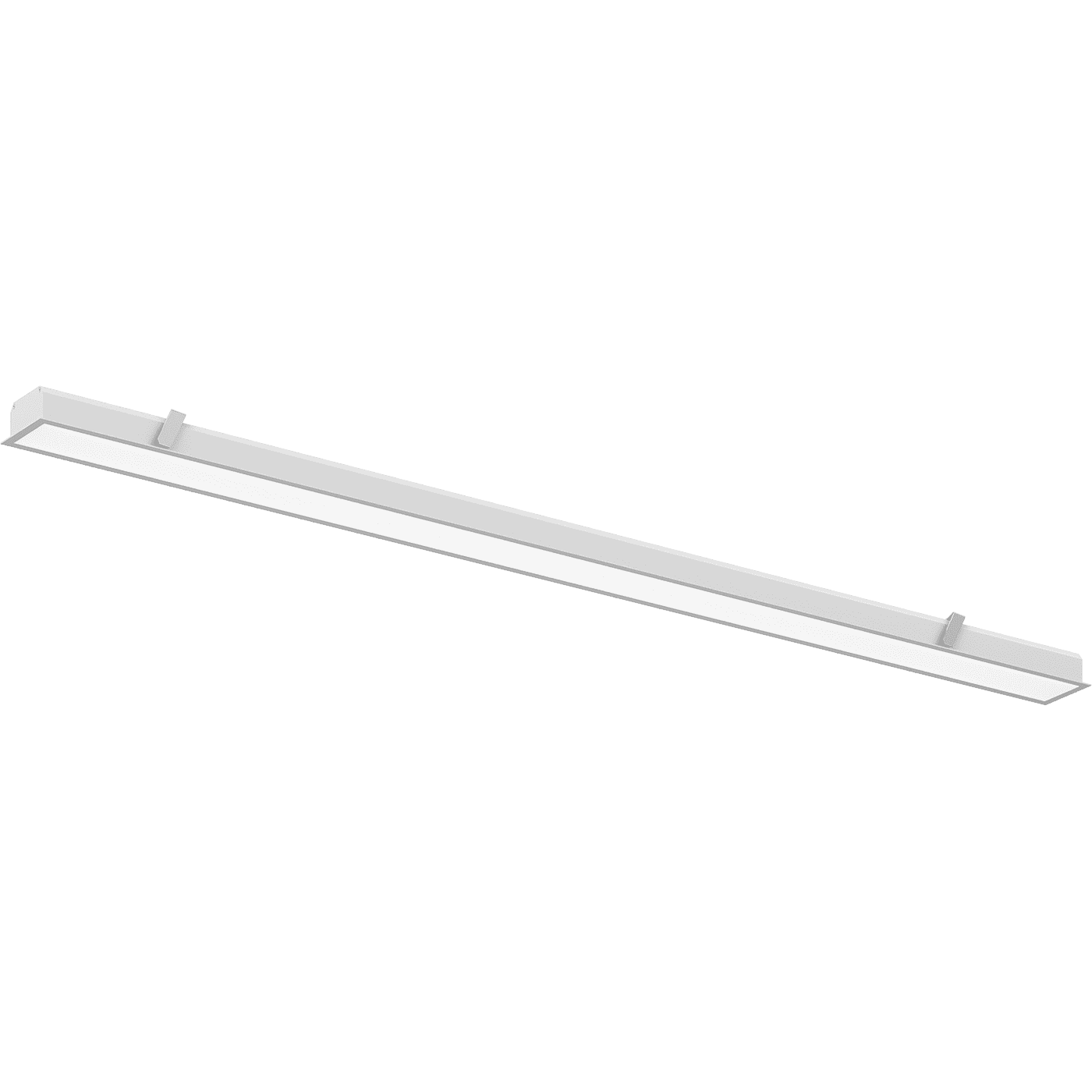

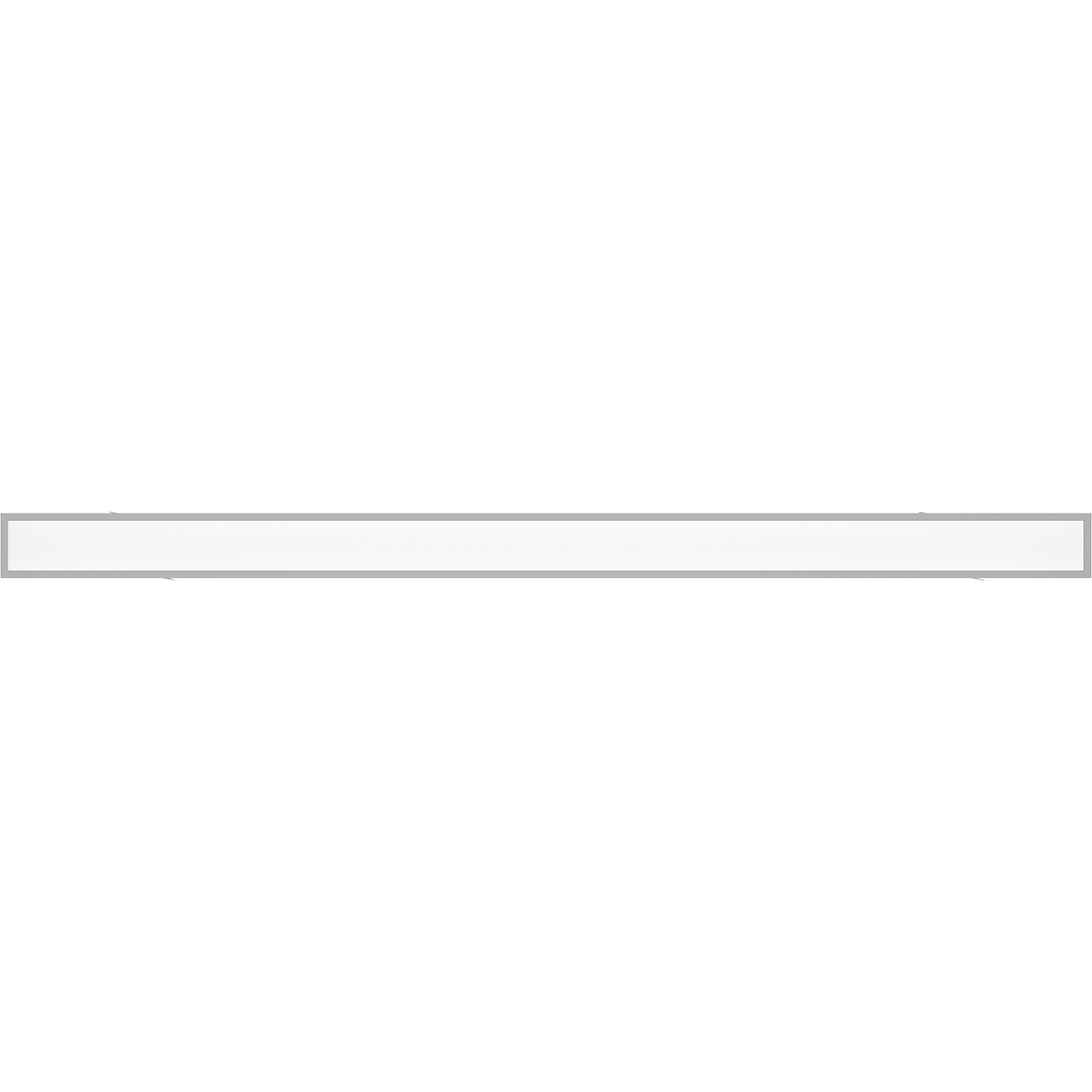

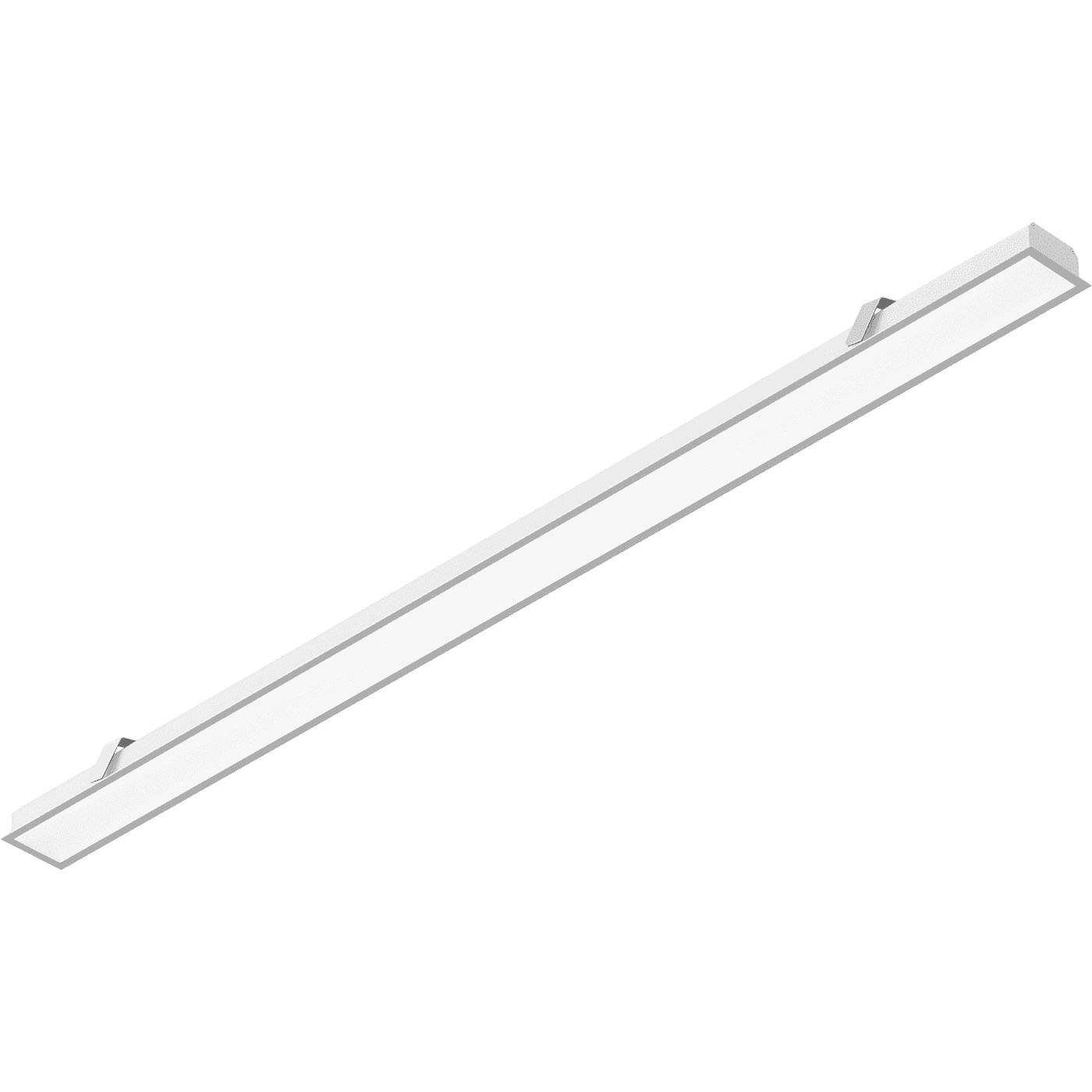

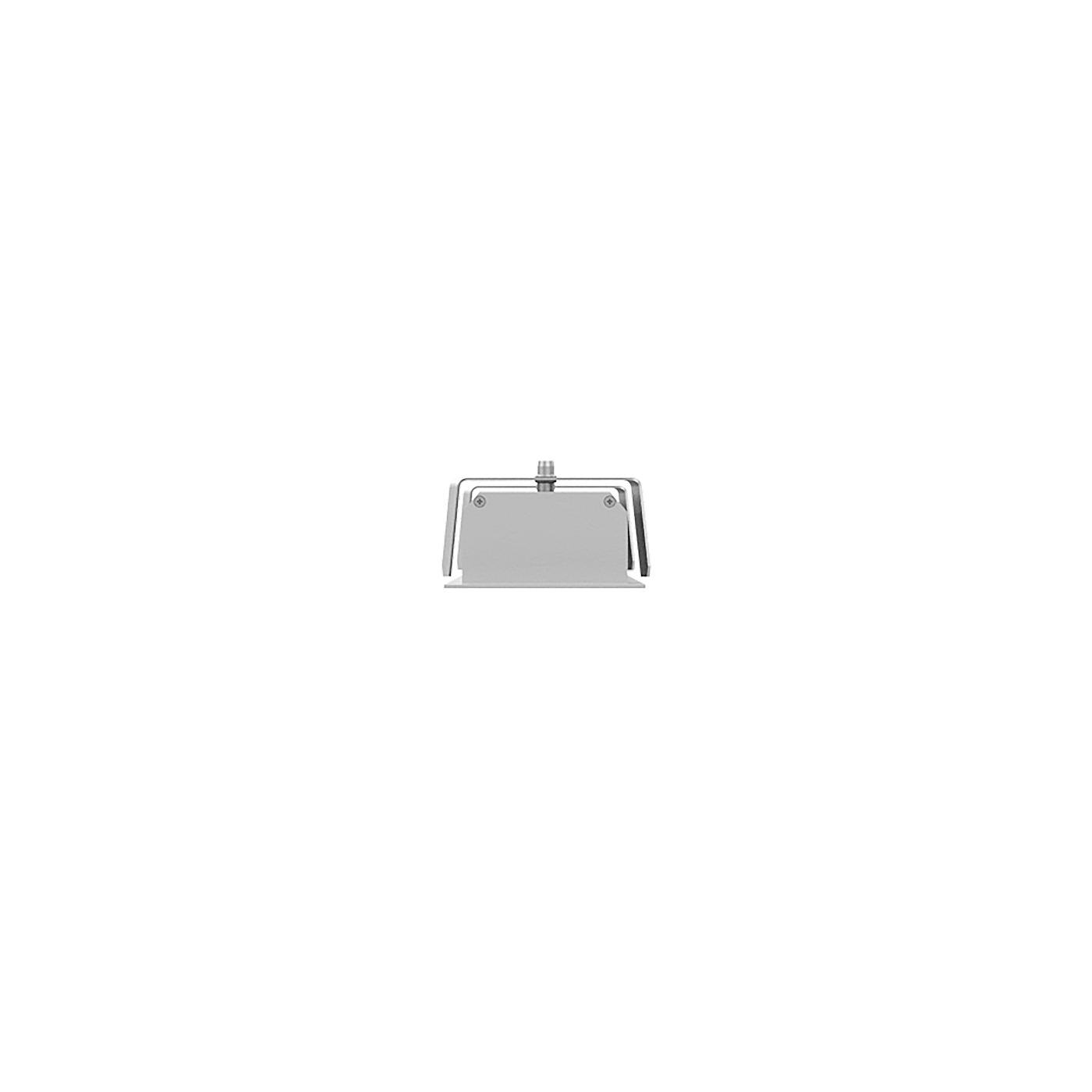

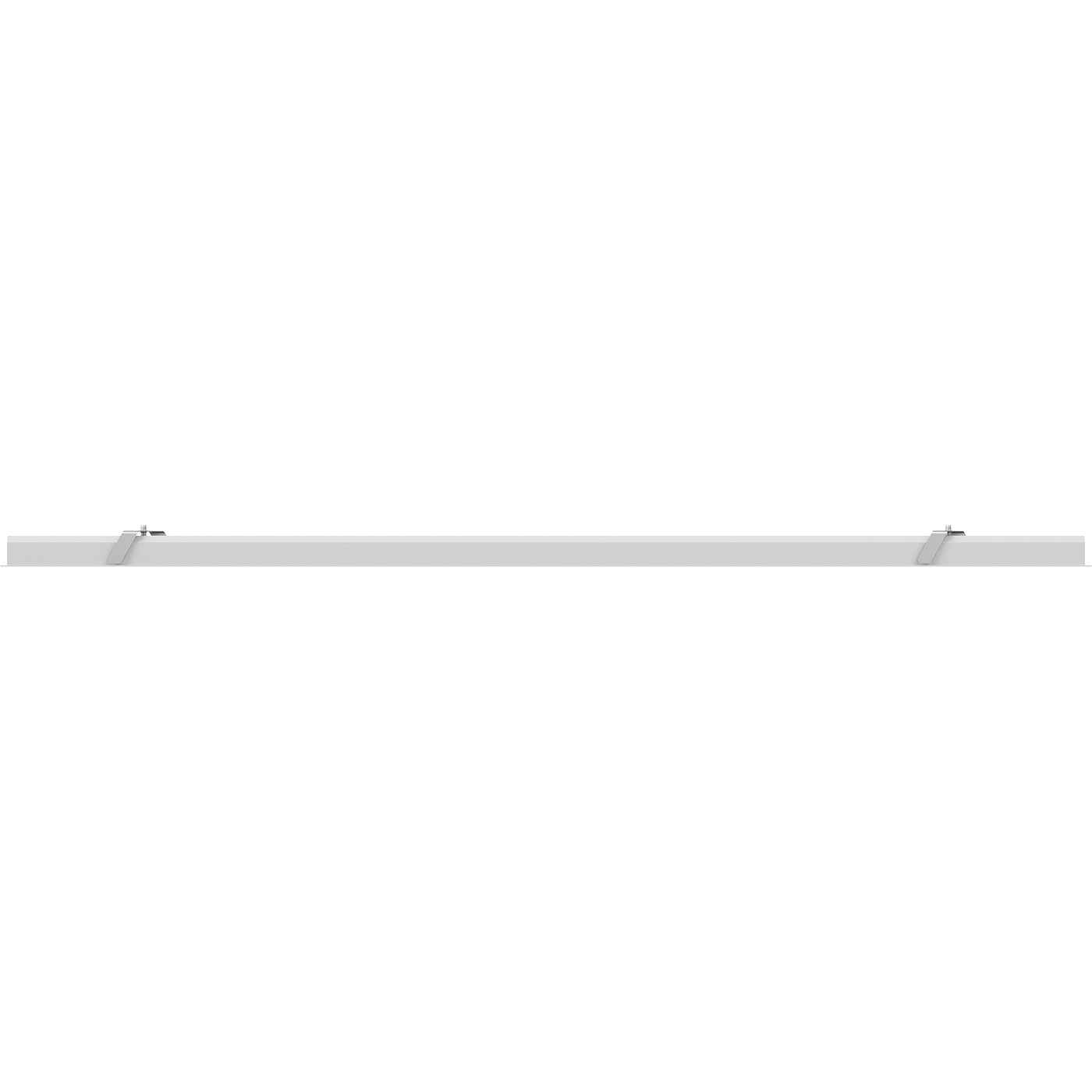

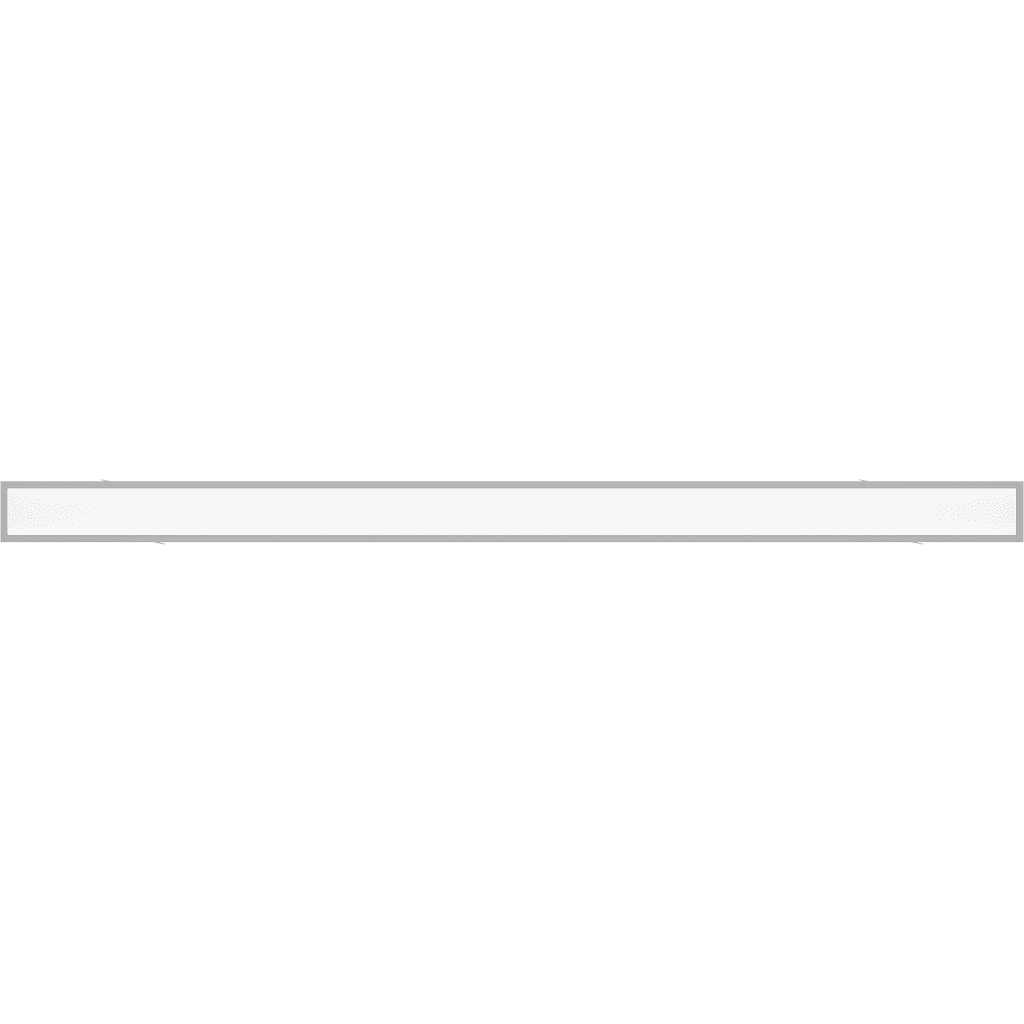

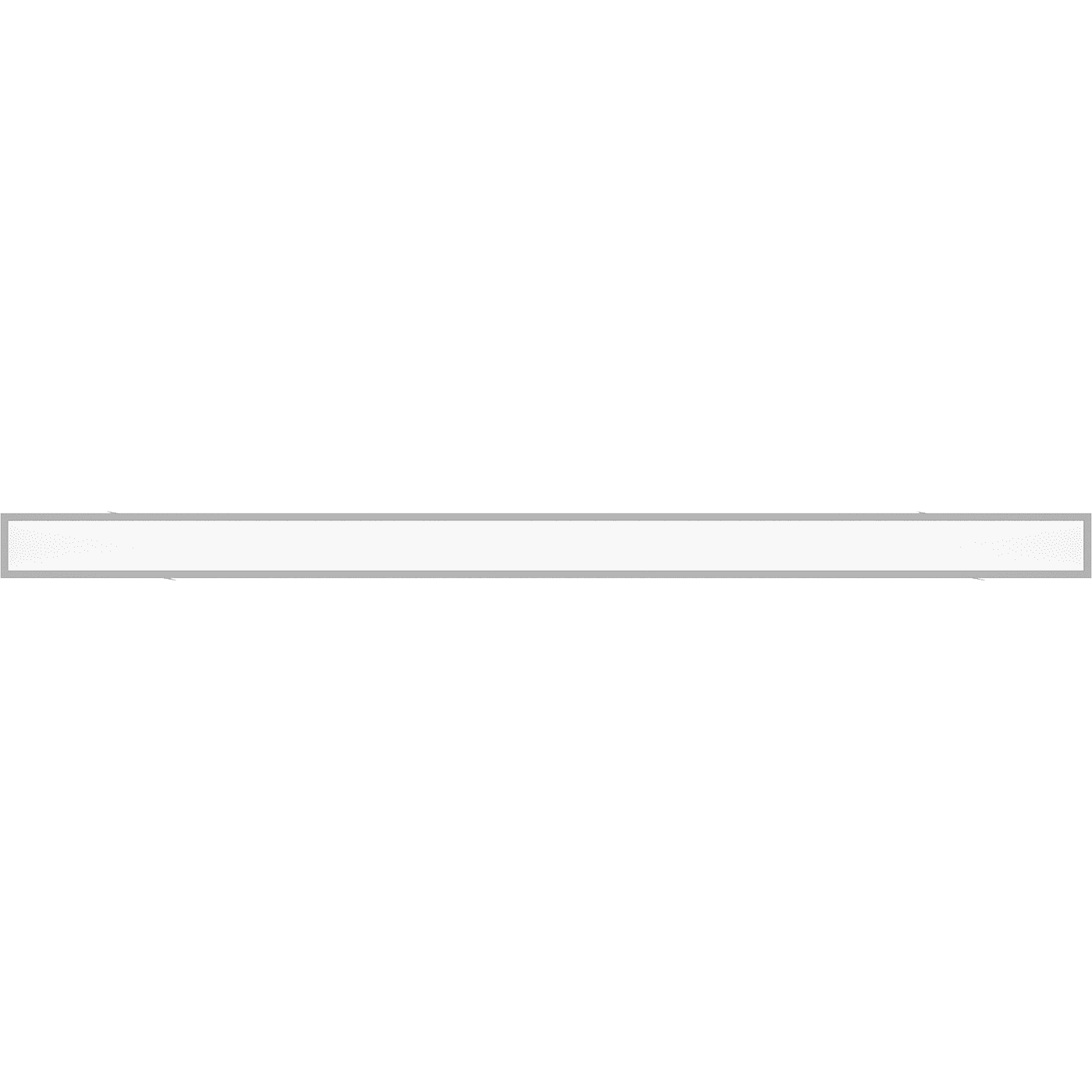

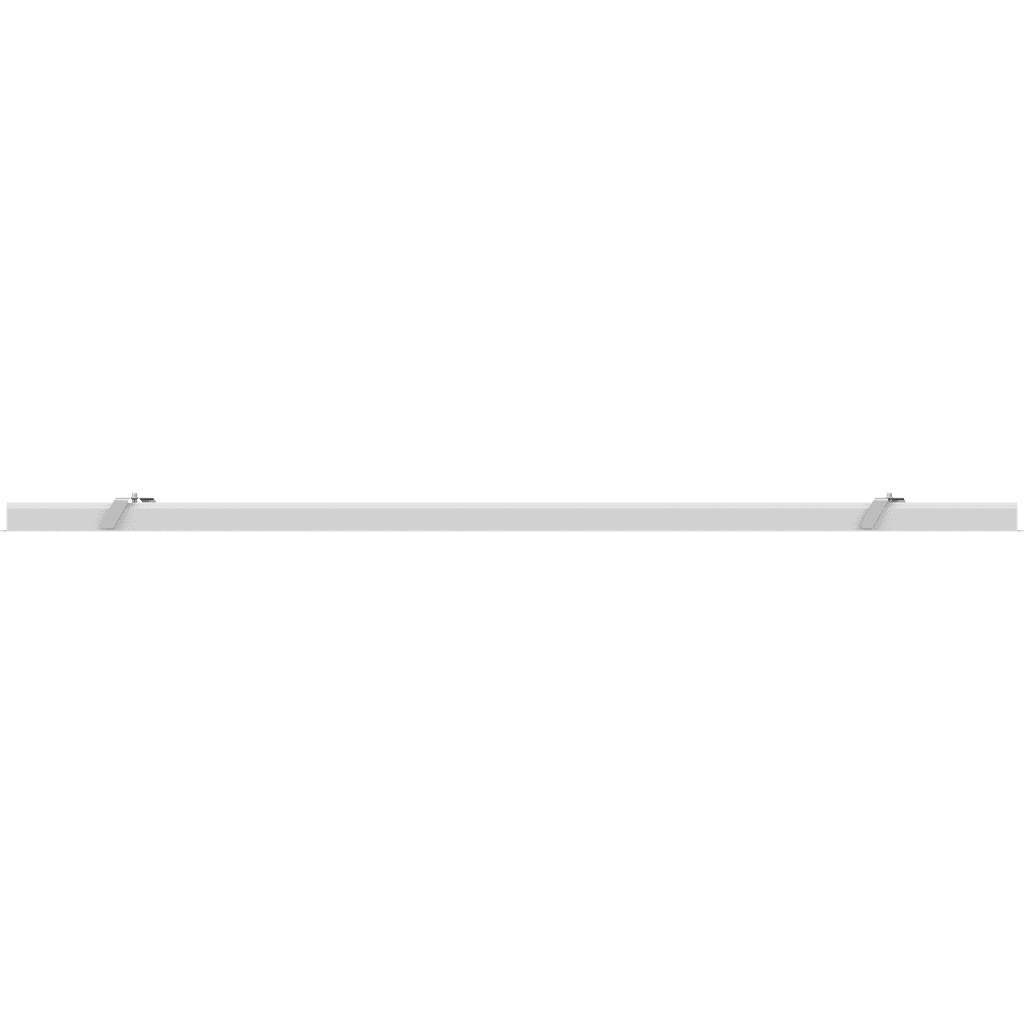

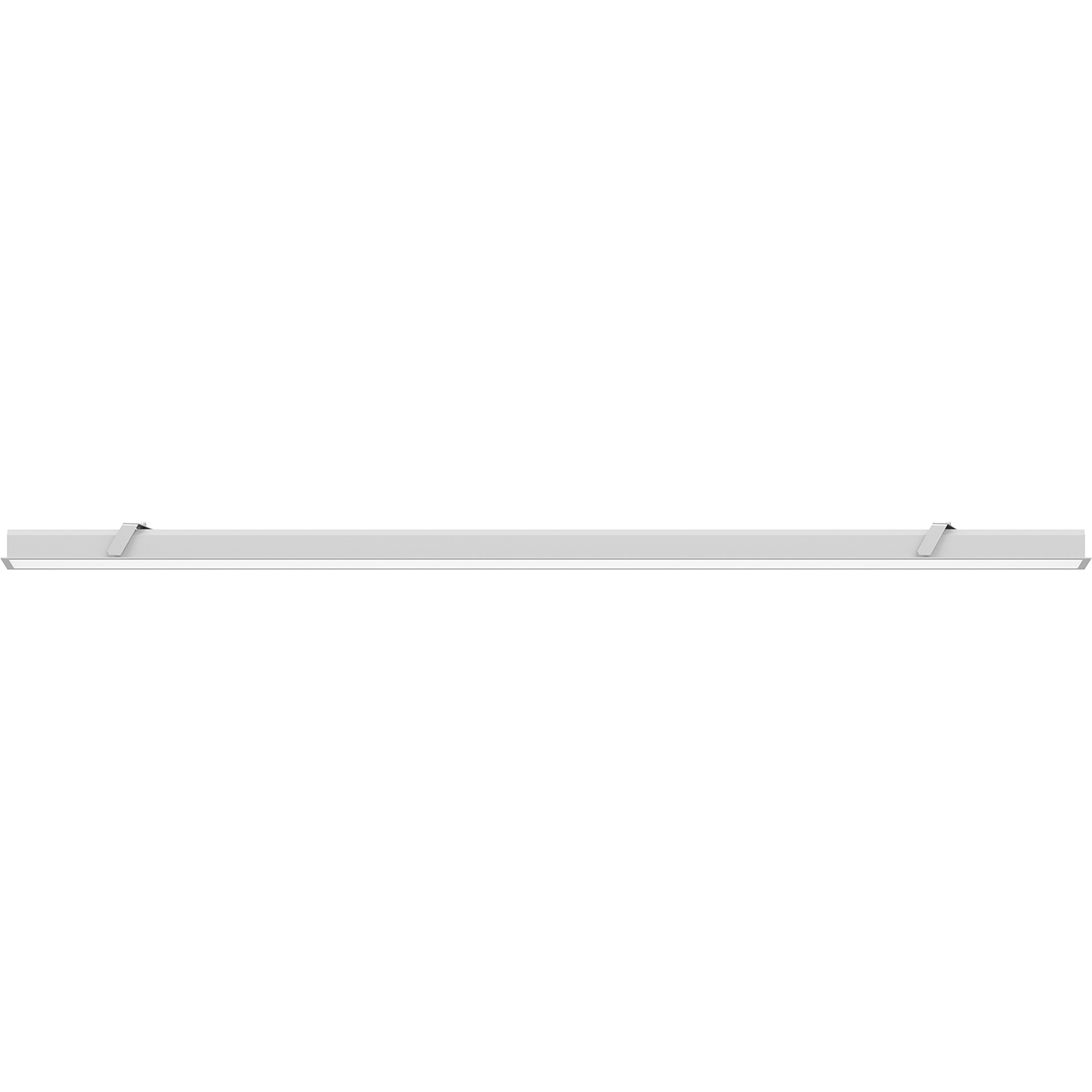

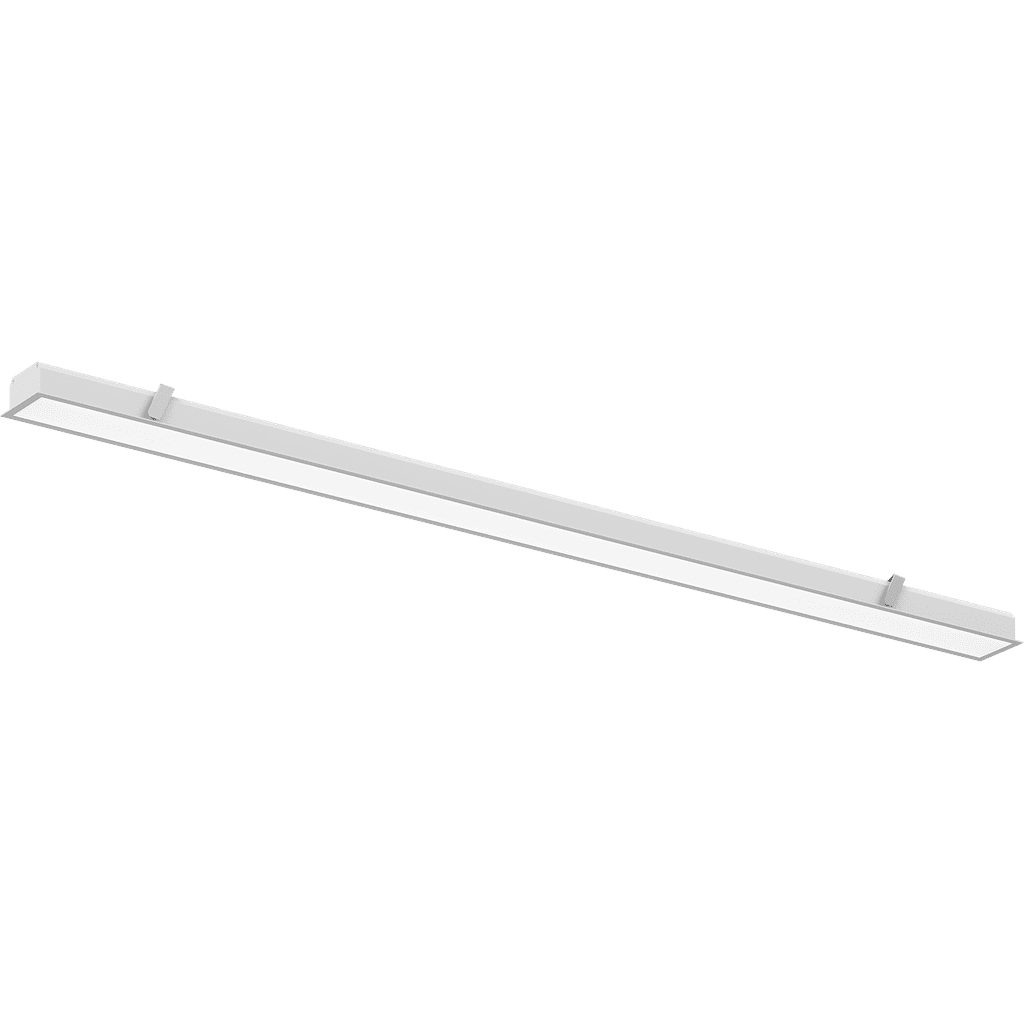

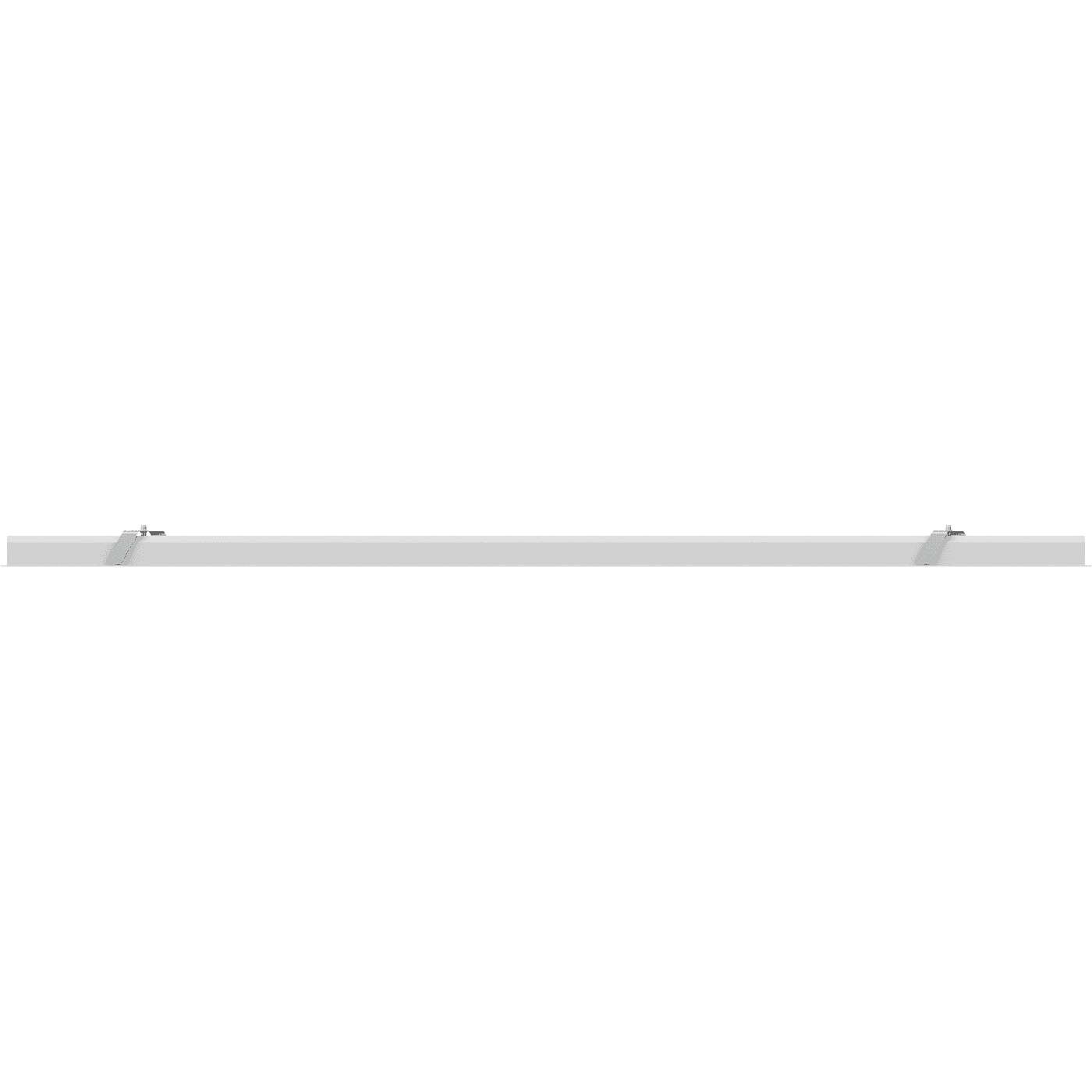

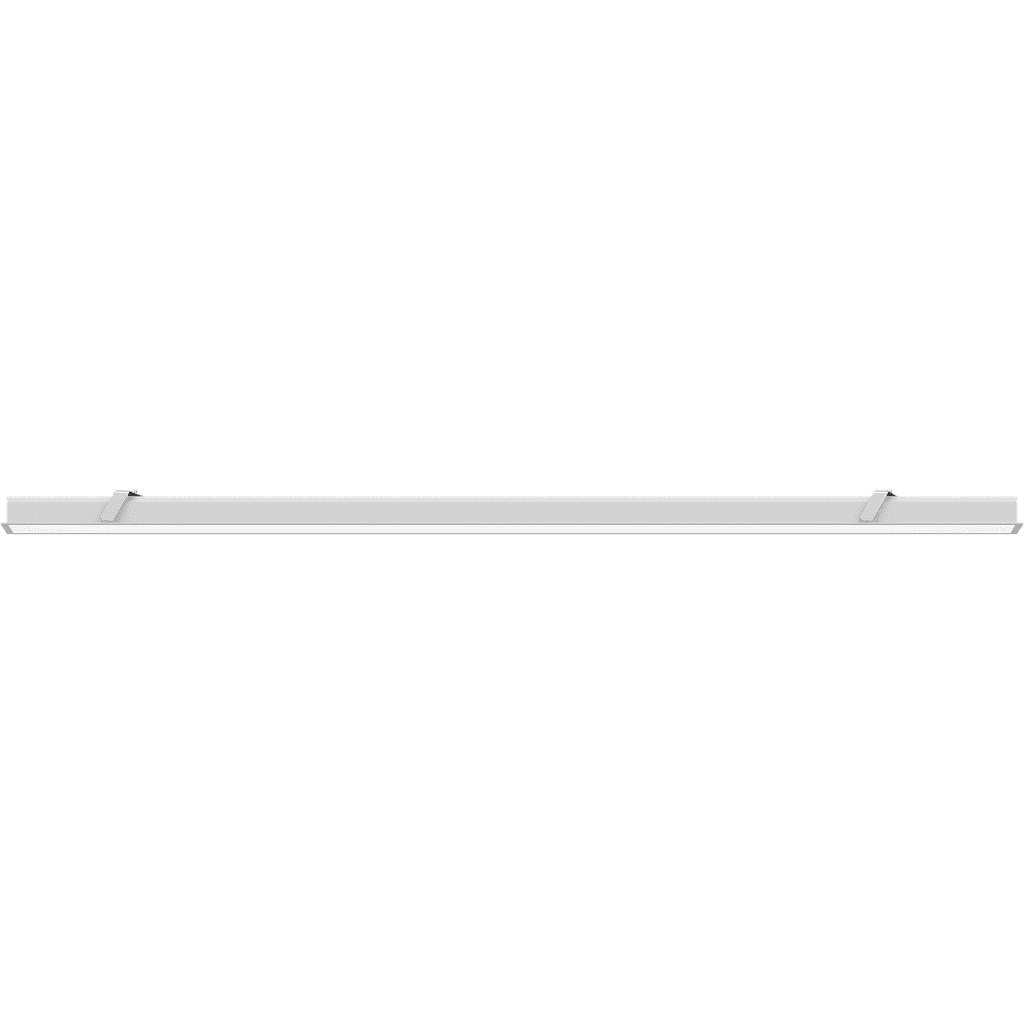

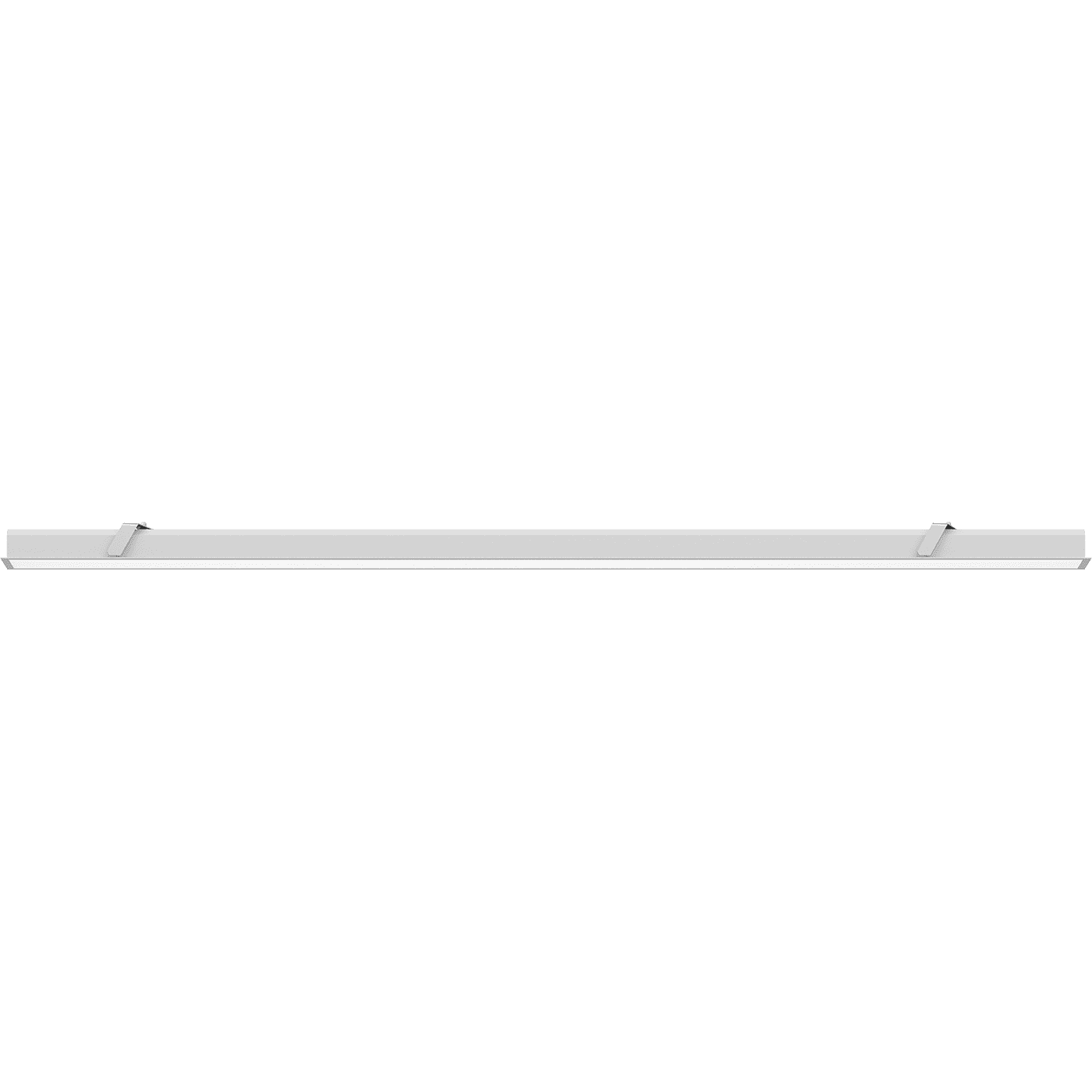

PROFILE 60R DR LED 2400 4000K
archive
archive
PROFILE 60R DR LED 2400 4000K
56 Wluminaire power
4500 lmlight flow
80 lm/Wenergy efficiency
code1248001830
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
80 lm/Wcolor rendition index (CRI)
>80light flow
4500 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
4500 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
56 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable, sq. mm
1.5
constructional
length, mm
2412 mm
width, mm
73 mm
height, mm
35 mm
installation length, mm
2420 mm
installation width, mm
64 mm
weight
5.9 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Настенно-потолочный светильник
code
1248001830
model files
model files

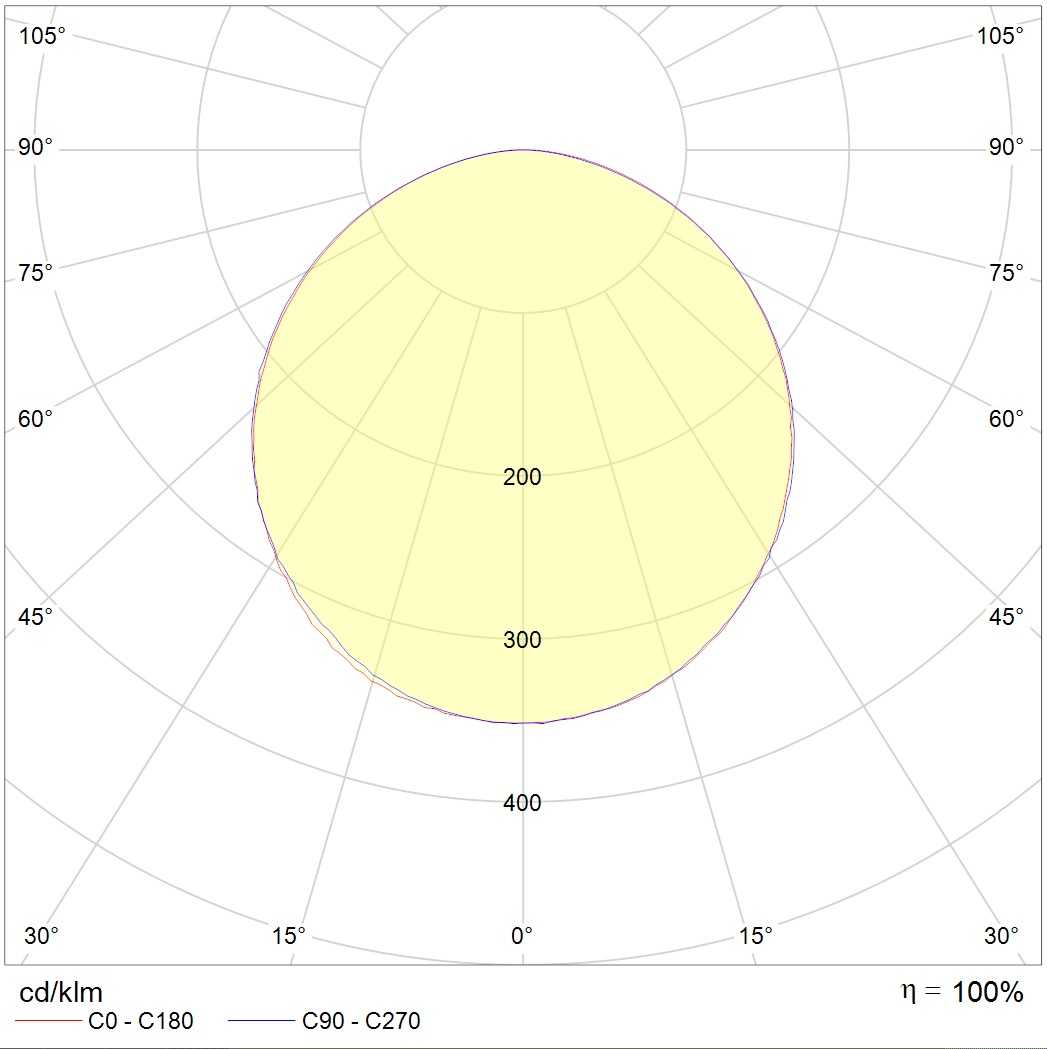

photometric files
сертификаты
photometric files
ies263.2 kB
jpg116 kB
ldt165.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
PROFILE 60 end cap (set of 2 pcs)0.028kgarticle: 2398000060
Diffusor LINER LED TH 13500 mm (in package)1.65kgarticle: 2473000100
Diffusor LINER LED TH 9000 mm (in package)1.1kgarticle: 2473000090
