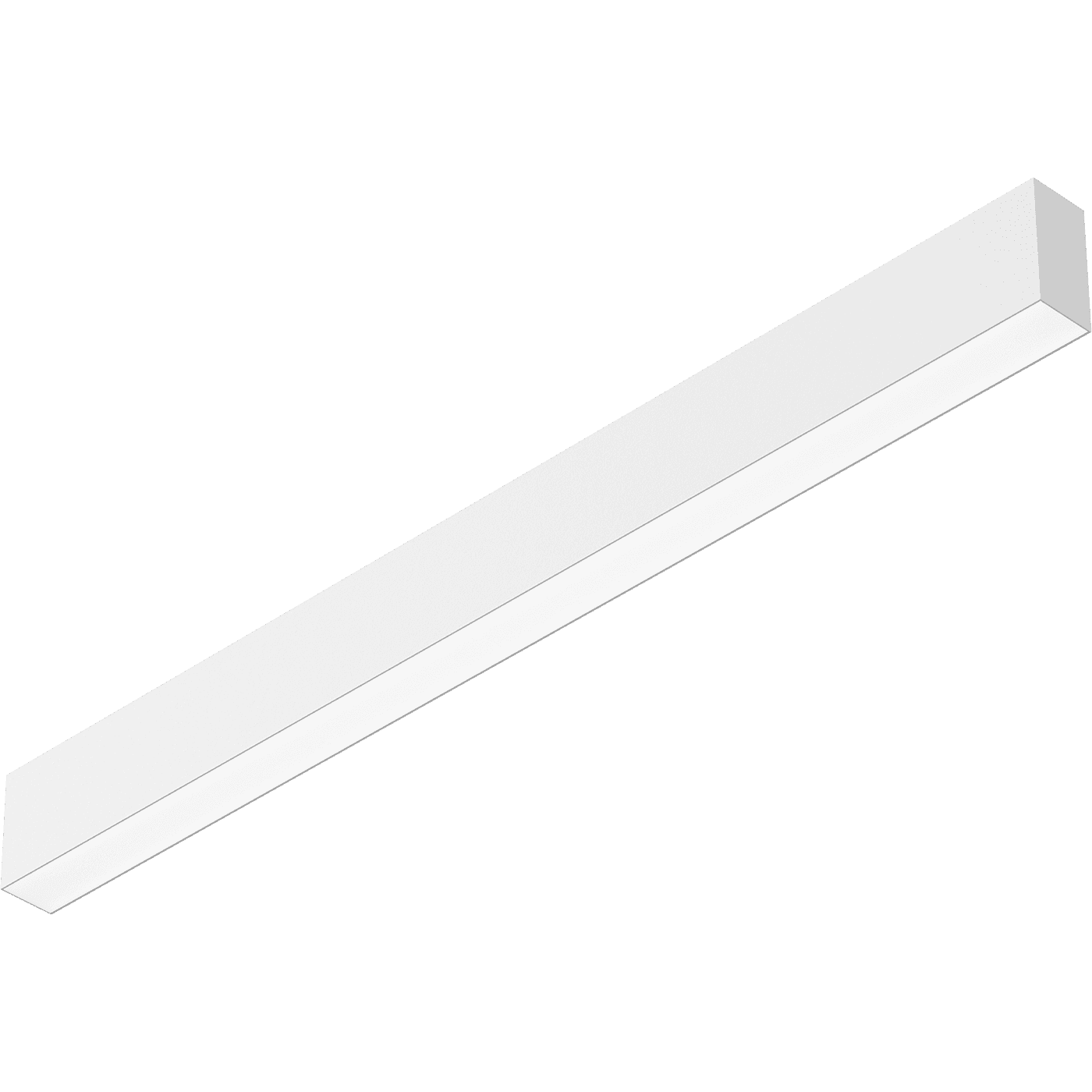

PROFILE 60H S LED 1200 WH IP54/IP20 4000K (high lumen)

PROFILE 60H S LED 1200 WH IP54/IP20 4000K (high lumen)
add to favorites
76 Wluminaire power
3400 lmlight flow
45 lm/Wenergy efficiency
code1248008320
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. suspended
  6. PROFILE SYSTEM
  7. PROFILE 60H S LED 1200 WH IP54/IP20 4000K (high lumen)
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
76 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
76 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP54/IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
2.95 kg
length, mm
1200 mm
width, mm
100 mm
height, mm
90 mm
housing color
Белый
installation length, mm
1212 mm
installation width, mm
100 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
B
service life, hour
50 000 h
code
1248008320
illuminating
color rendition index (CRI)
>80
light flow
3400 lm
flickering factor
<5%
energy efficiency
45 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

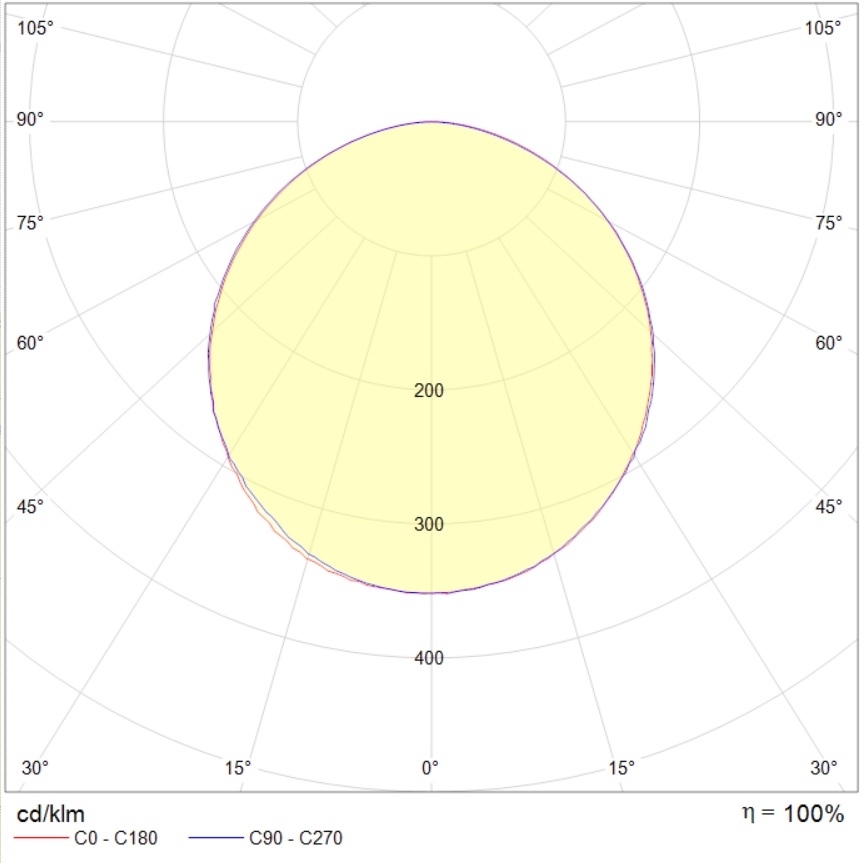

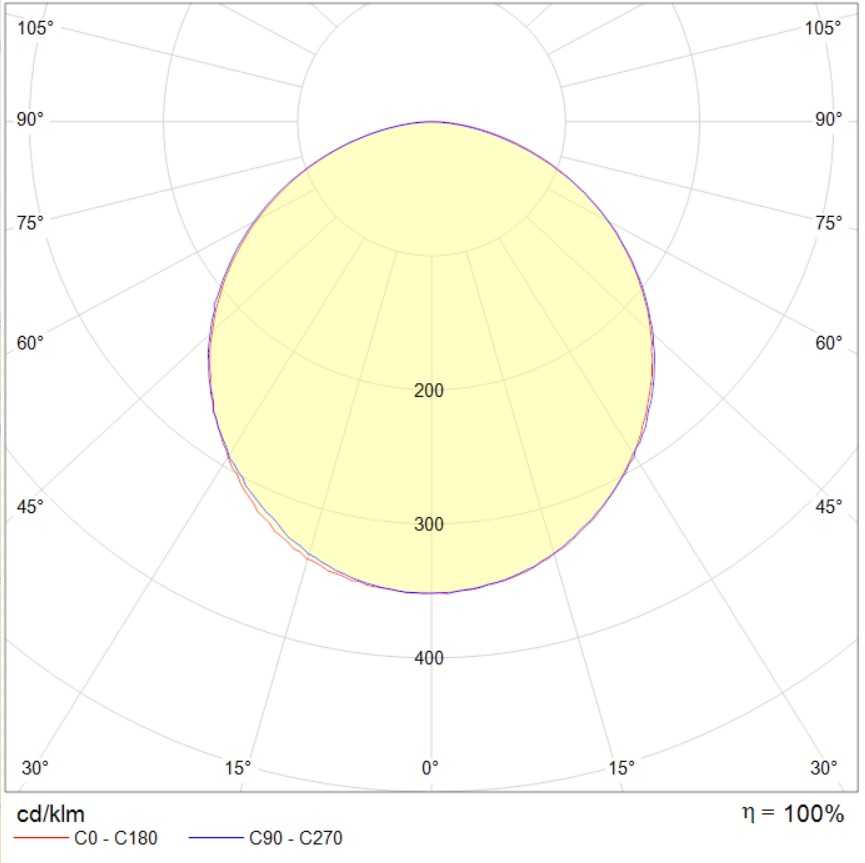

photometric files
ies263.2 kB
jpg77.9 kB
ldt165.9 kB
documents
passport281.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011528.7 kB
Declaration of Conformity EAEU TR 037/2016533.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies263.2 kB
jpg77.9 kB
ldt165.9 kB
documents
passport281.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011528.7 kB
Declaration of Conformity EAEU TR 037/2016533.3 kB
Fire Safety Certificate2.5 mB
