PROTON LED Exd-C009 ВЫХОД ПРЯМО ВНИЗ Б/З

PROTON LED Exd-C009 ВЫХОД ПРЯМО ВНИЗ Б/З
add to favorites
4 Wluminaire power
30 lmlight flow
8 lm/Wenergy efficiency
code1389000620
color temperature10350
old namePROTON LED Exd-C009
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. PROTON LED Exd
  8. PROTON LED Exd-C009 ВЫХОД ПРЯМО ВНИЗ Б/З
options
свернуть все
electricalconstructionalcommonilluminatingemergency
luminaire power
4 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,50
supply voltage
230 V
electrical
luminaire power
4 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,50
supply voltage
230 V
constructional
weight
5.15 kg
ingress protection (IP)
IP66
climatic performance
УХЛ1
fire safety class
П-ІІа
material
Сплав алюминиевый
length, mm
410 mm
width, mm
320 mm
height, mm
110 mm
housing color
Серый
shock resistance (IK)
IK08/7 Дж
installation width, mm
200 mm
common
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от 0 до +55 C
energy efficiency class
C
code
1389000620
illuminating
light flow
30 lm
color rendition index (CRI)
>75
flickering factor
<5%
energy efficiency
8 lm/W
color temperature
10350
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
30 lm
model files
model files

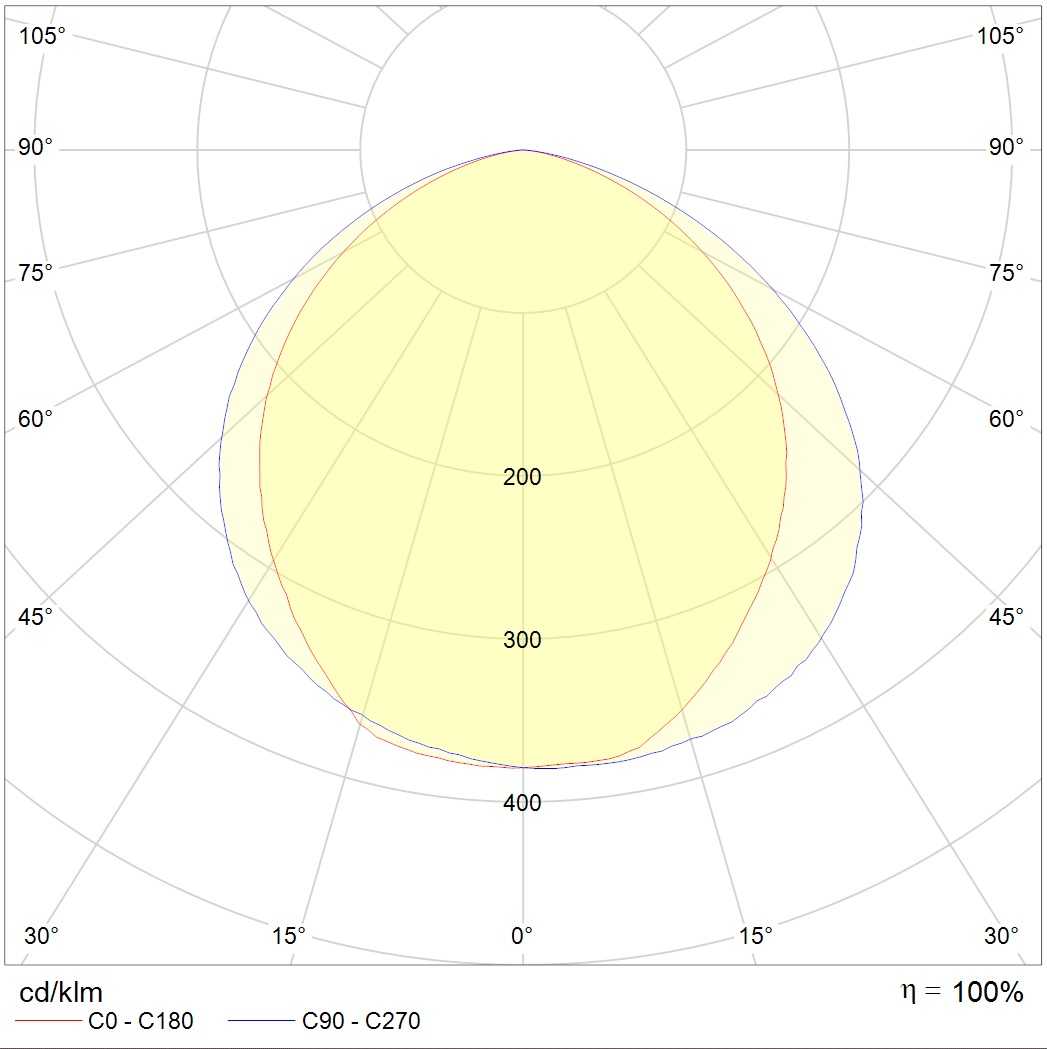

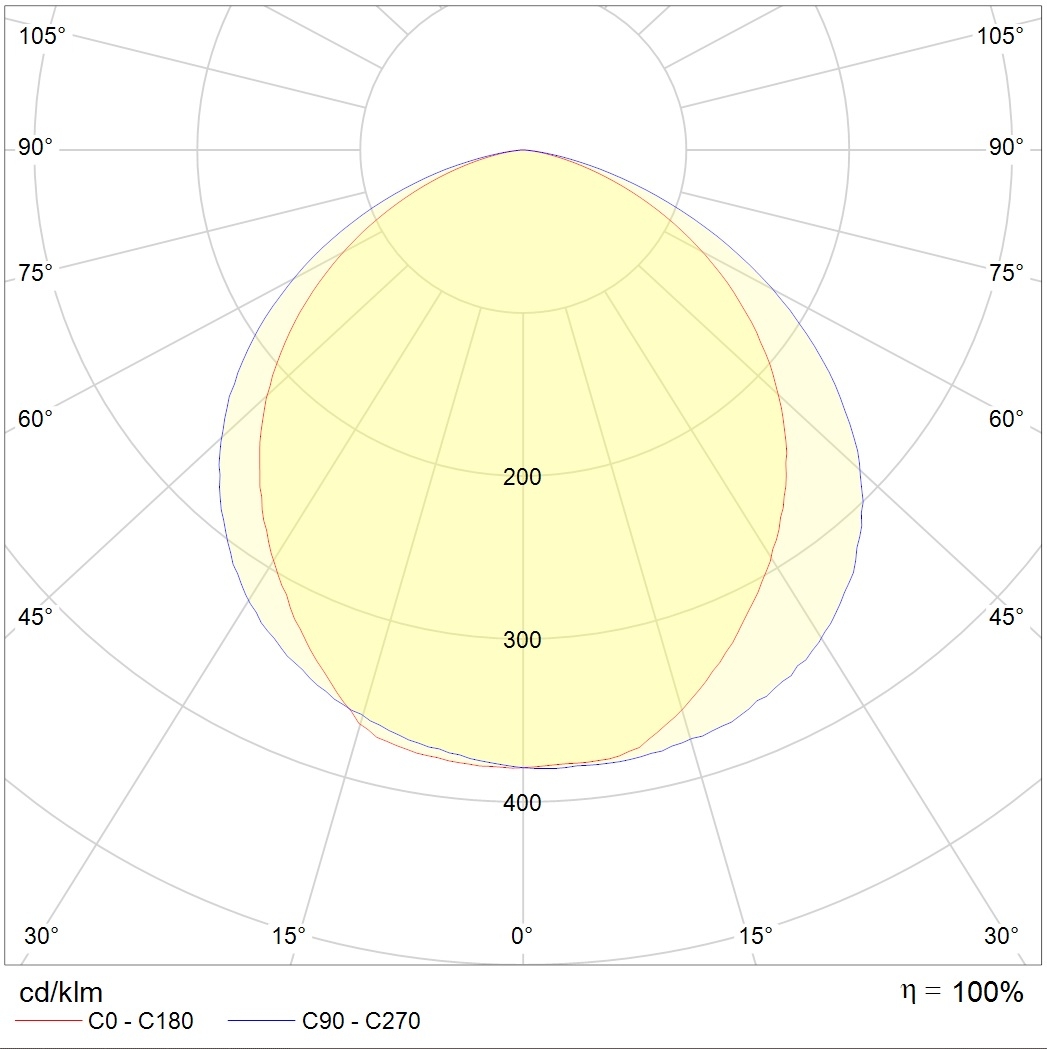

photometric files
ies263.3 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
photometric files
ies263.3 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
