PROTON LED Exd-C013 ПОЖАР Б/К

PROTON LED Exd-C013 ПОЖАР Б/К
add to favorites
4 Wluminaire power
30 lmlight flow
8 lm/Wenergy efficiency
code1389000640
color temperature10350
old namePROTON LED Exd-C013
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. PROTON LED Exd
  8. PROTON LED Exd-C013 ПОЖАР Б/К
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белый
light source type
LED
light flow
30 lm
color rendition index (CRI)
>75
flickering factor
<5%
energy efficiency
8 lm/W
color temperature
10350
illuminating
emission color
Белый
light source type
LED
light flow
30 lm
color rendition index (CRI)
>75
flickering factor
<5%
energy efficiency
8 lm/W
color temperature
10350
electrical
luminaire power
4 W
electric shock protection
I
power factor
> 0,50
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length, mm
410 mm
width, mm
320 mm
height, mm
110 mm
installation width, mm
200 mm
material
Сплав алюминиевый
housing color
Серый
weight
5.15 kg
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
30 lm
common
code
1389000640
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
C
temperature range
от 0 до +55 C
model files
model files

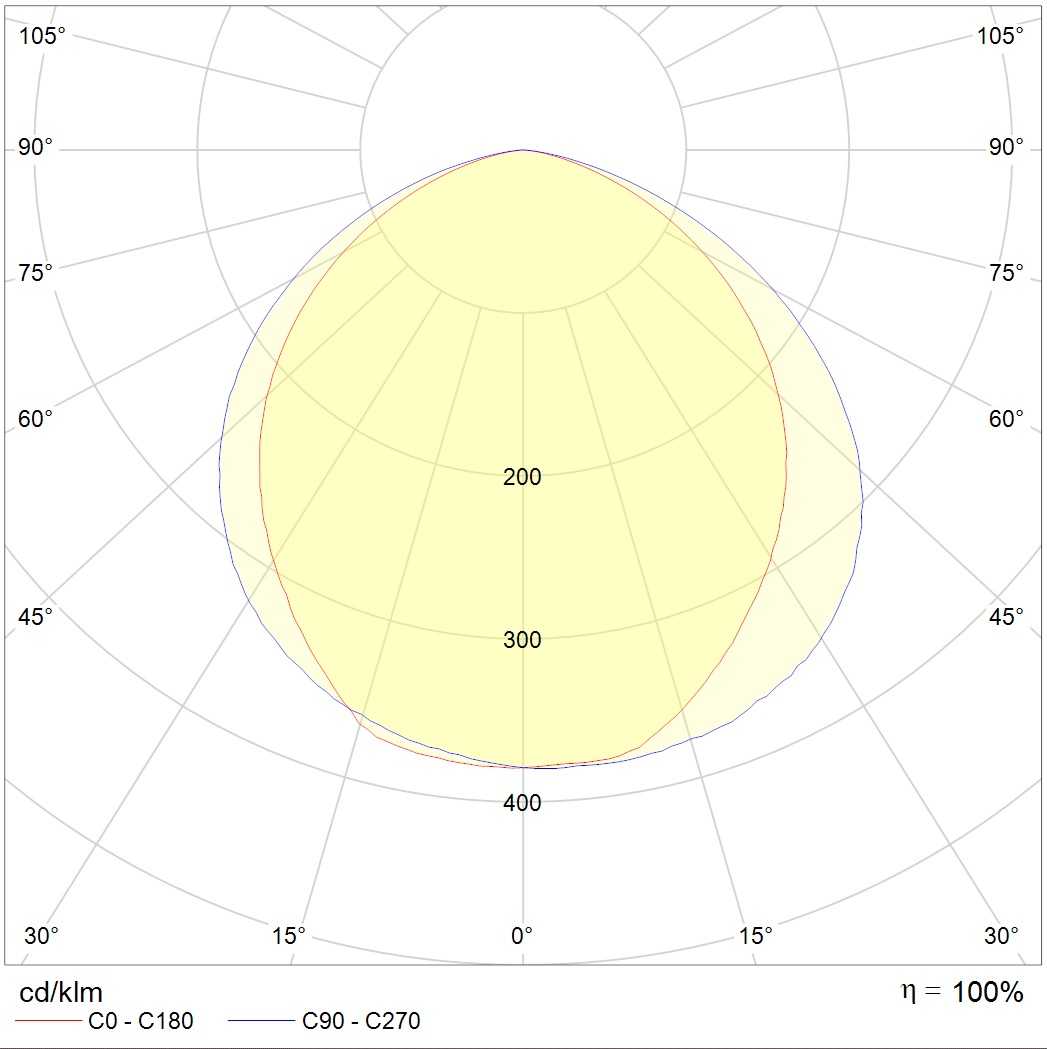

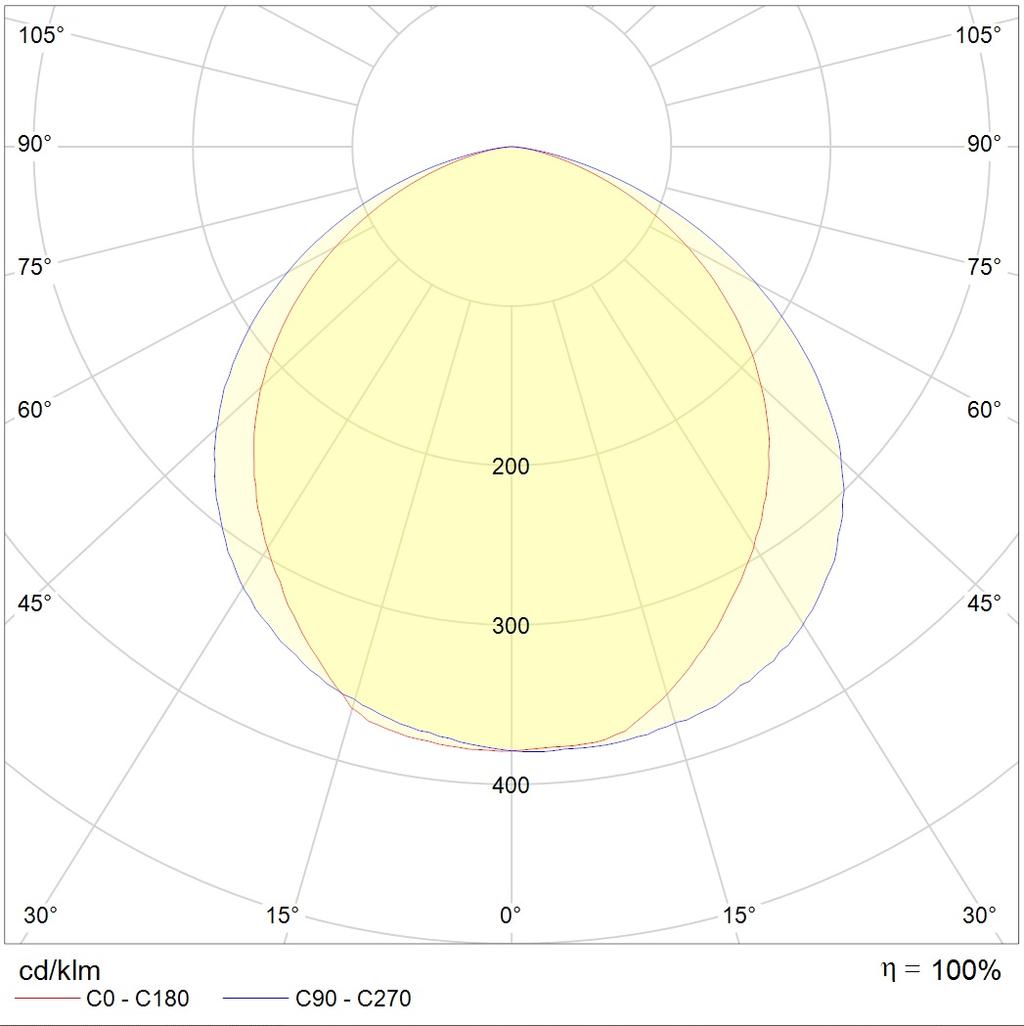

photometric files
ies263.2 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
photometric files
ies263.2 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
