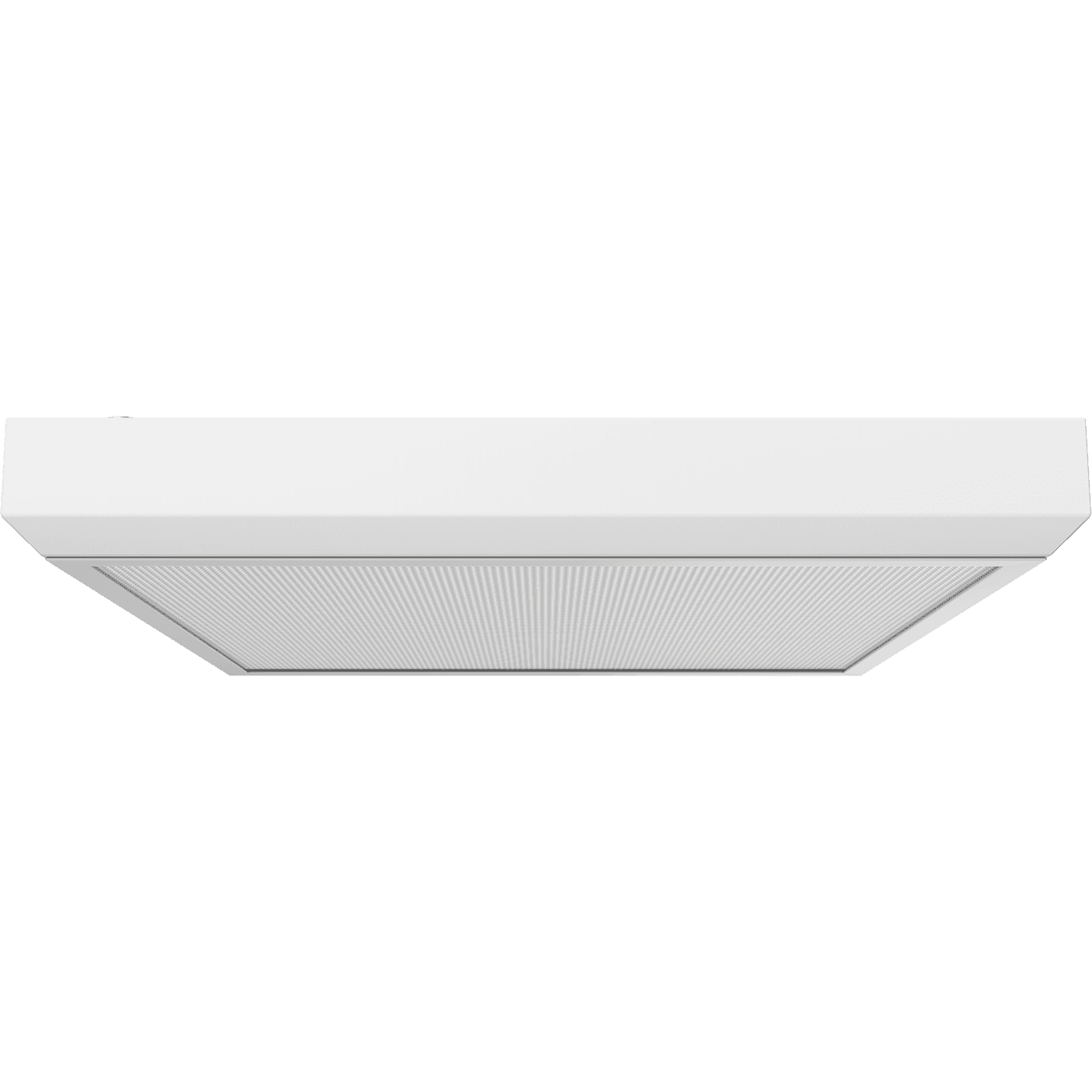

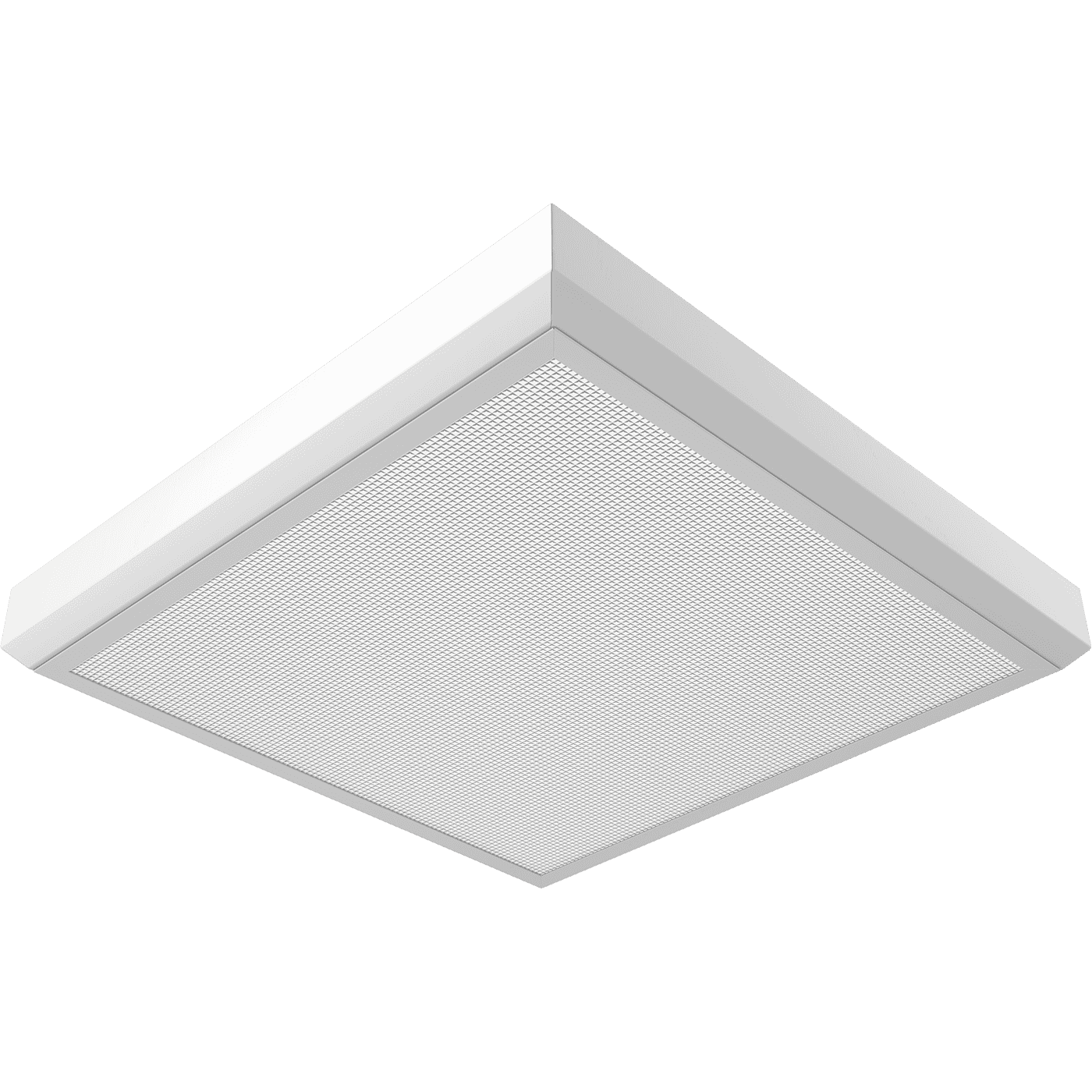

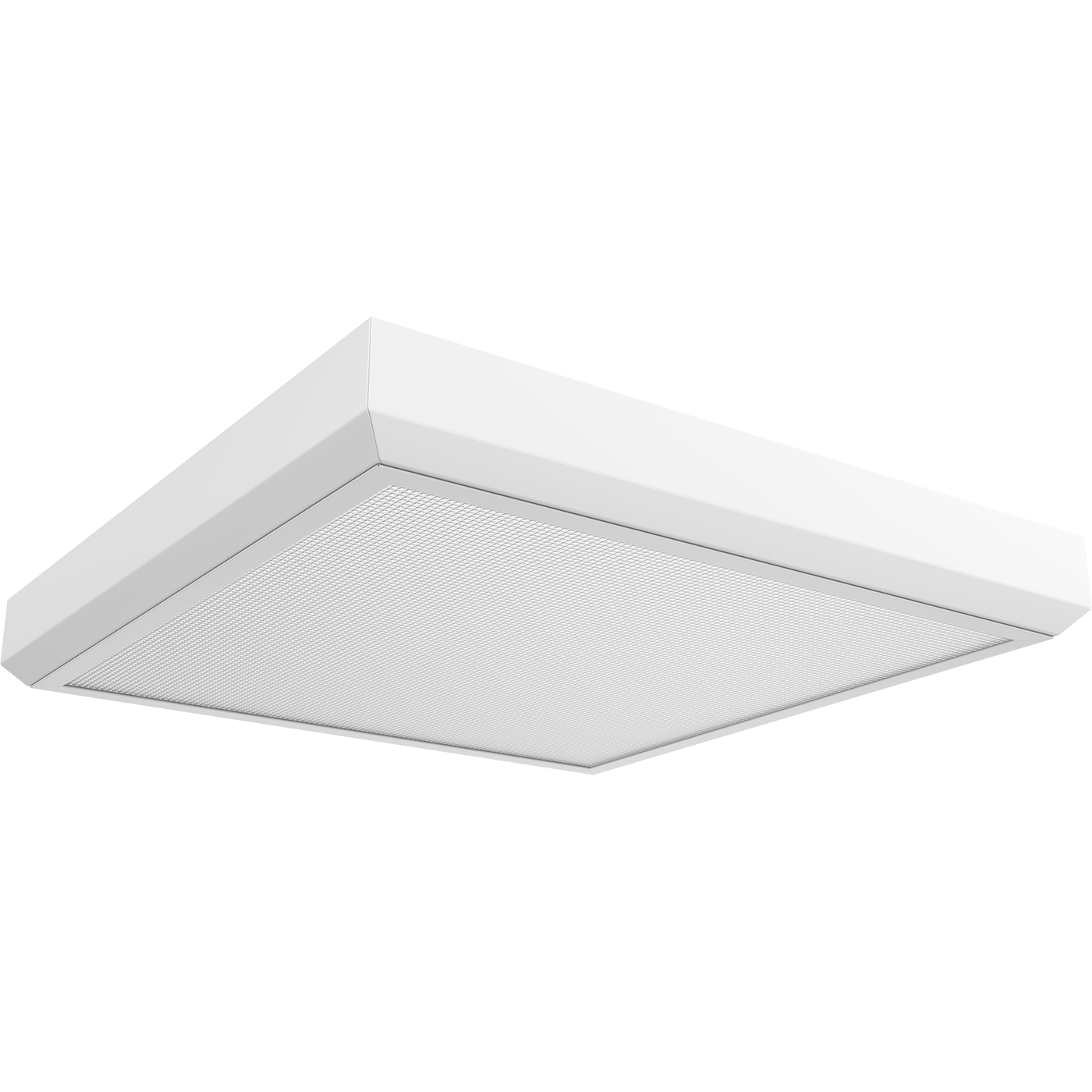

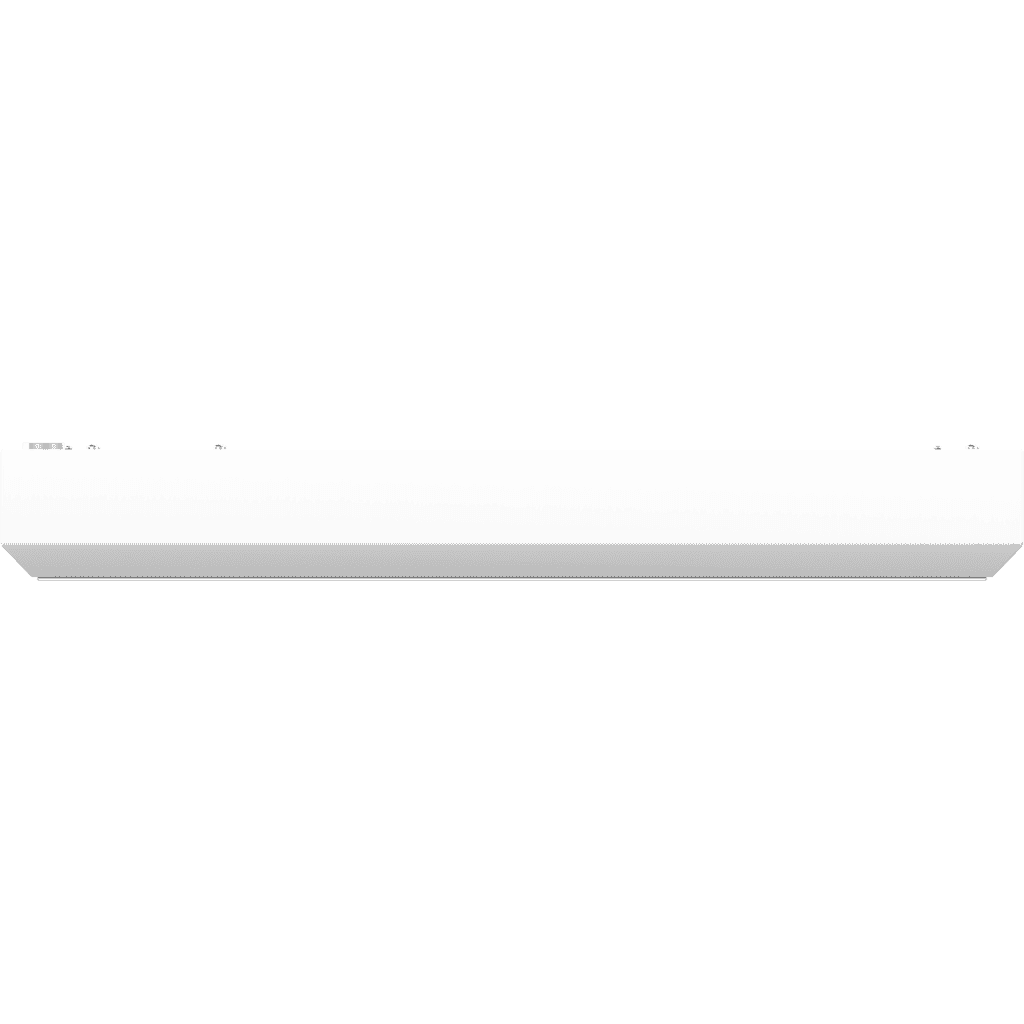

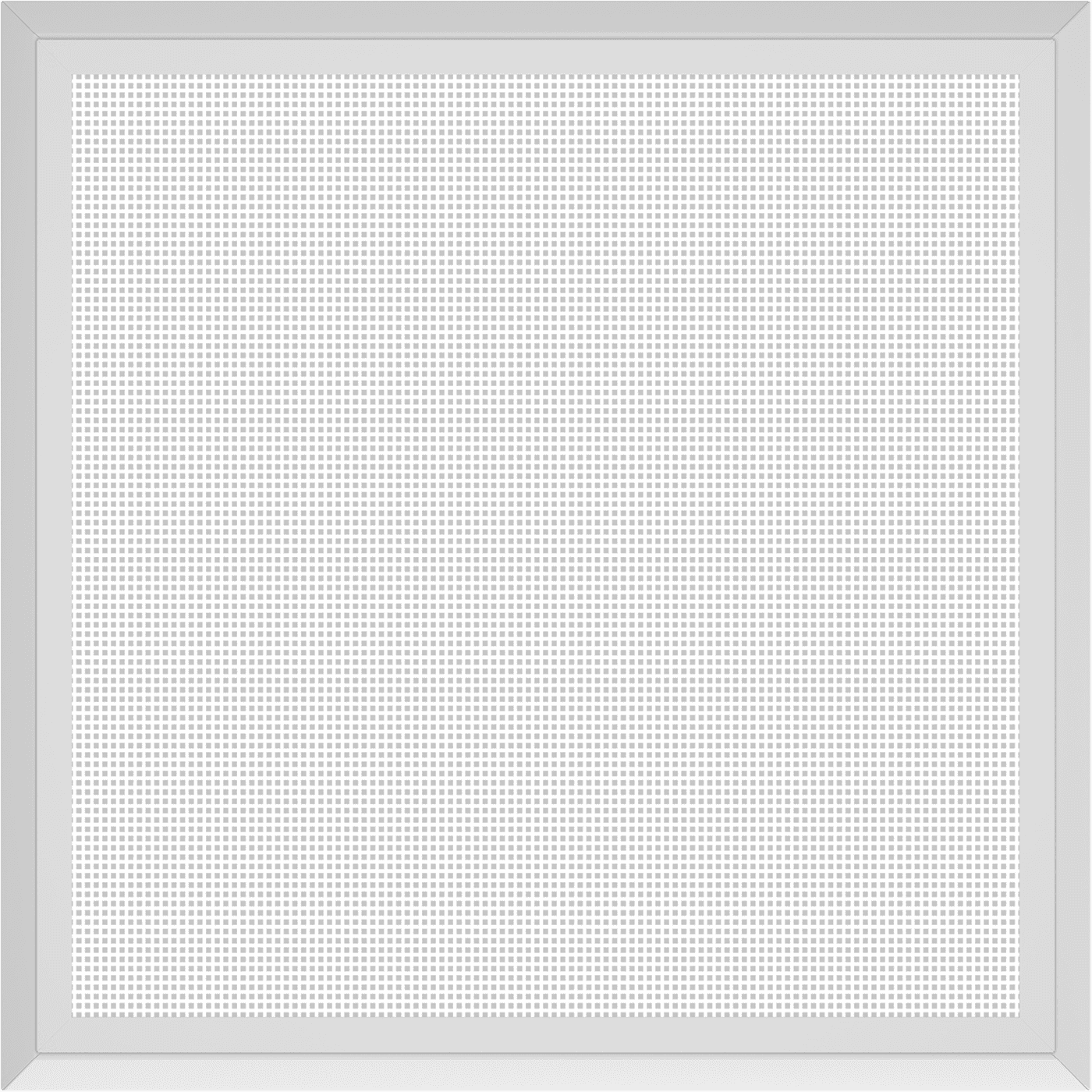

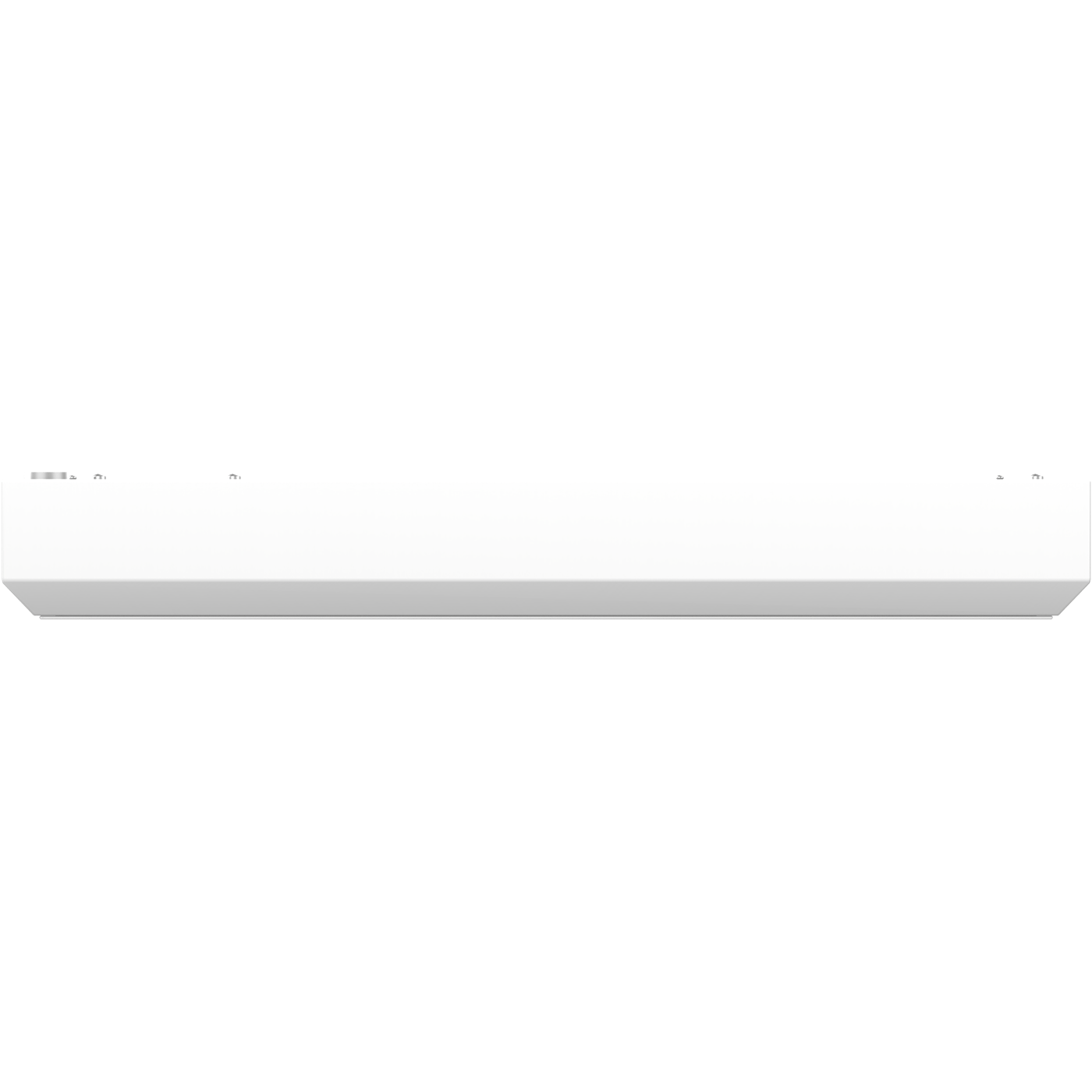

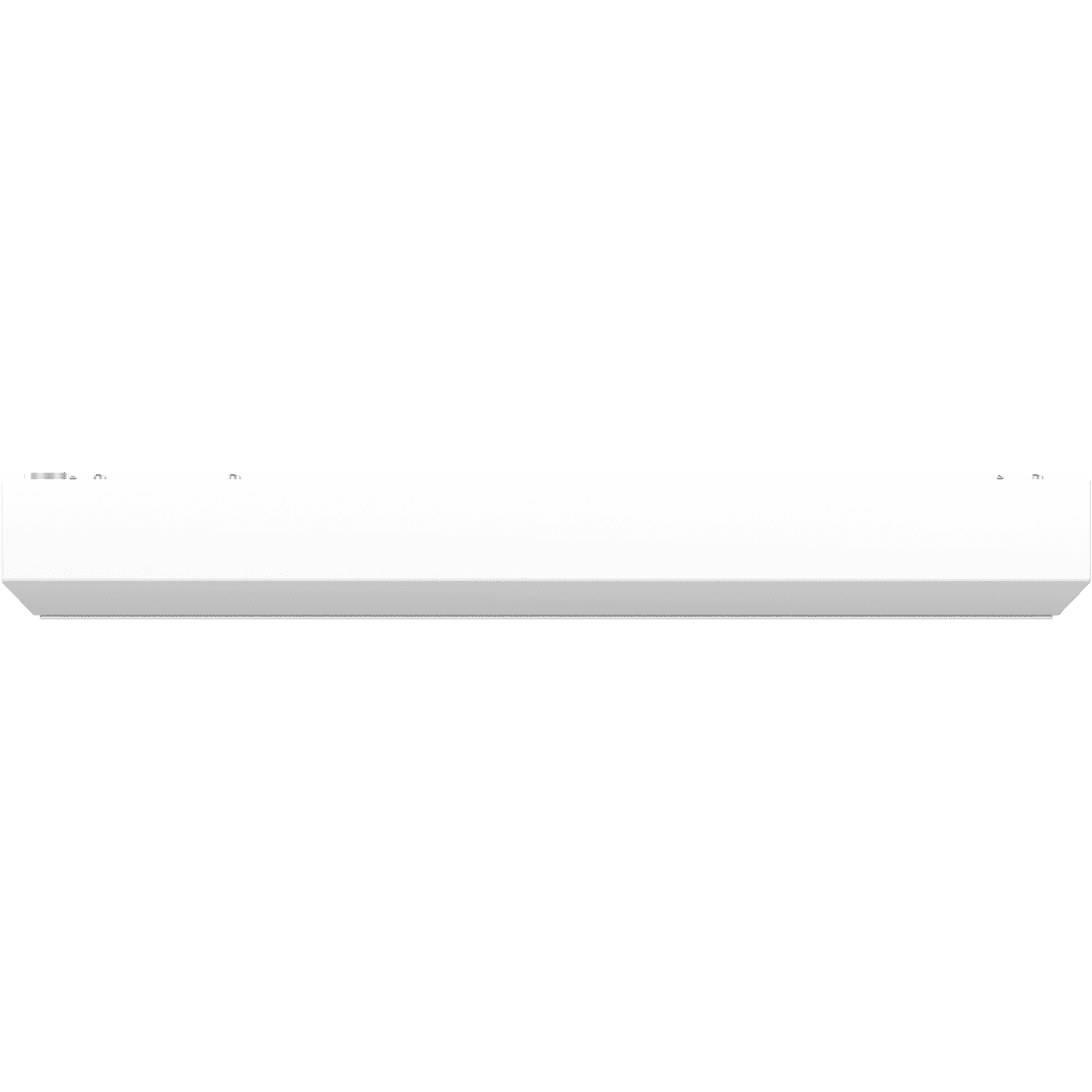

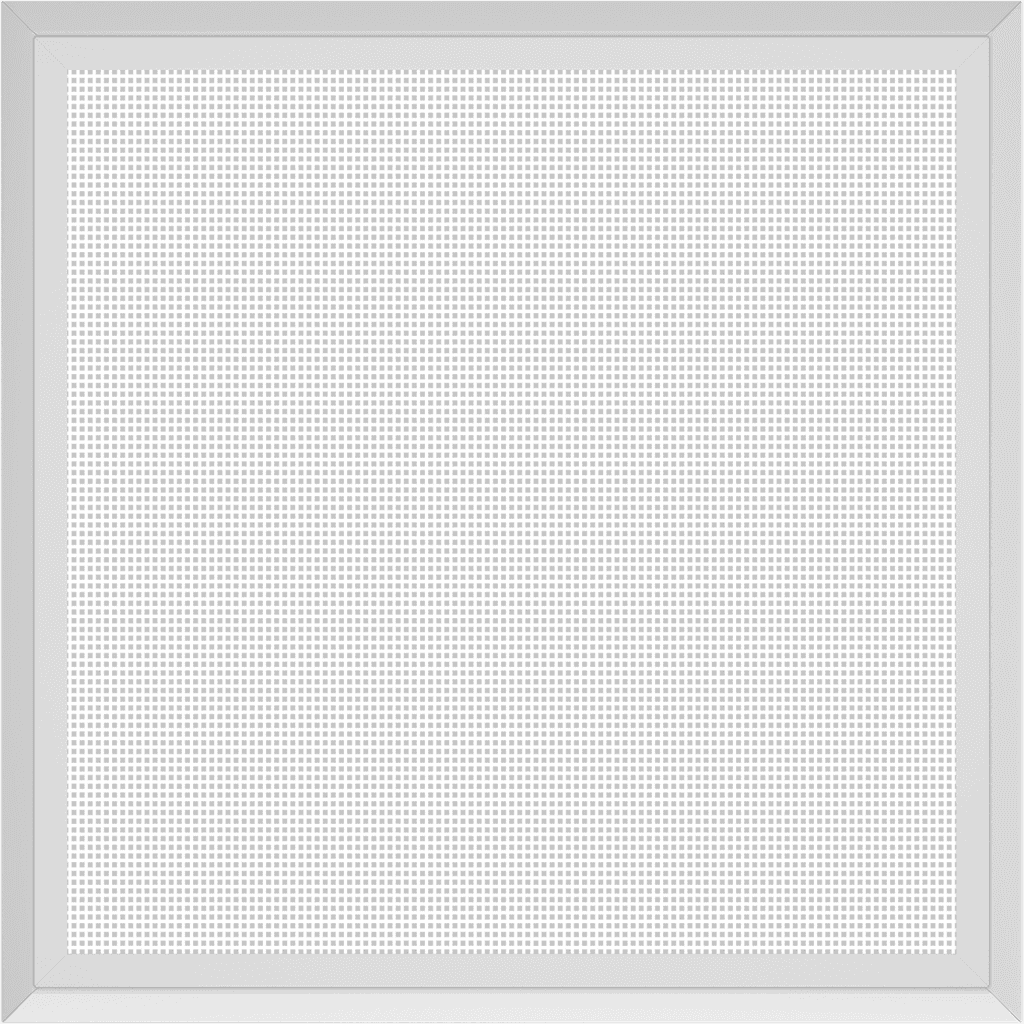

PRS/S 418 HF ES1

PRS/S 418 HF ES1
72 Wluminaire power
code1059000190
performance factor53
number of lamps4
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
illuminating
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
electrical
supply voltage
230 V
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
electric shock protection
I
luminaire power
72 W
constructional
height, mm
80 mm
installation width, mm
420 mm
installation length, mm
420 mm
width, mm
610 mm
length, mm
625 mm
common
energy efficiency class
A
service life, hour
30 000 h
warranty
36 month
code
1059000190
temperature range
от +5 до +35 C
ETIM class
Настенно-потолочный светильник
model files
model files
CAD/BIM files
model 3dMax392 kB

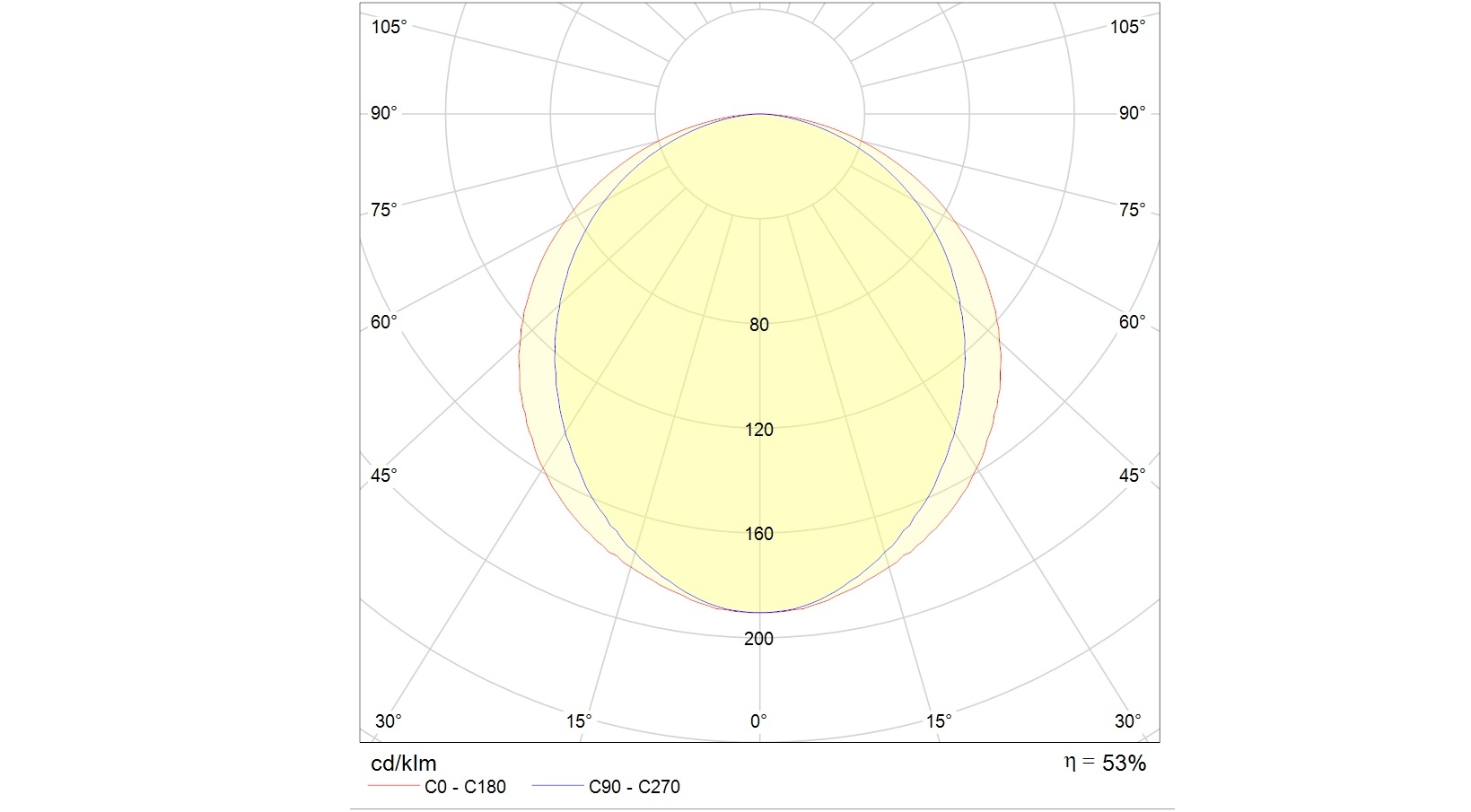

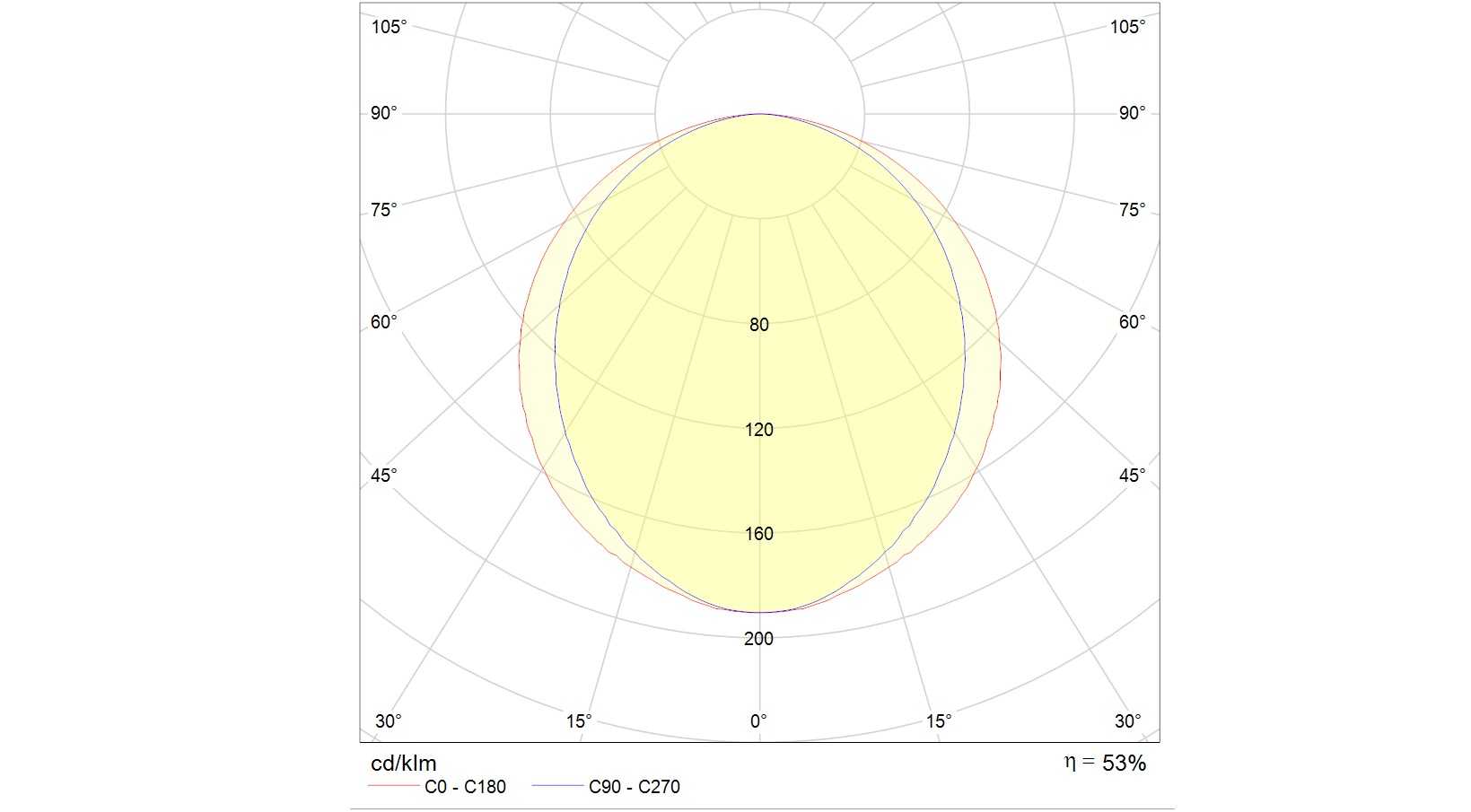

photometric files
ies134.1 kB
jpg118.6 kB
ldt89.8 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax392 kB
photometric files
ies134.1 kB
jpg118.6 kB
ldt89.8 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Mounting kit X40.013kgarticle: 2995000040
