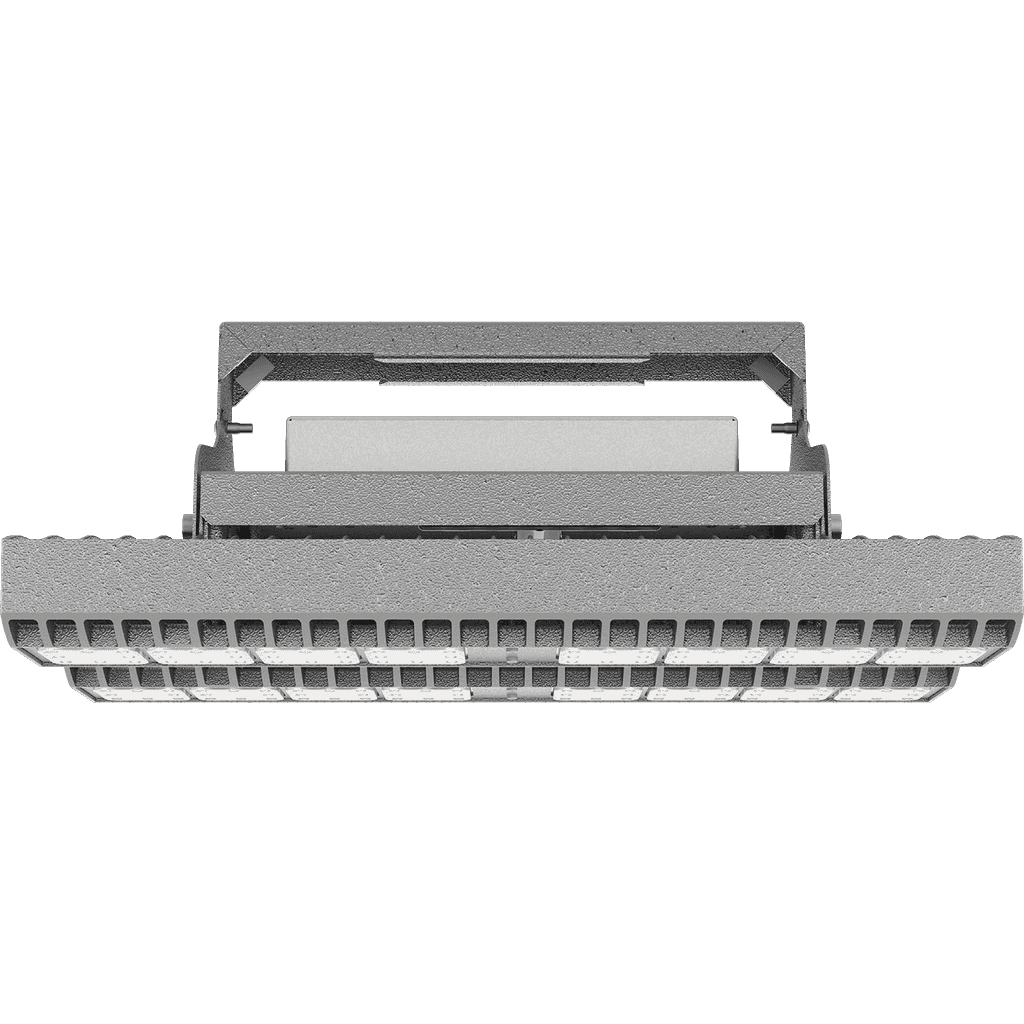

RUT 2 (200) 60 Ex 5000K
_60_ex_5000k.jpg&w=1920&q=50)
_60_ex_5000k.jpg&w=1024&q=50)
RUT 2 (200) 60 Ex 5000K
200 Wluminaire power
26000 lmlight flow
130 lm/Wenergy efficiency
code1499001310
color temperature5000
beam angleD60
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
200 Welectric shock protection
IImaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,95supply voltage
230 Velectrical
luminaire power
200 W
electric shock protection
II
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,95
supply voltage
230 V
constructional
weight
8 kg
ingress protection (IP)
IP66
climatic performance
УХЛ1
fire safety class
П-ІІ
material
Сплав алюминиевый
length, mm
463 mm
width, mm
248 mm
height, mm
215 mm
housing color
Металлик
shock resistance (IK)
IK10/20 Дж
common
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
code
1499001310
illuminating
light flow
26000 lm
color rendition index (CRI)
>70
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
model files
model files

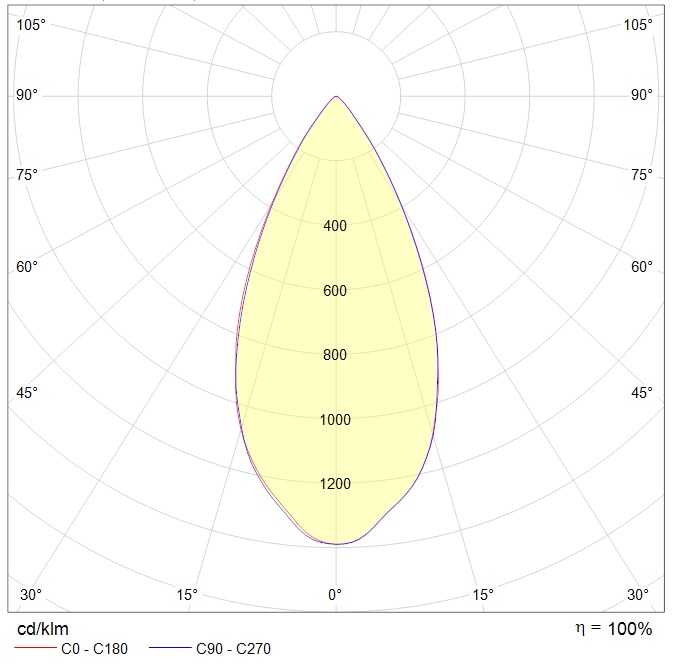

photometric files
сертификаты
photometric files
ies263.2 kB
jpg72.3 kB
ldt149 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
