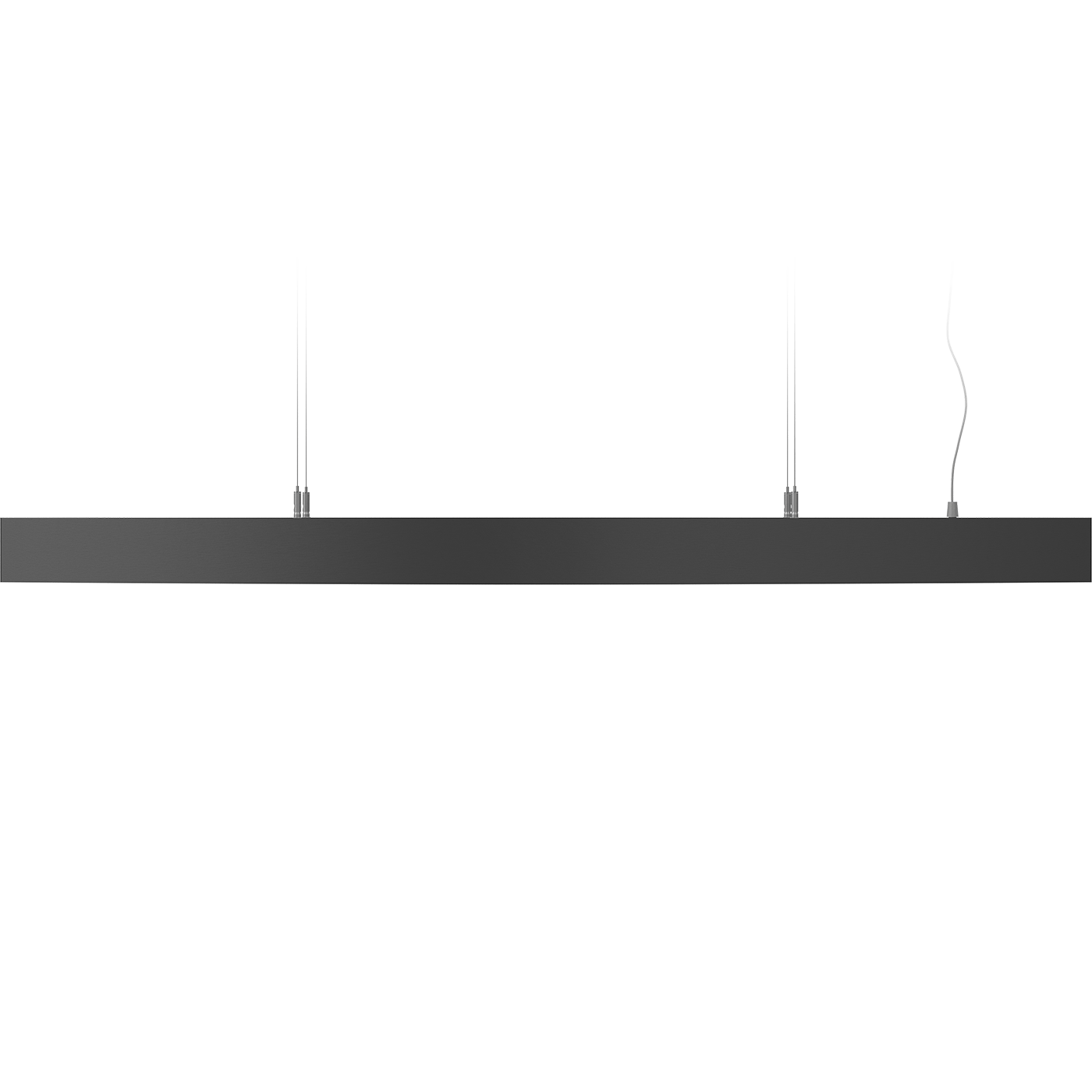

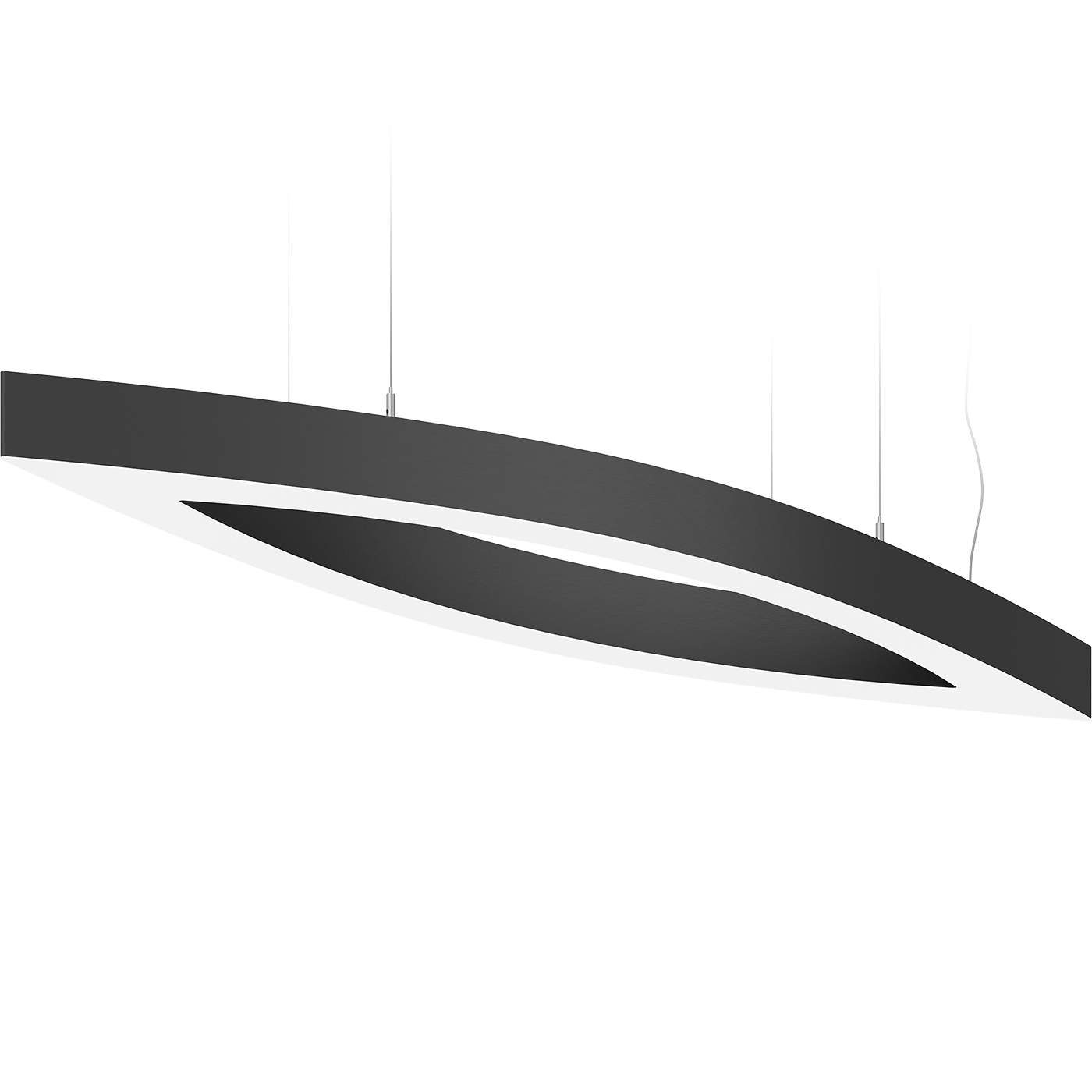

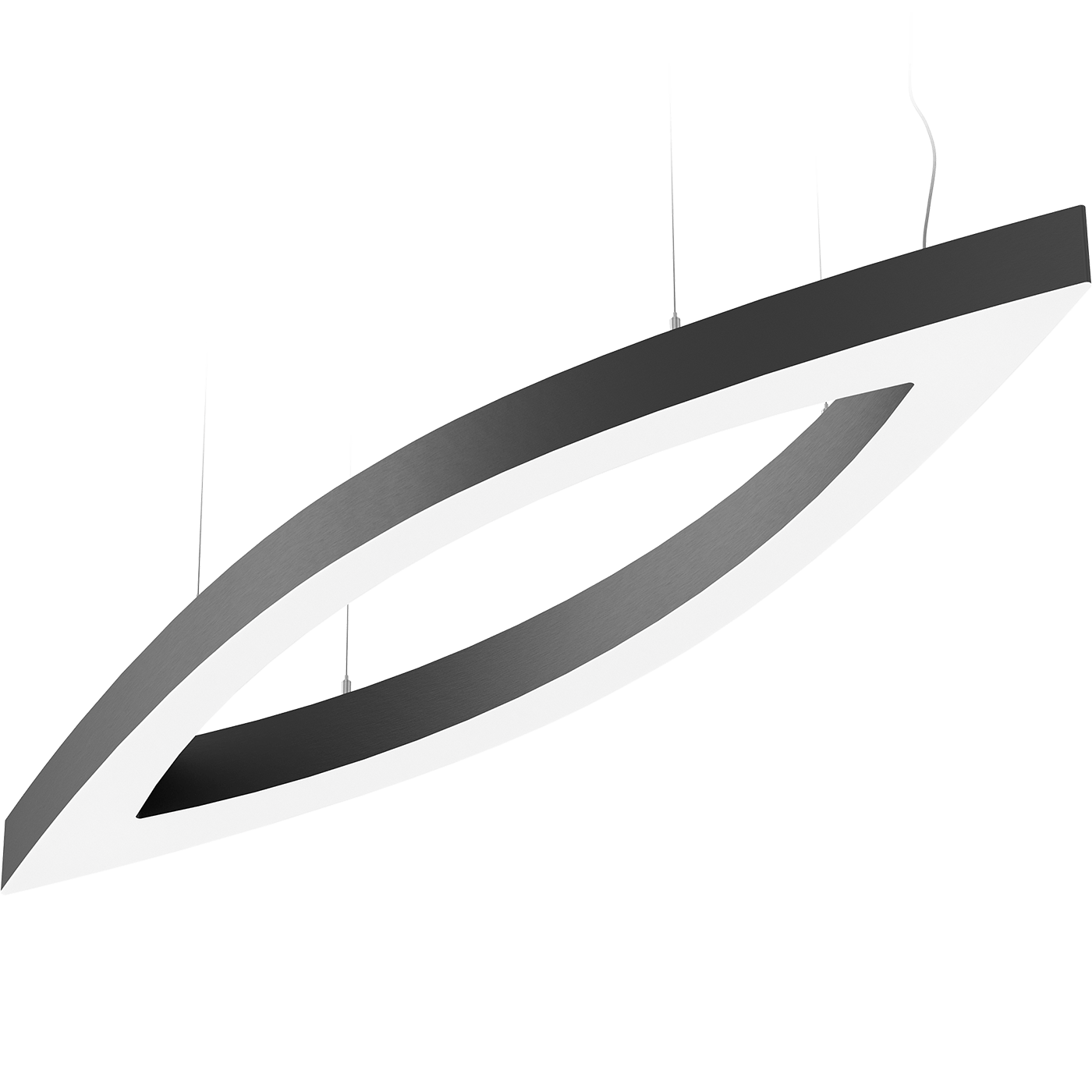

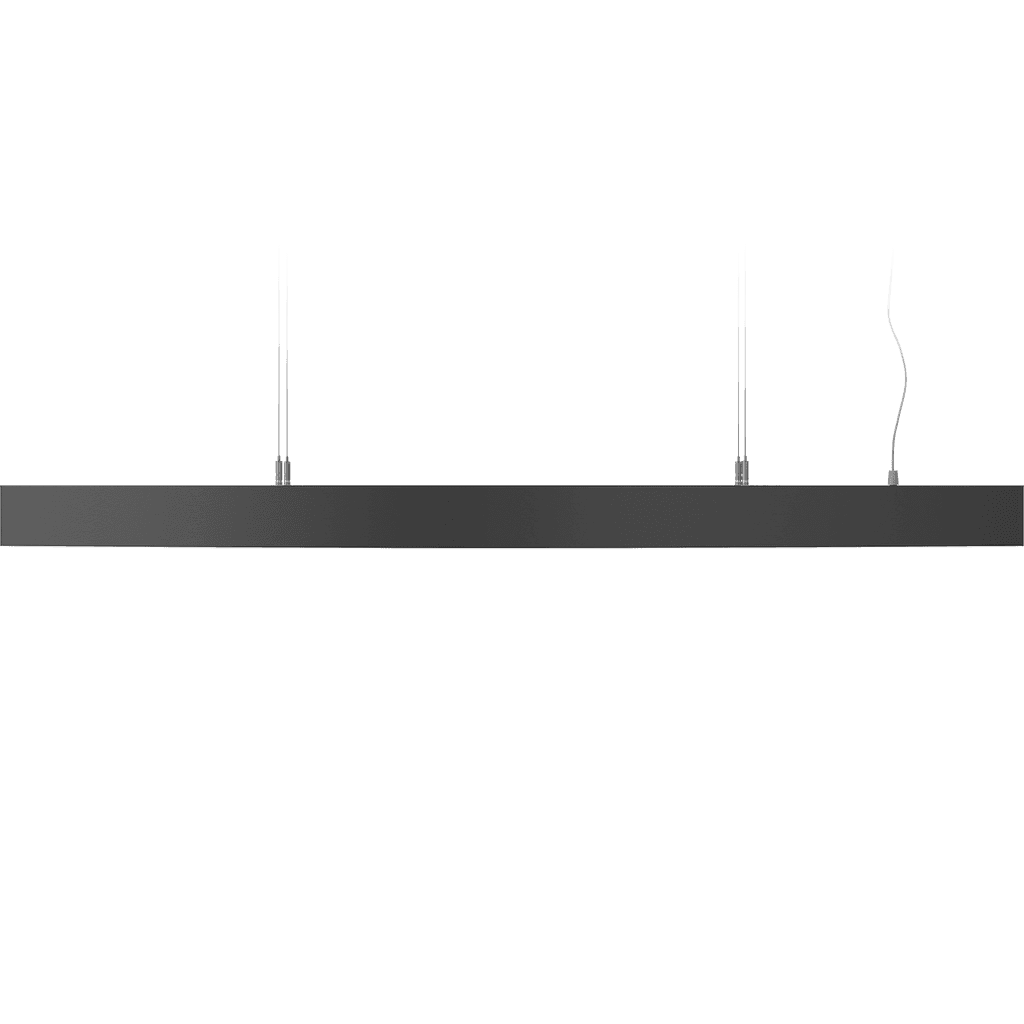

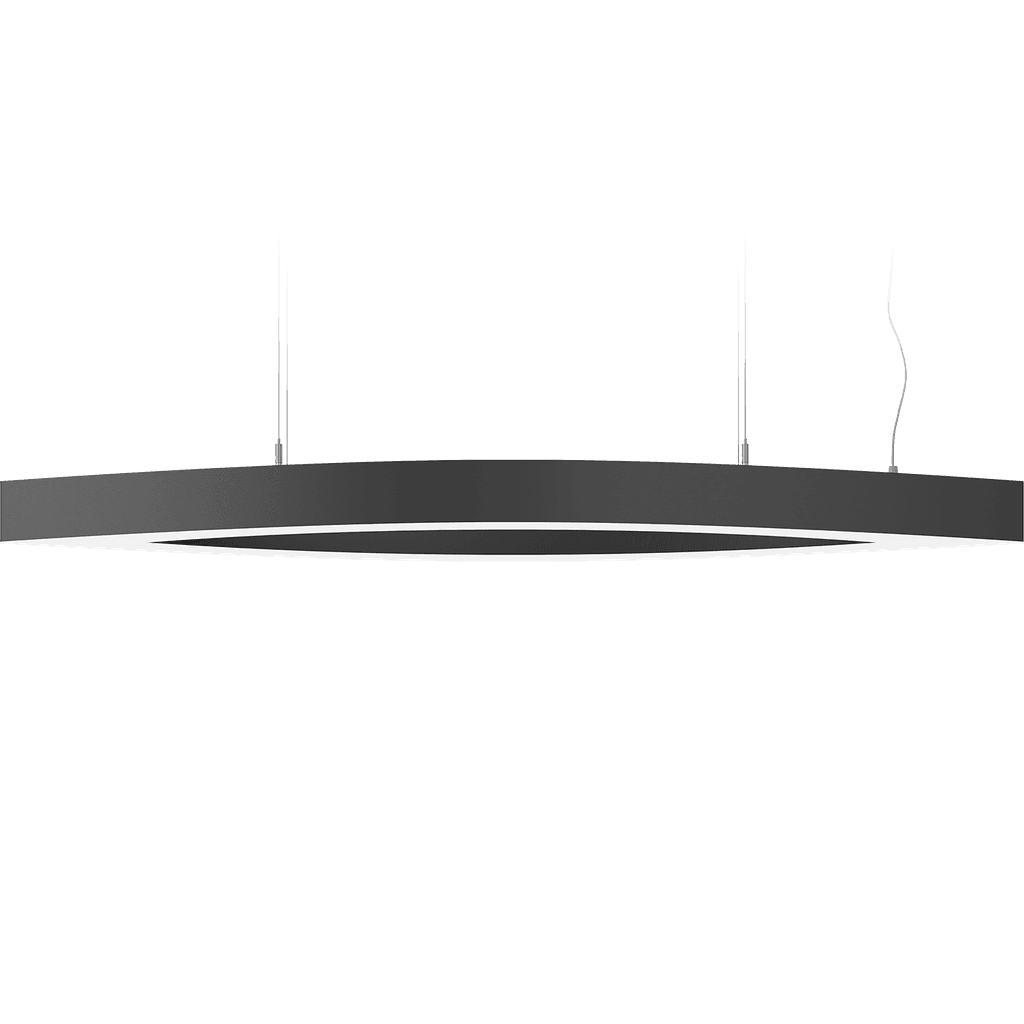

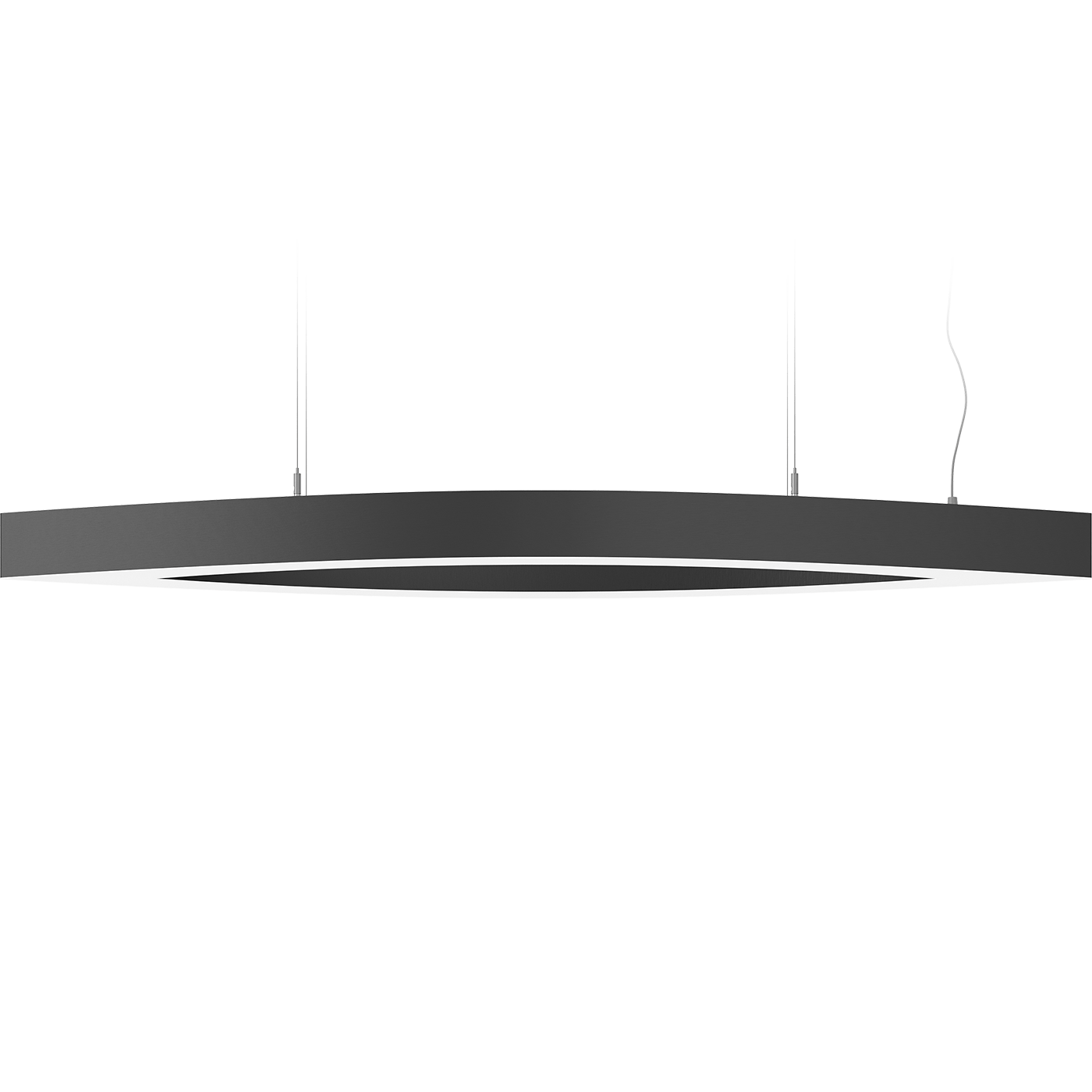

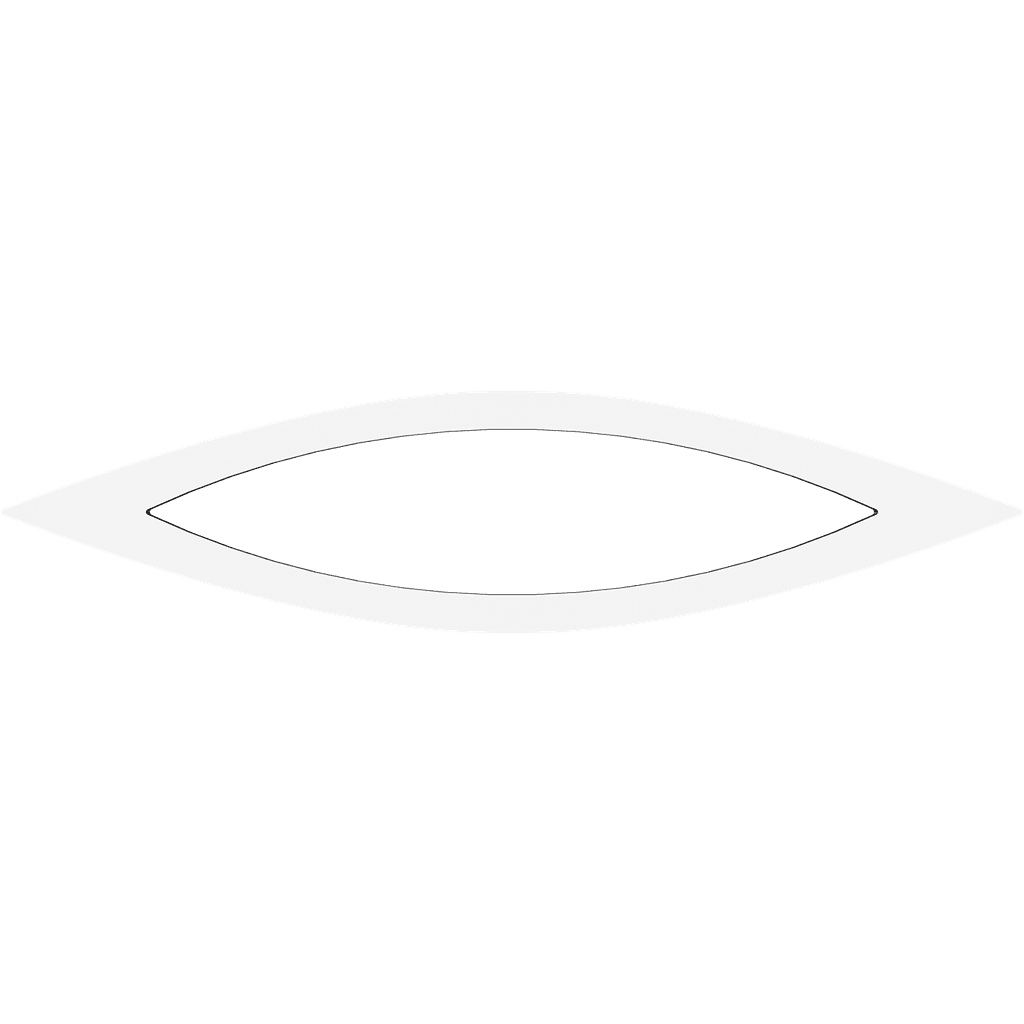

SHARP FLD/P (1350) 840 WH
_840_wh.jpg&w=1920&q=100)
_840_wh.jpg&w=1024&q=75)
SHARP FLD/P (1350) 840 WH
54 Wluminaire power
4000 lmlight flow
74 lm/Wenergy efficiency
code1828000020
color temperature4000 K
beam angleD120
old nameSHARP/P 1350 FLD WH 4000K m01
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
74 lm/Wcolor rendition index (CRI)
>80light flow
4000 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
74 lm/W
color rendition index (CRI)
>80
light flow
4000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
85 µs
electric shock protection
I
luminaire power
54 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A

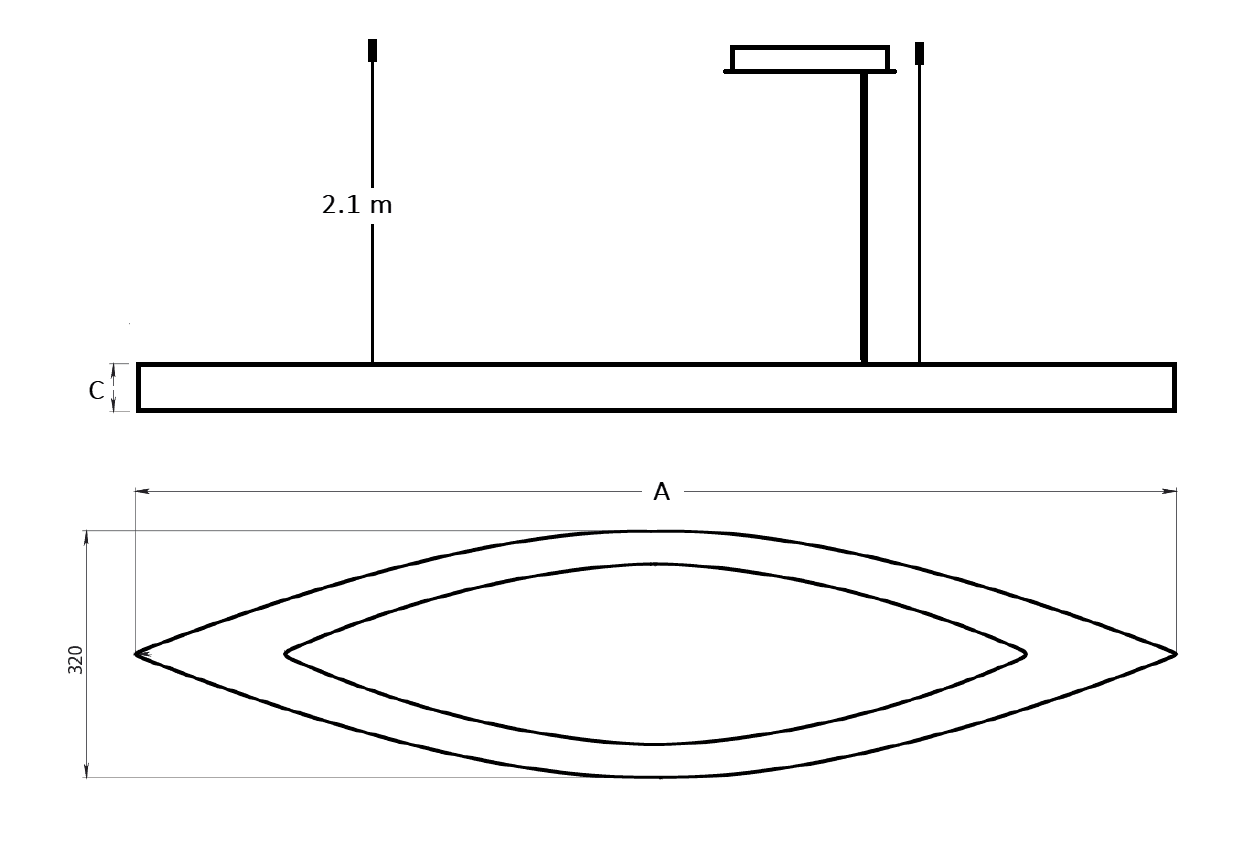

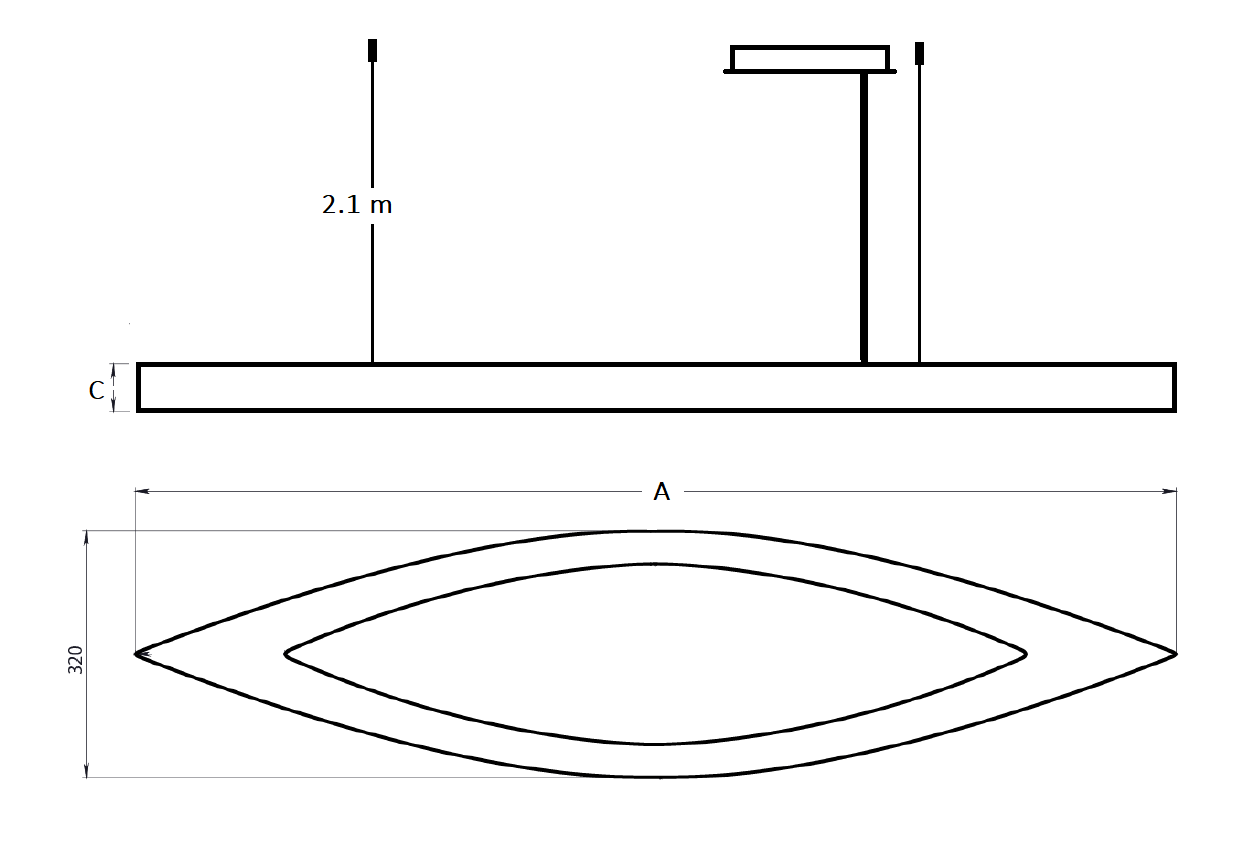

constructional
length
1350 mm
width
320 mm
height
60 mm
installation length
170 mm
installation width
597 mm
weight
3.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Светильник подвесной
code
1828000020
model files
model files

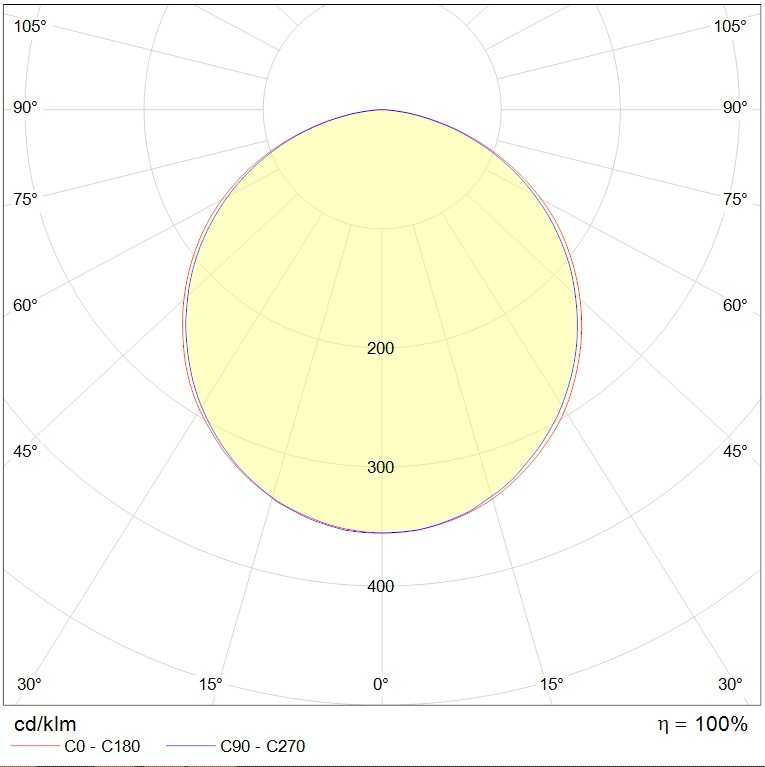

photometric files
сертификаты
photometric files
ies107 kB
jpg78.4 kB
ldt75.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
Fire Safety Certificate2.5 mB
