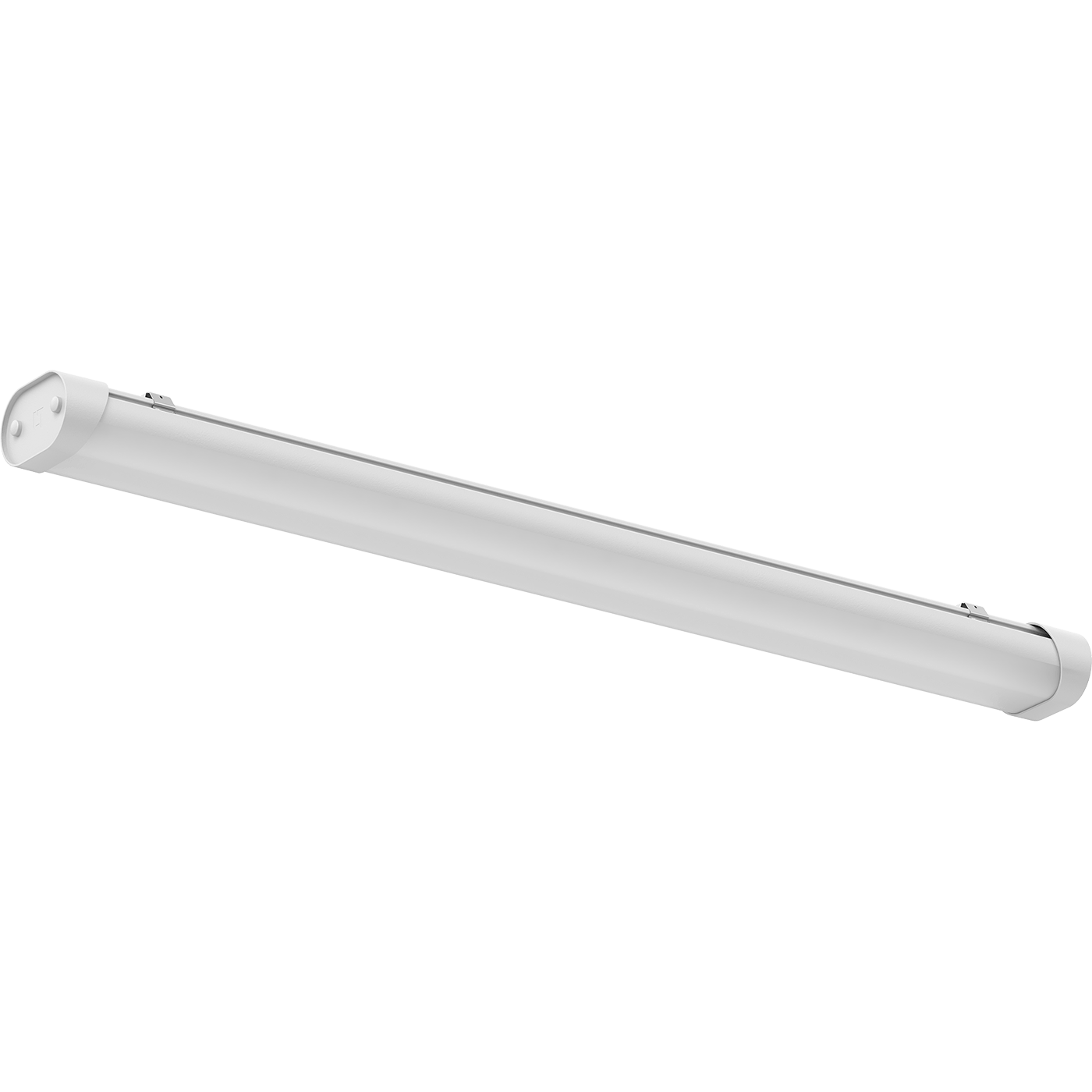

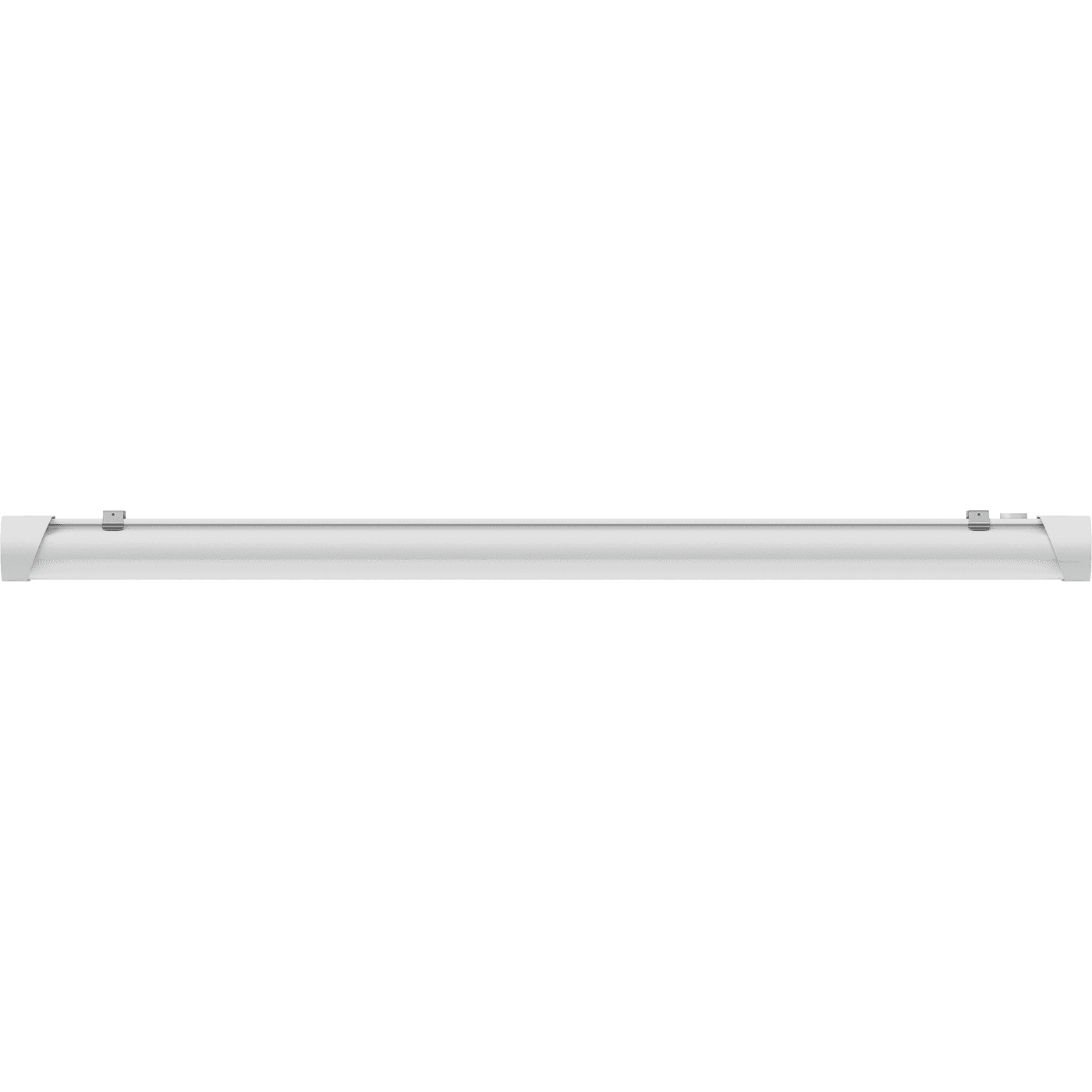

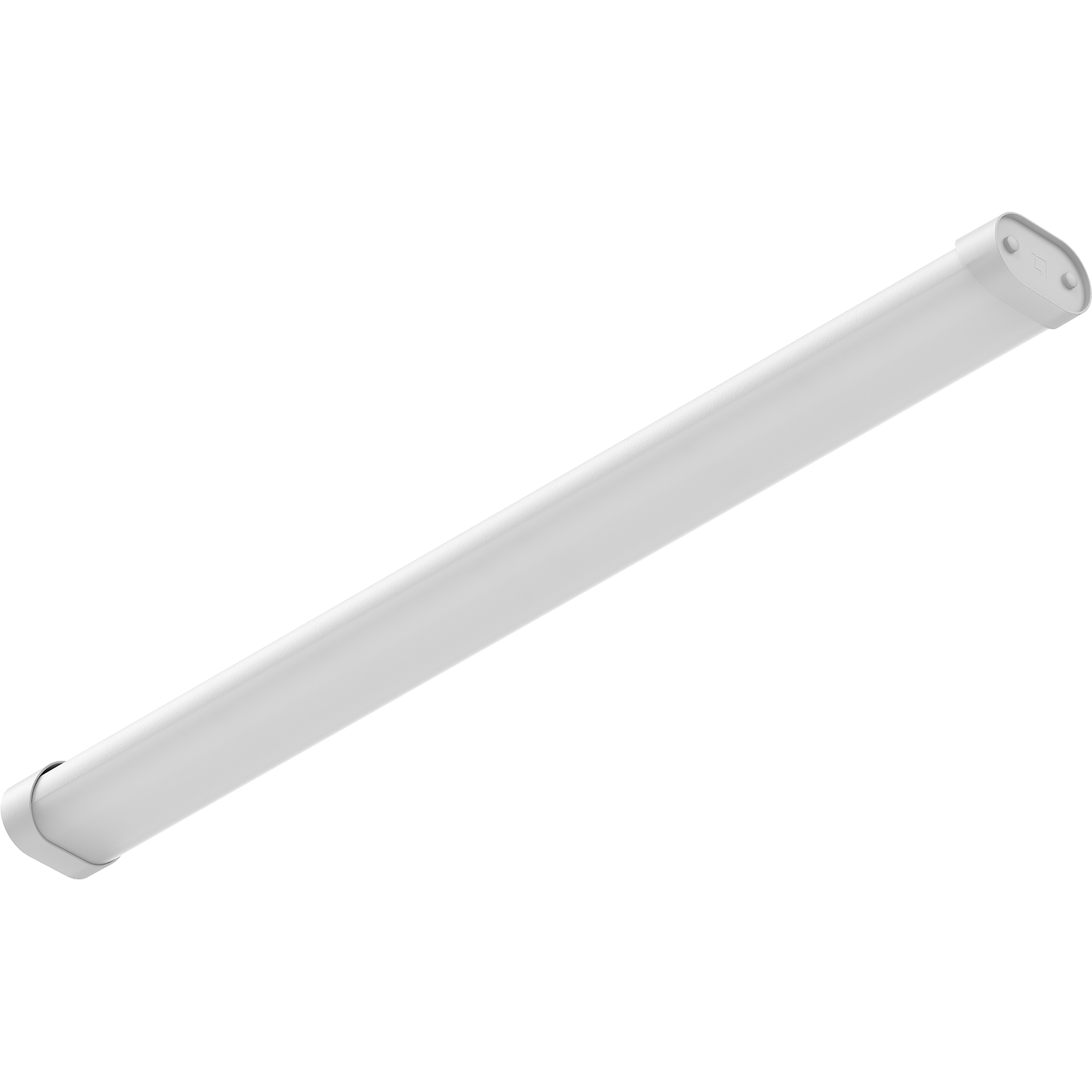

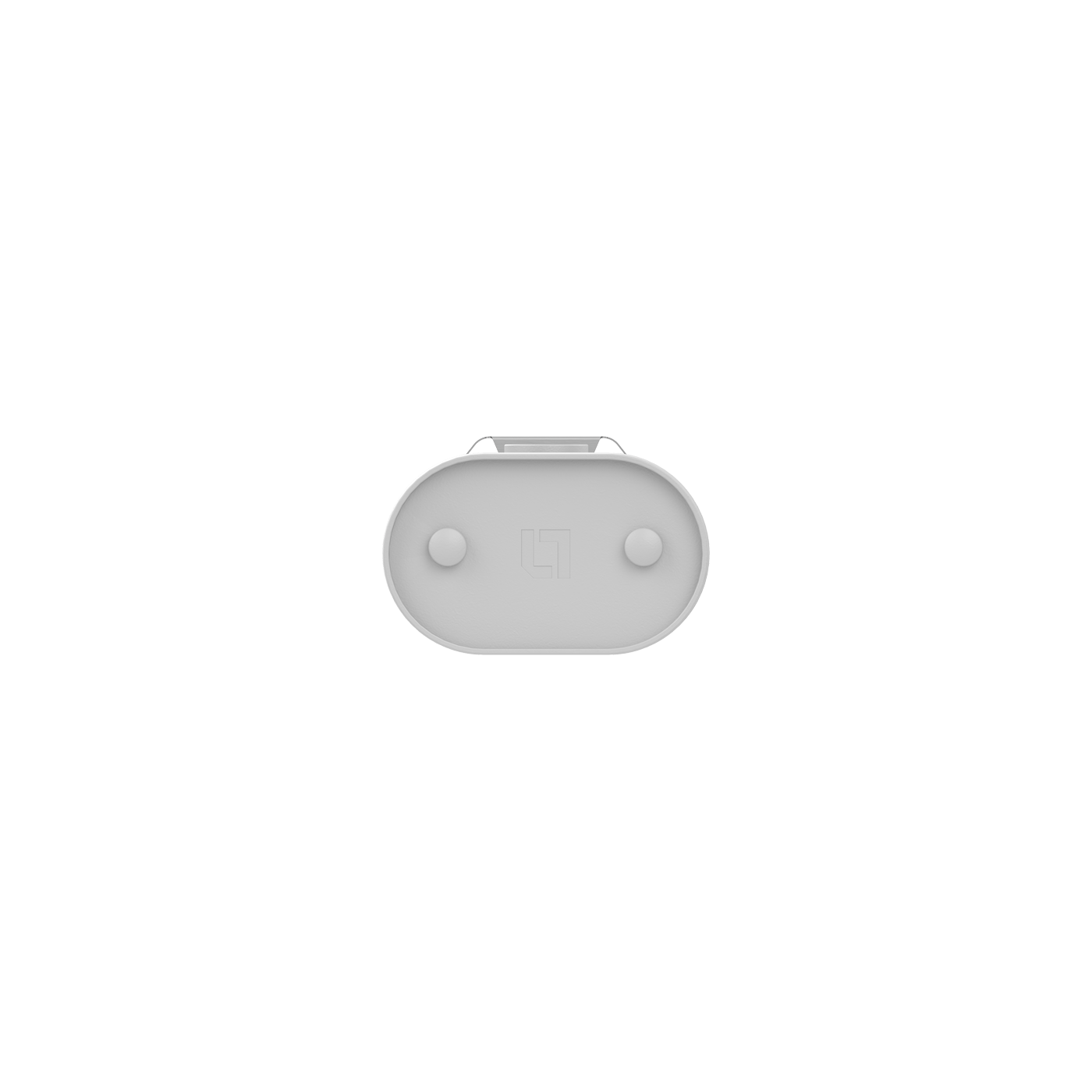

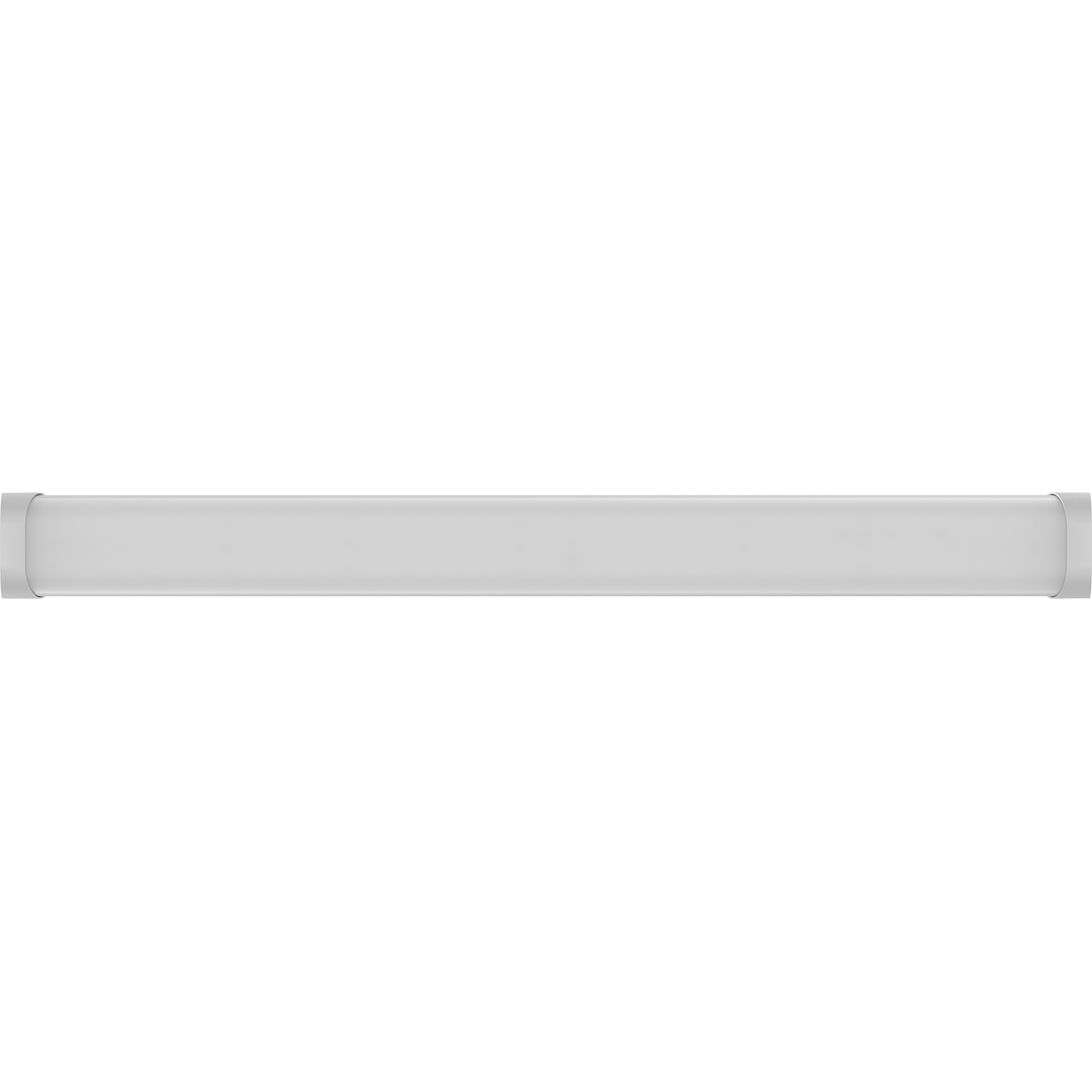

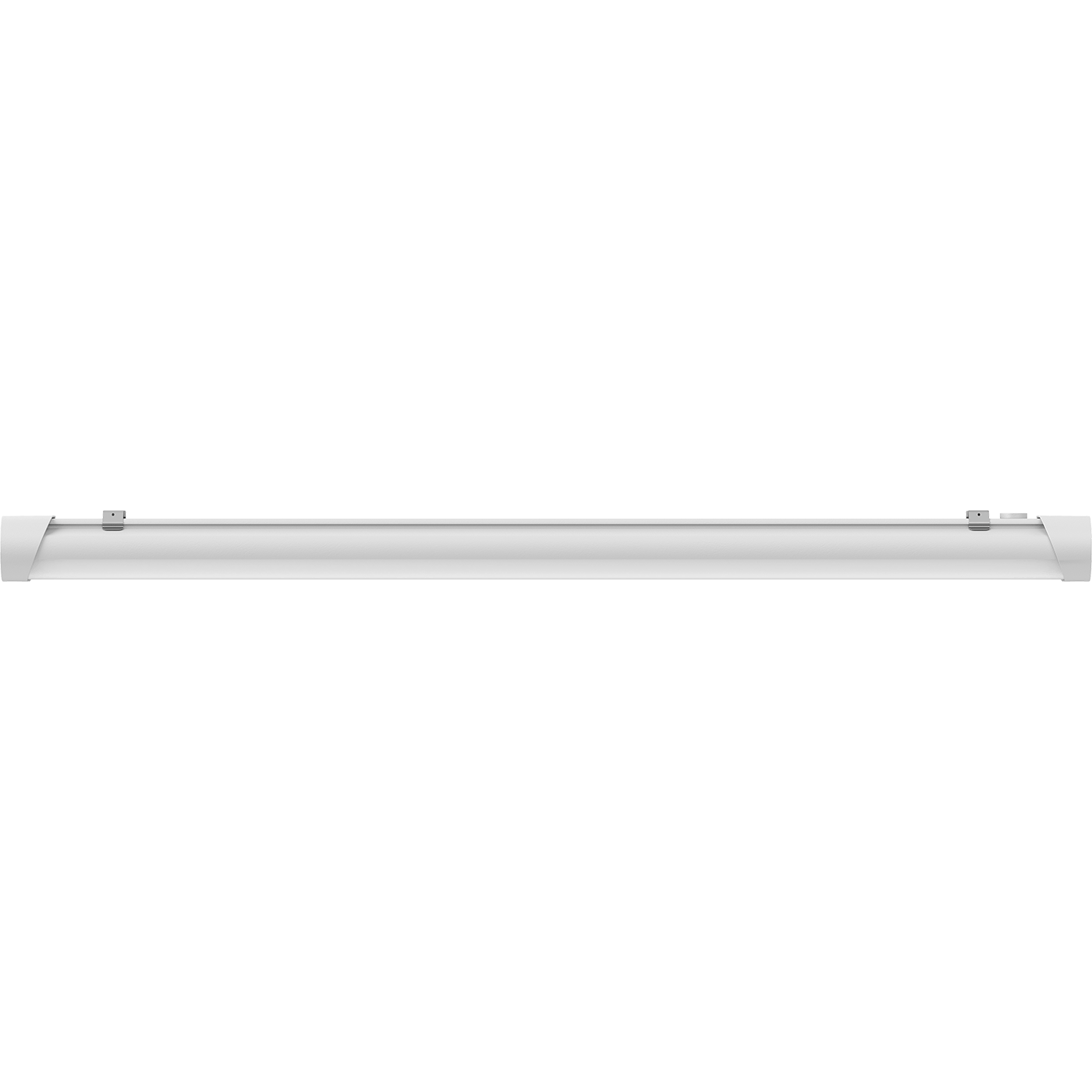

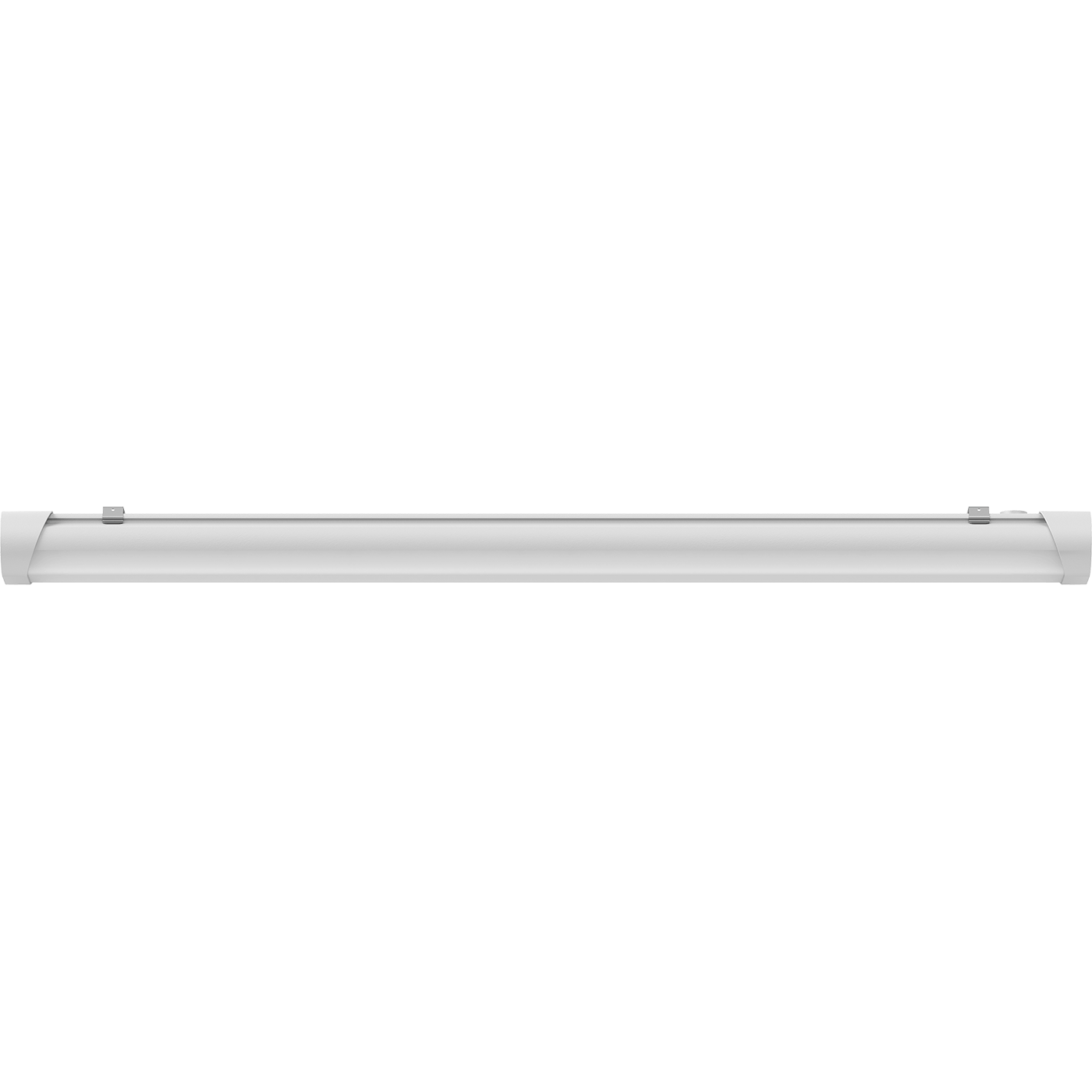

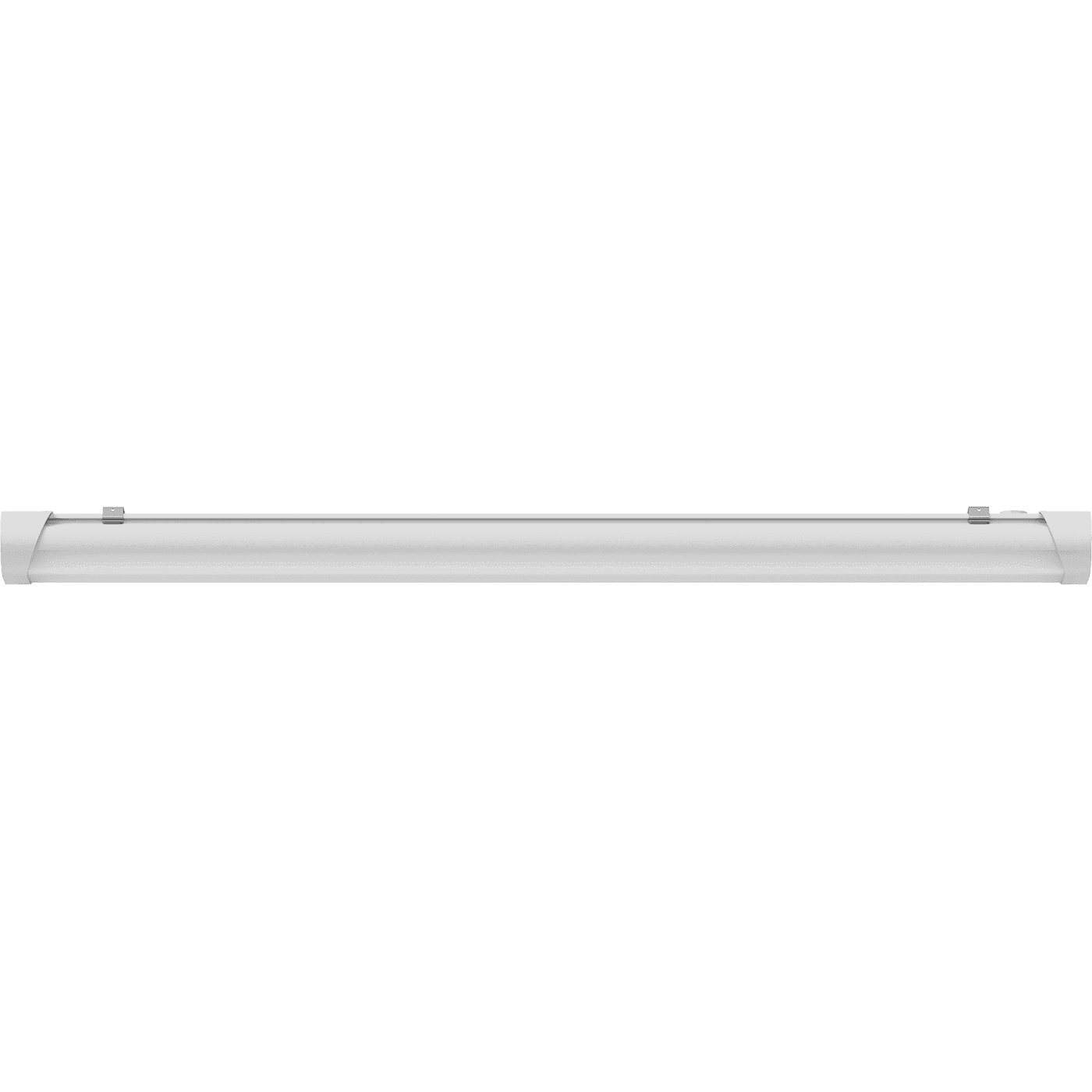

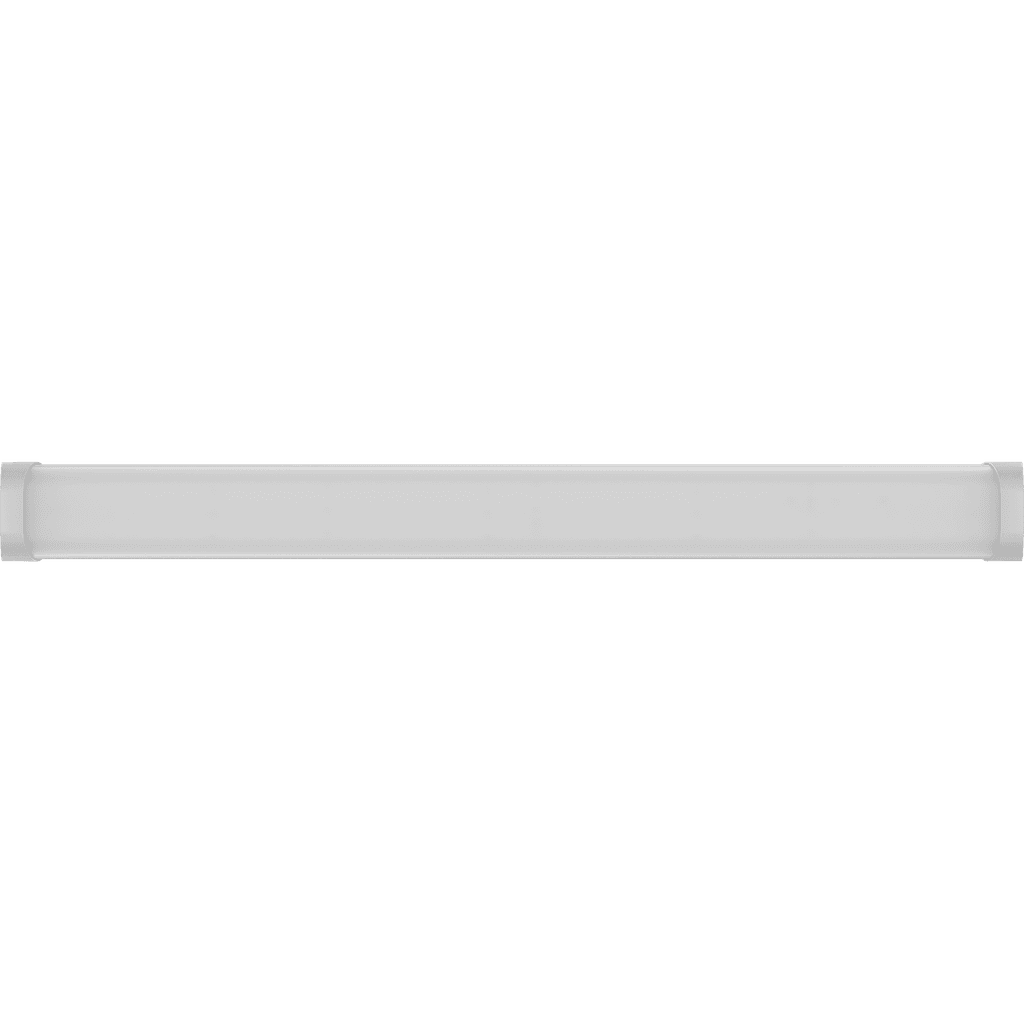

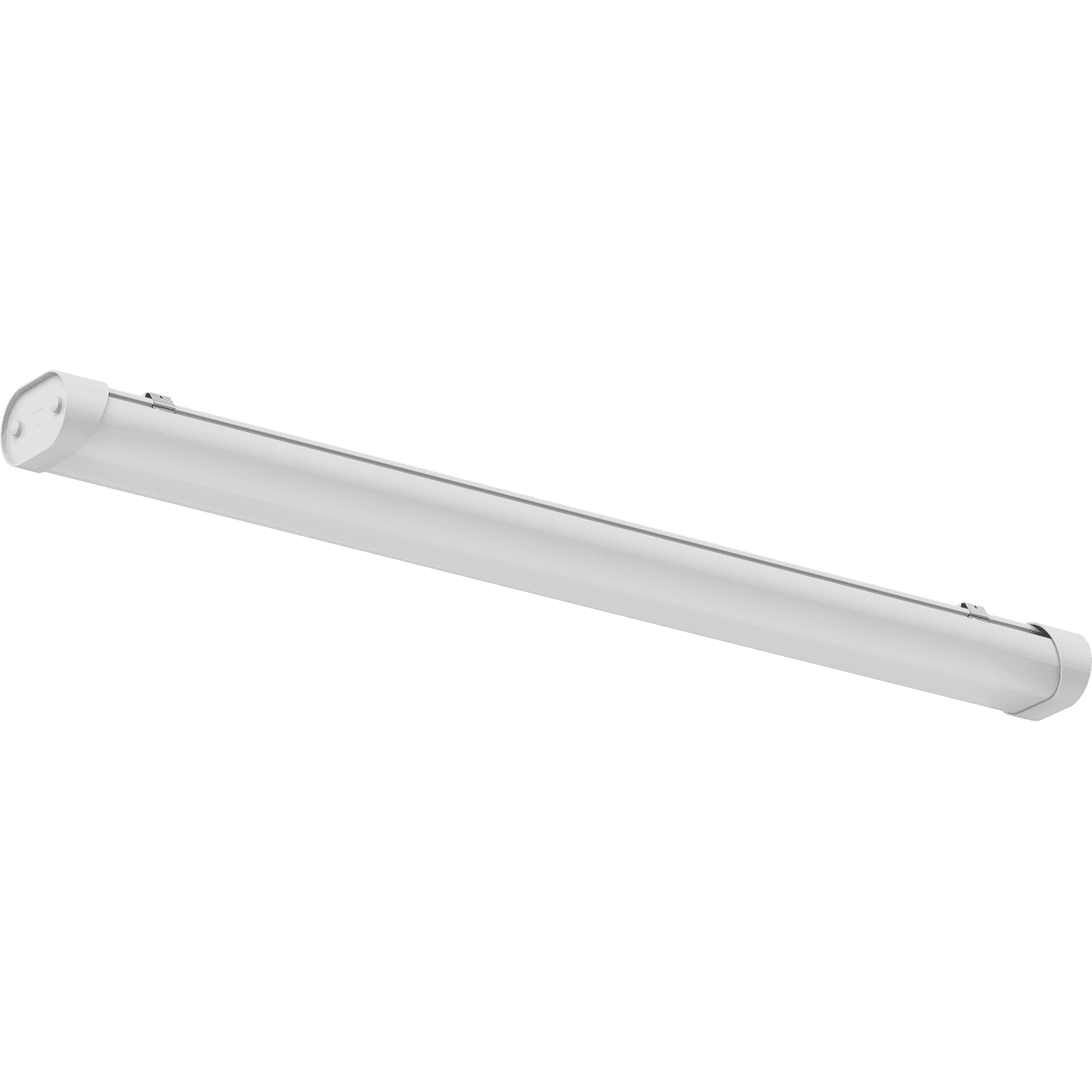

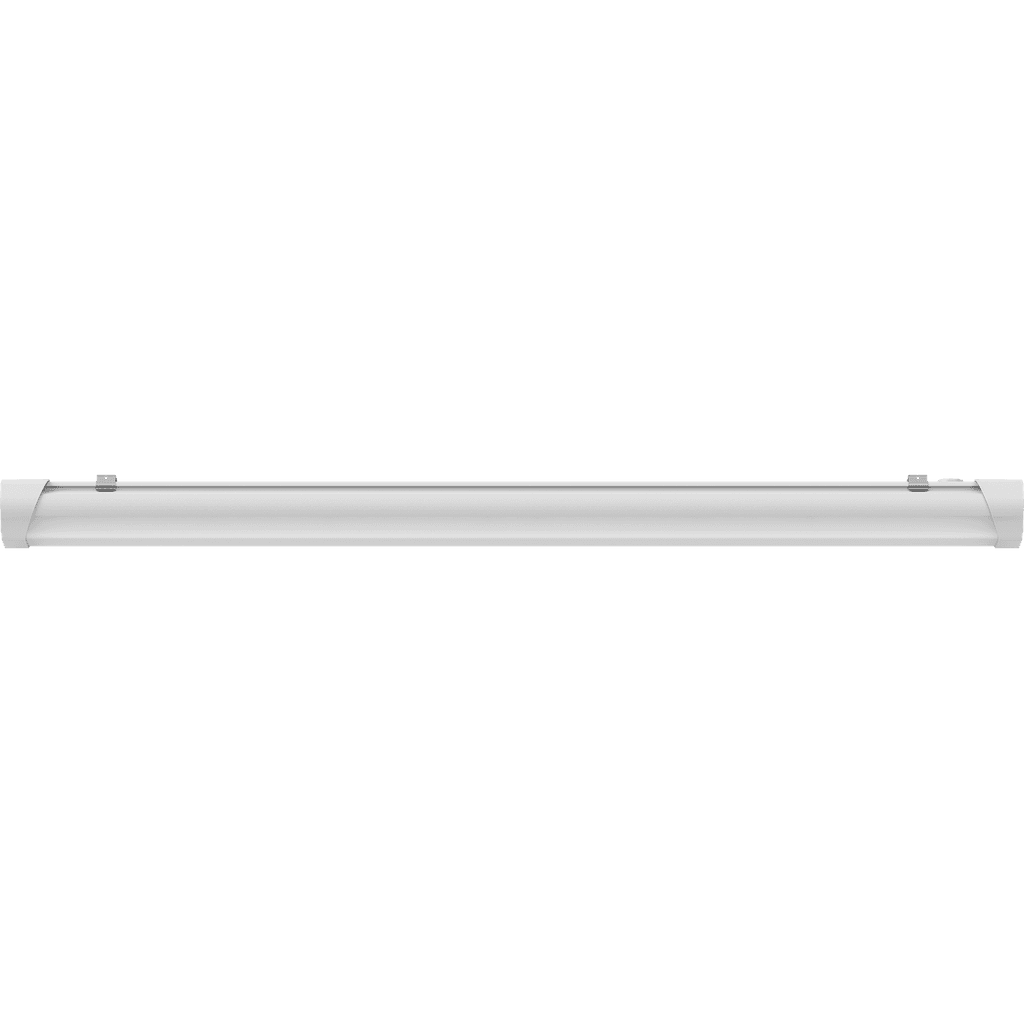

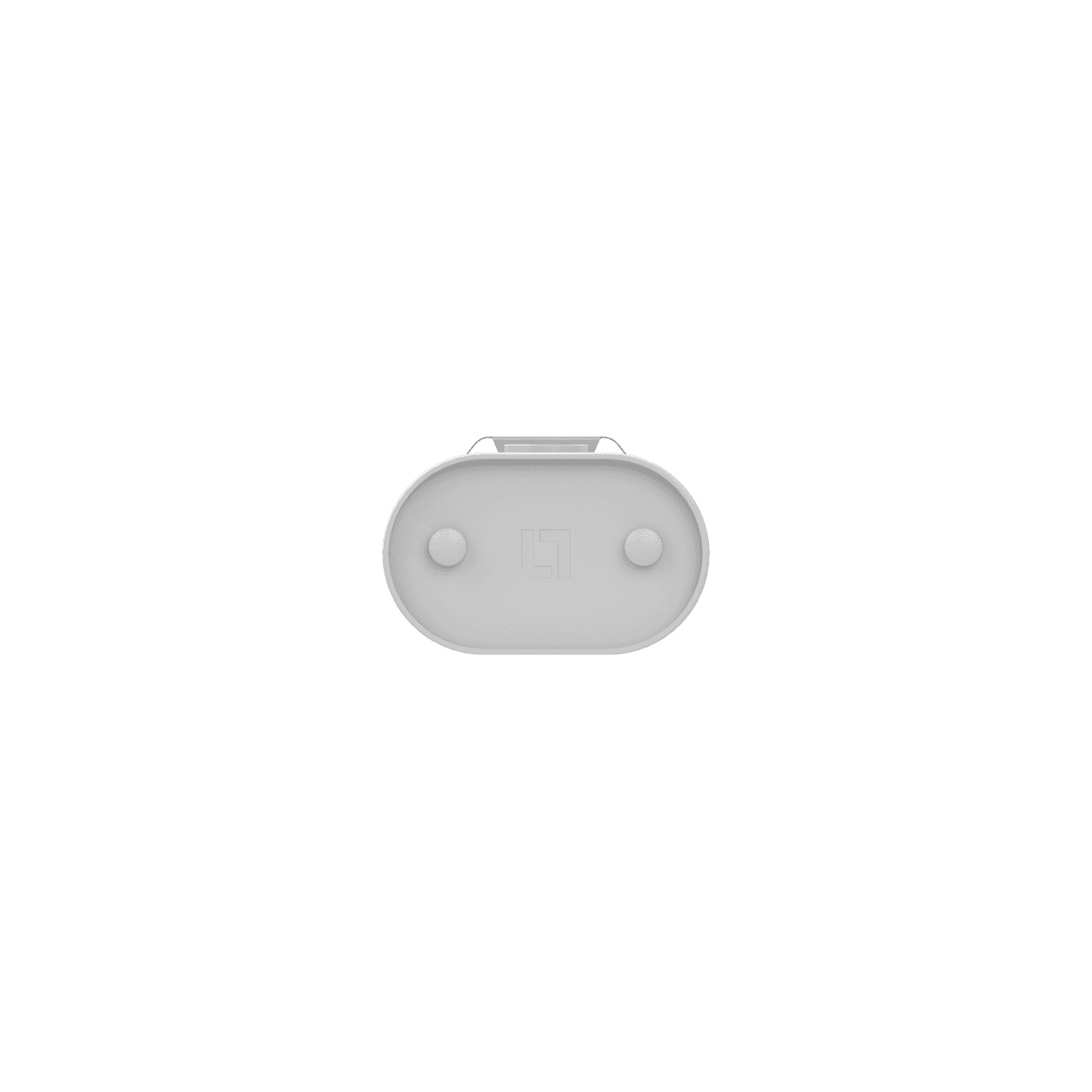

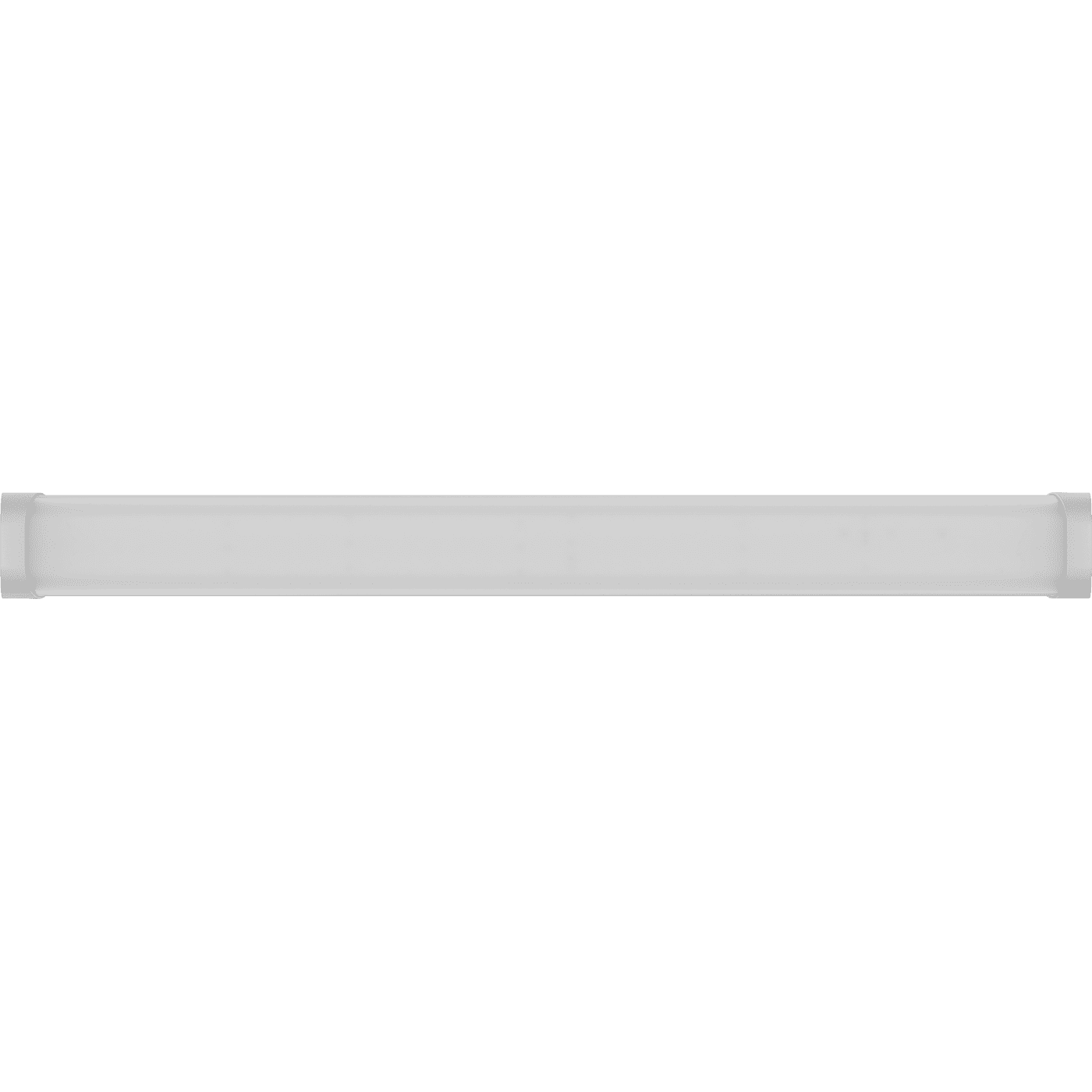

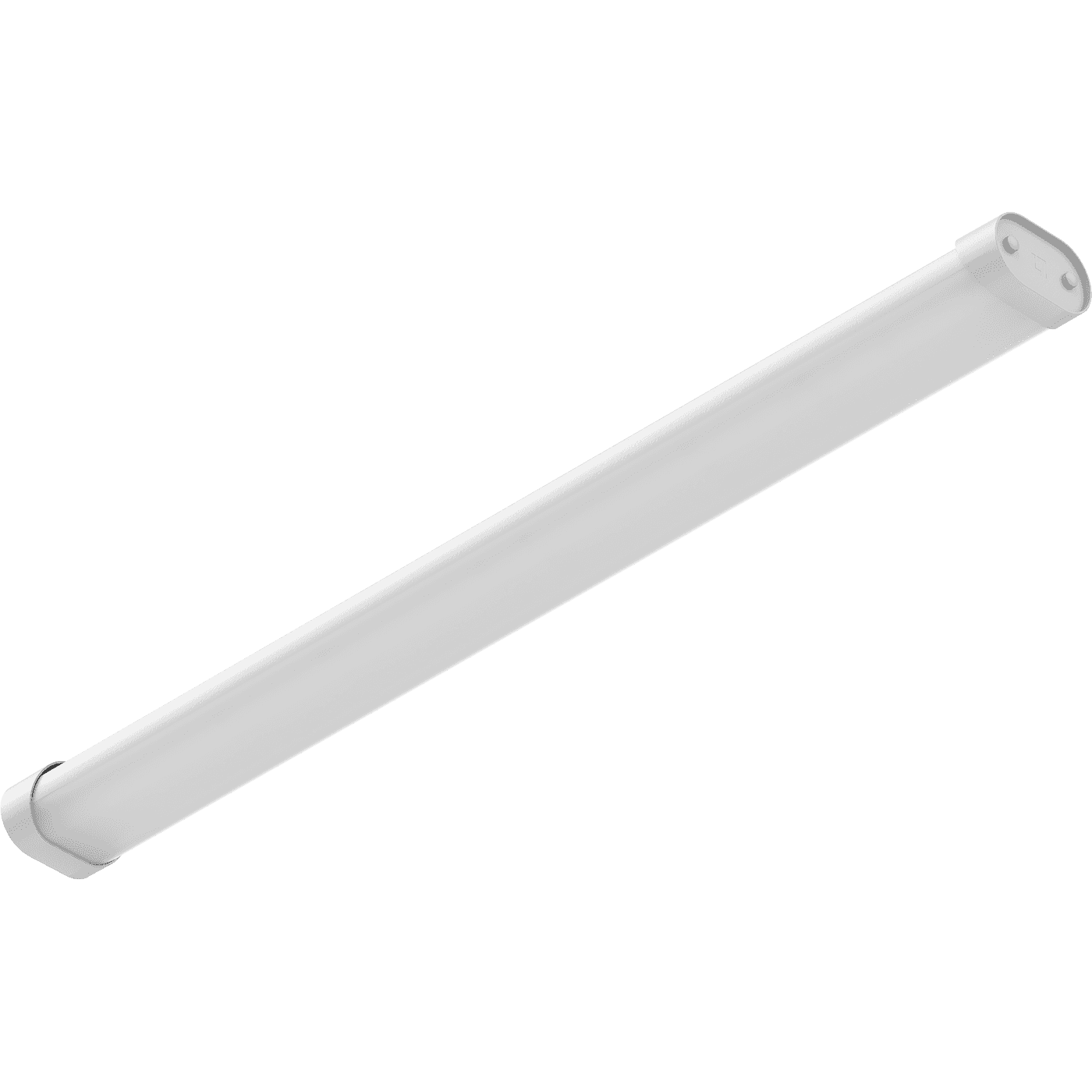

SIMPLE EVO (1200) 30W OPL 850 WH EM
SIMPLE EVO (1200) 30W OPL 850 WH EM
32 Wluminaire power
4300 lmlight flow
134 lm/Wenergy efficiency
code1898005460
color temperature5000

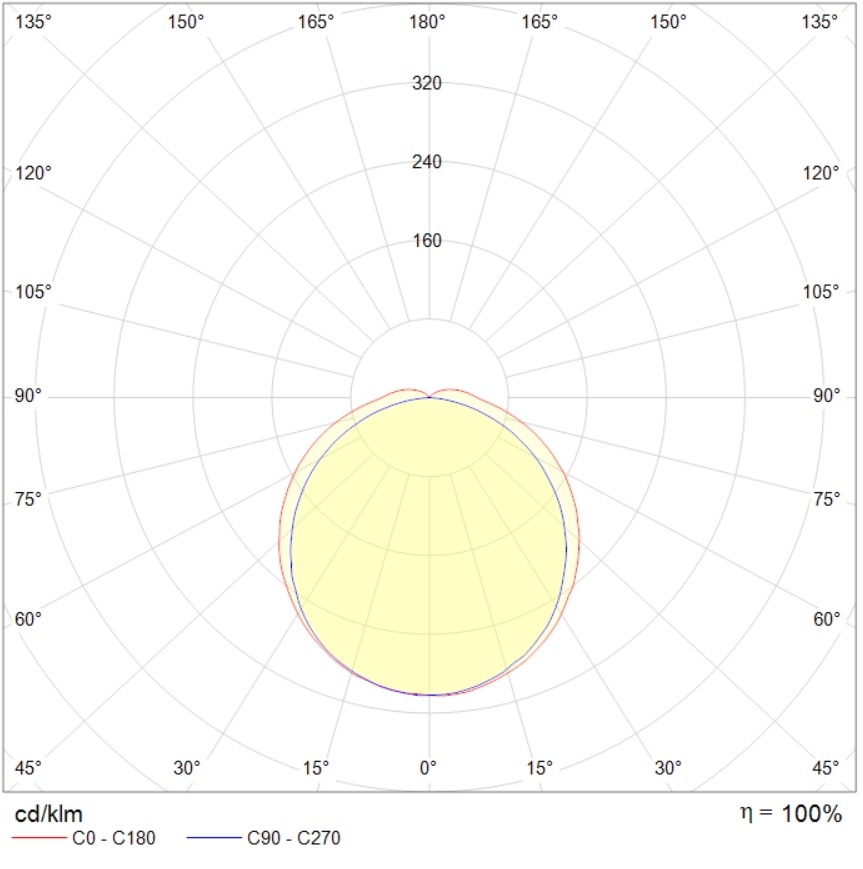

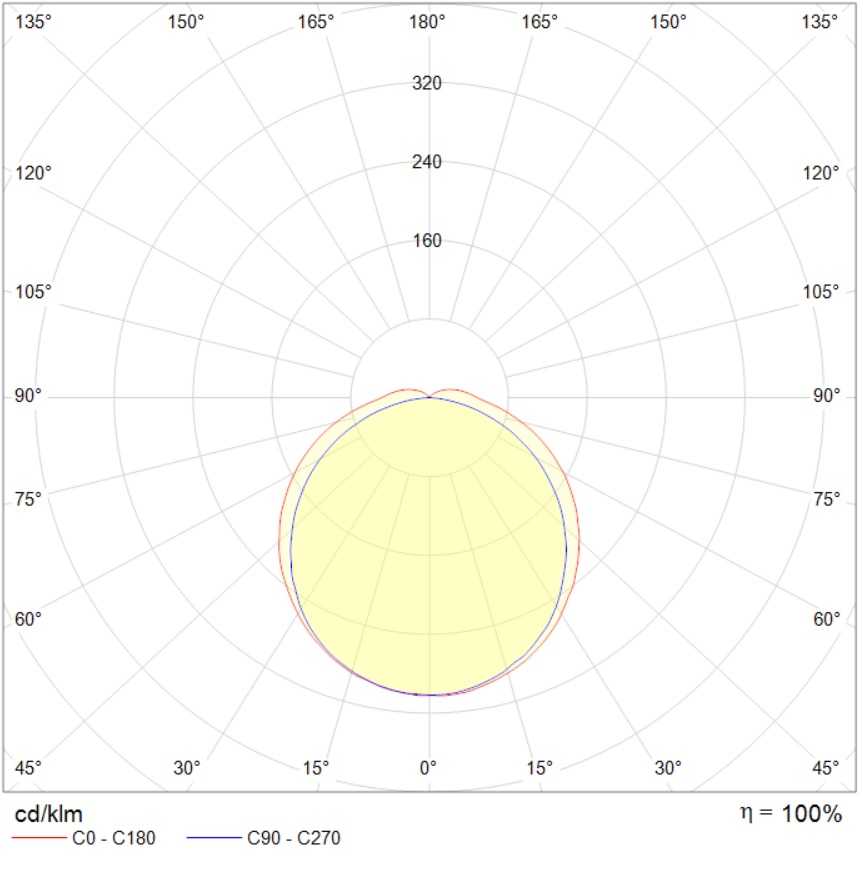

beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
134 lm/Wcolor rendition index (CRI)
>80light flow
4300 lmflickering factor
<1%beam angle
D120color temperature
5000light source type
LEDemission color
Белыйilluminating
energy efficiency
134 lm/W
color rendition index (CRI)
>80
light flow
4300 lm
flickering factor
<1%
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional
length, mm
1070 mm
width, mm
105 mm
height, mm
65 mm
installation length, mm
820 mm
weight
2 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode, hours
1 h
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898005460
