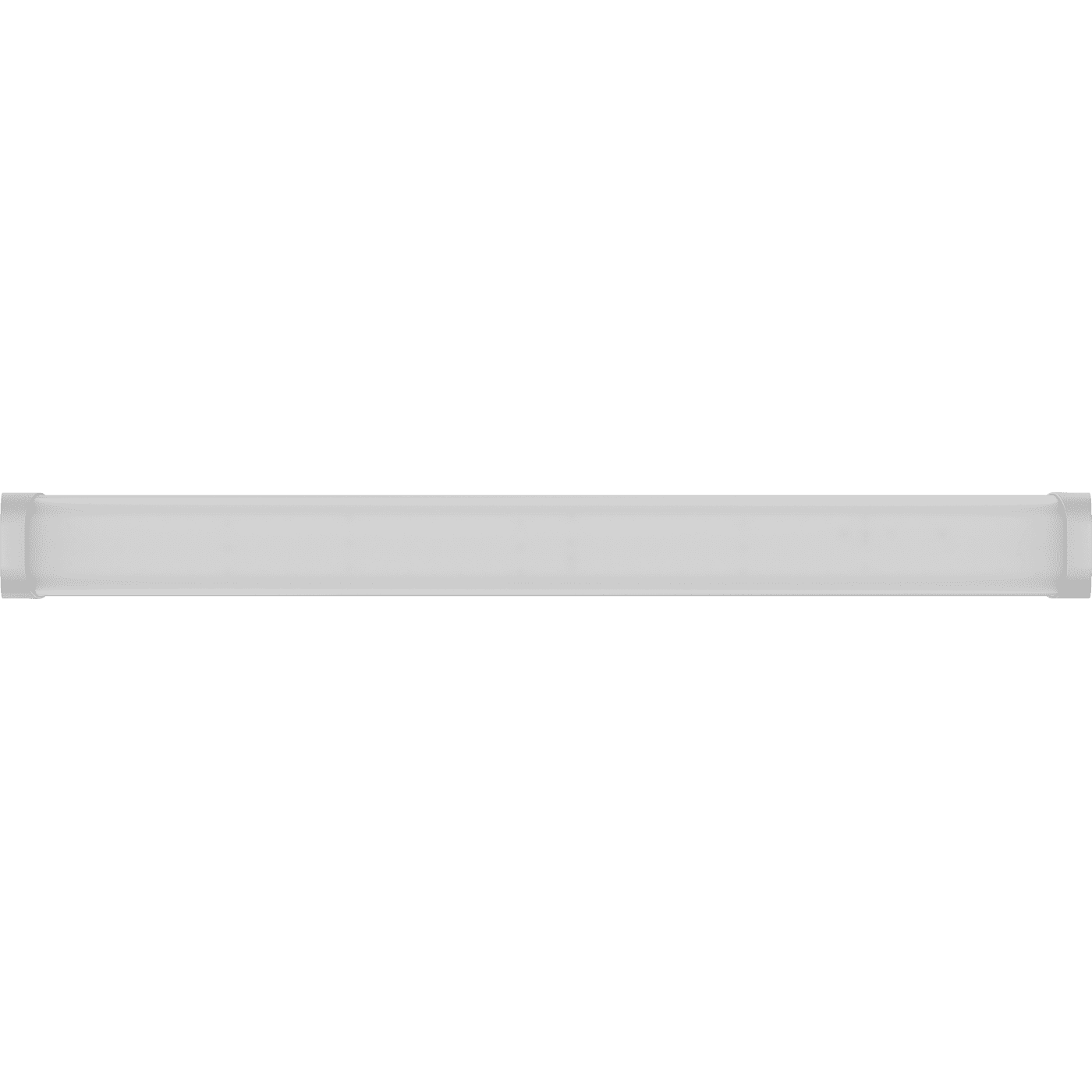

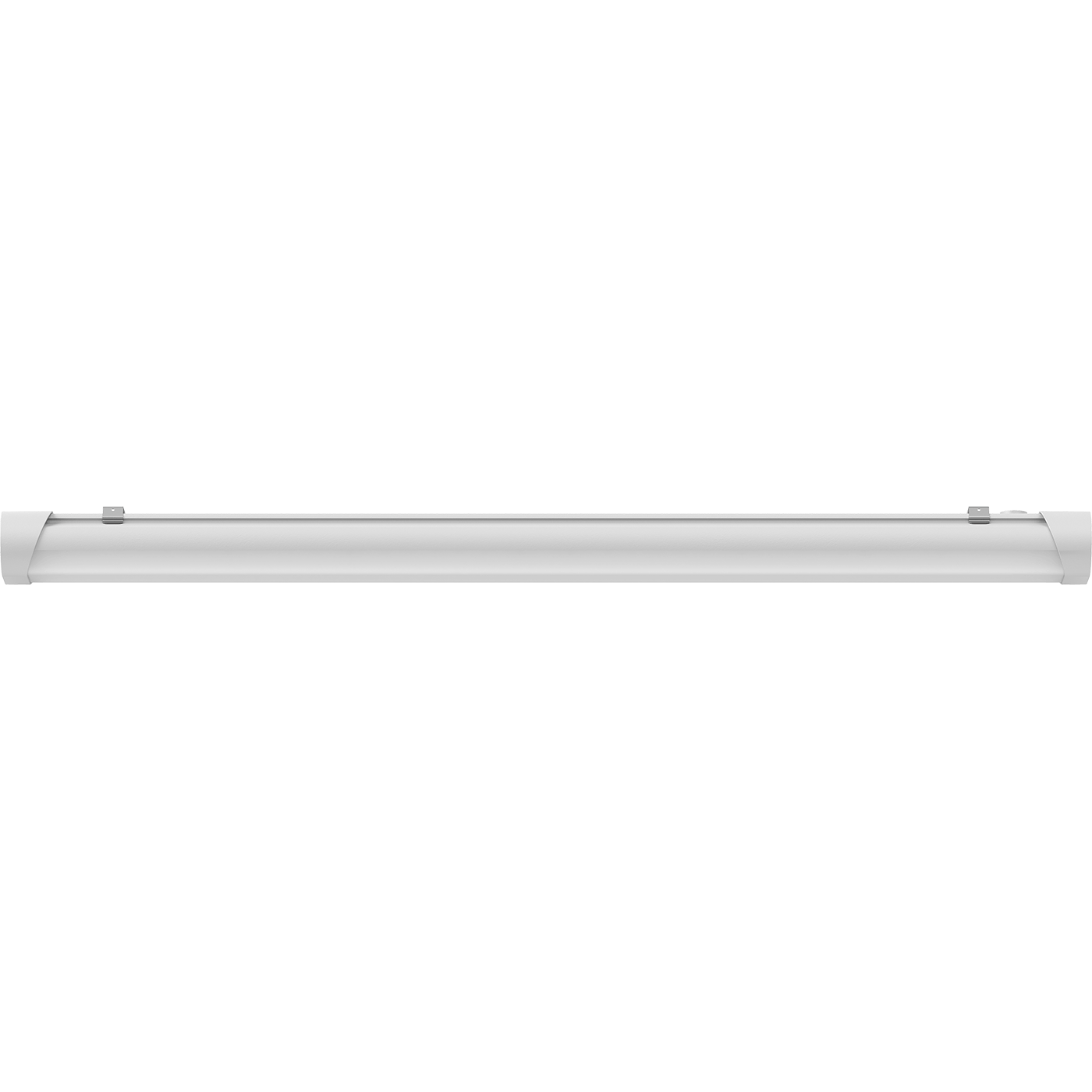

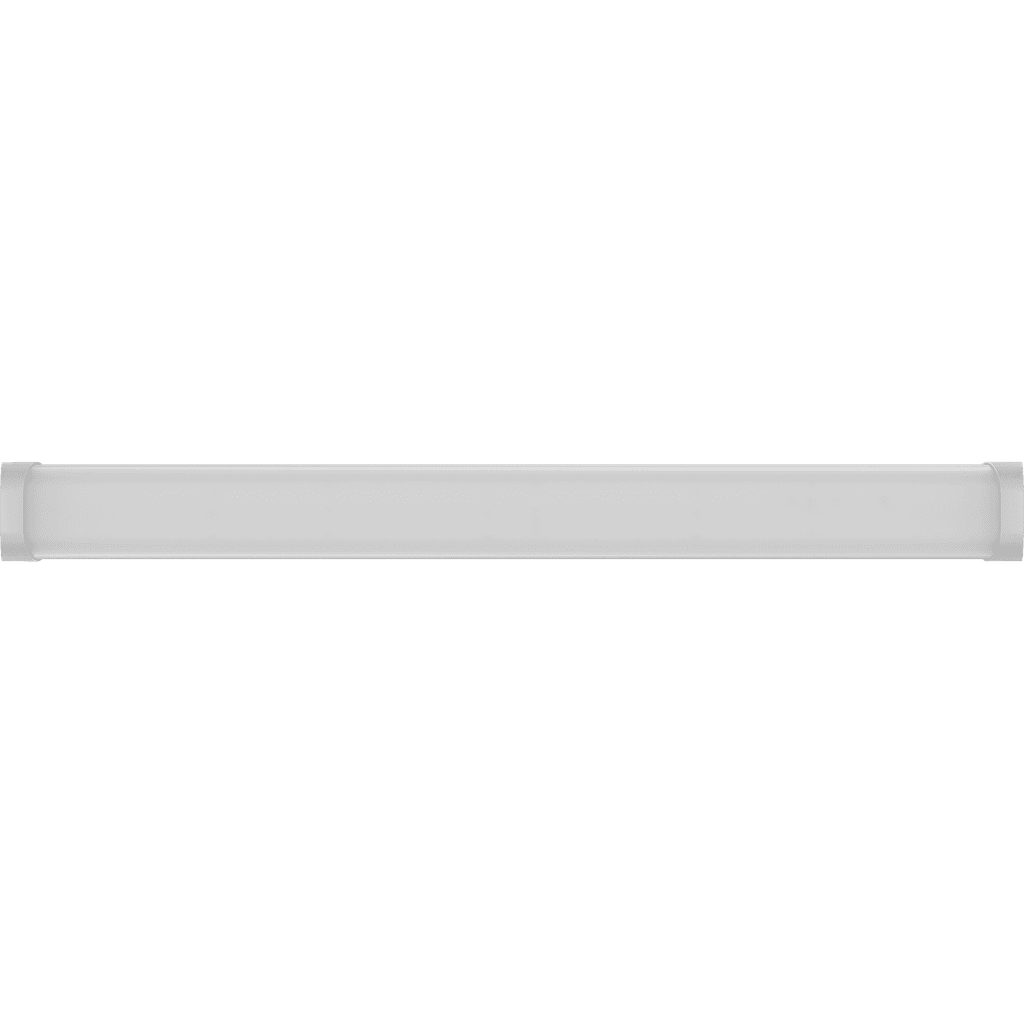

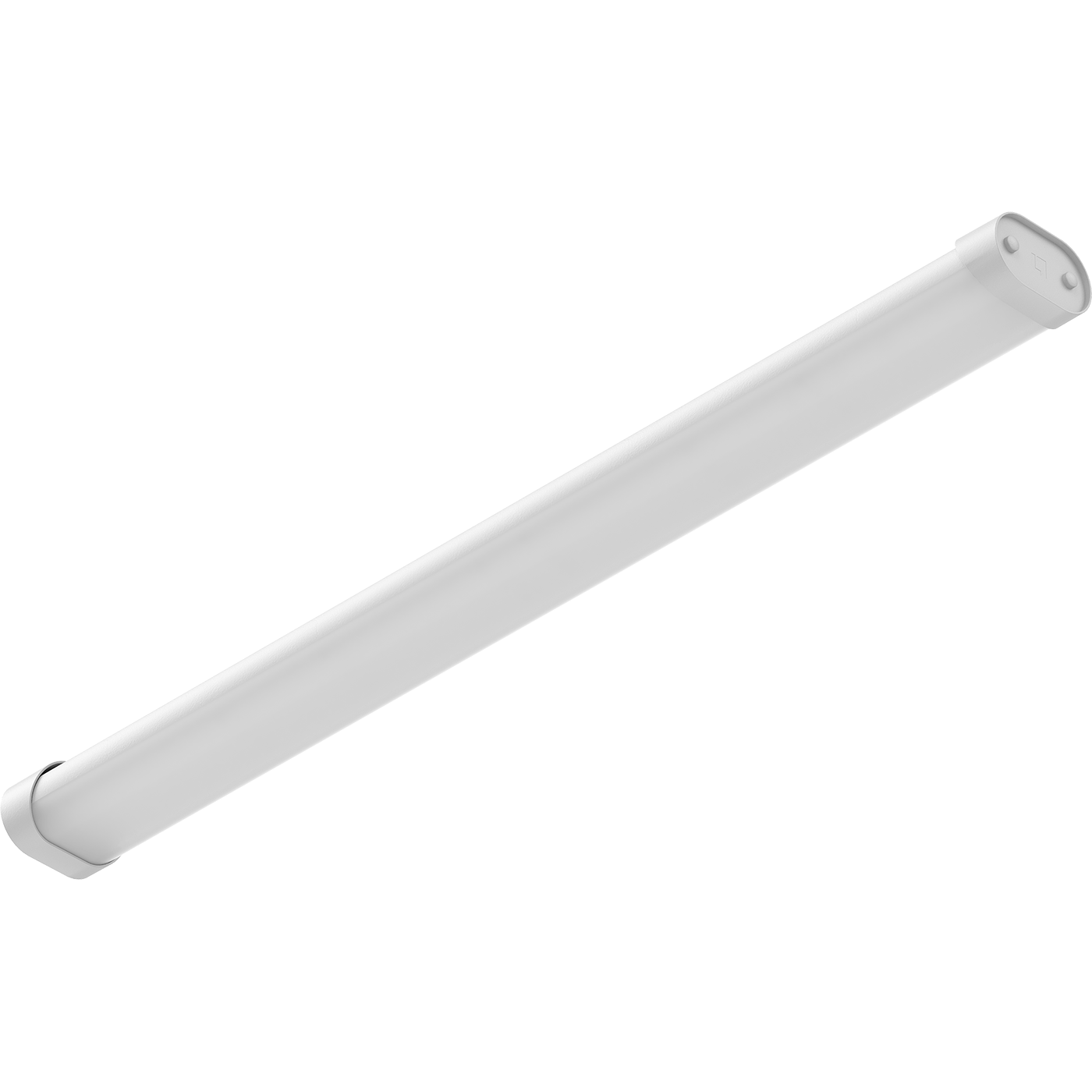

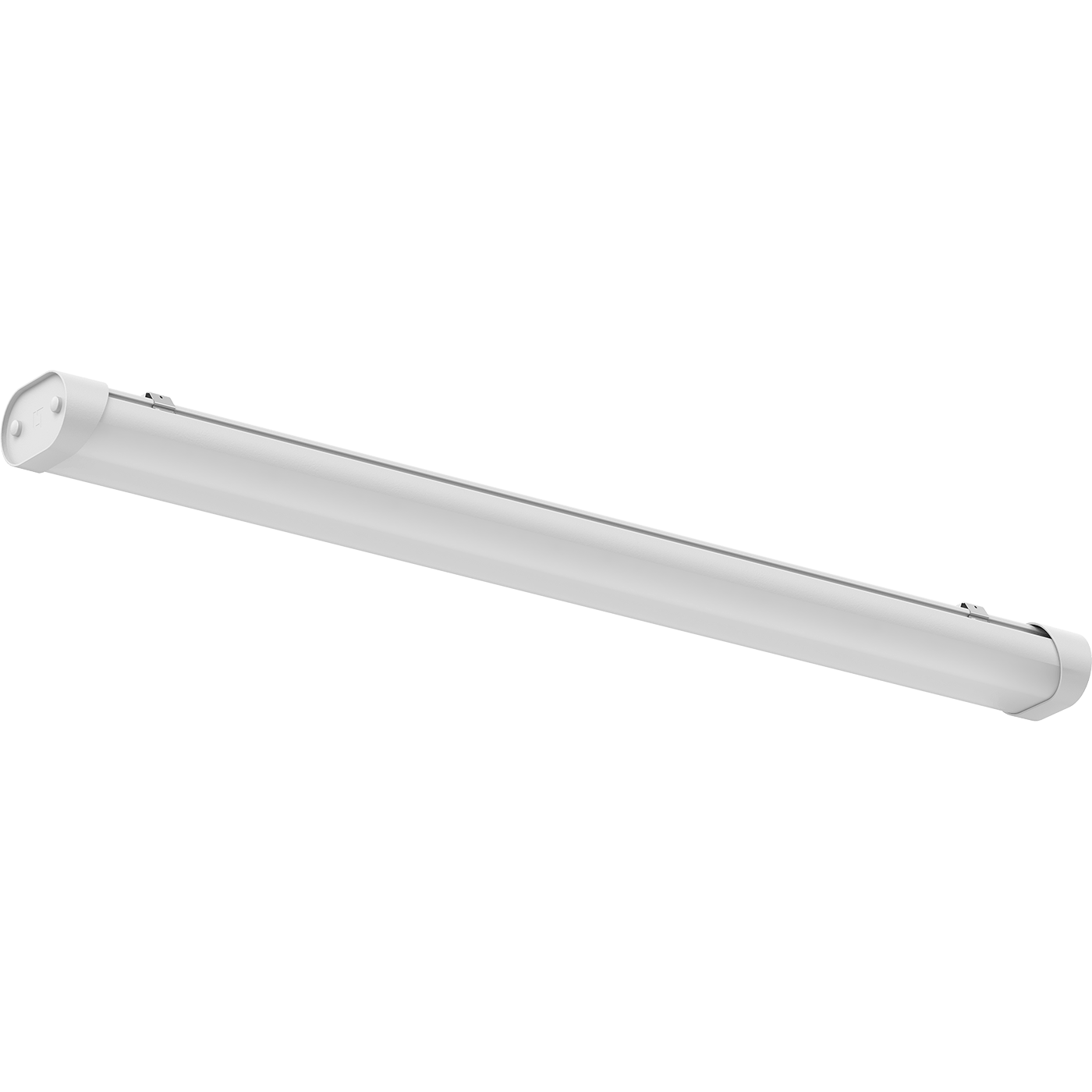

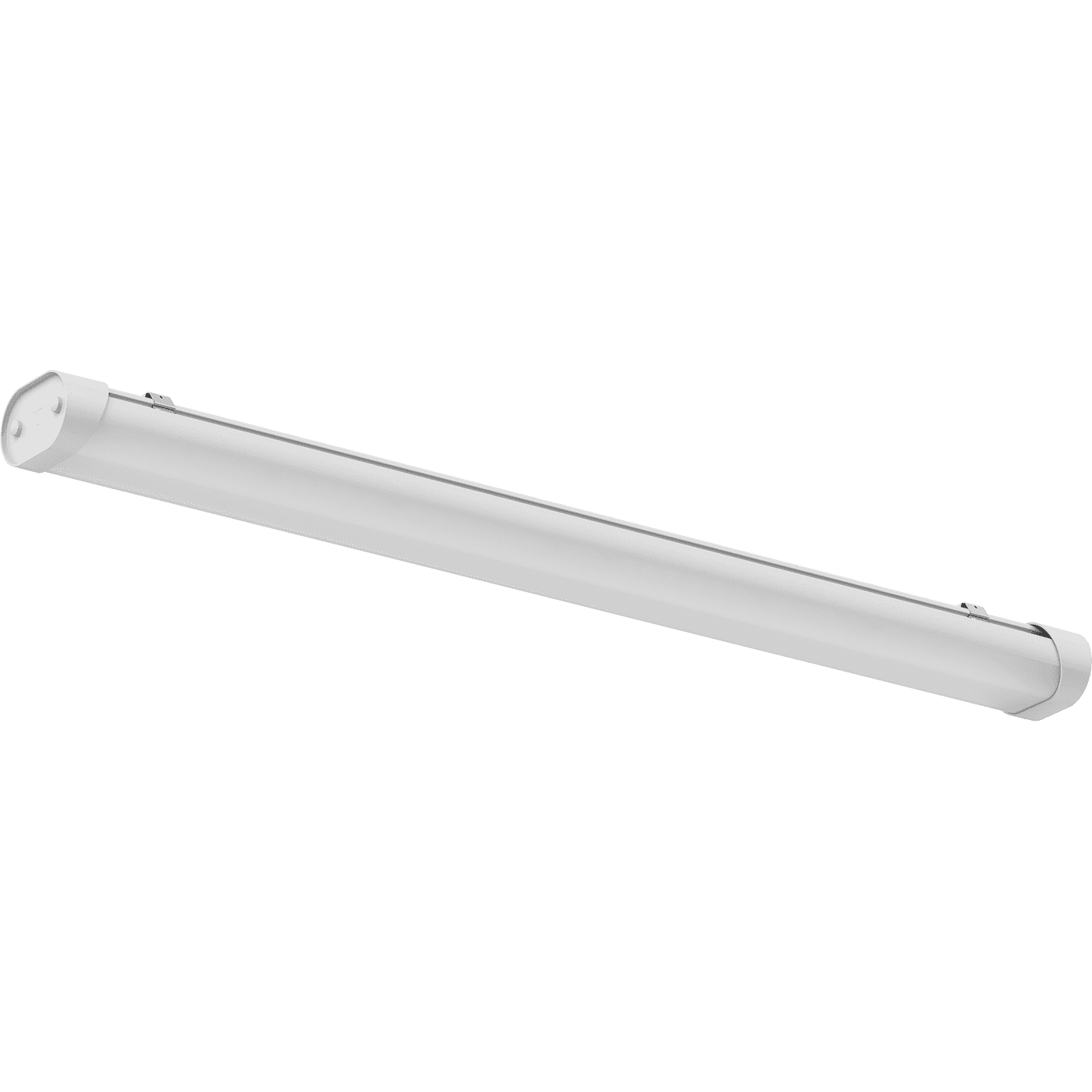

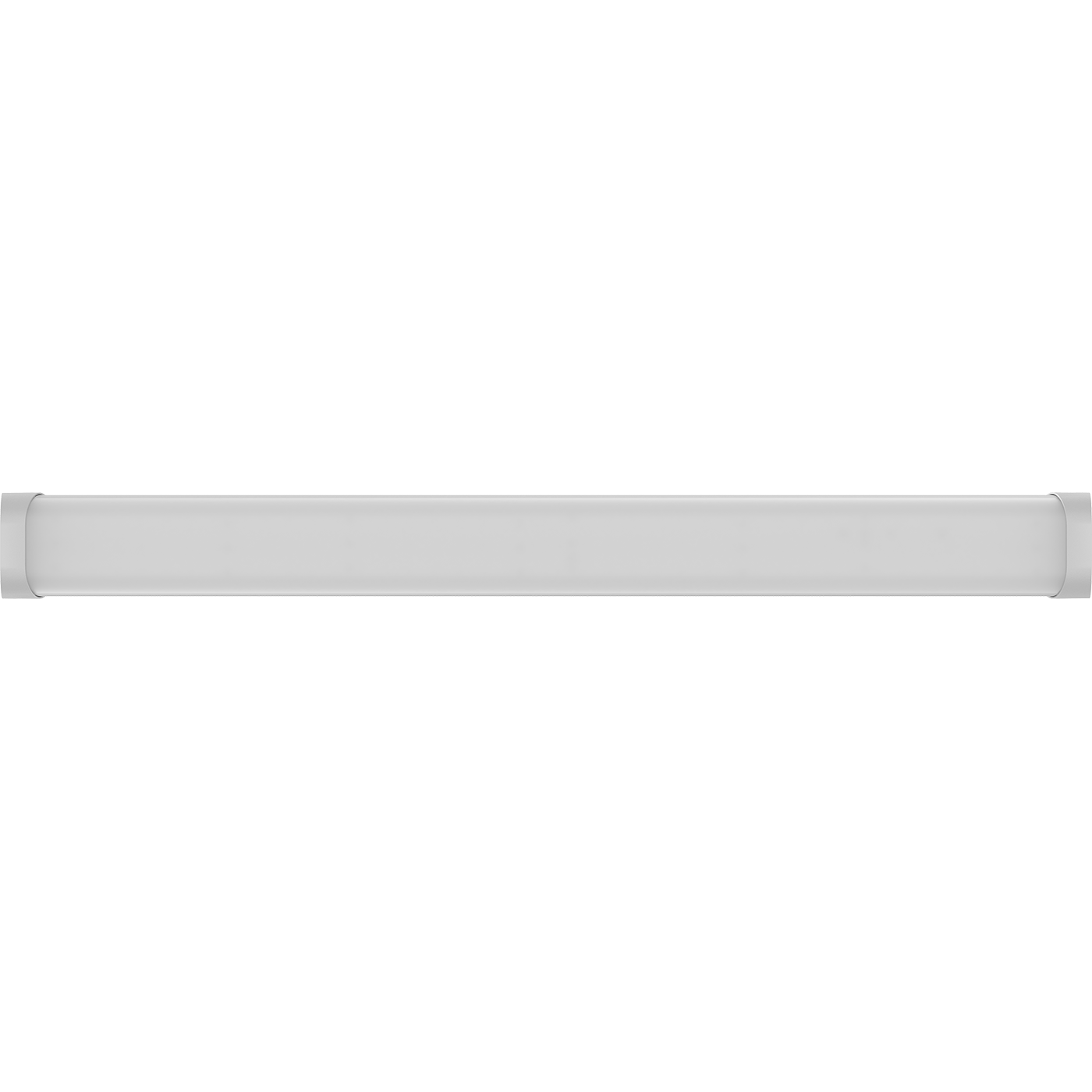

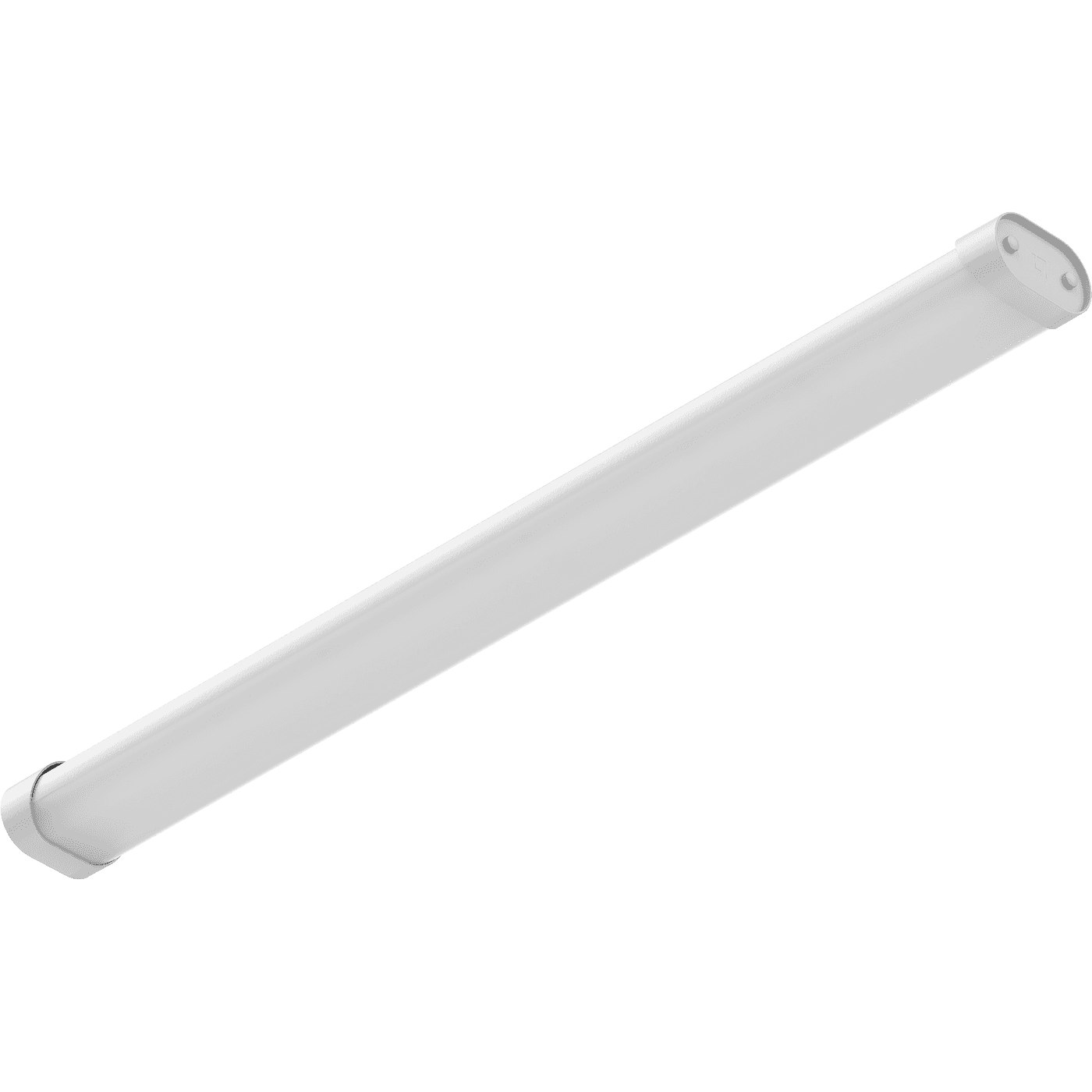

SIMPLE EVO (1200) 40W OPL 830 WH
SIMPLE EVO (1200) 40W OPL 830 WH
40 Wluminaire power
4800 lmlight flow
120 lm/Wenergy efficiency
code1898005680
color temperature3000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
120 lm/Wcolor rendition index (CRI)
>80light flow
4800 lmflickering factor
<1%beam angle
D120color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
120 lm/W
color rendition index (CRI)
>80
light flow
4800 lm
flickering factor
<1%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
40 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
constructional
length, mm
1070 mm
width, mm
105 mm
height, mm
65 mm
installation length, mm
820 mm
weight
1.5 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898005680
model files
model files

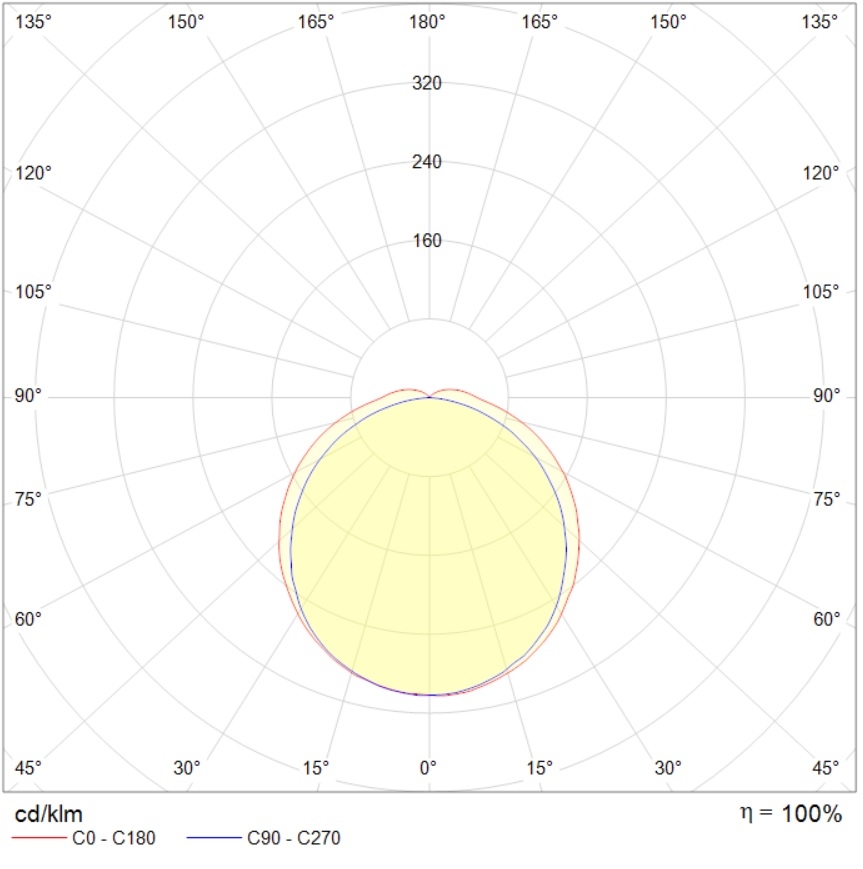

photometric files
documents
сертификаты

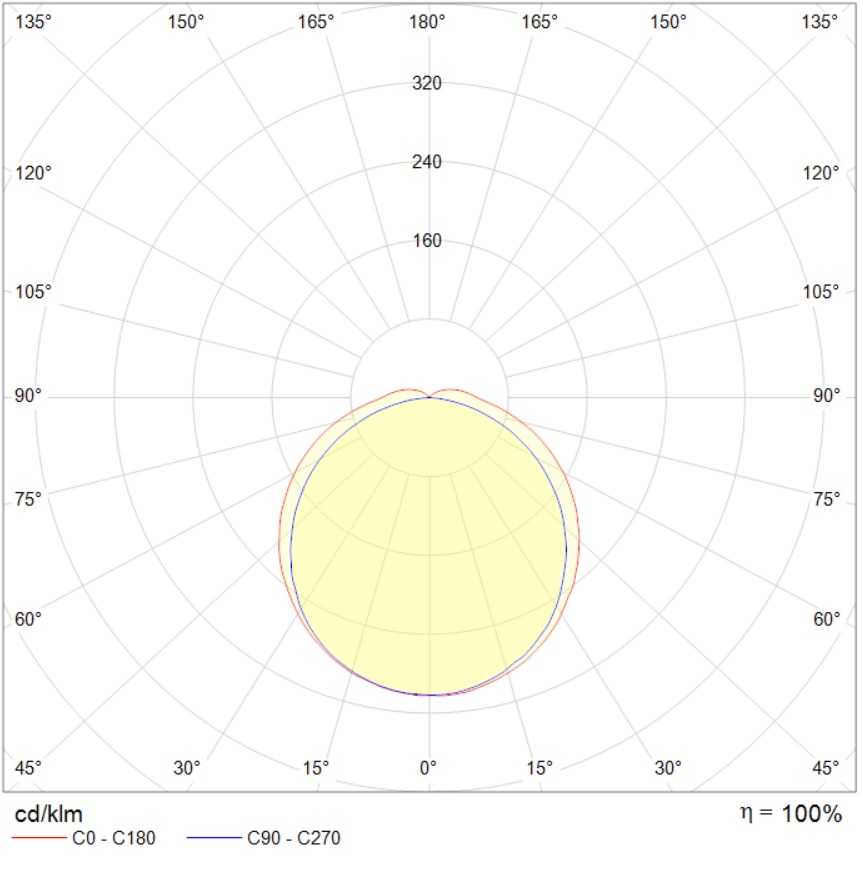

photometric files
ies107 kB
jpg96.9 kB
ldt73.7 kB
documents
passport1.3 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
