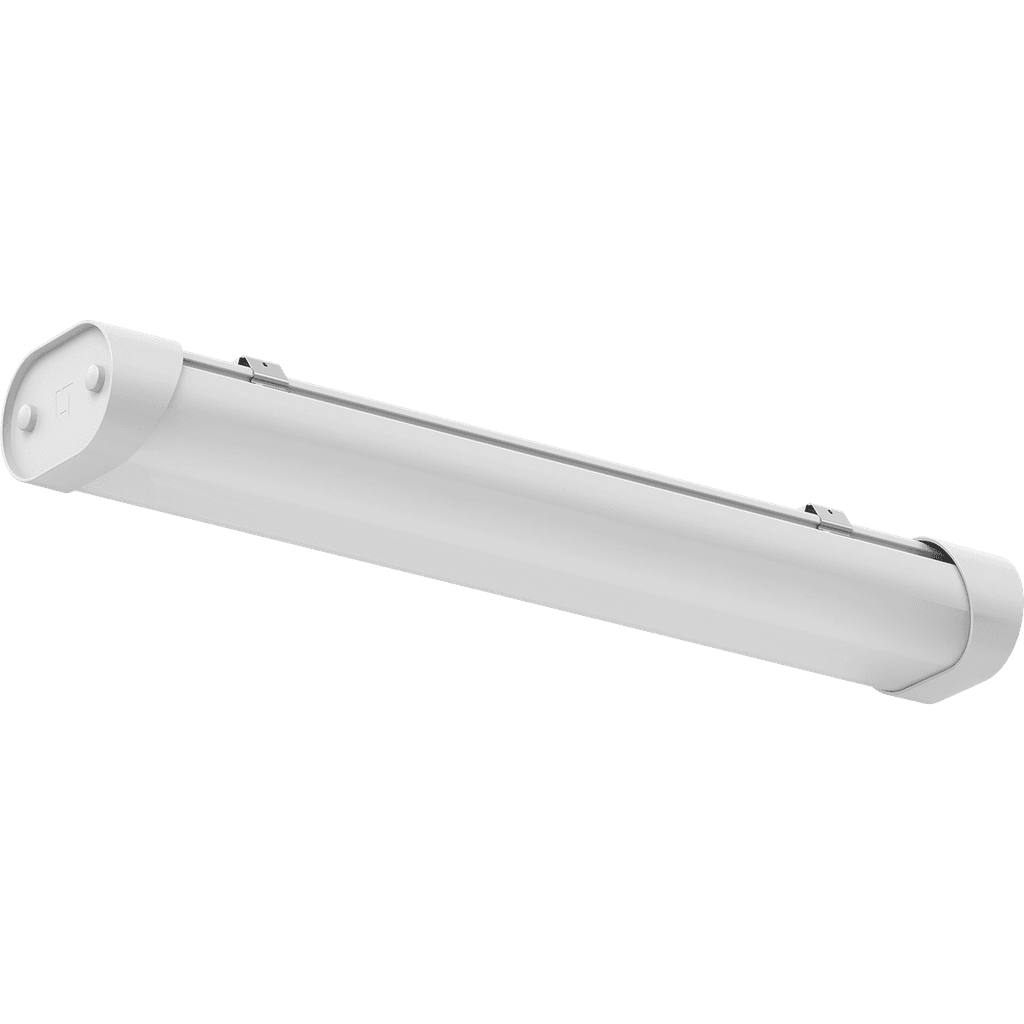

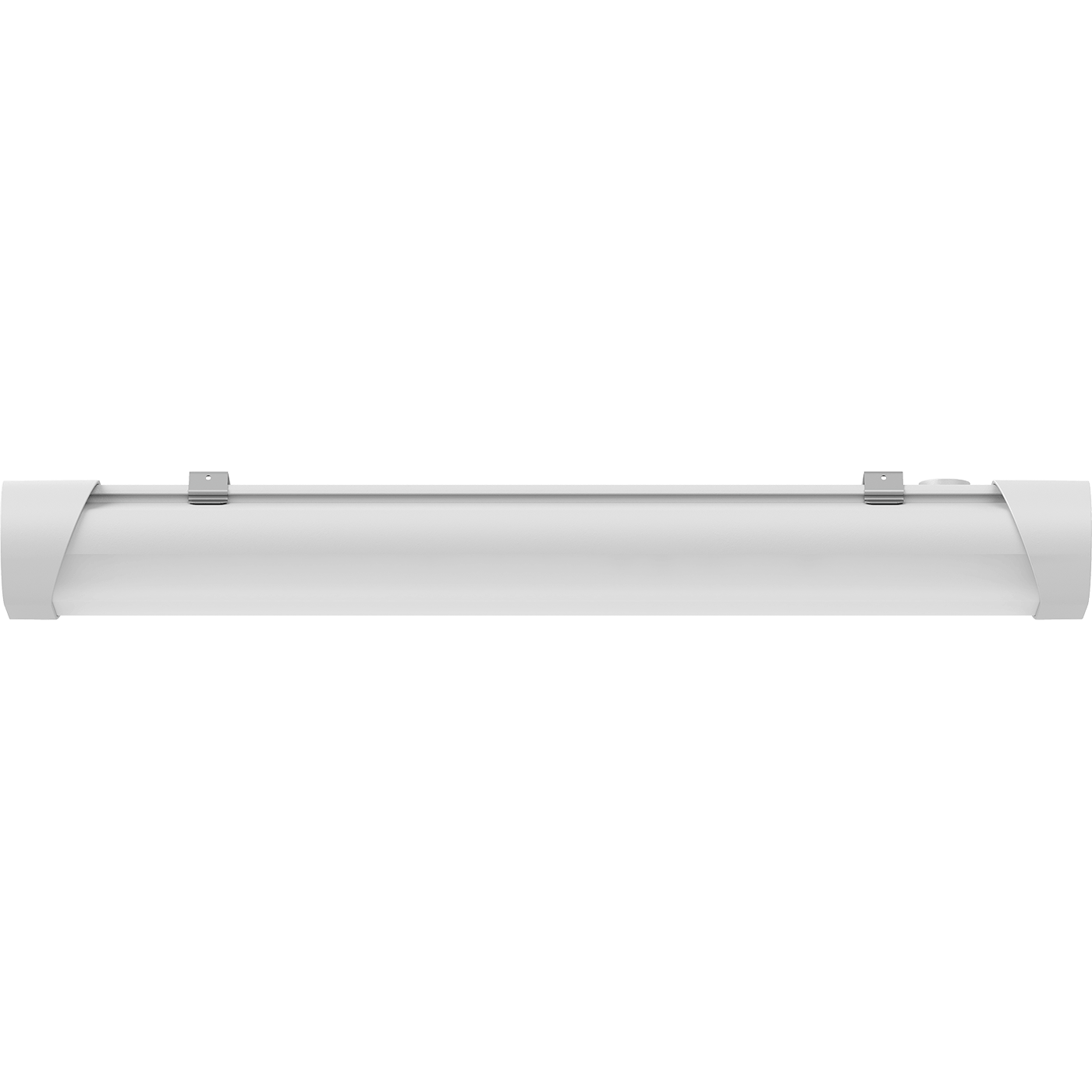

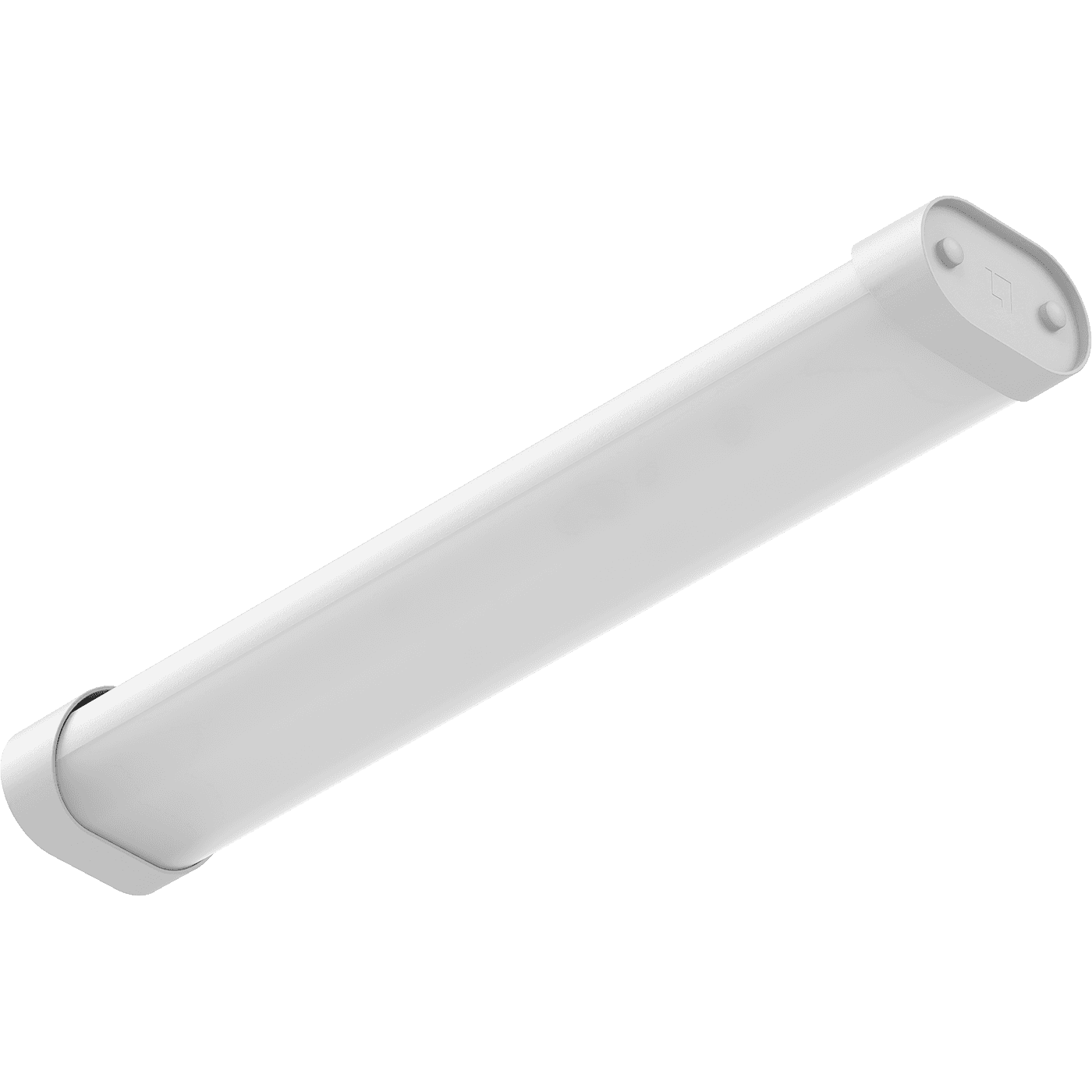

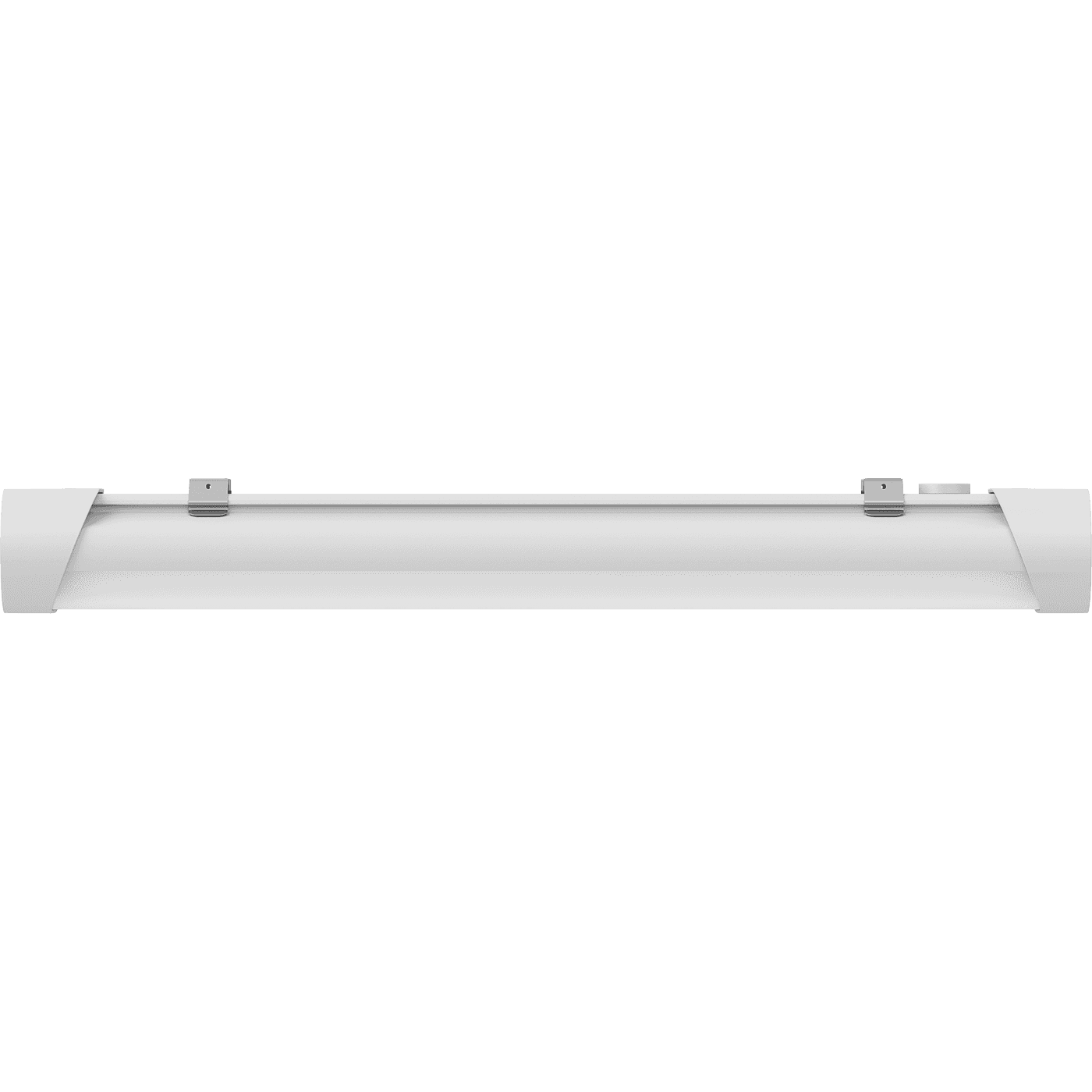

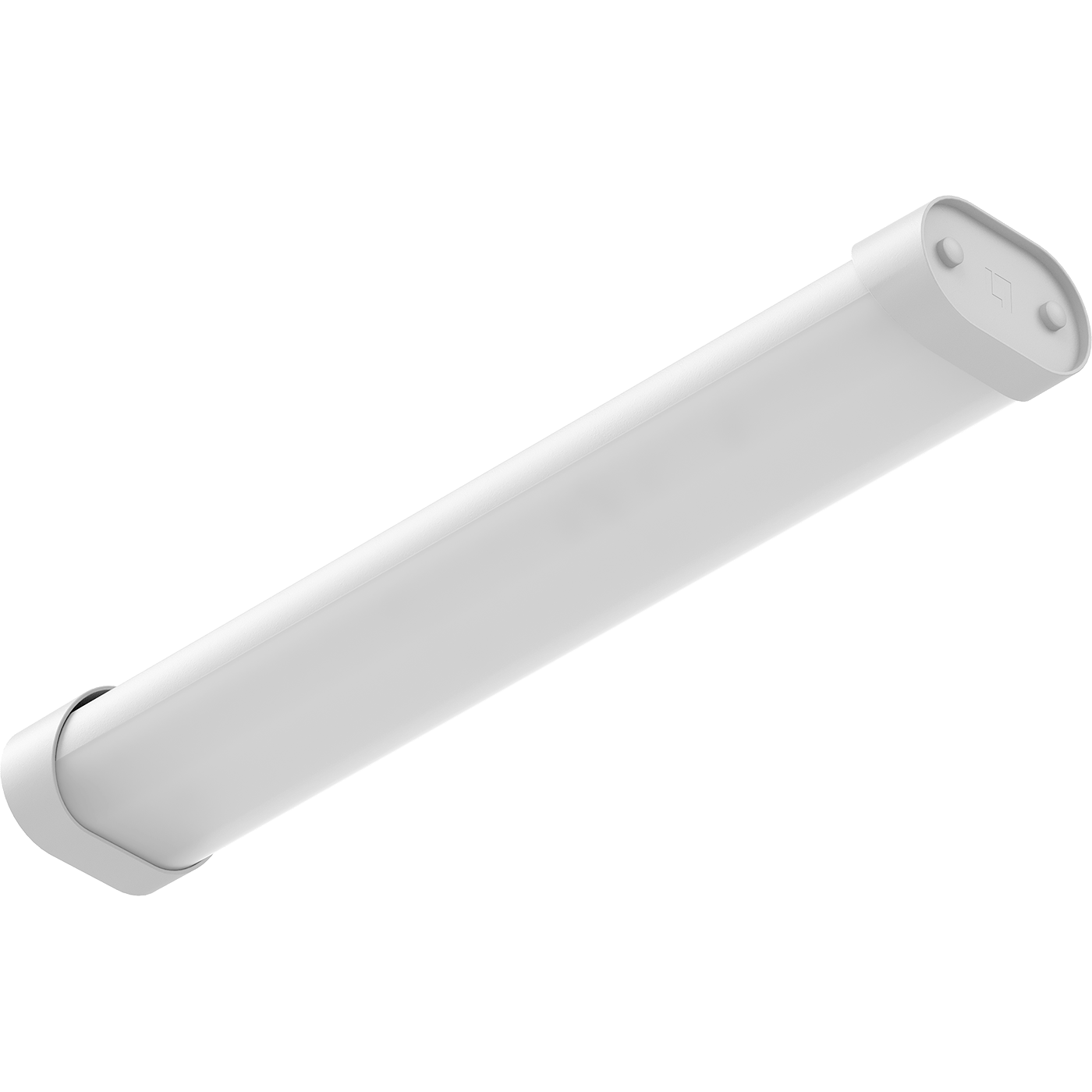

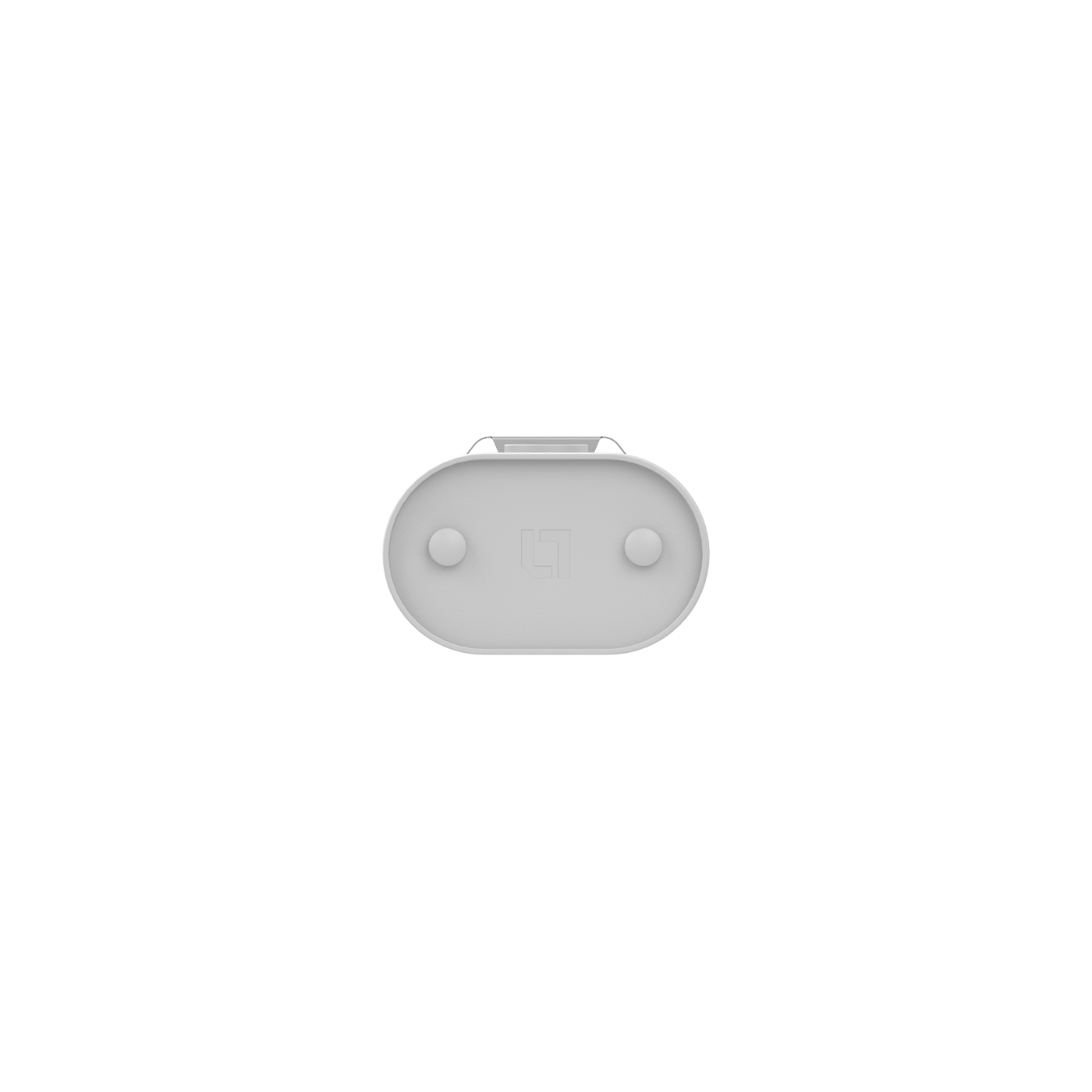

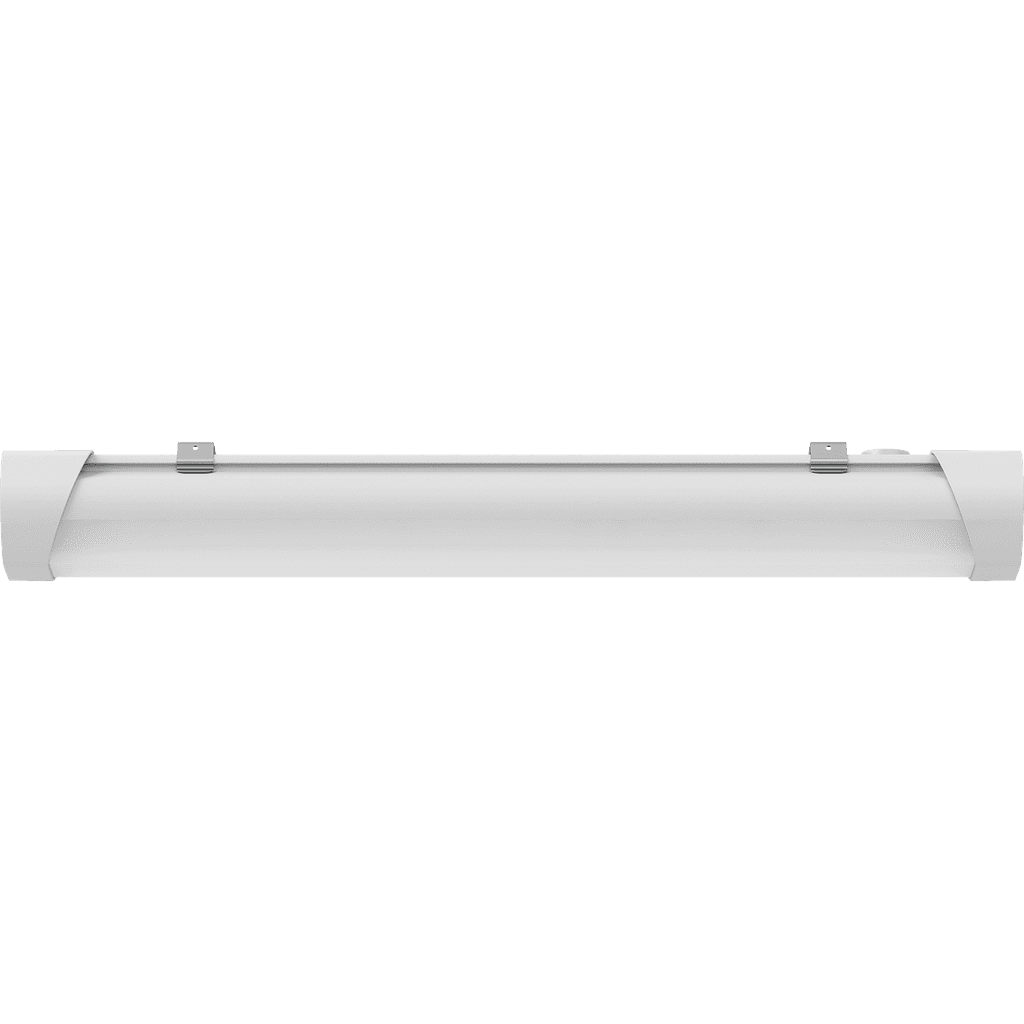

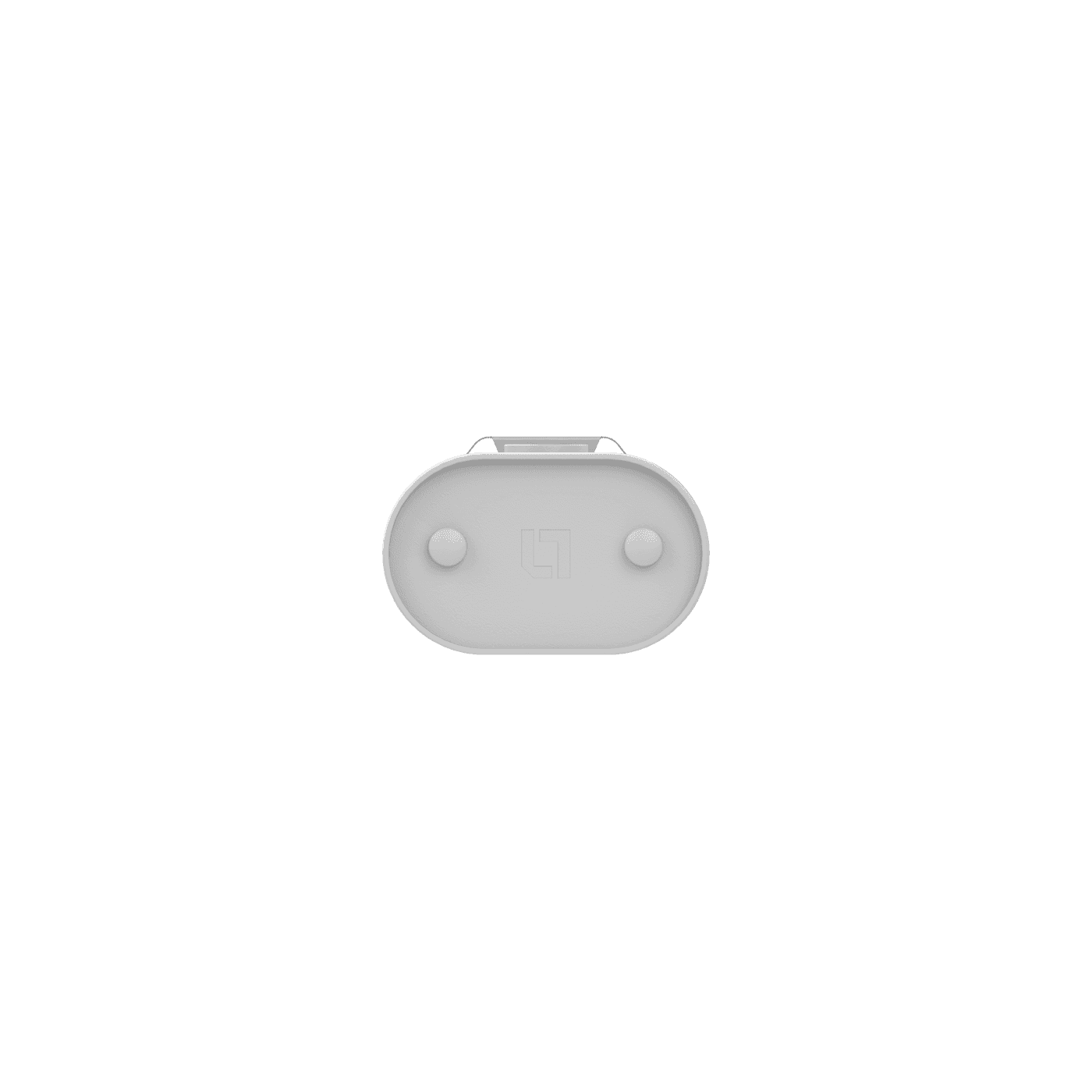

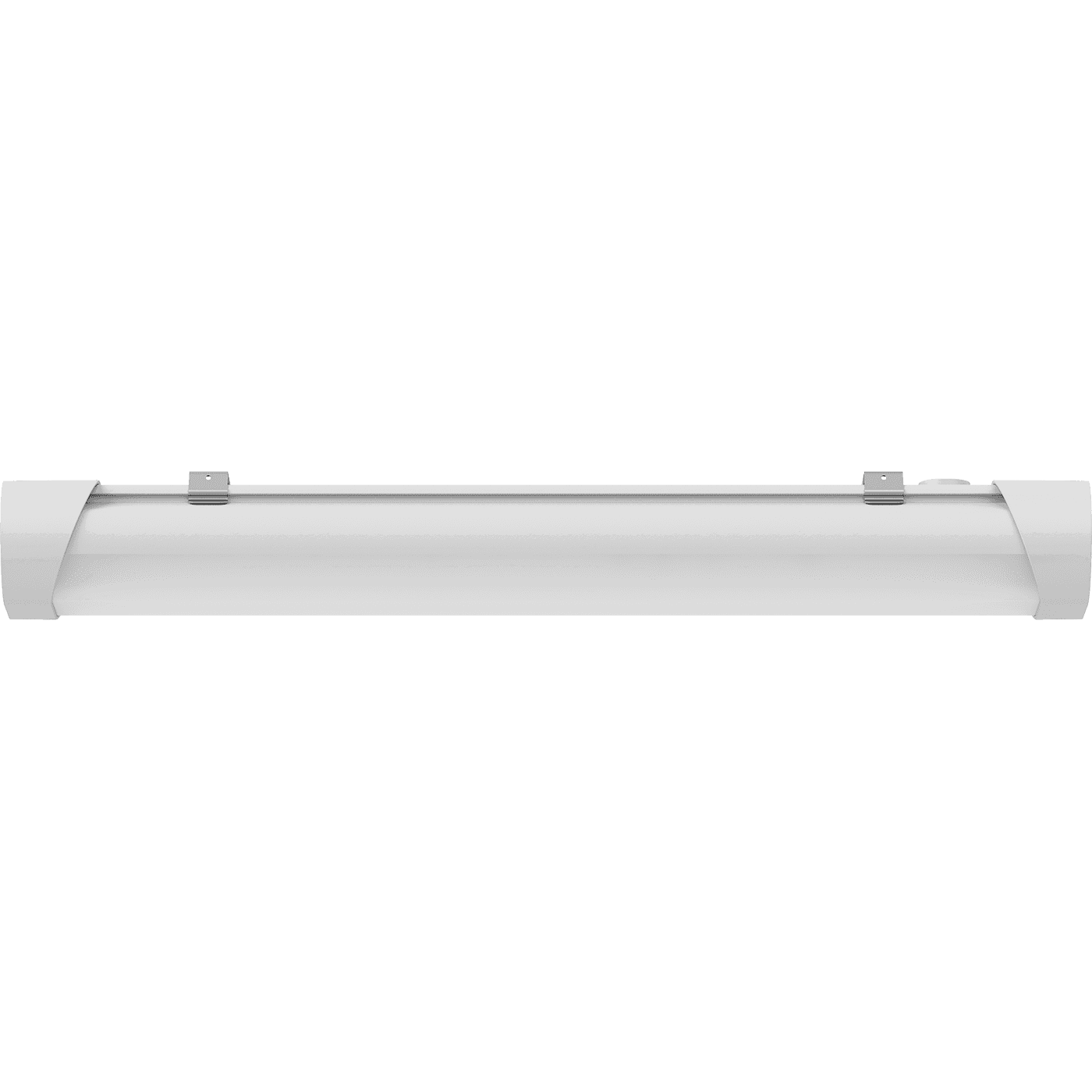

SIMPLE EVO (600) 30W OPL 930 WH
SIMPLE EVO (600) 30W OPL 930 WH
24 Wluminaire power
2500 lmlight flow
104 lm/Wenergy efficiency
code1898004990
color temperature3000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
24 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
24 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
material
Поликарбонат
weight
0.9 kg
length, mm
565 mm
width, mm
105 mm
height, mm
65 mm
housing color
Белый
installation length, mm
350 mm
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1898004990
illuminating
color rendition index (CRI)
>90
light flow
2500 lm
flickering factor
<1%
energy efficiency
104 lm/W
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

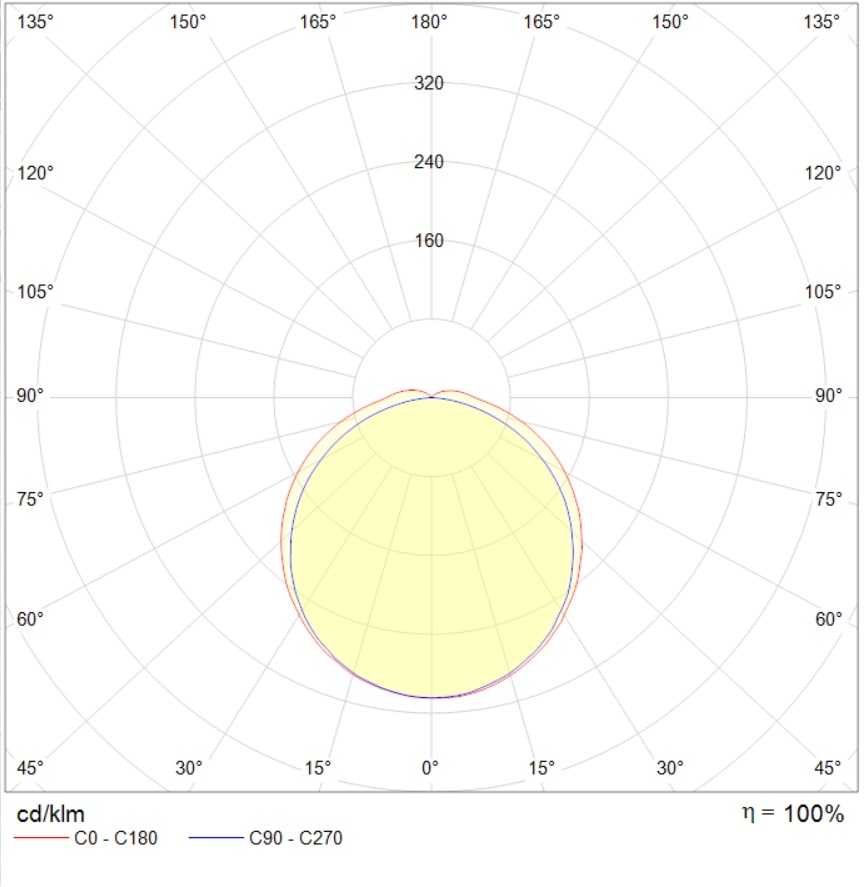

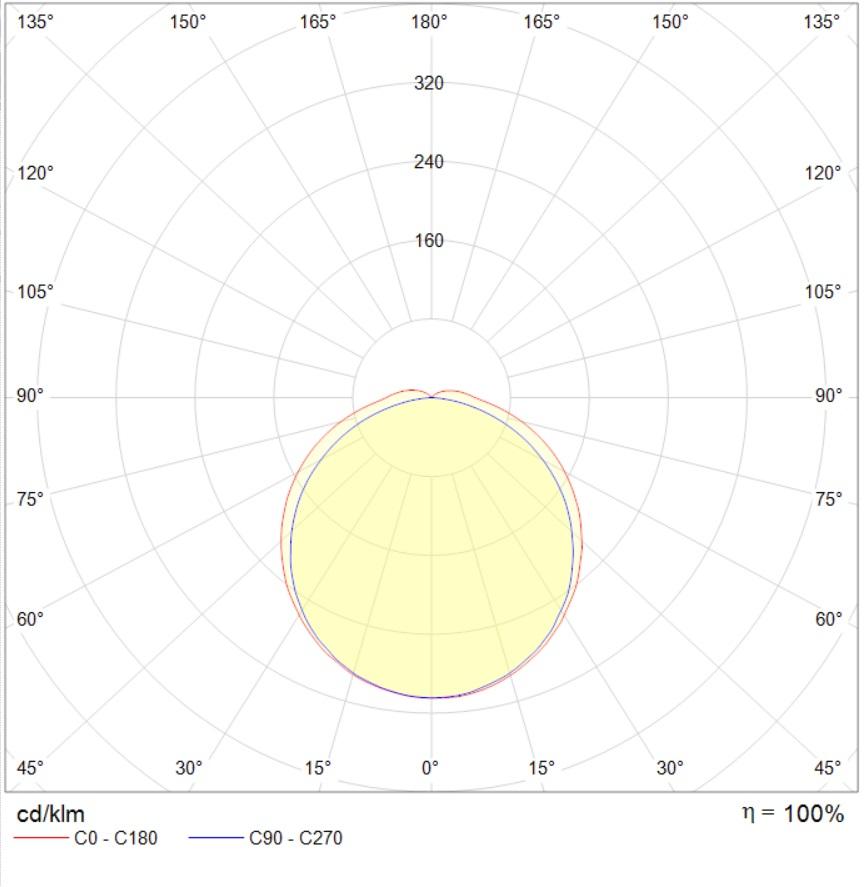

photometric files
ies107 kB
jpg99.9 kB
ldt73.7 kB
documents
passport1.4 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
