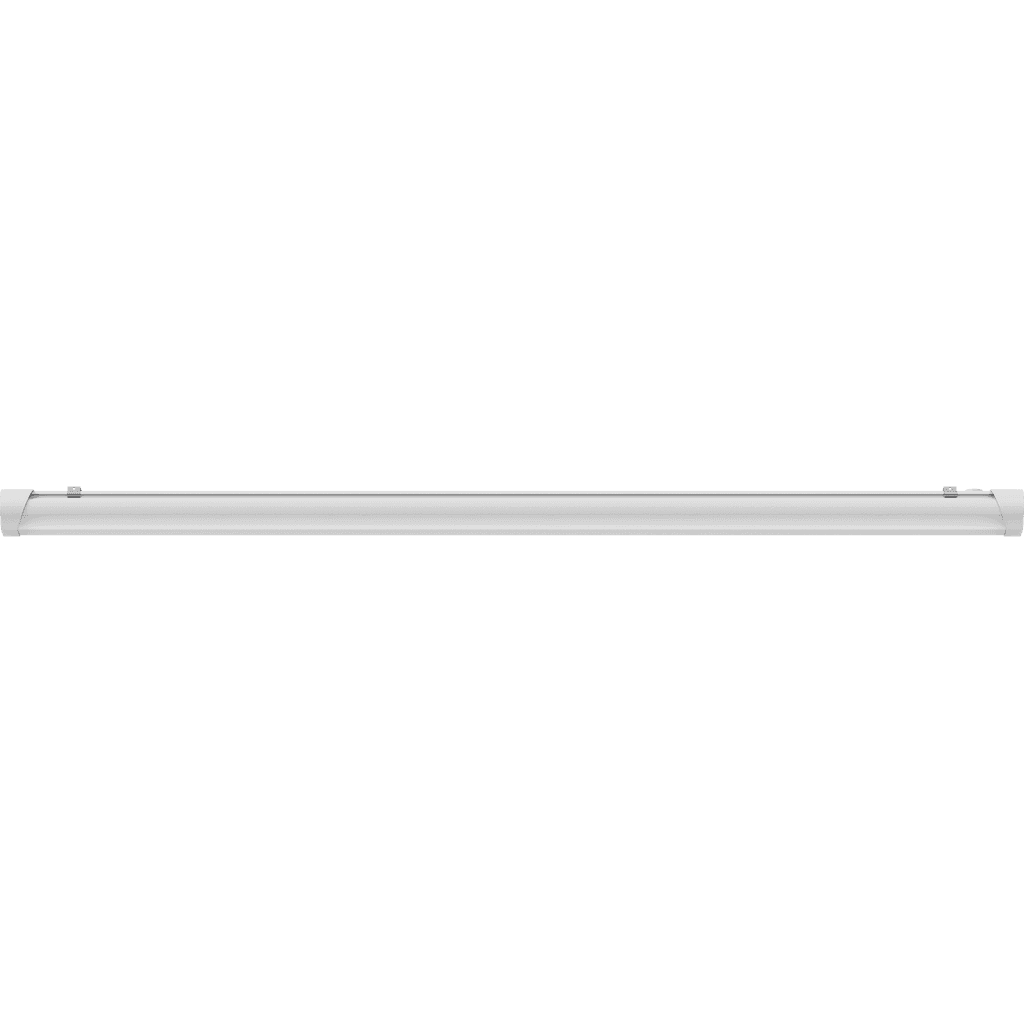

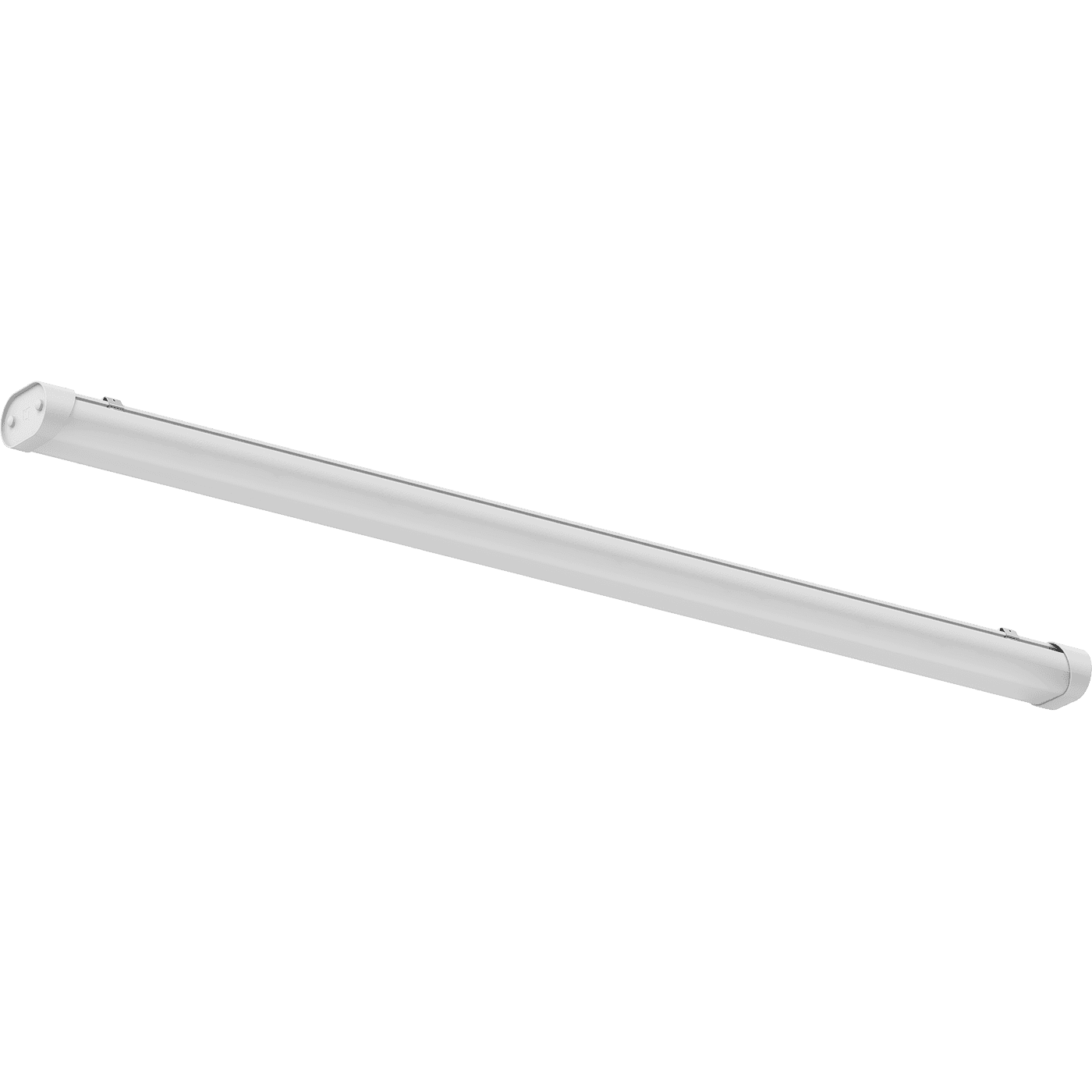

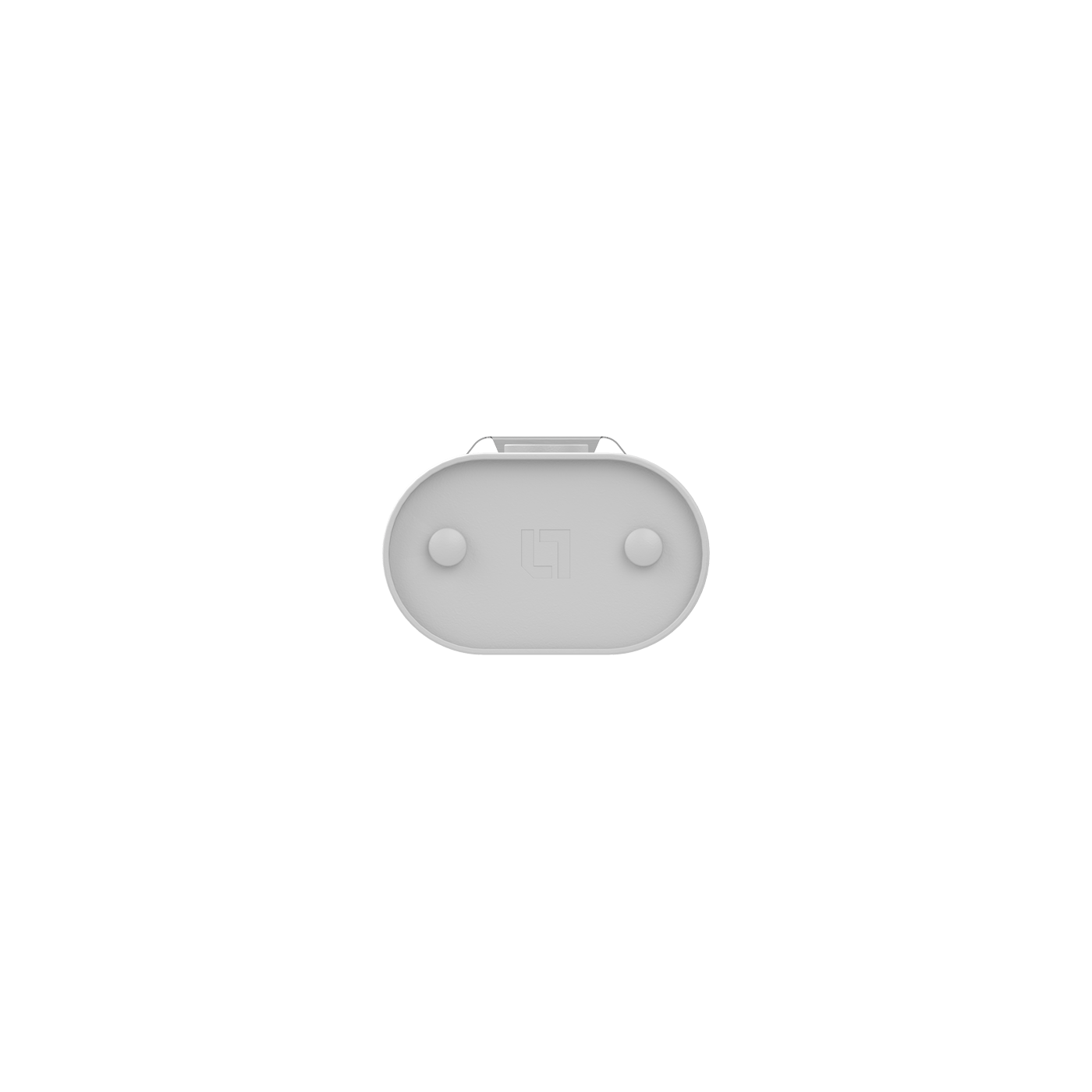

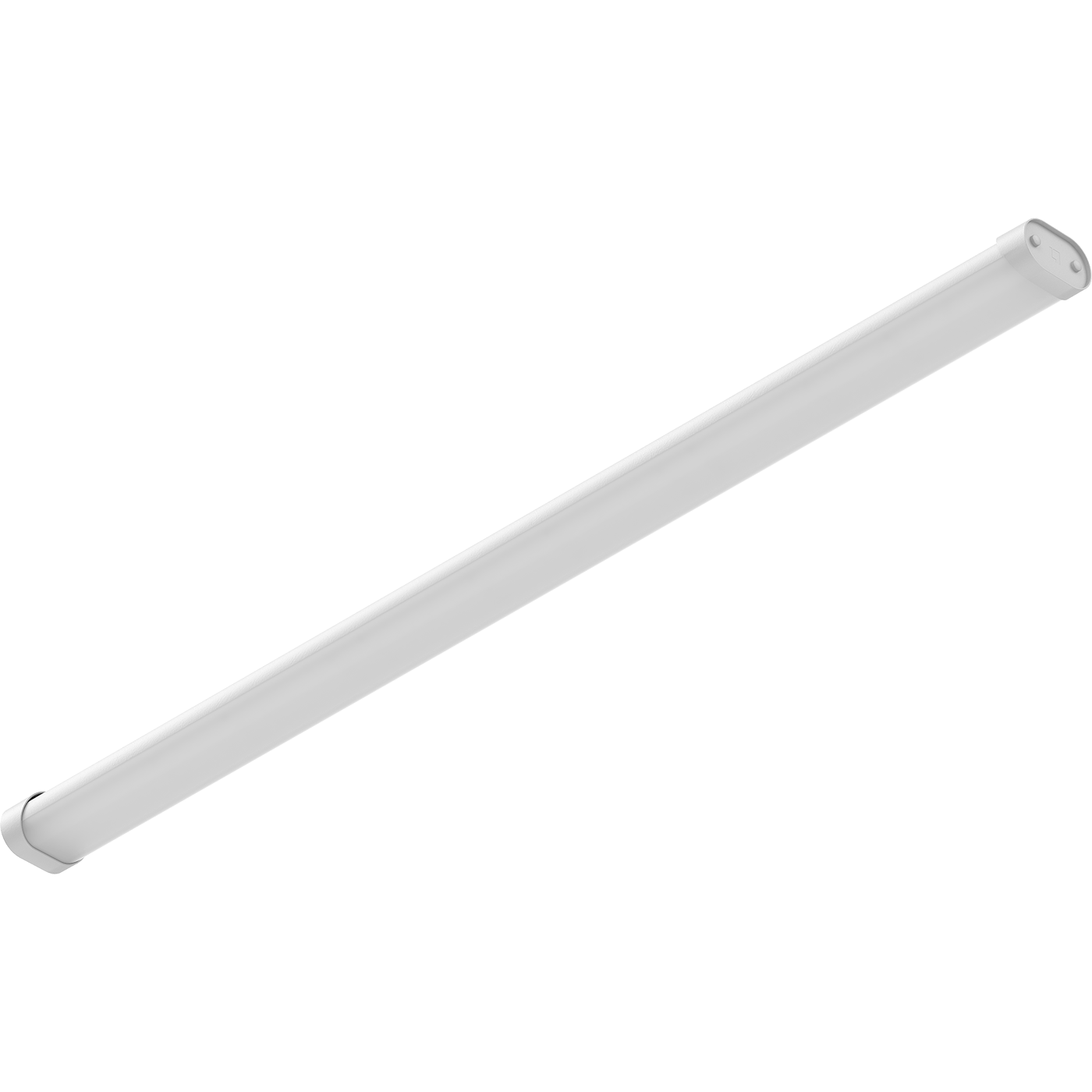

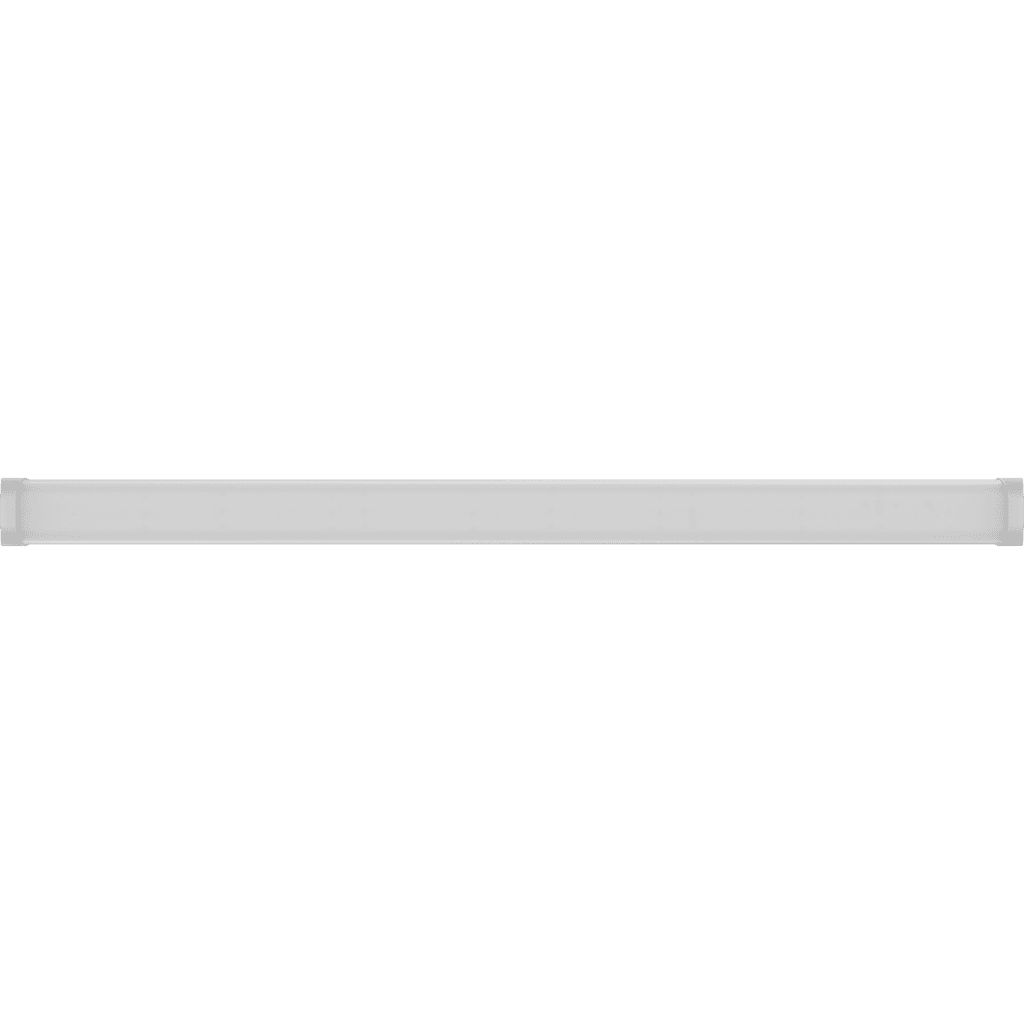

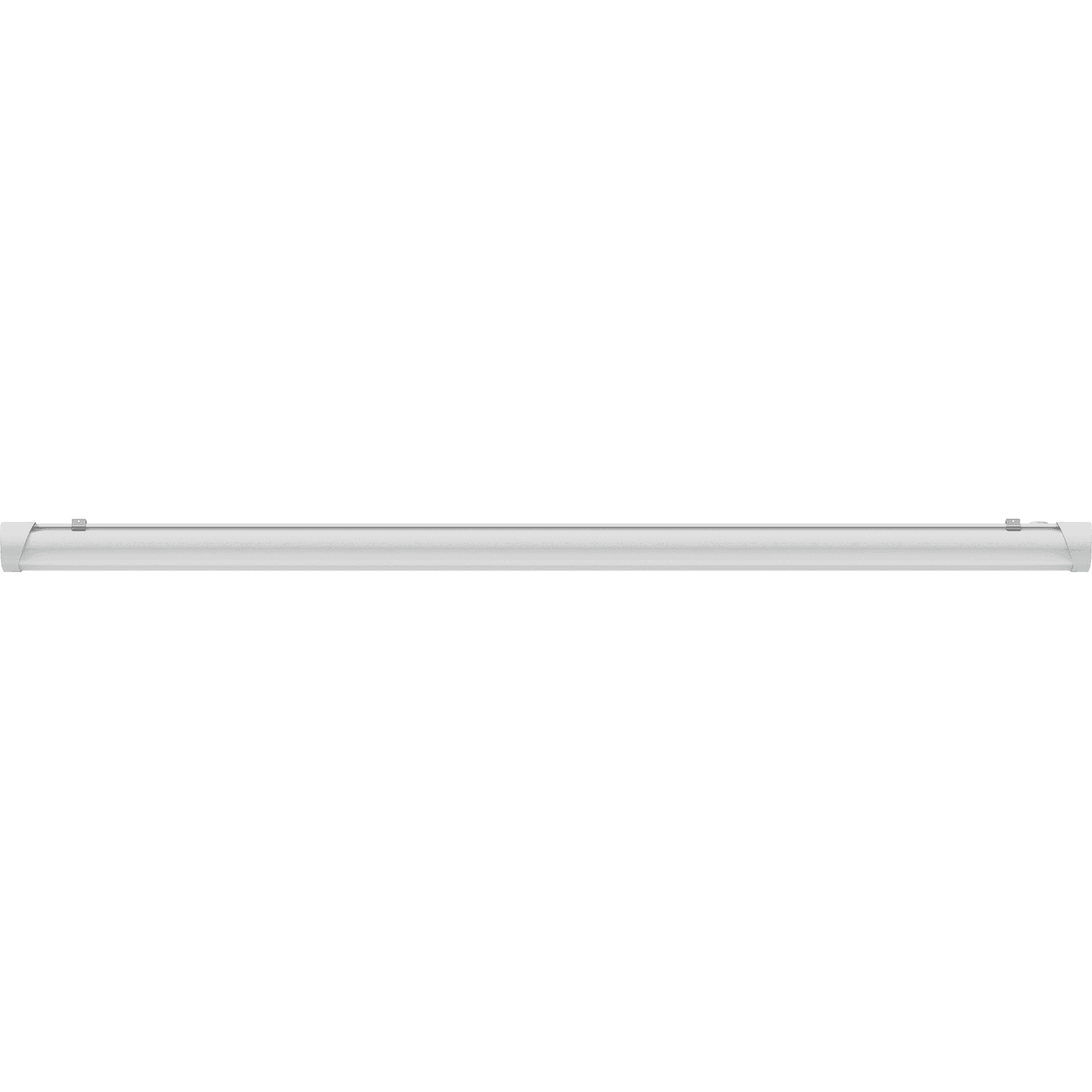

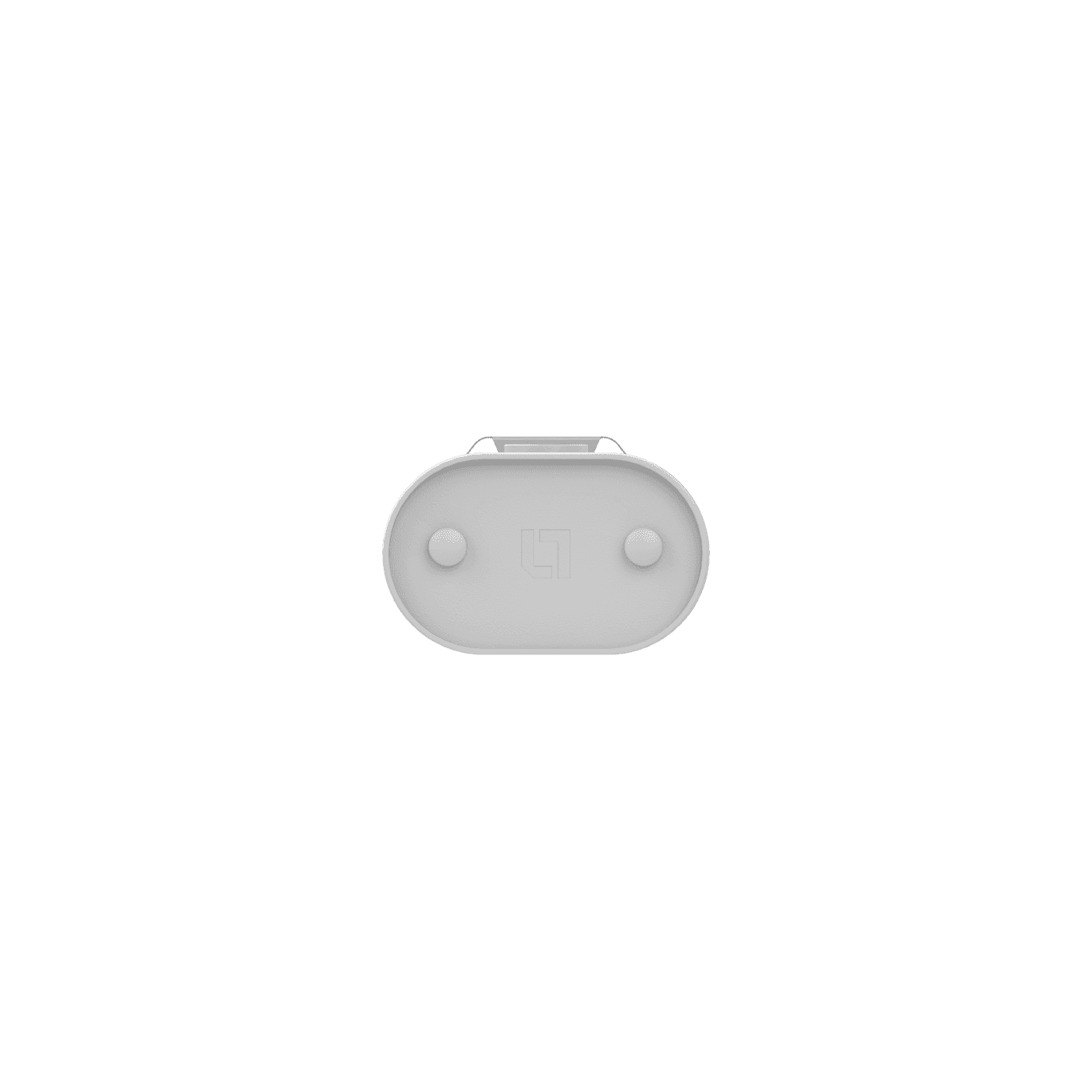

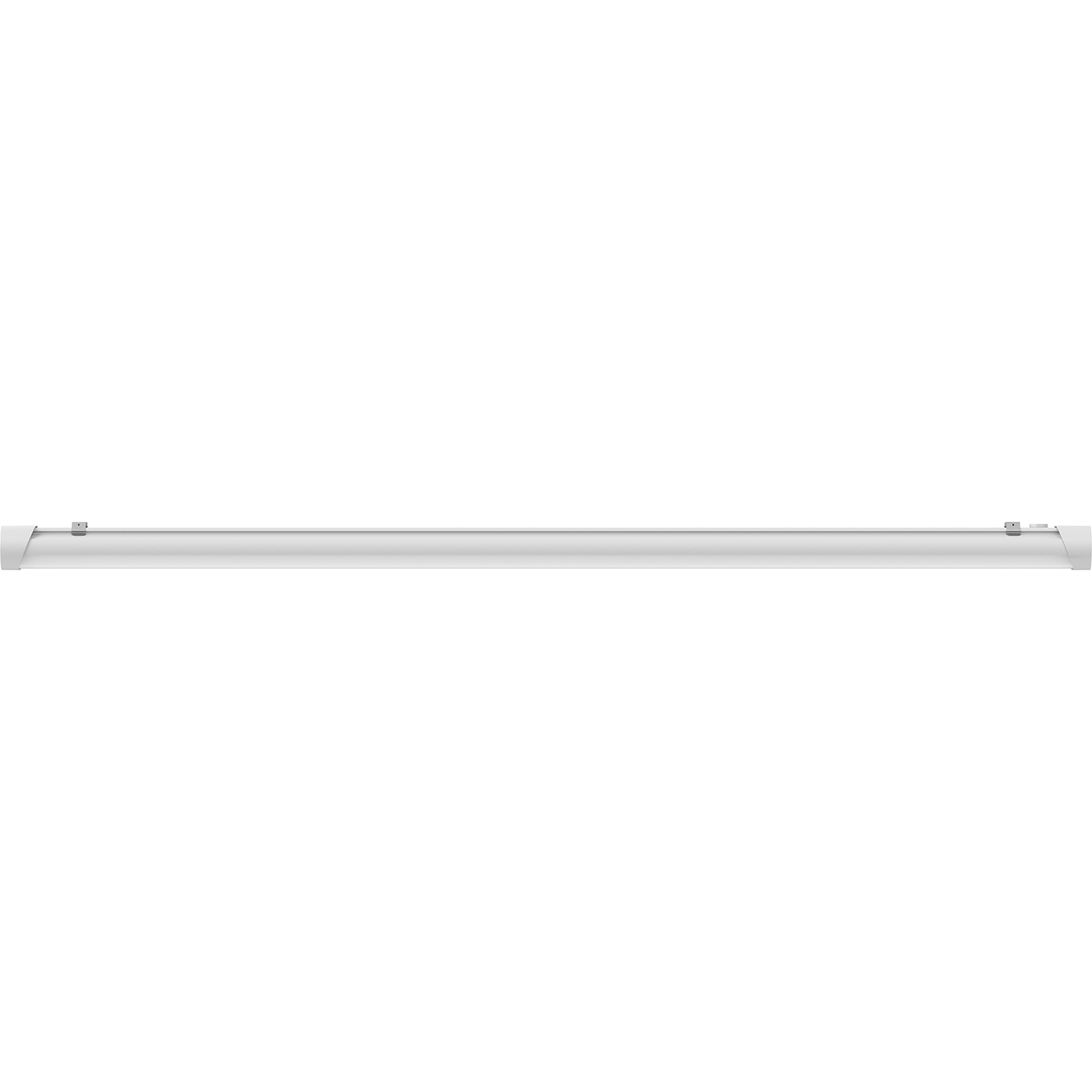

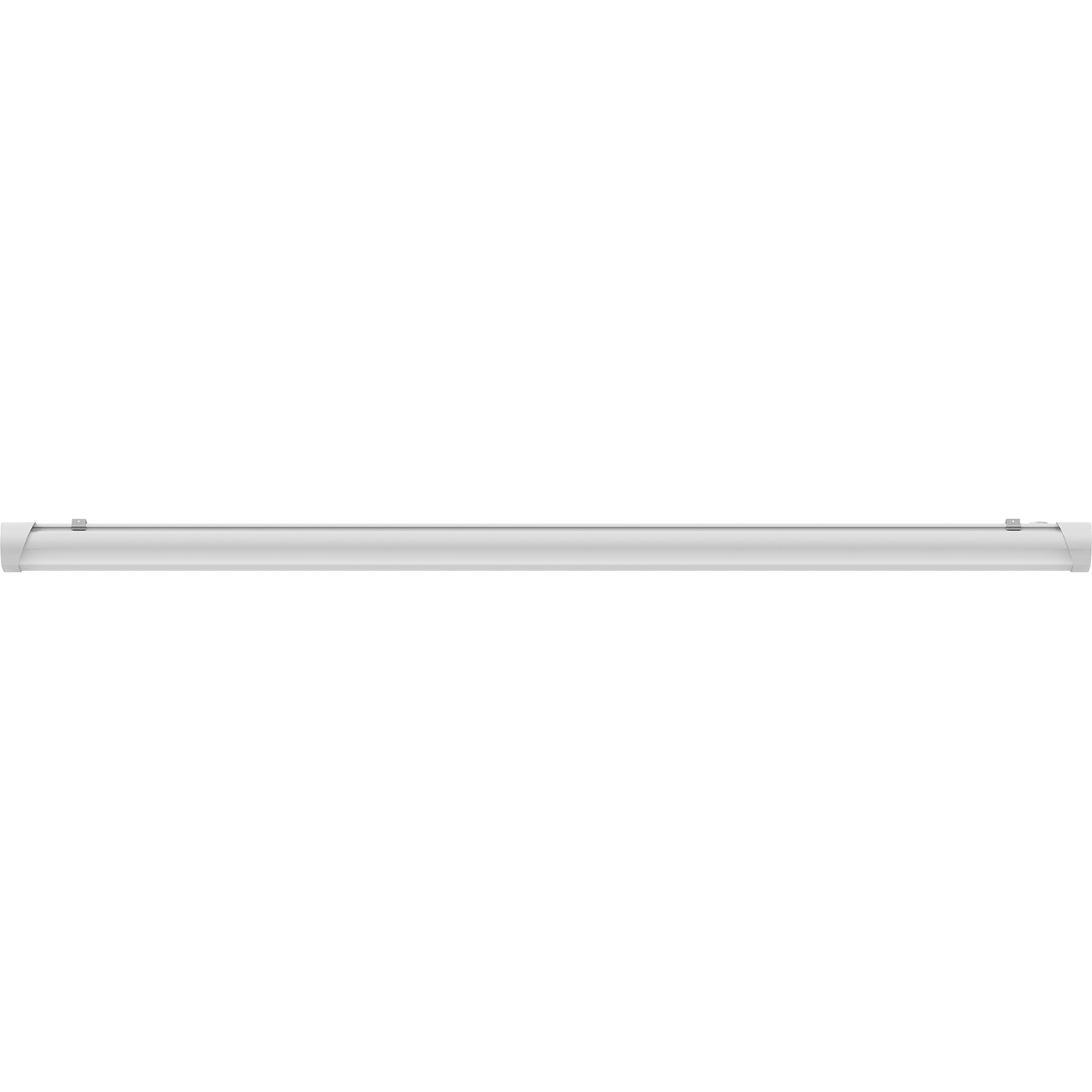

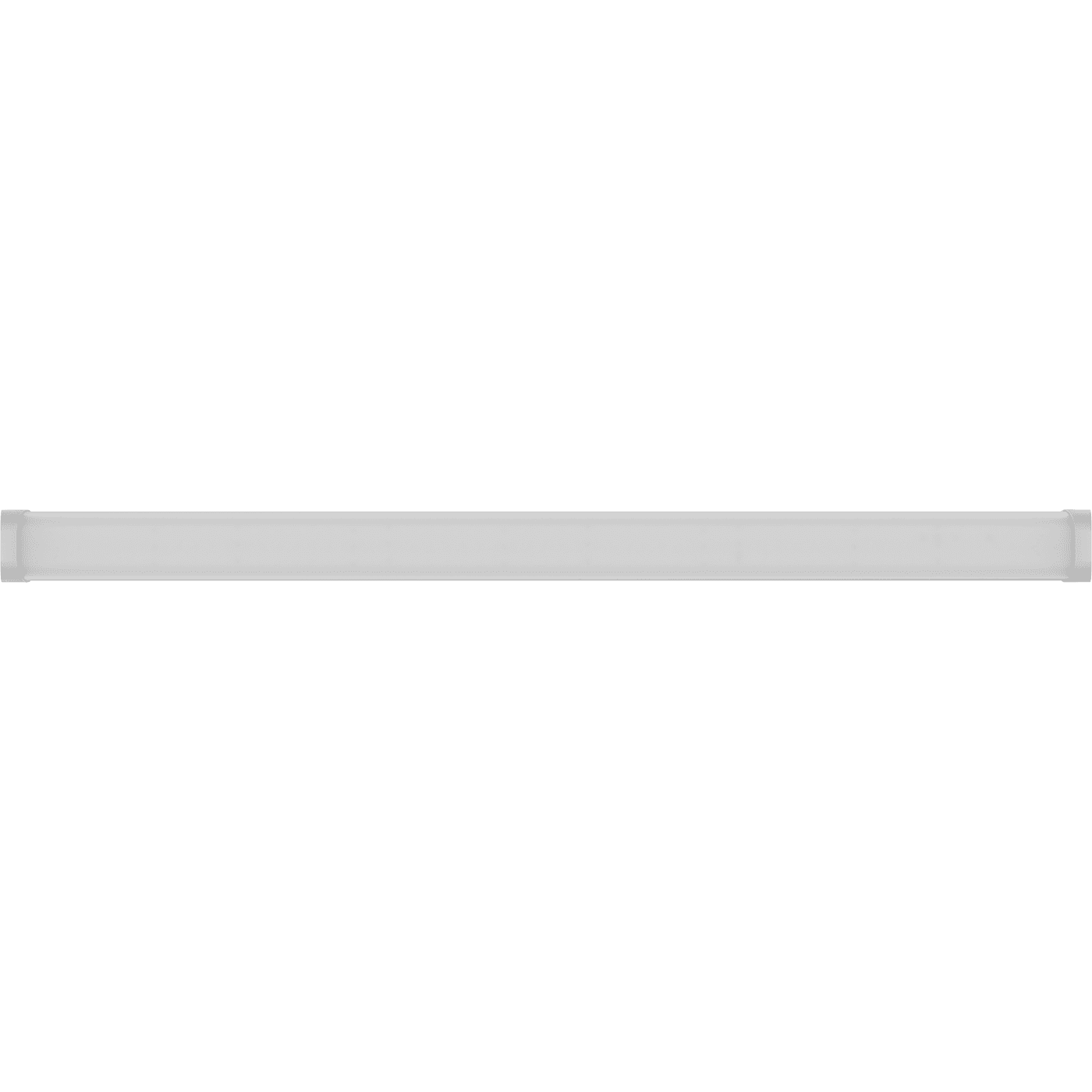

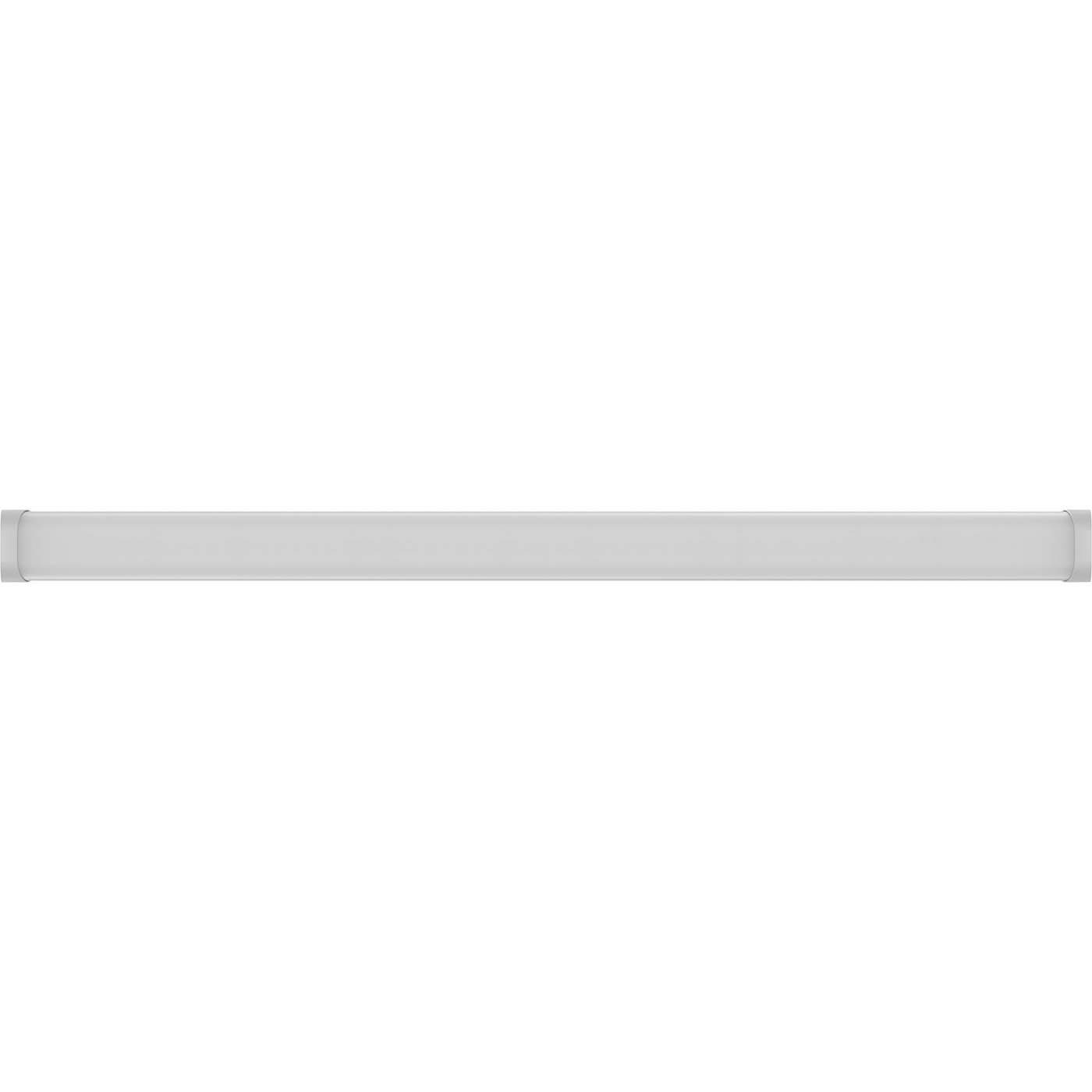

SIMPLE STANDARD (1500) 50W OPL 930 WH
SIMPLE STANDARD (1500) 50W OPL 930 WH
48 Wluminaire power
4600 lmlight flow
96 lm/Wenergy efficiency
code1898002130
color temperature3000
beam angleD120
old nameSIMPLE STANDARD (1500) 50W PRS 930 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
96 lm/Wcolor rendition index (CRI)
>90light flow
4600 lmflickering factor
<1%beam angle
D120color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
96 lm/W
color rendition index (CRI)
>90
light flow
4600 lm
flickering factor
<1%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
48 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional
length, mm
1576 mm
width, mm
105 mm
height, mm
65 mm
installation length, mm
1330 mm
weight
2.1 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK10/20 Дж
climatic performance
УХЛ4*
material
Поликарбонат
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1898002130
model files
model files

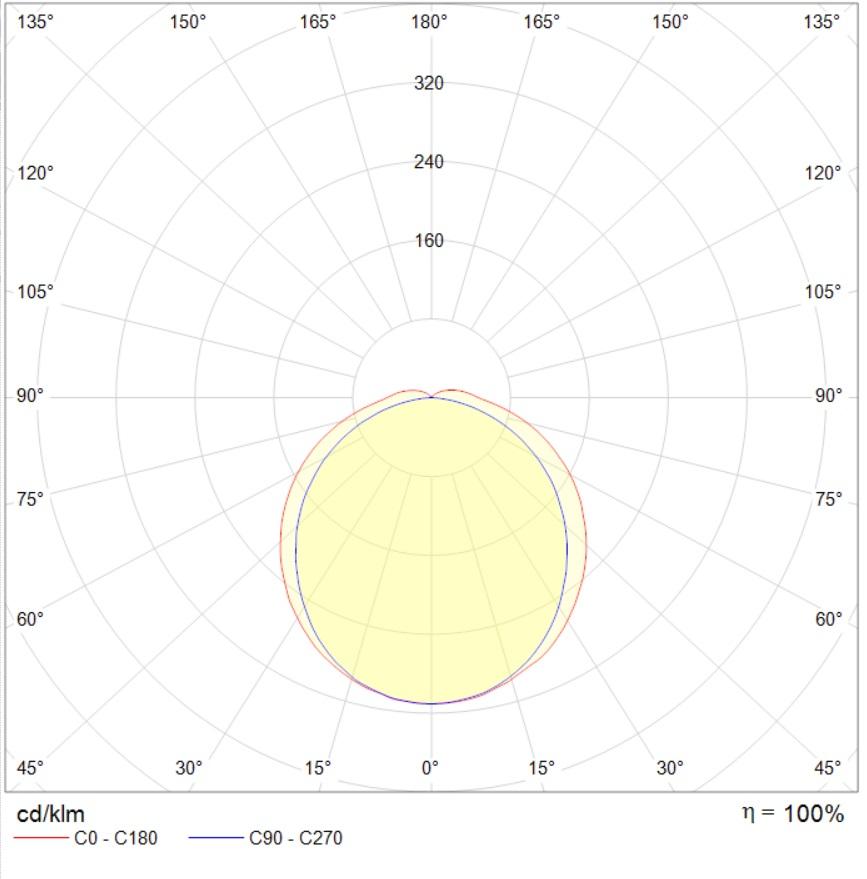

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg100.5 kB
ldt73.7 kB
documents
passport1.7 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
