SKYLINE LED 30W DK 730 RAL9005
SKYLINE LED 30W DK 730 RAL9005
34 Wluminaire power
4400 lmlight flow
129 lm/Wenergy efficiency
code1707000410
beam angleD100
color temperature3000
weight12.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
142-431 Vluminaire power
34 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
34 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-I,II,ІІІ
material
Алюминий
weight
12.7 kg
length, mm
730 mm
width, mm
490 mm
height, mm
130 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1707000410
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
129 lm/W
color rendition index (CRI)
>80
light flow
4400 lm
flickering factor
<1%
beam angle
D100
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

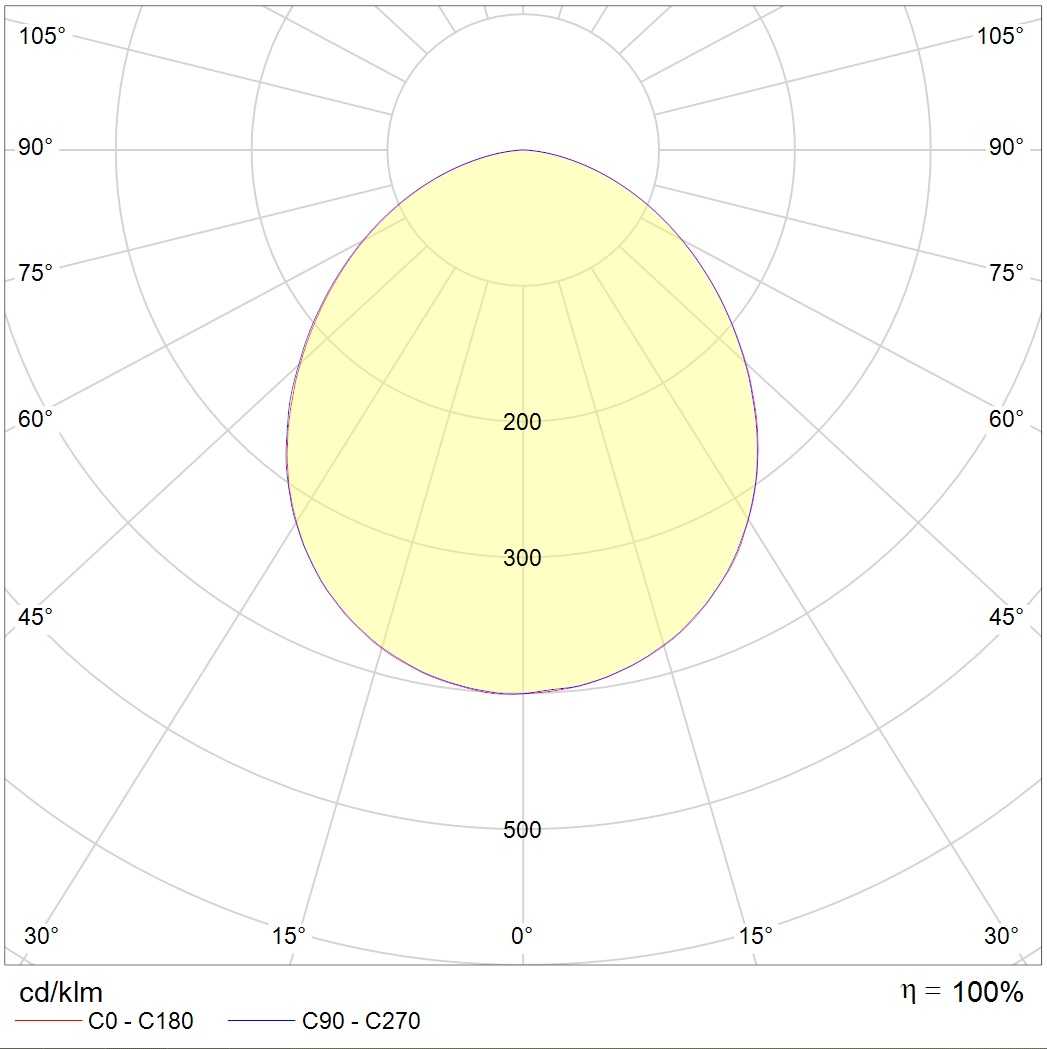

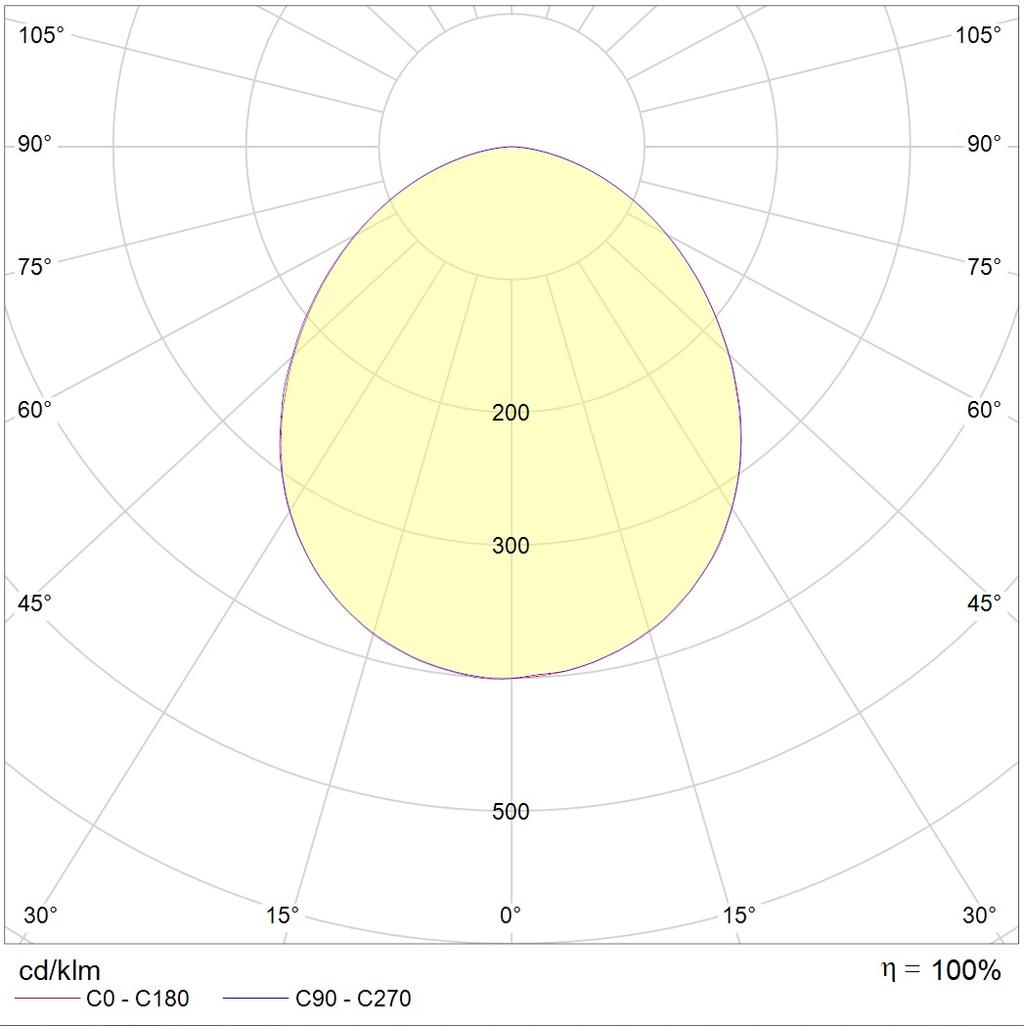

photometric files
ies263.2 kB
jpg120.9 kB
ldt162.8 kB
documents
passport1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
