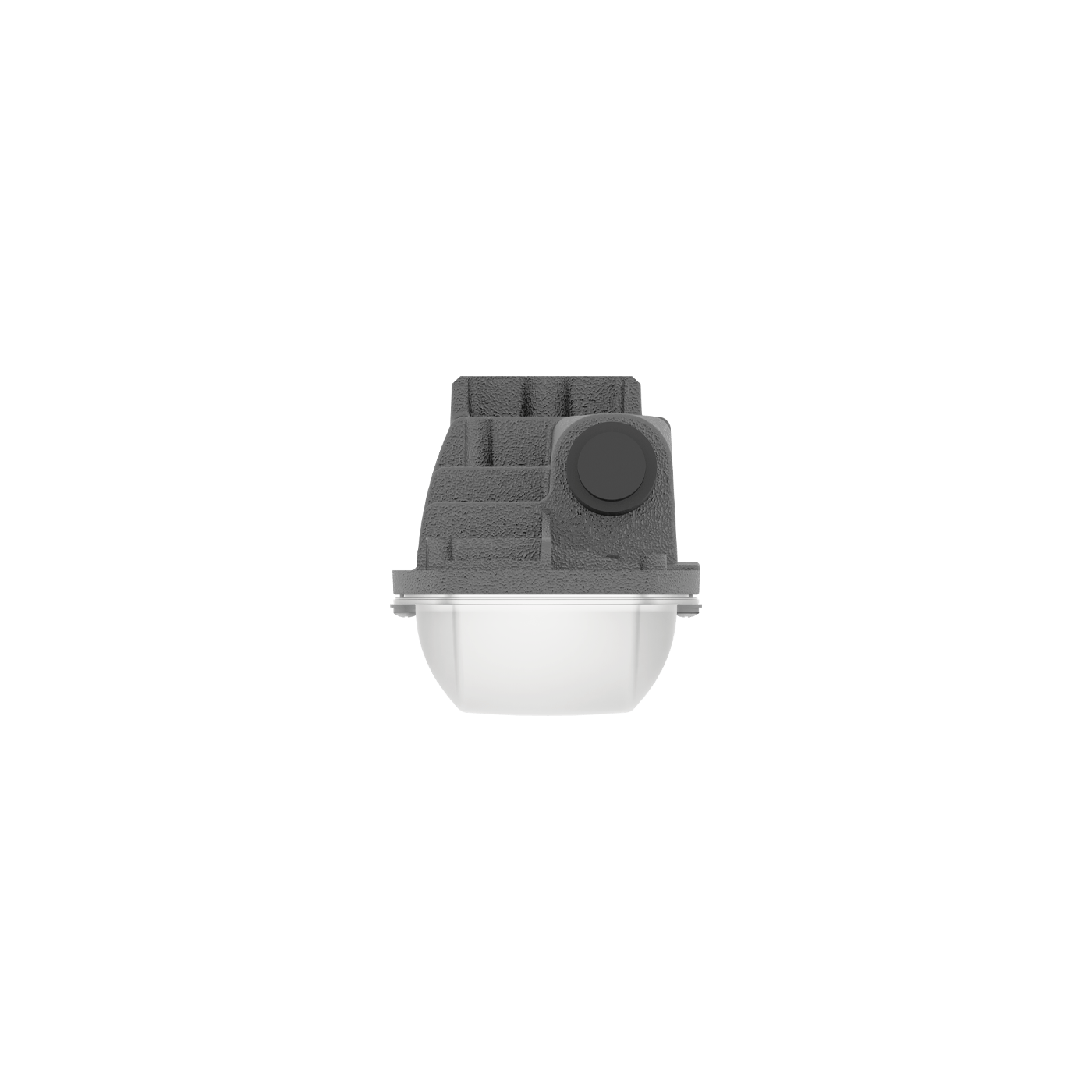

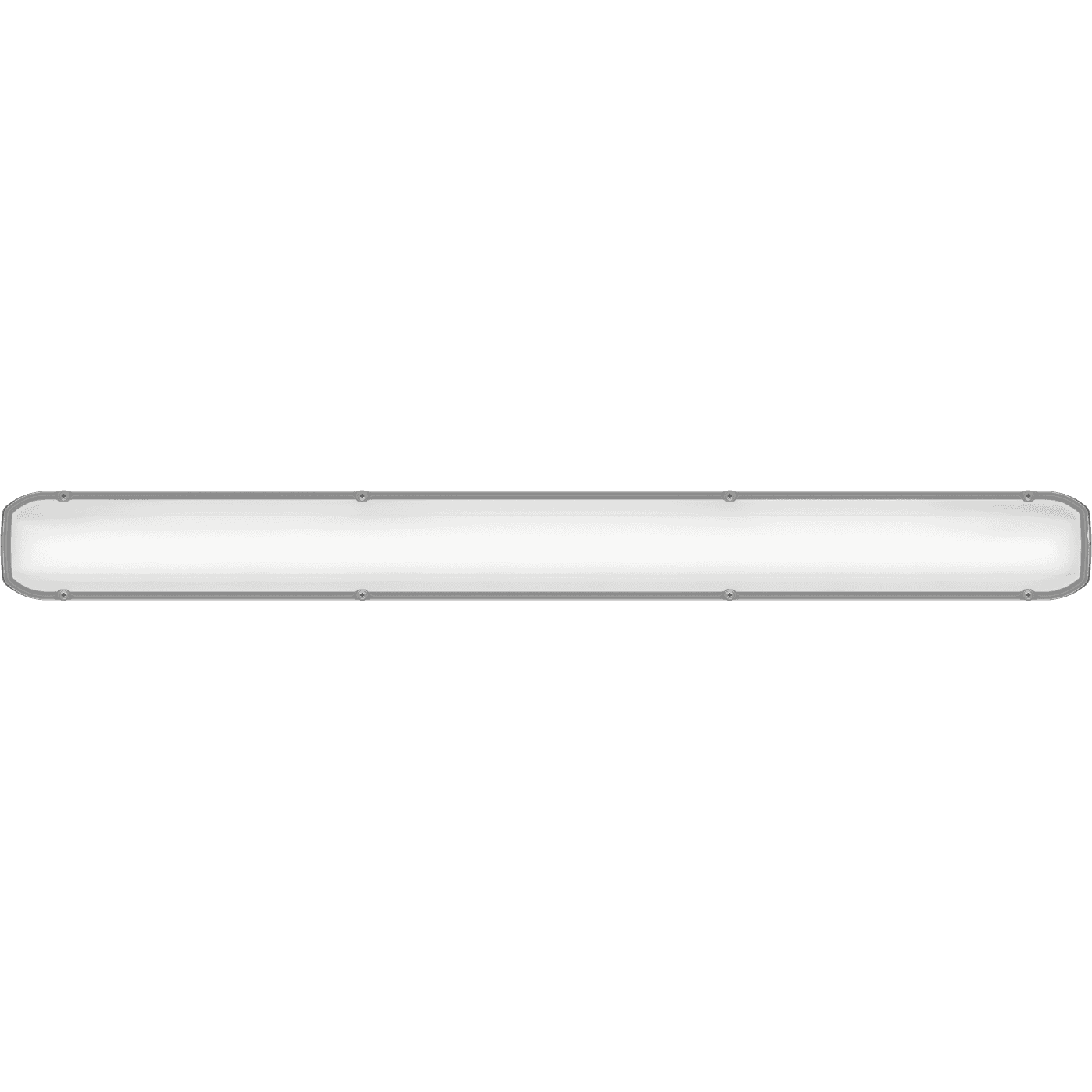

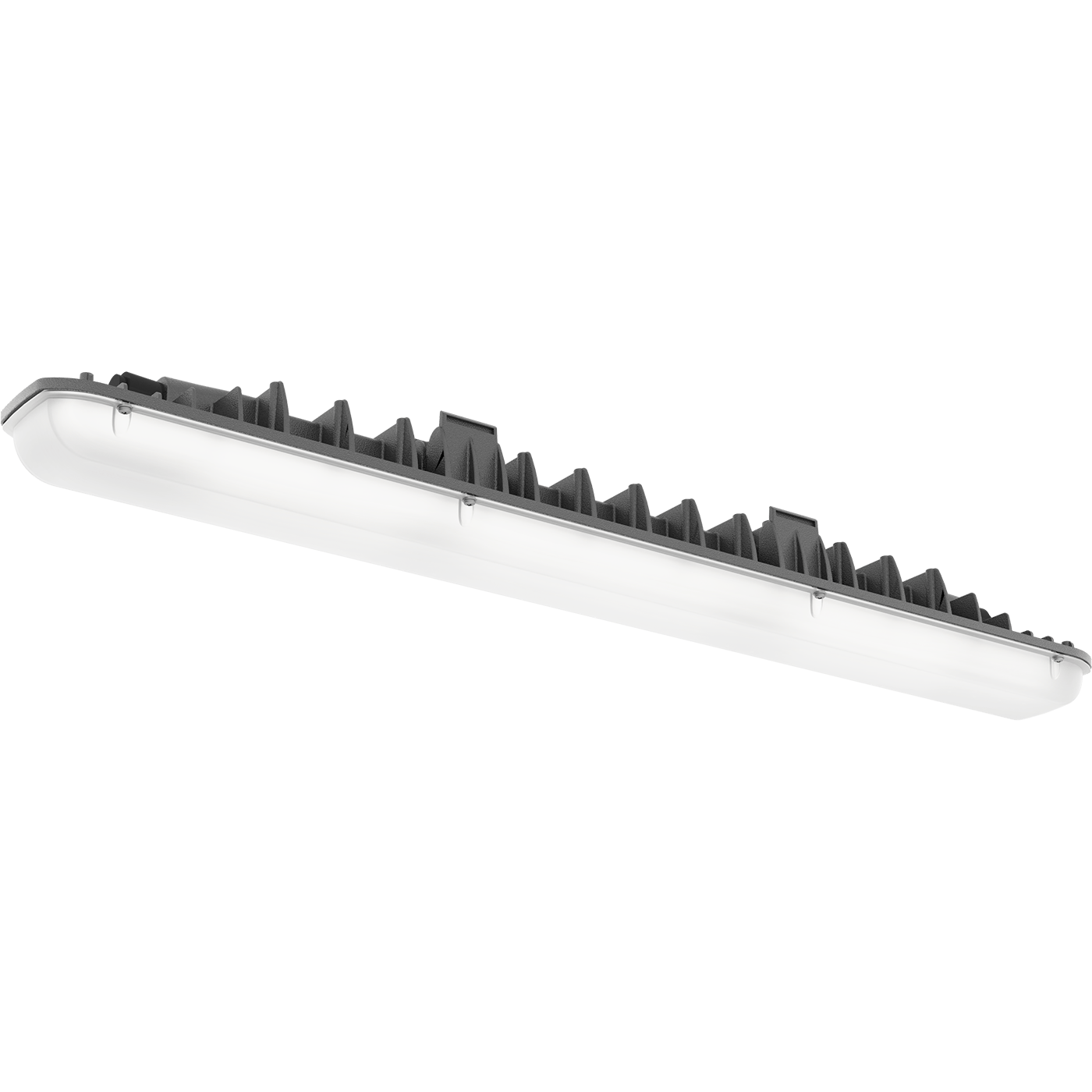

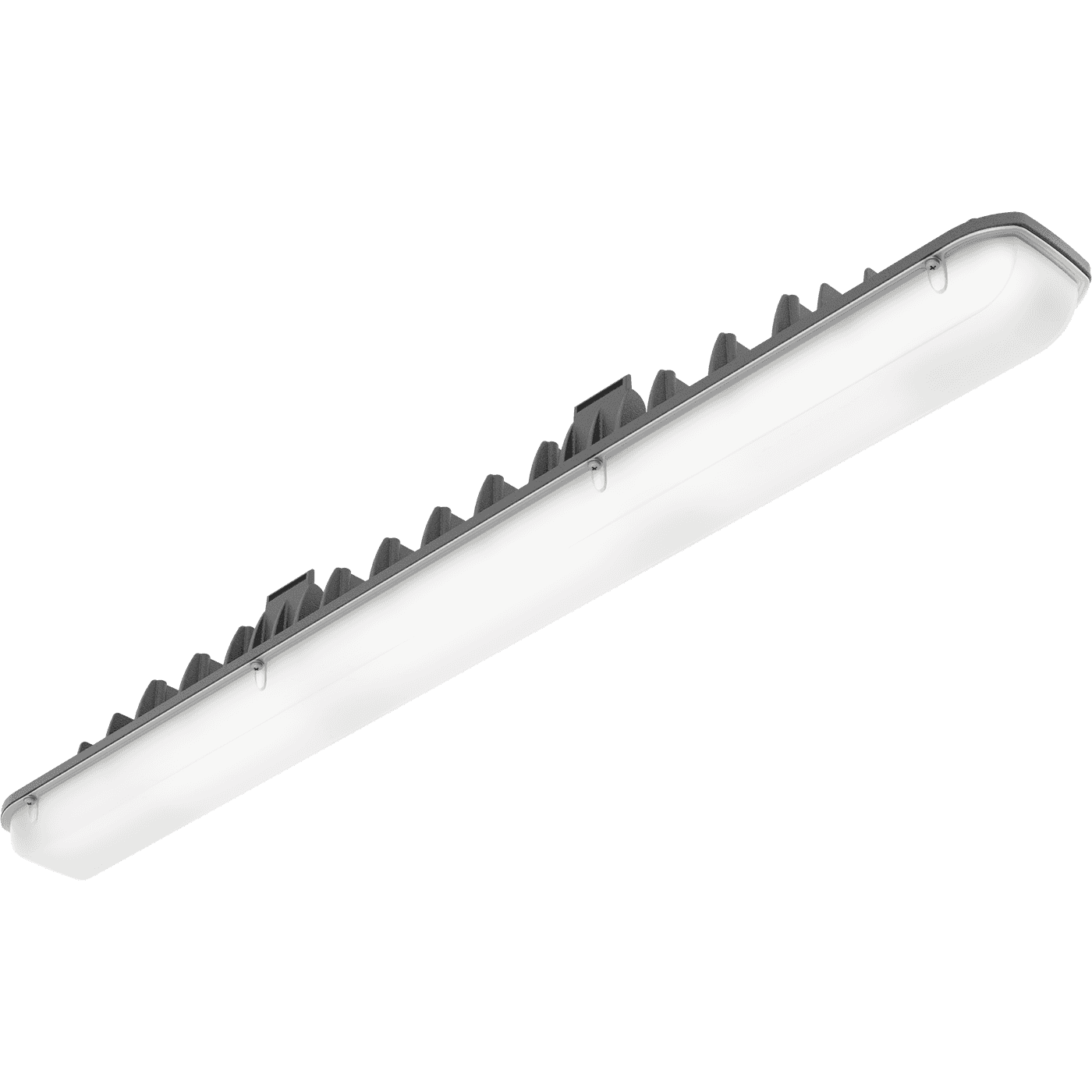

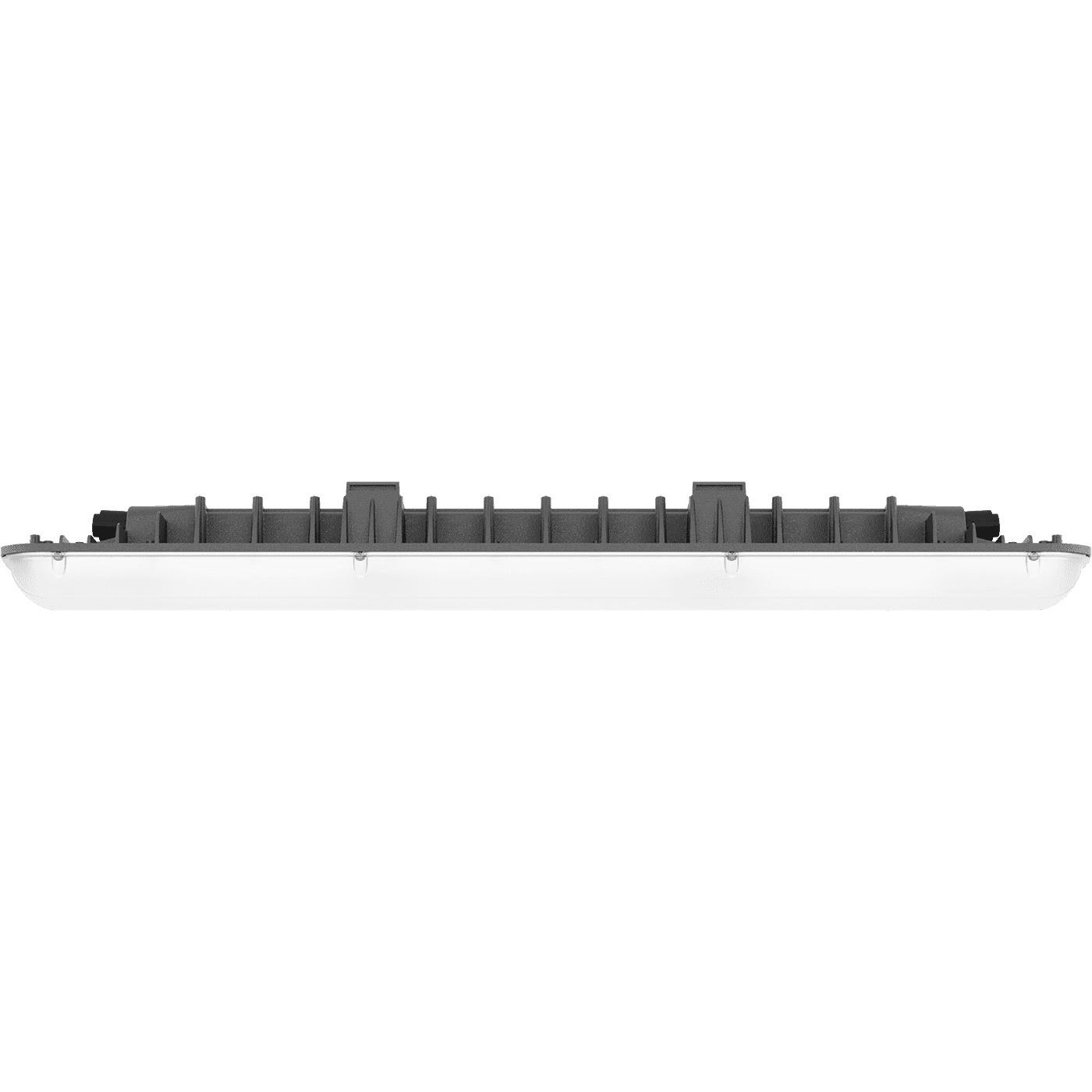

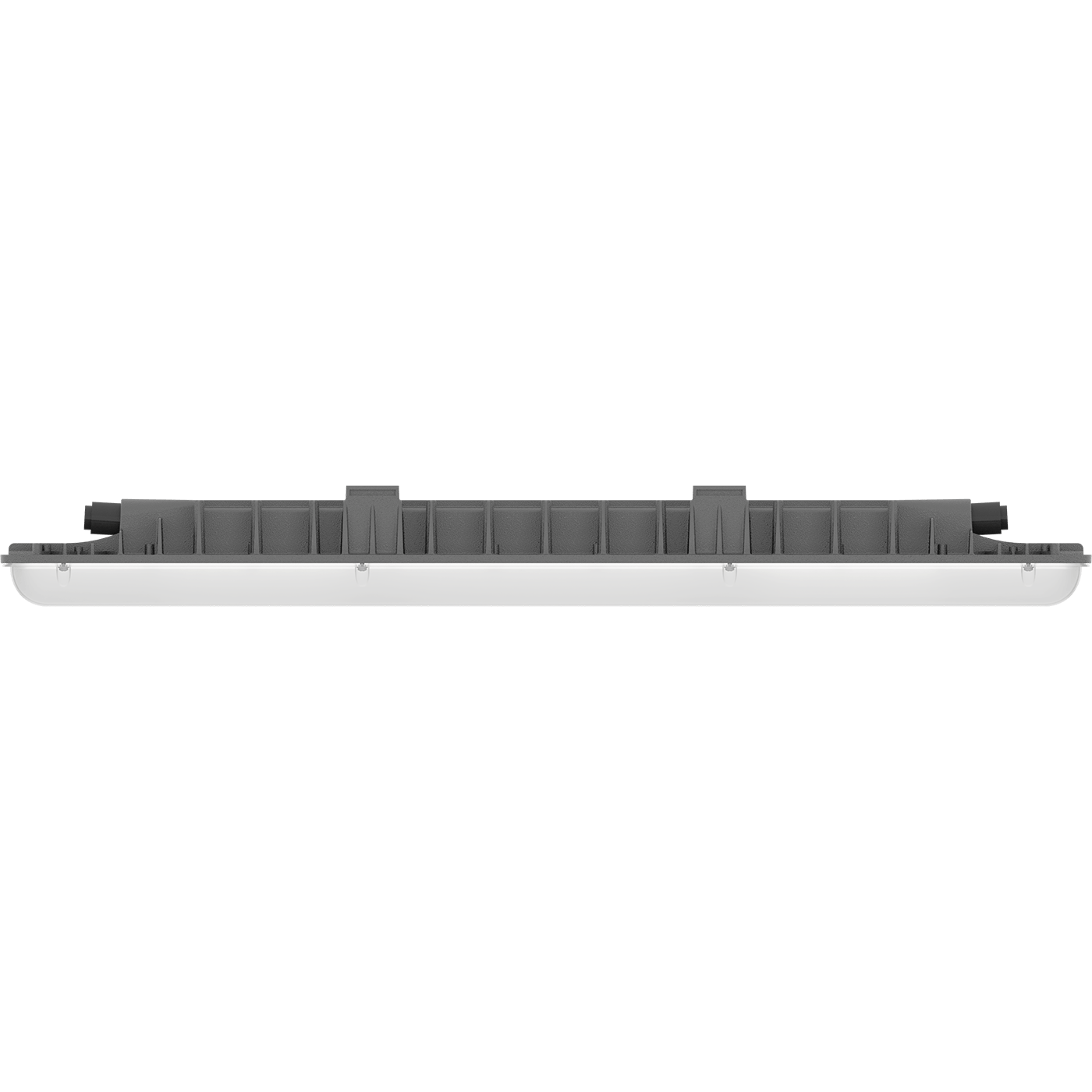

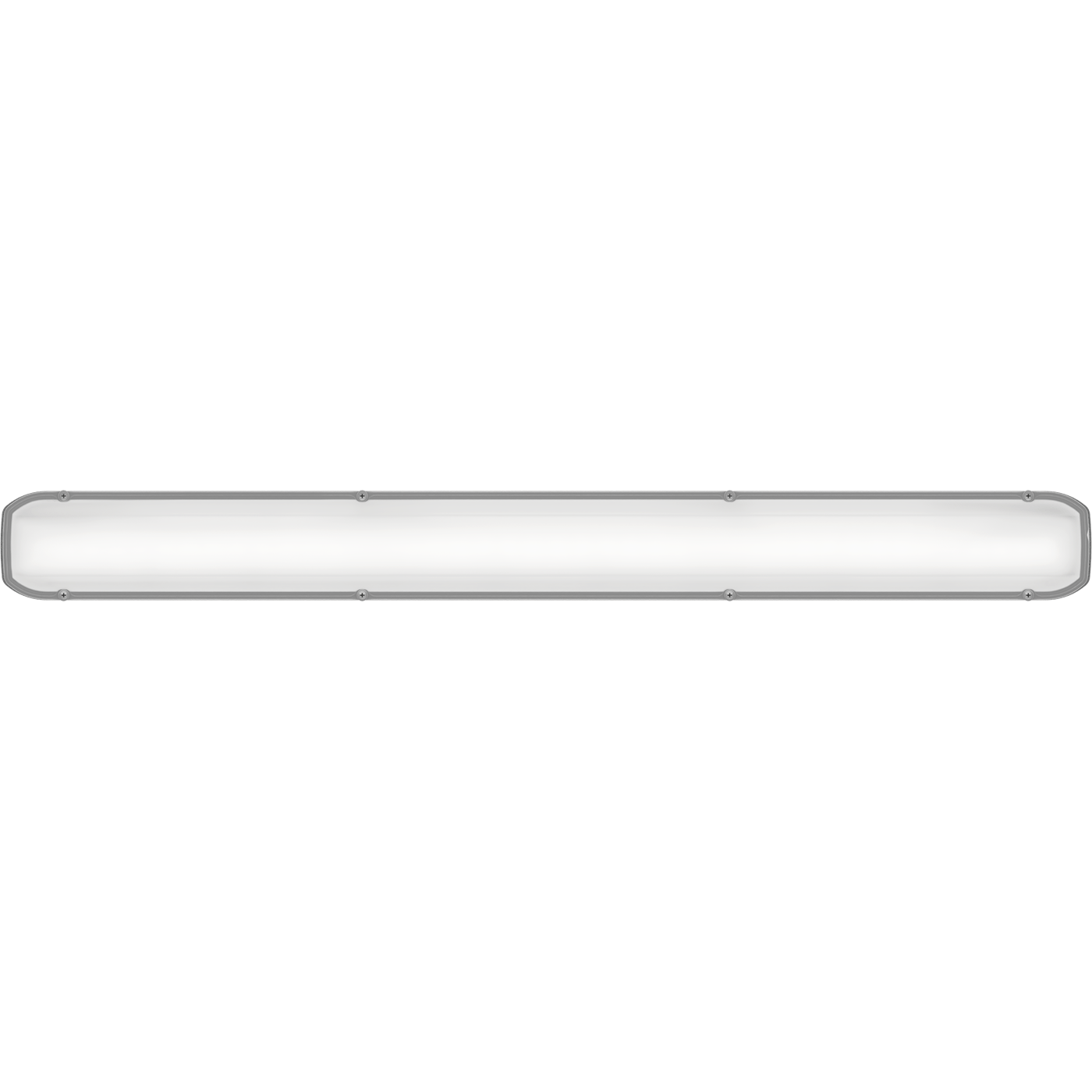

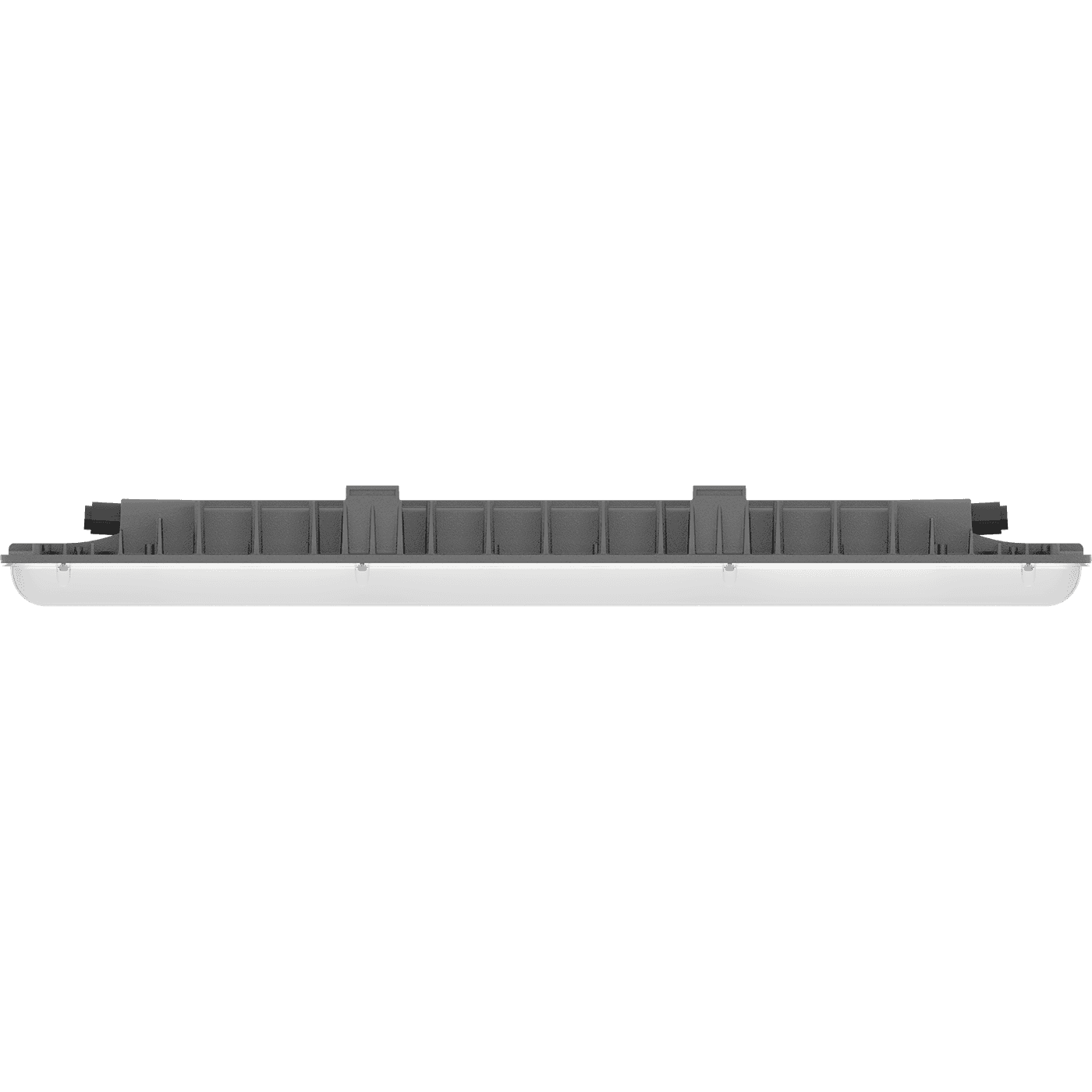

SLICK.PRS ECO LED 30 EM 5000K MT
SLICK.PRS ECO LED 30 EM 5000K MT
30 Wluminaire power
4100 lmlight flow
137 lm/Wenergy efficiency
code1631004700
color temperature5000
beam angleD120
weight3.1 kg
options
свернуть все
electricalconstructionalcommonilluminatingemergency
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
30 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
30 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Алюминий
weight
3.1 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
953 mm
width, mm
96 mm
height, mm
105 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
302 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от 0 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1631004700
illuminating
light flow
4100 lm
flickering factor
<1%
energy efficiency
137 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>70
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
650 lm
model files
model files
photometric files
documents
сертификаты

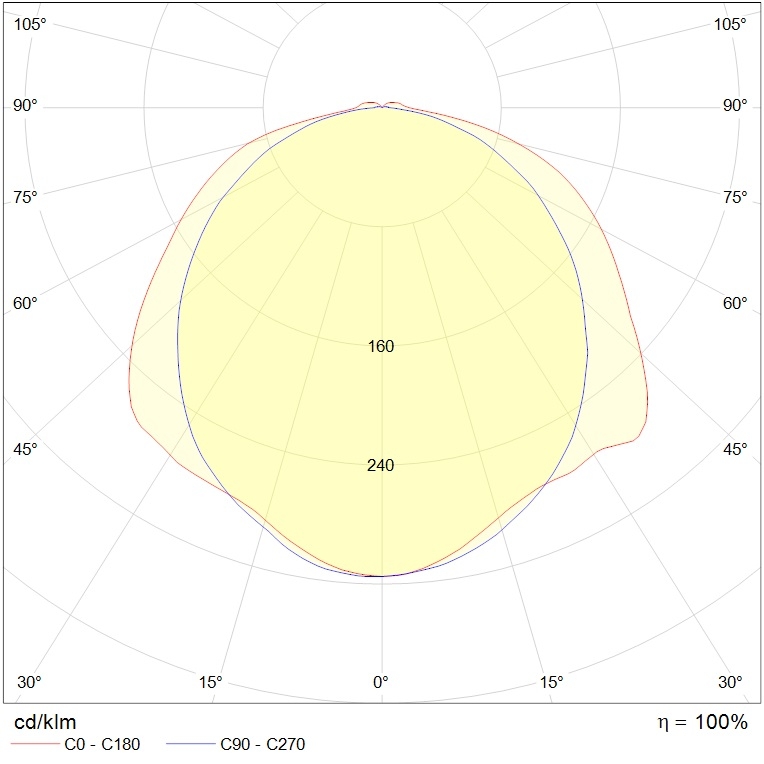

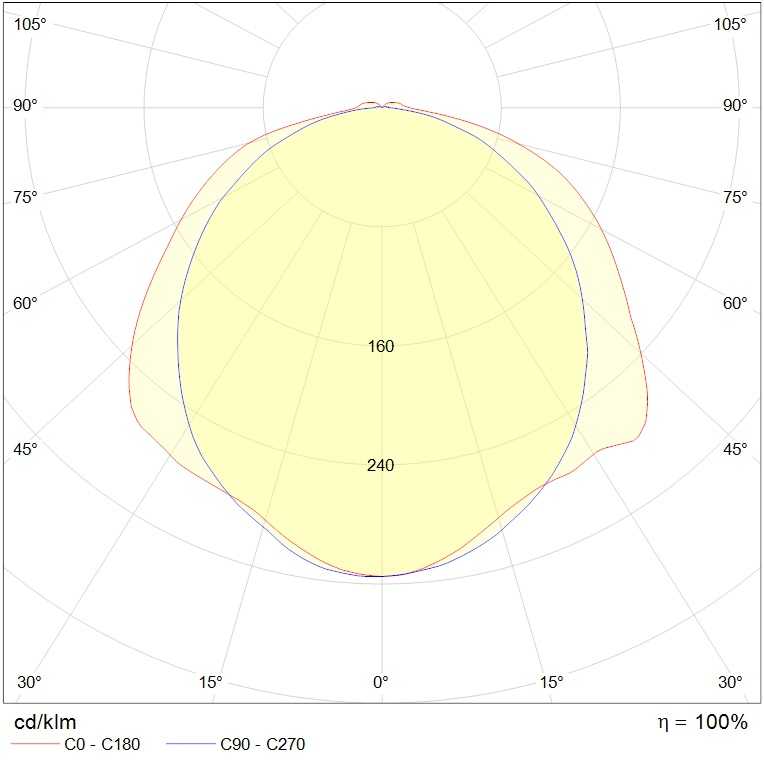

photometric files
ies107 kB
jpg79.3 kB
ldt81.9 kB
documents
passport592.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB

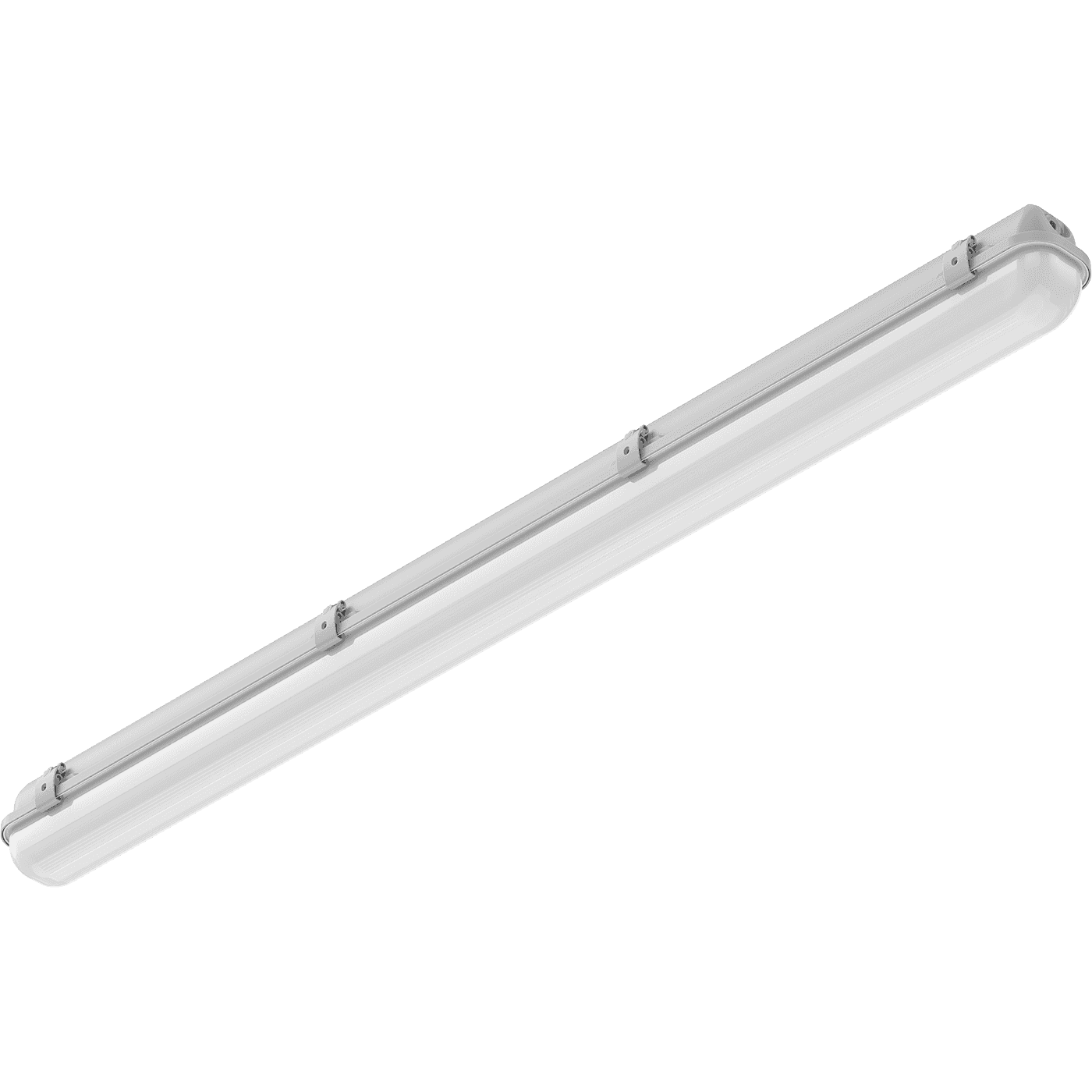

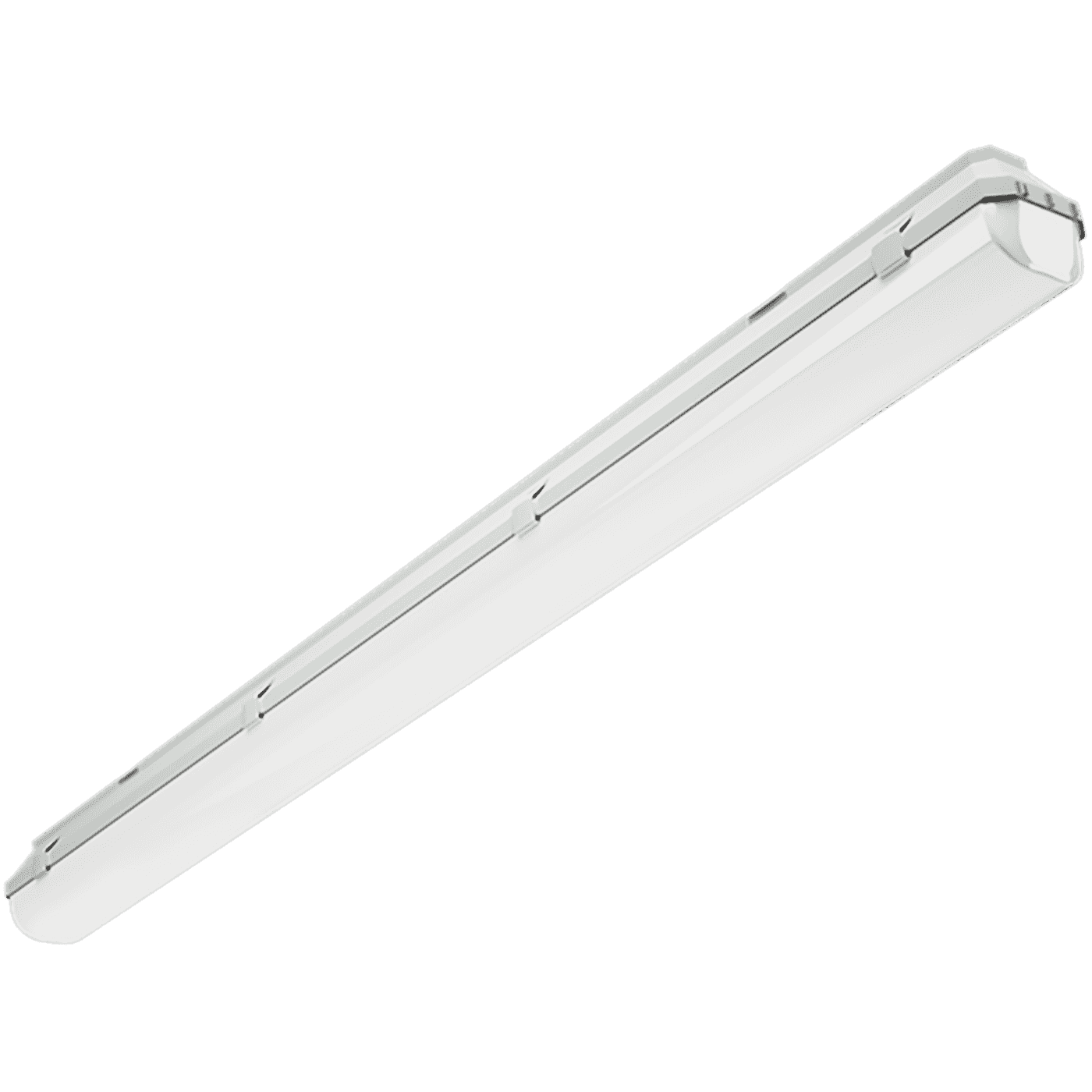

similar series
