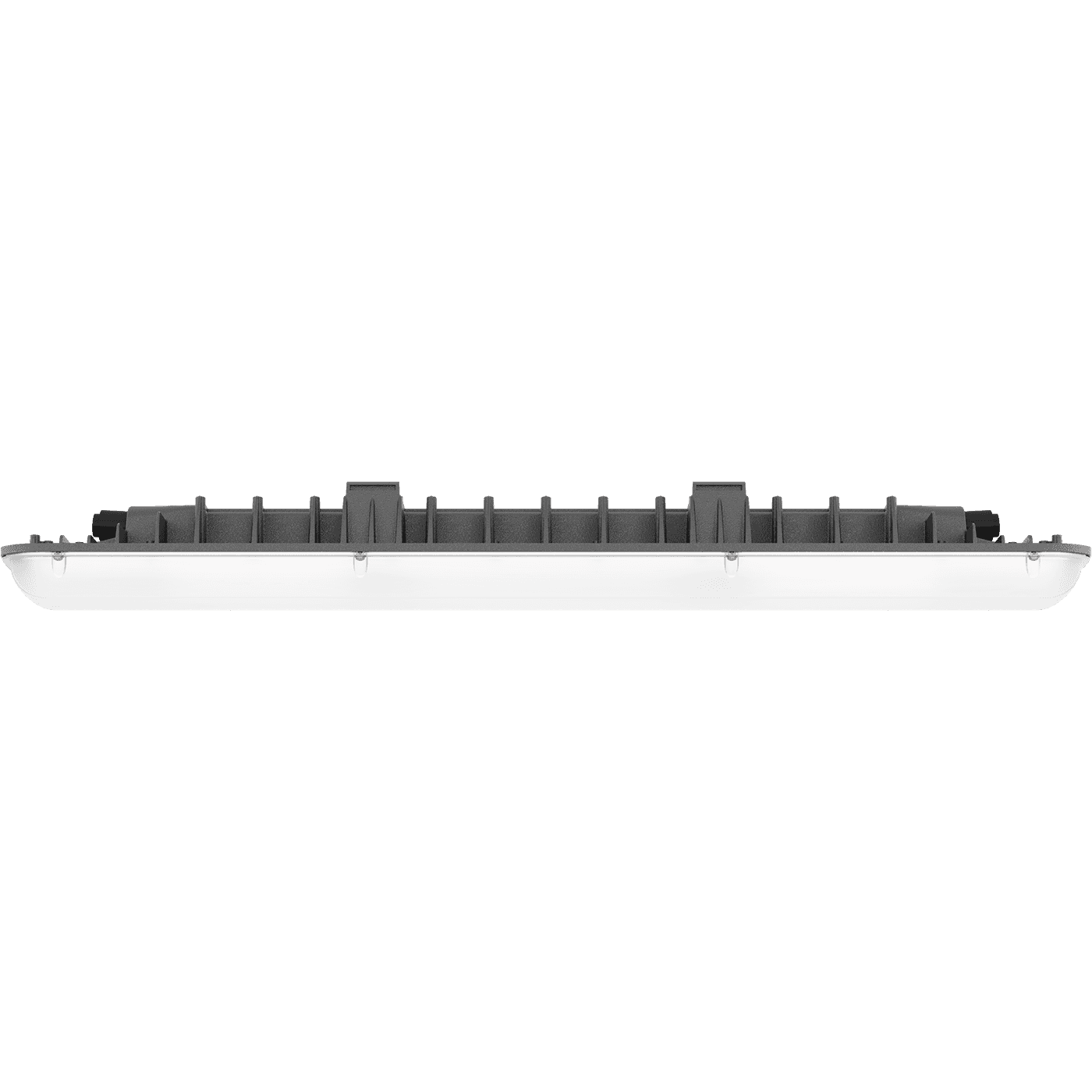

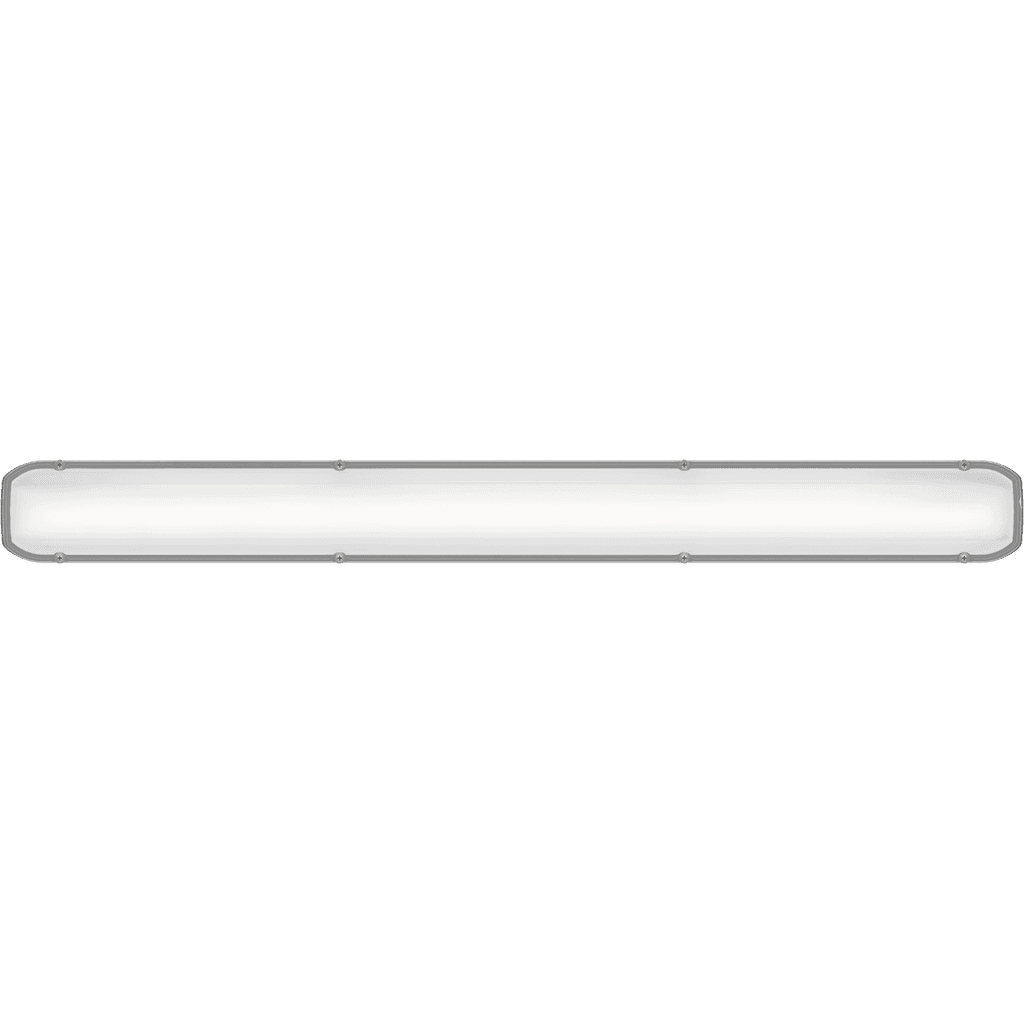

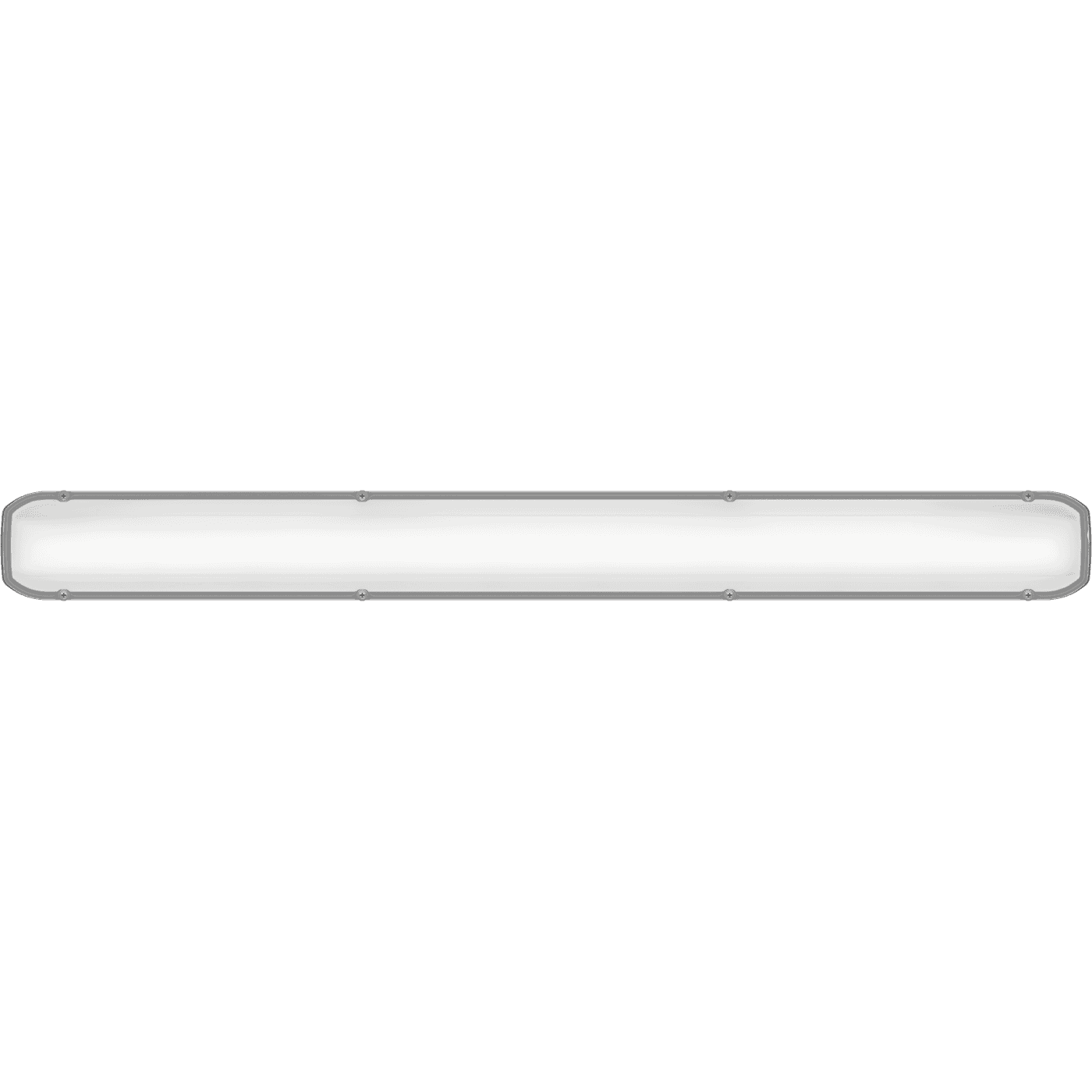

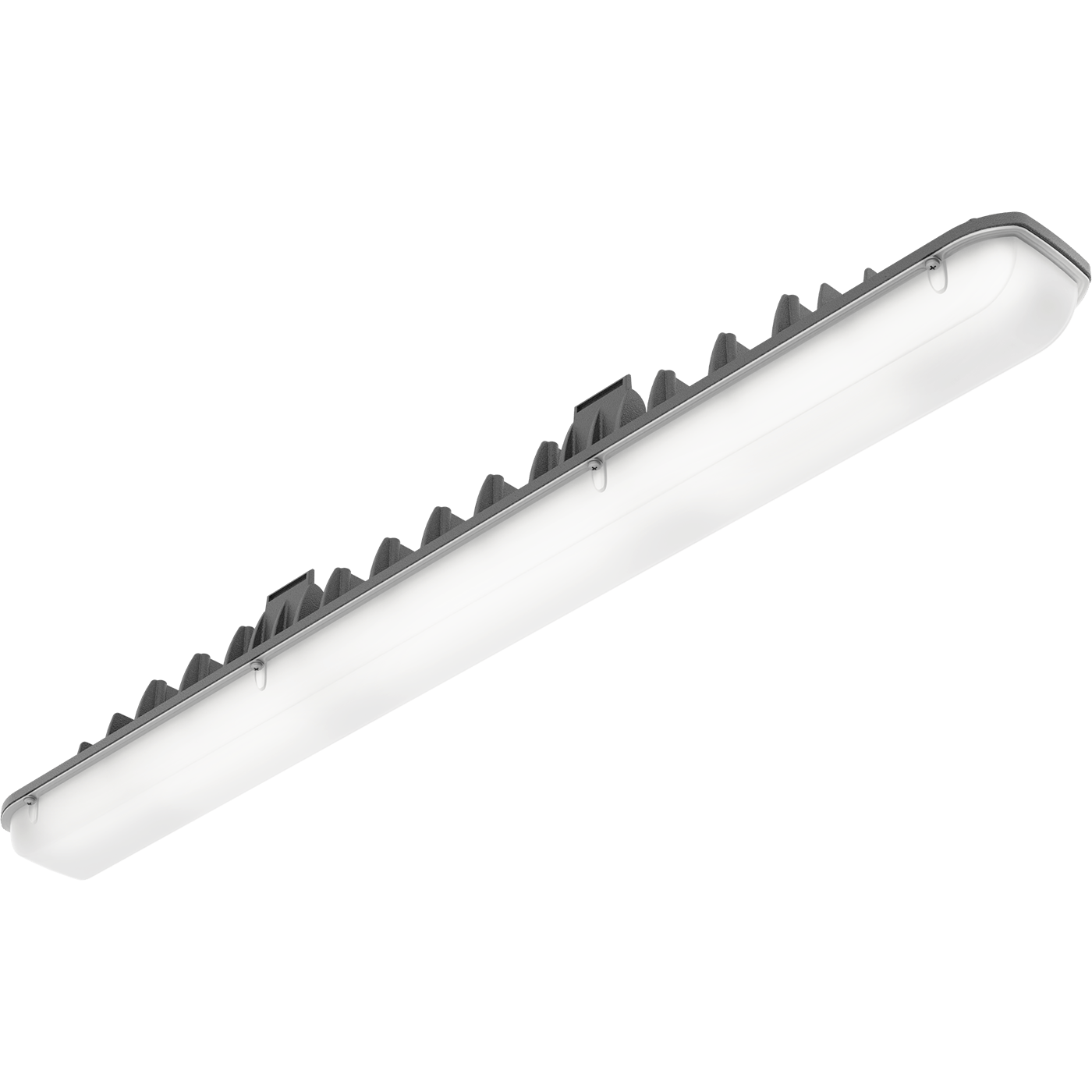

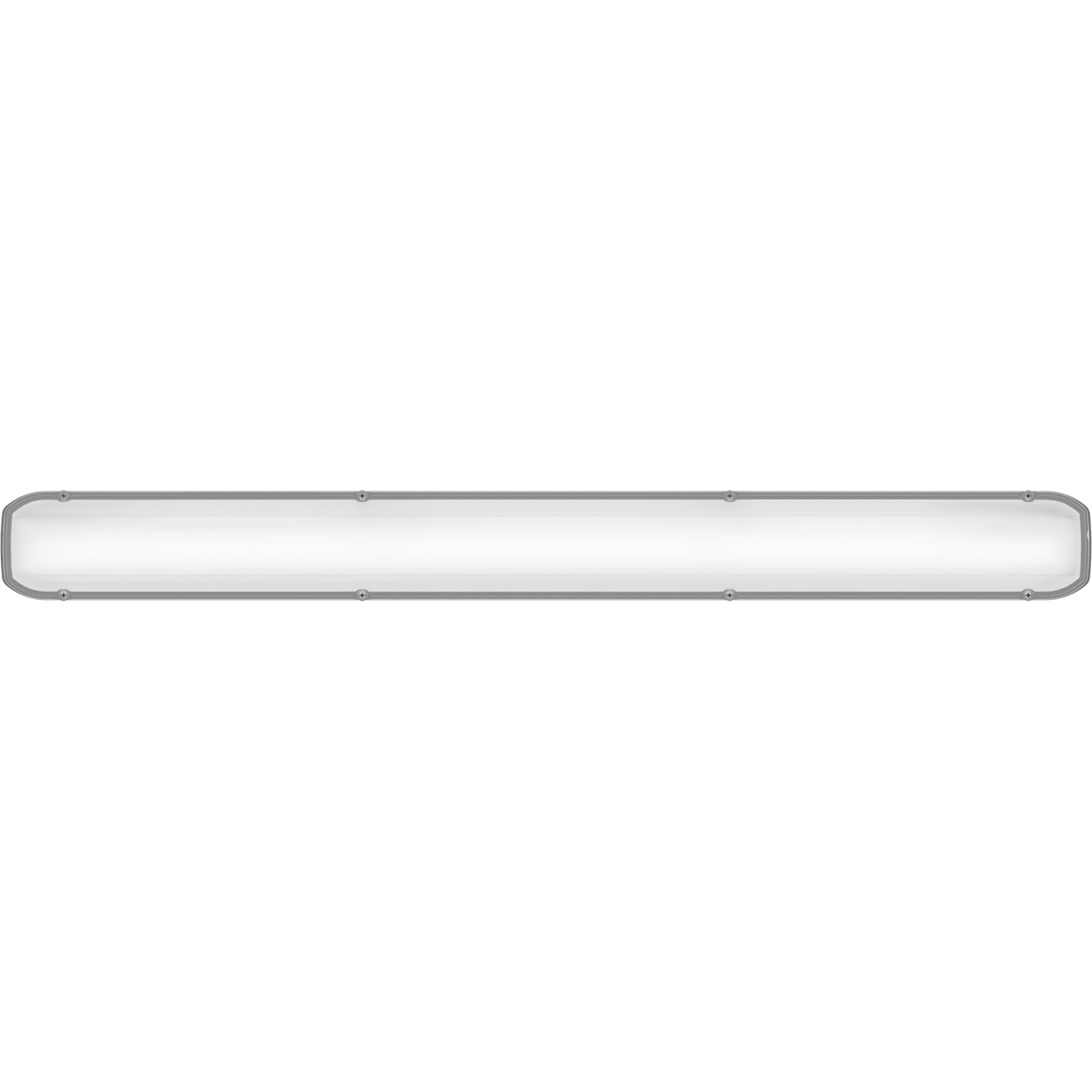

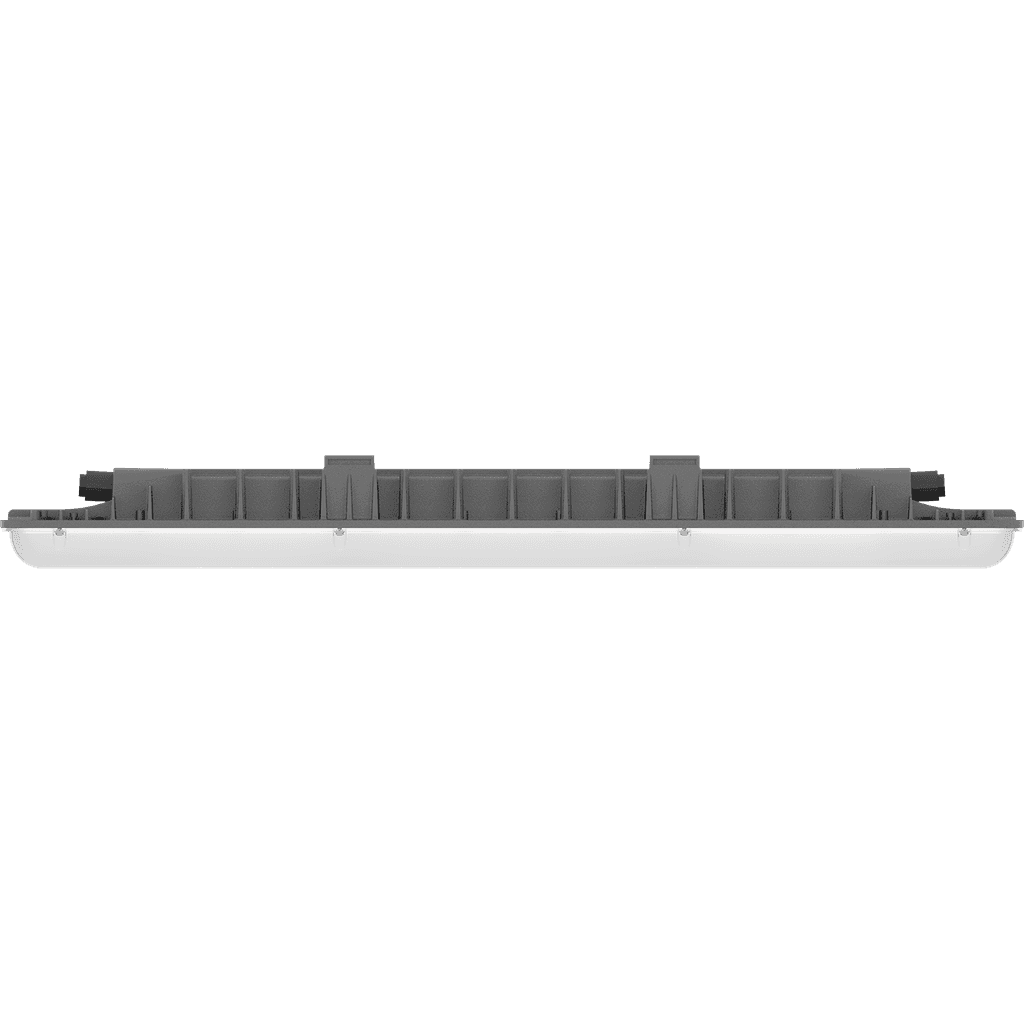

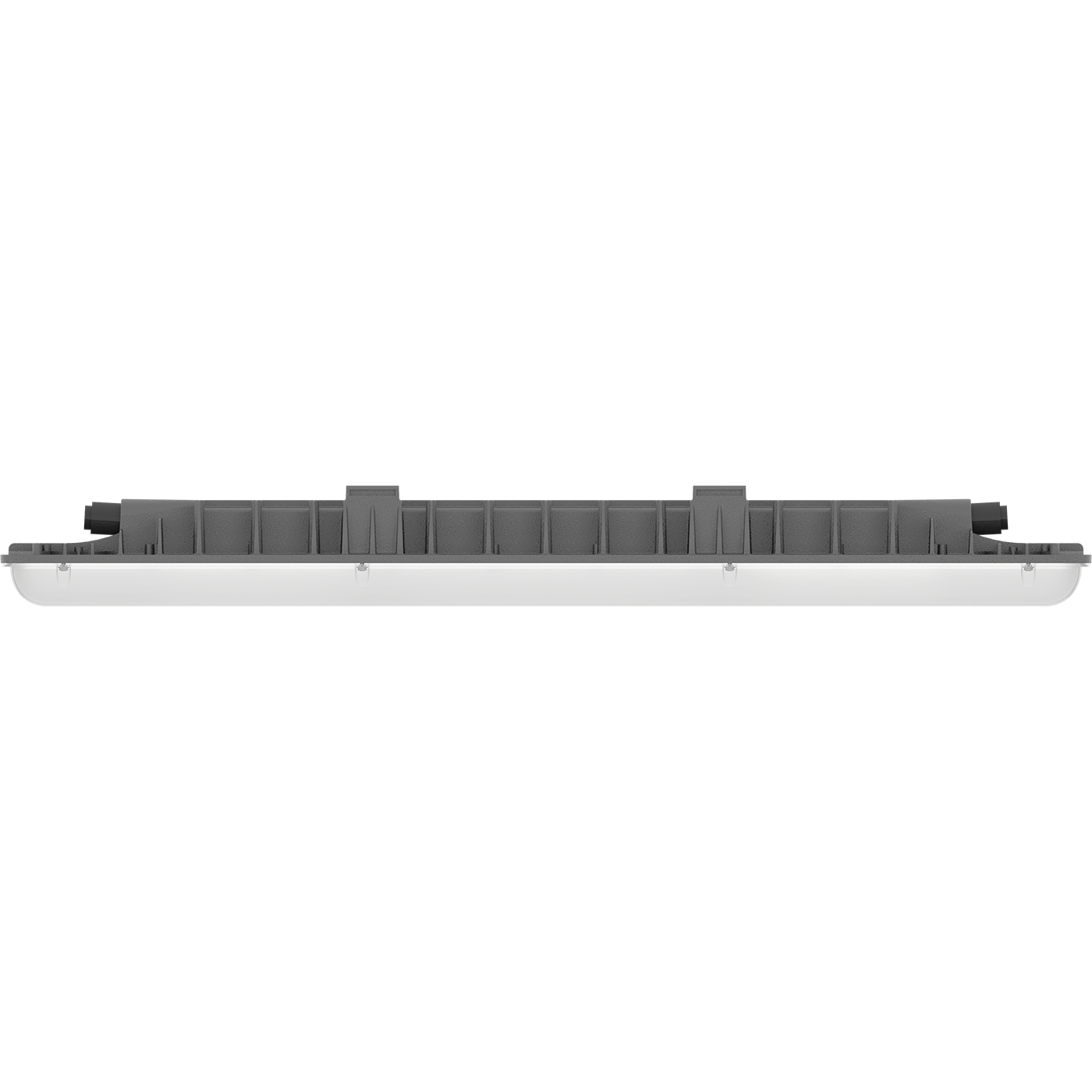

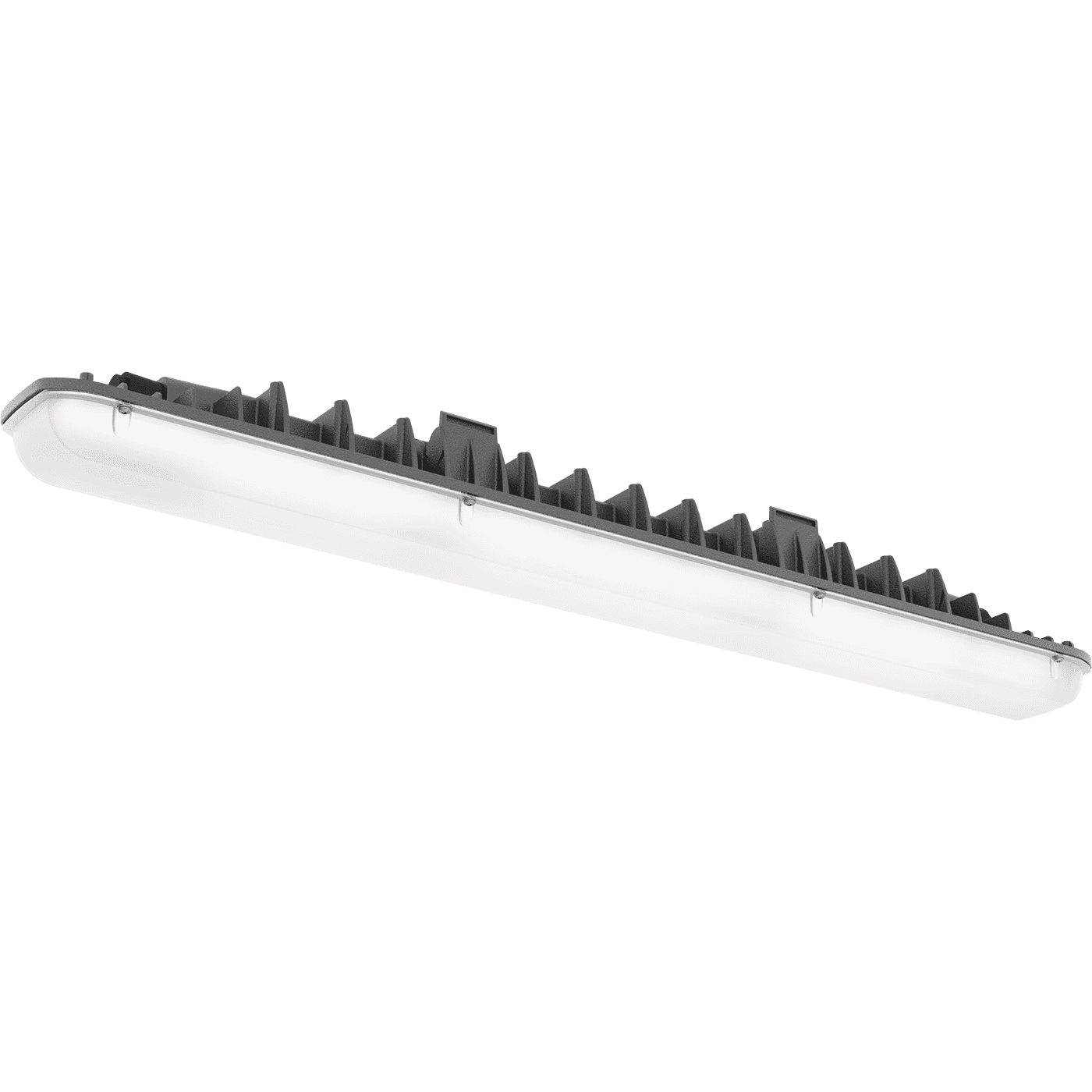

SLICK.PRS ECO LED 60 EM 5000K

SLICK.PRS ECO LED 60 EM 5000K
add to favorites
60 Wluminaire power
7400 lmlight flow
123 lm/Wenergy efficiency
code1631000530
color temperature5000
beam angleD120
weight3.1 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. up to 5 meters
  6. SLICK ECO LED
  7. SLICK.PRS ECO LED 60 EM 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>70
light flow
7400 lm
flickering factor
<1%
energy efficiency
123 lm/W

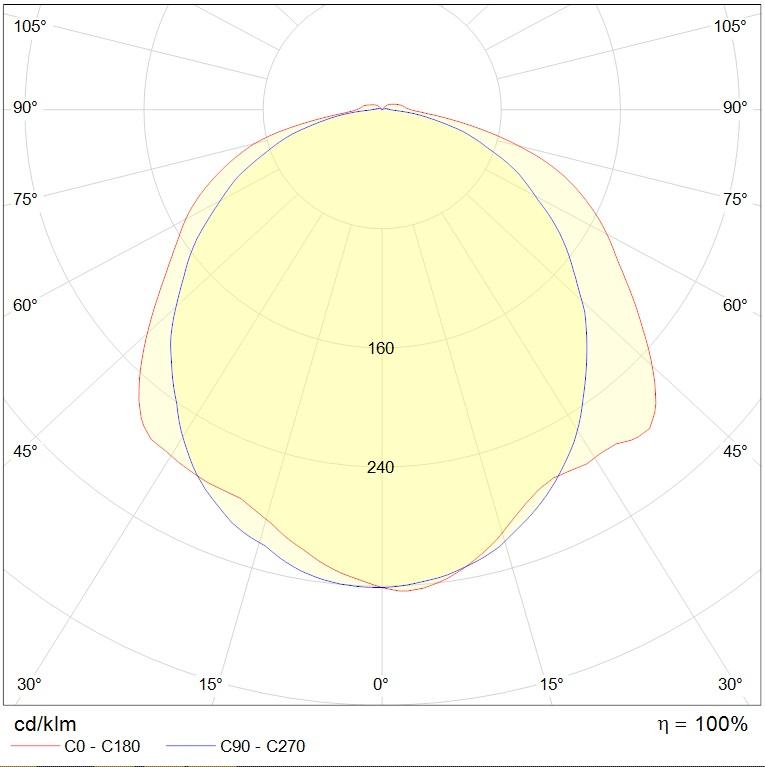

beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>70
light flow
7400 lm
flickering factor
<1%
energy efficiency
123 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,99
luminaire power
60 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
3.1 kg

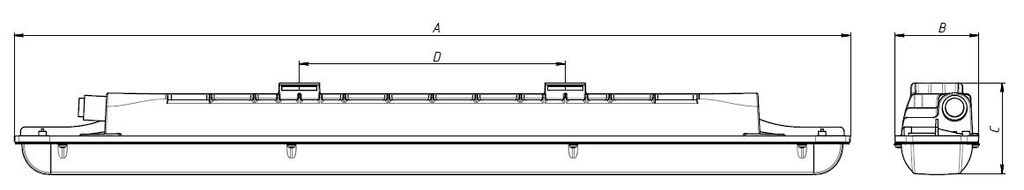

length, mm
953 mm
width, mm
96 mm
height, mm
105 mm
installation length, mm
302 mm
emergency
luminous flux in emergency mode
650 lm
operating time in emergency mode, hours
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от 0 до +40 C
code
1631000530
model files
model files
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies107.1 kB
jpg84.5 kB
ldt76.7 kB
csv420 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies107.1 kB
jpg84.5 kB
ldt76.7 kB
csv420 B
documents
passport2.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Anti-vibration brackets for SLICK ECO LED0.14kgarticle: 2631000110
Wall/ceiling rotary brackets SLICK ECO LED0.75kgarticle: 2631000120
Suspension kit LED MALL ECO (2 kits)0.13kgarticle: 2598000130
