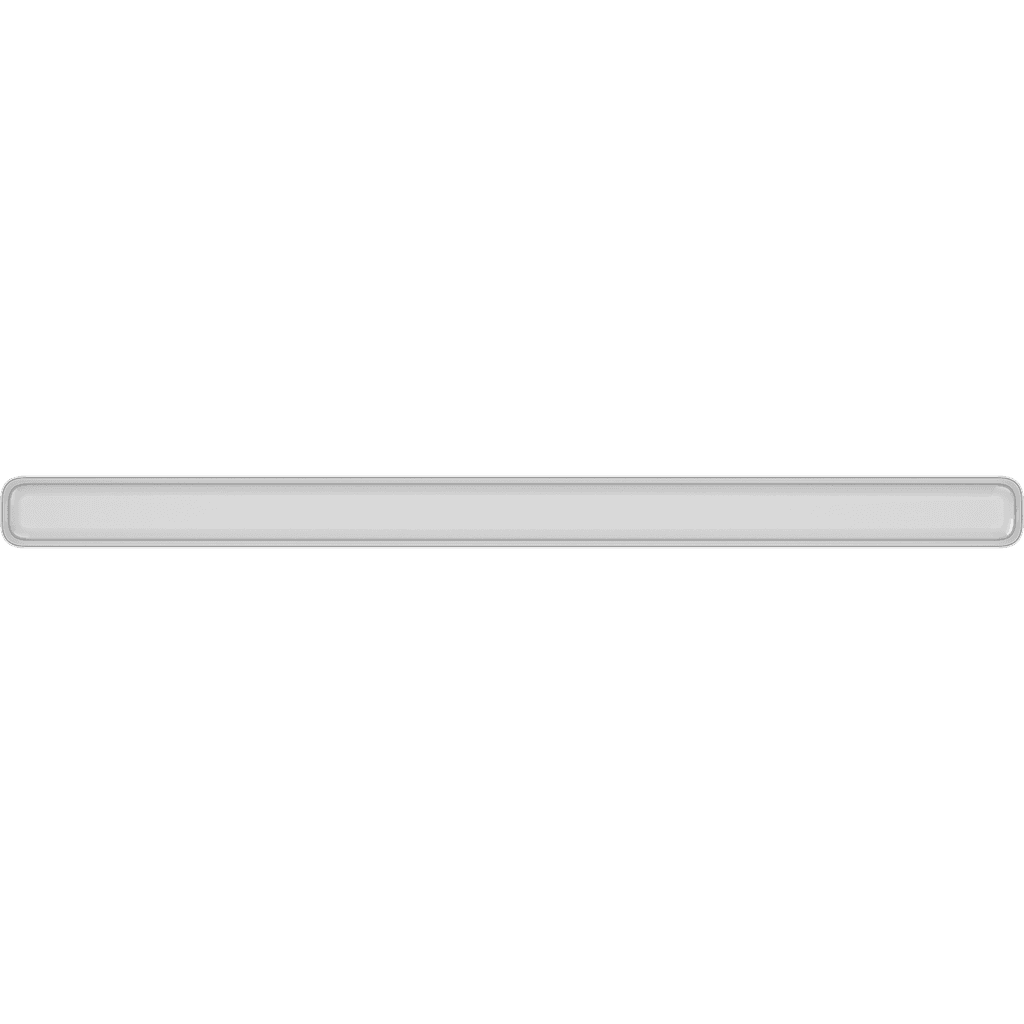

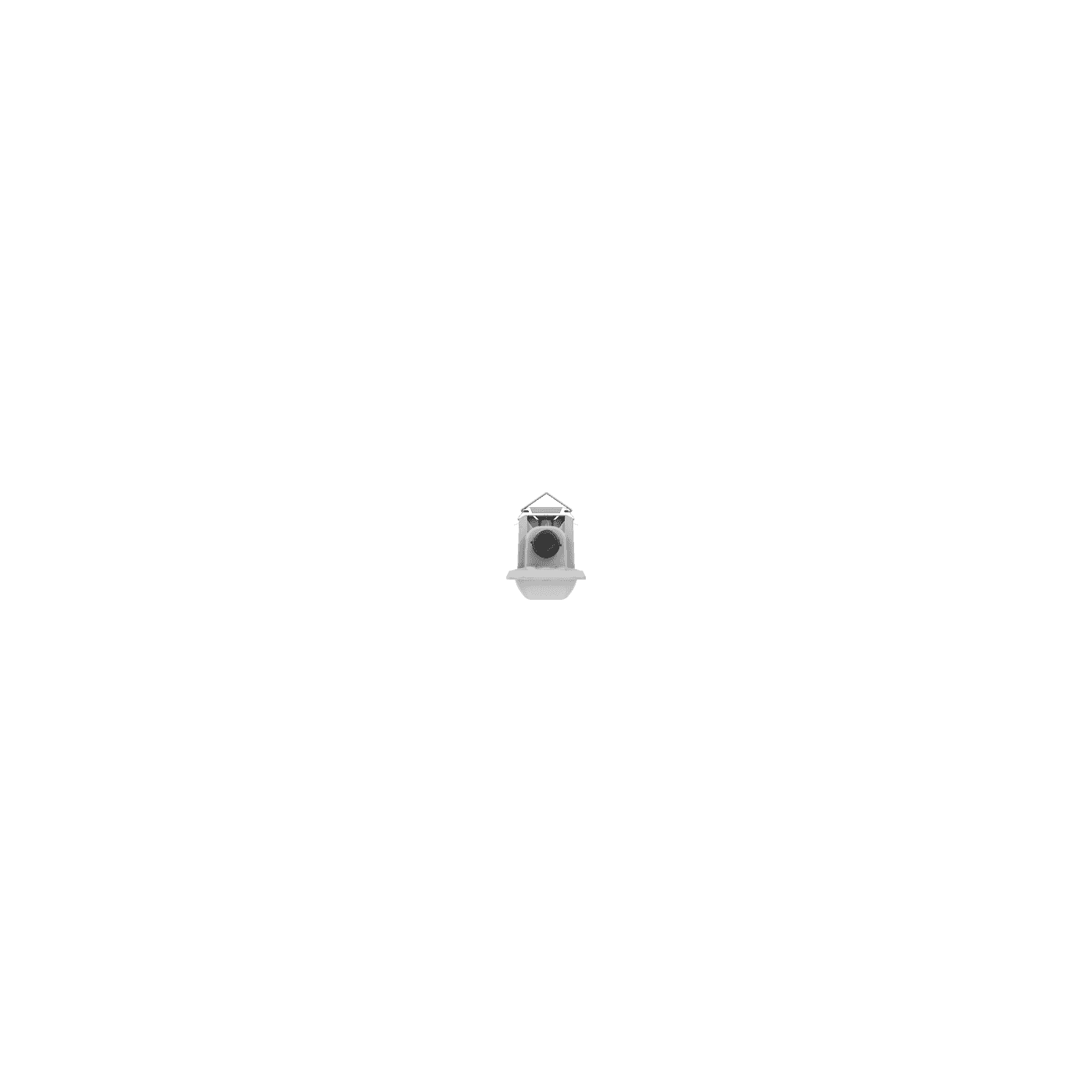

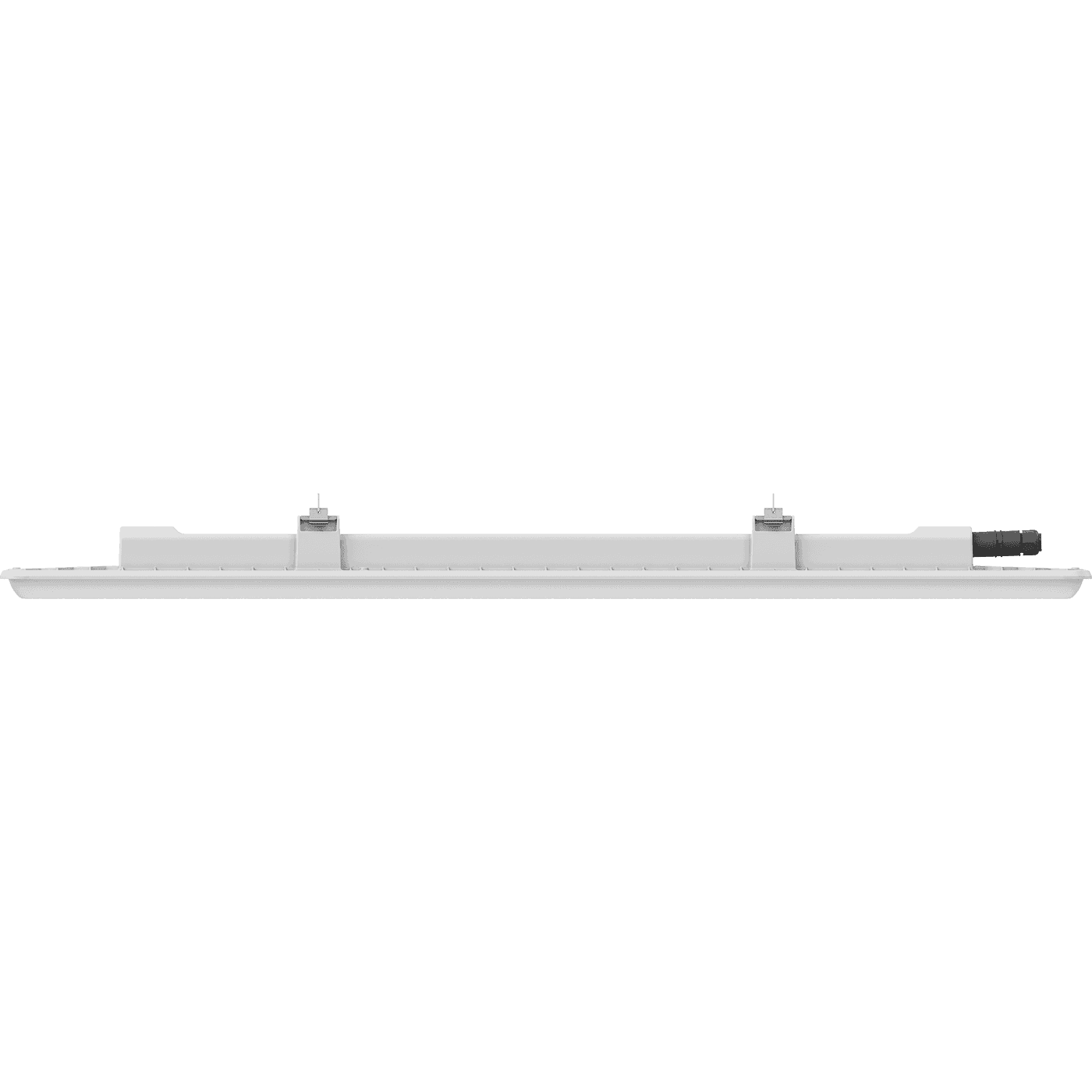

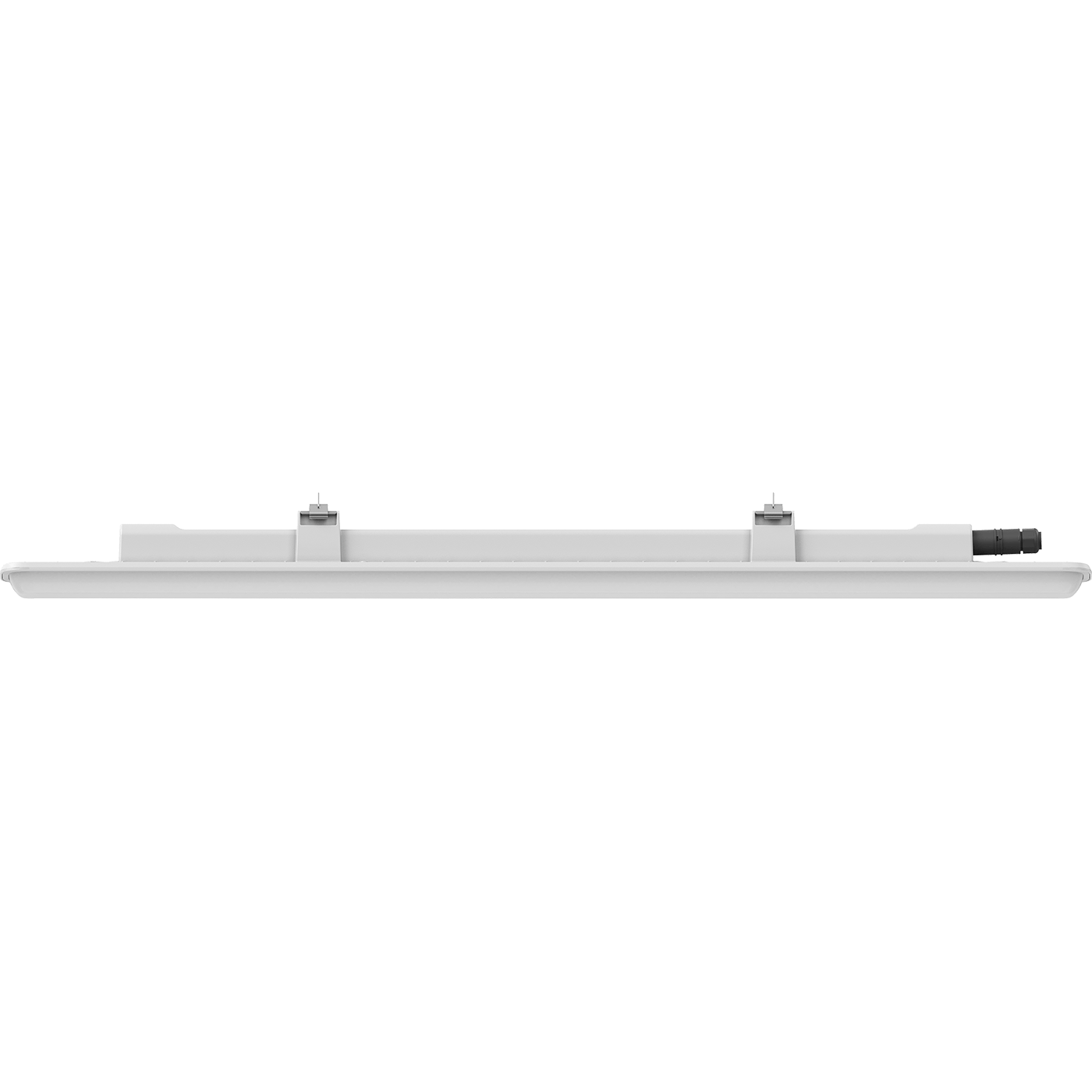

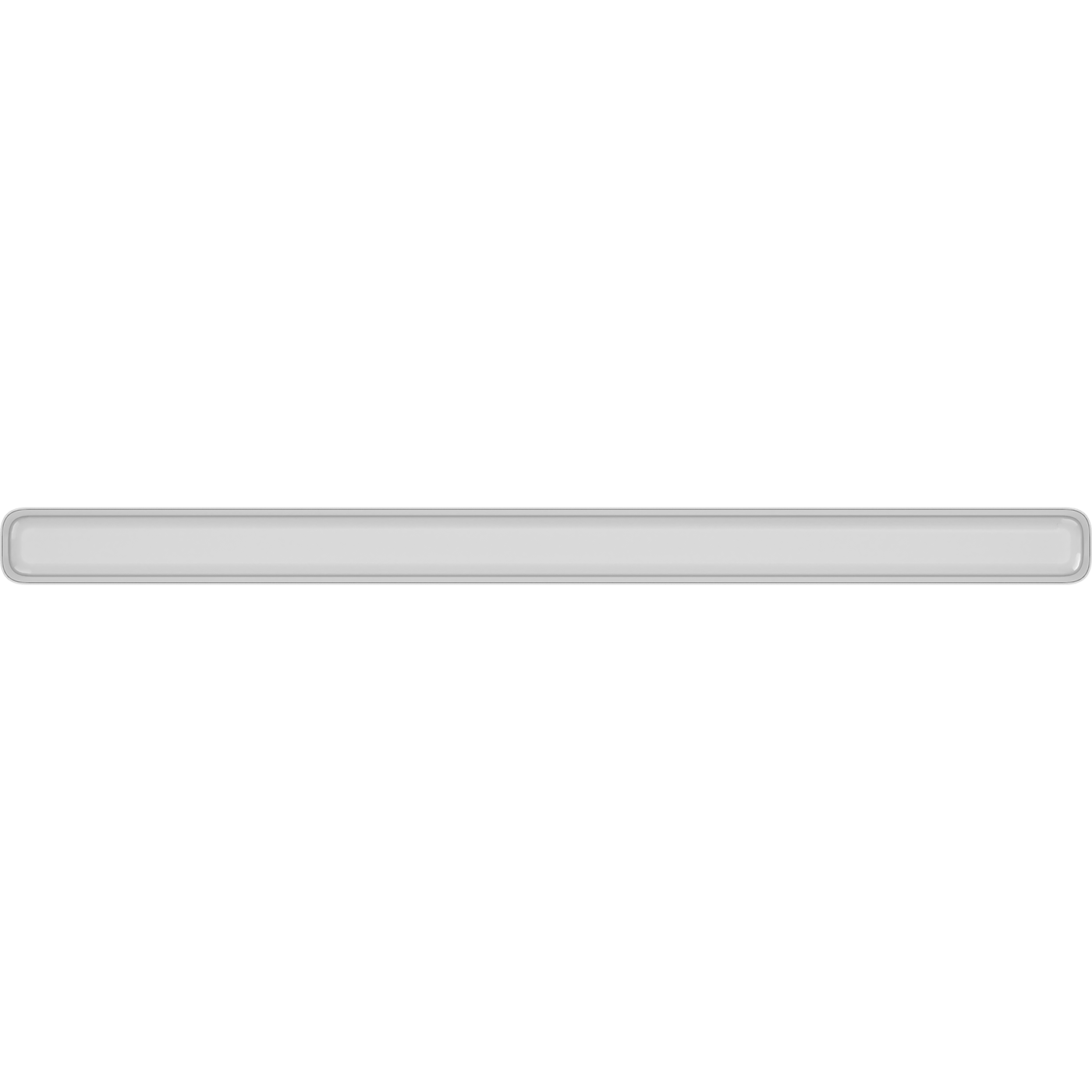

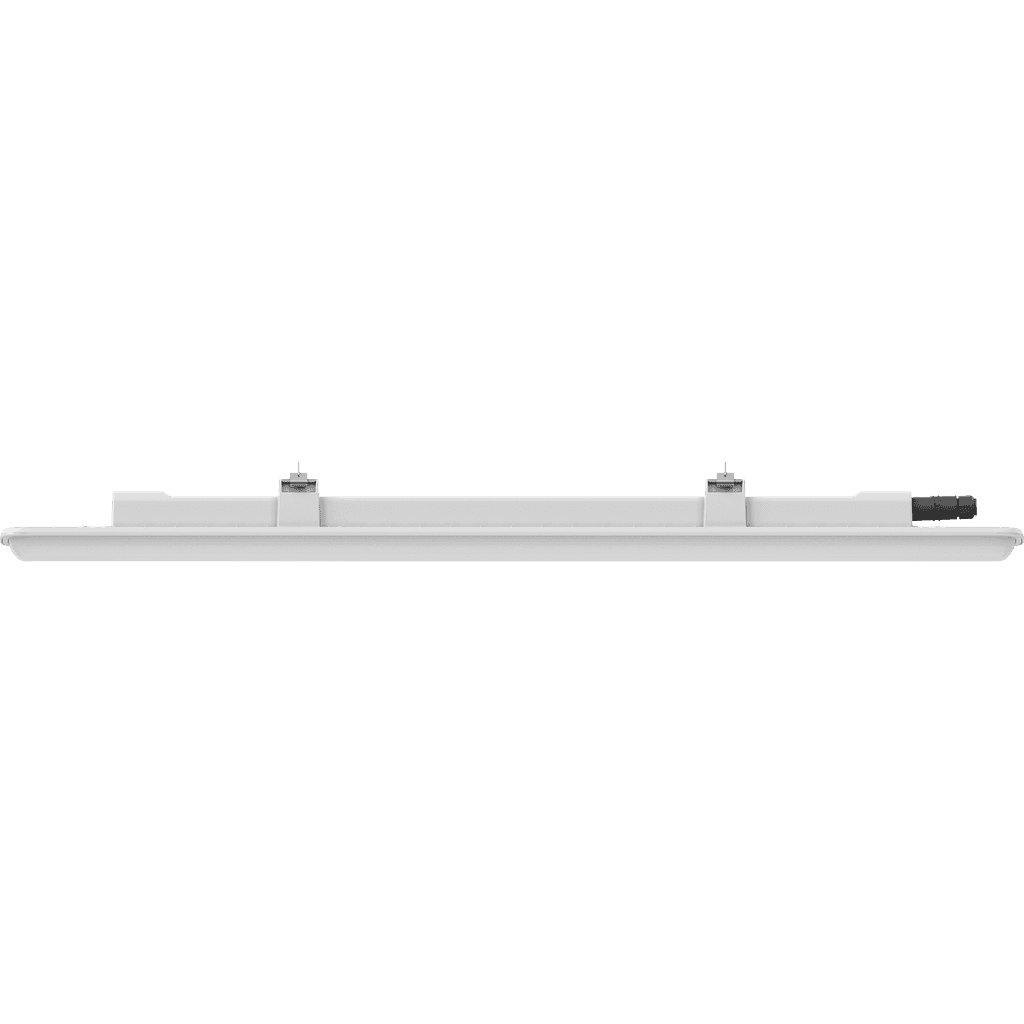

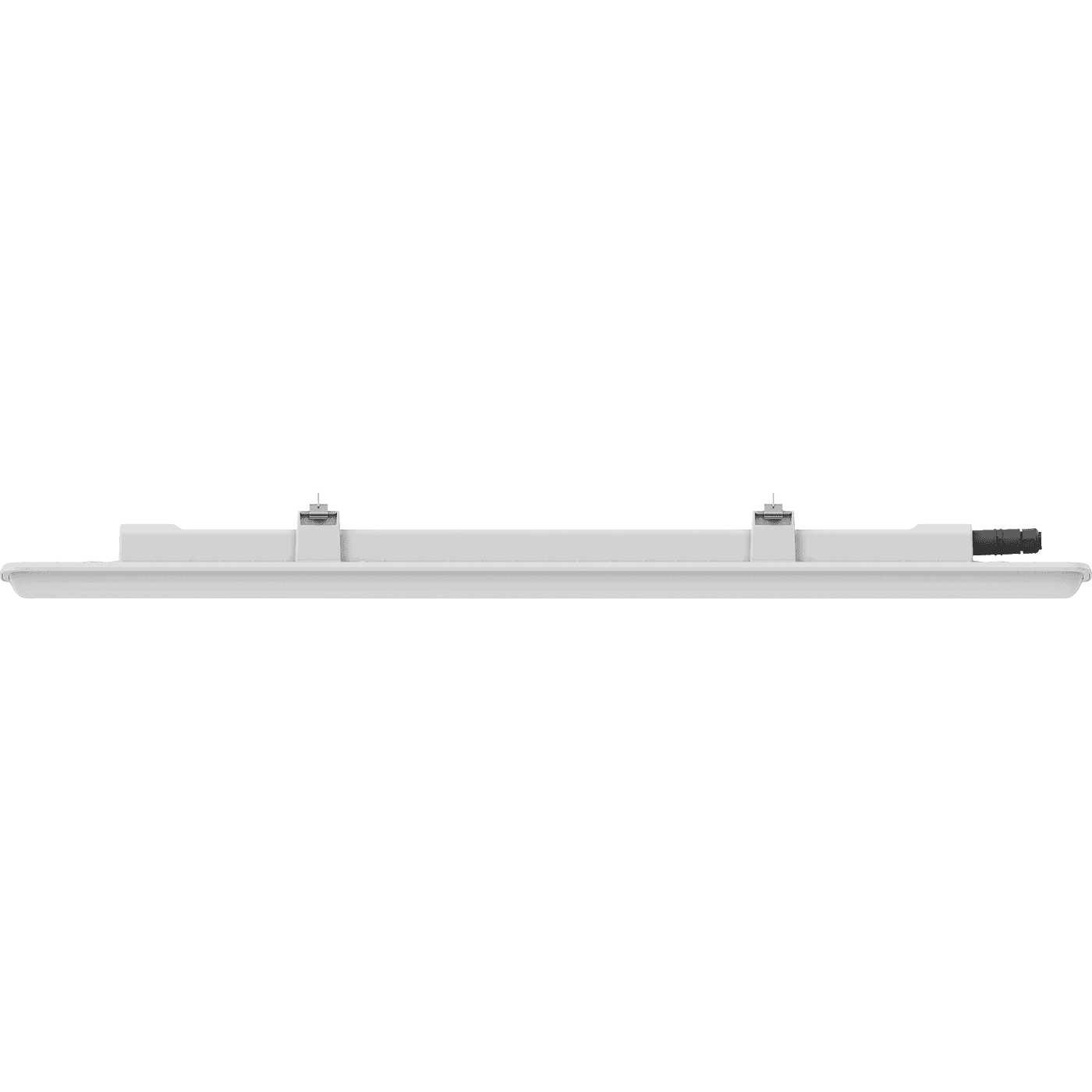

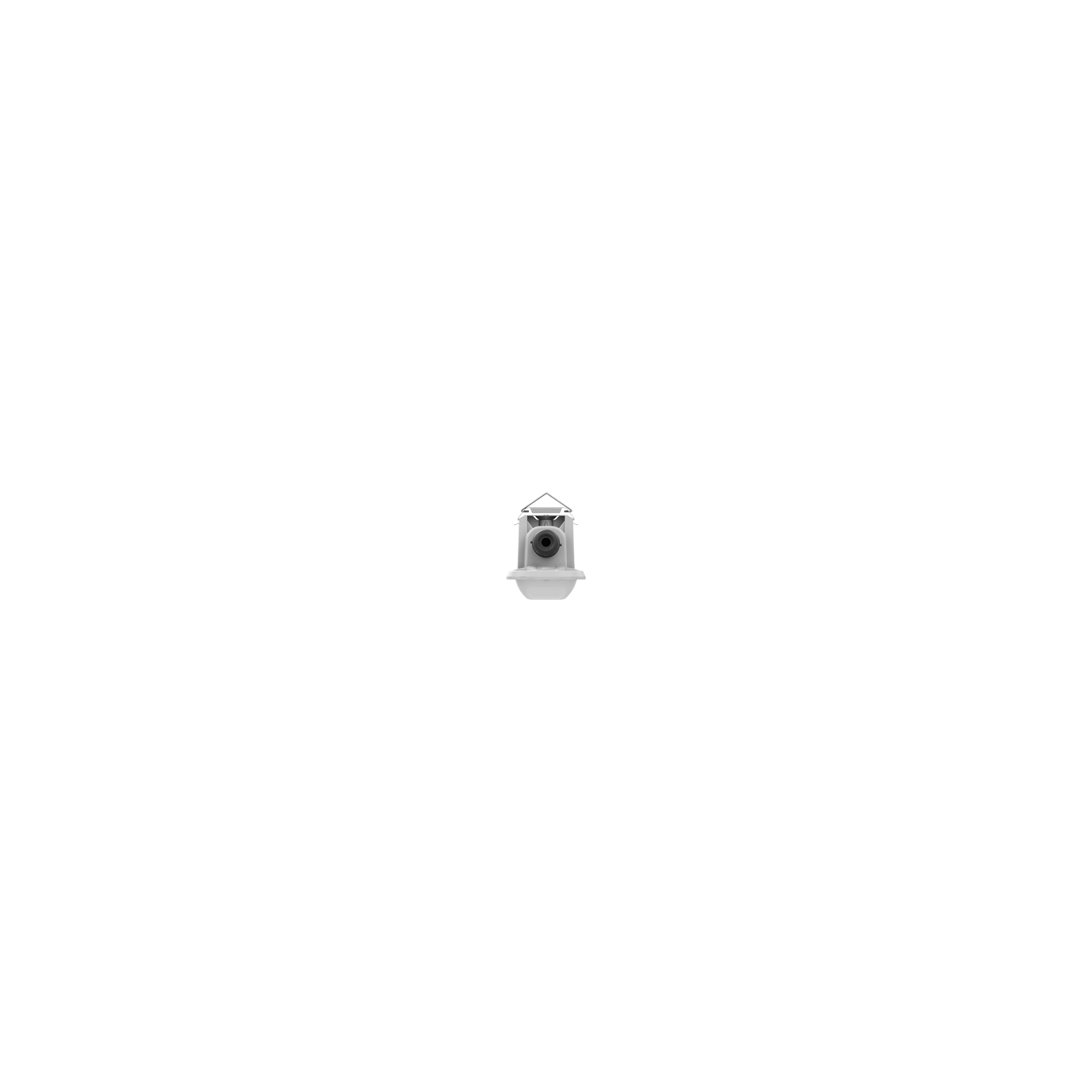

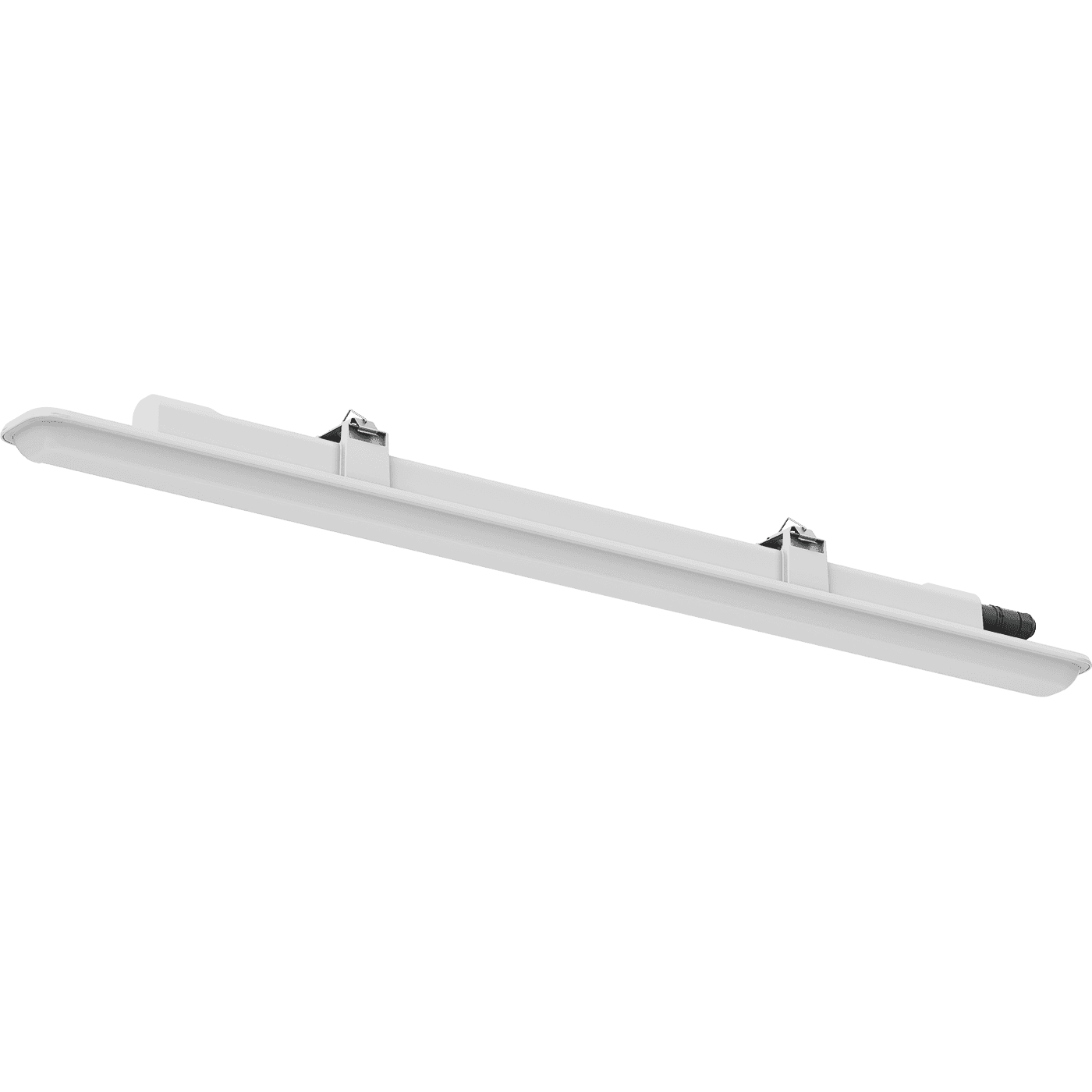

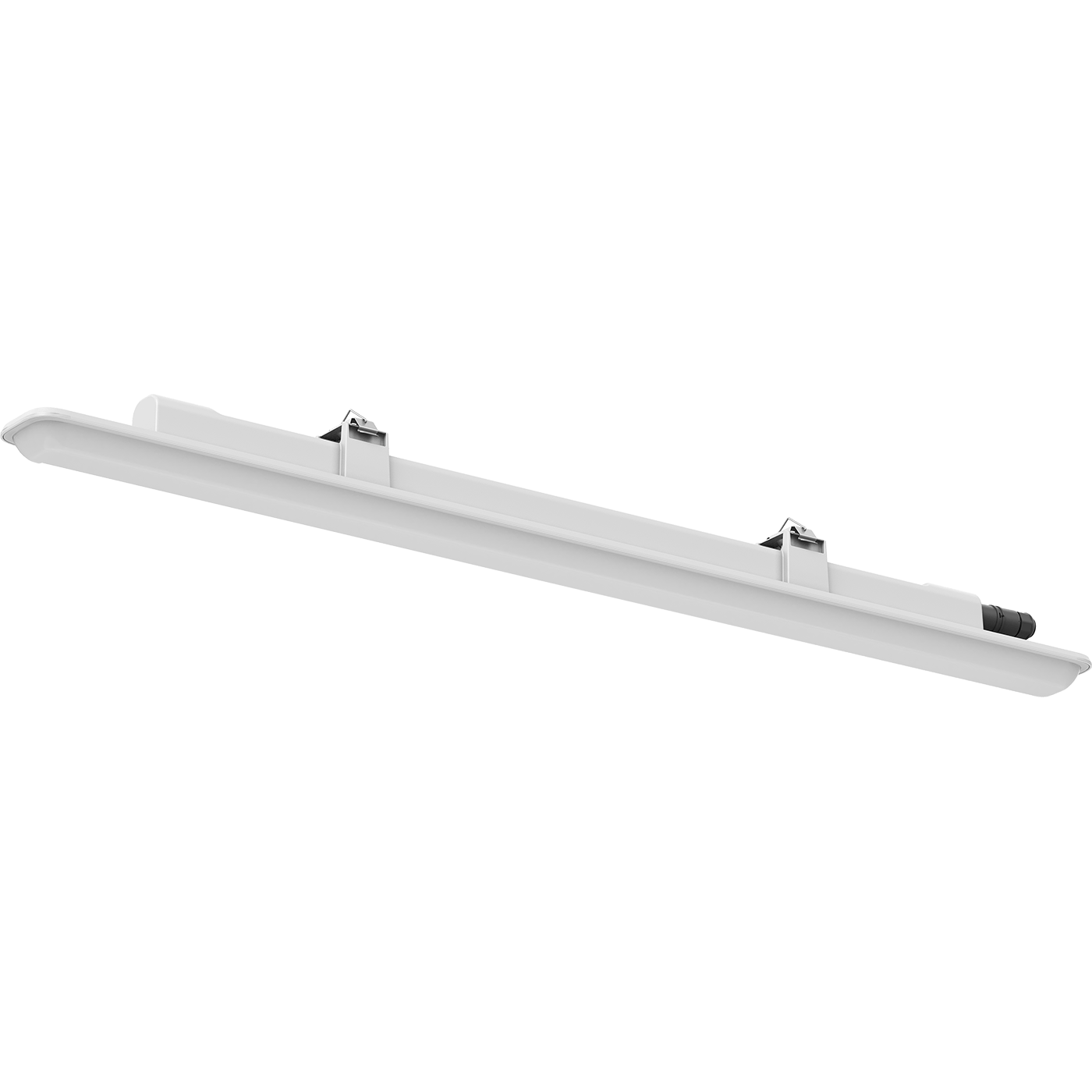

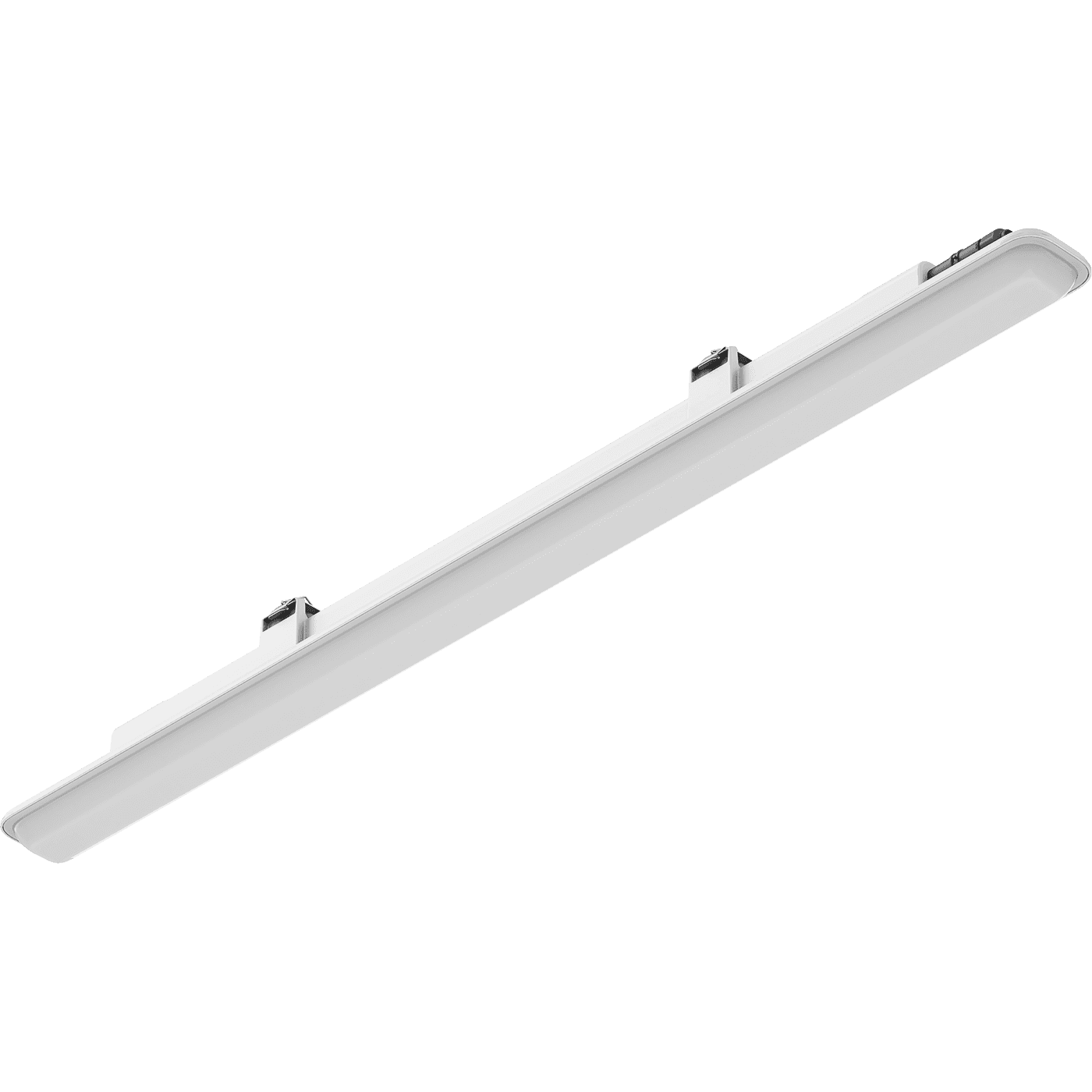

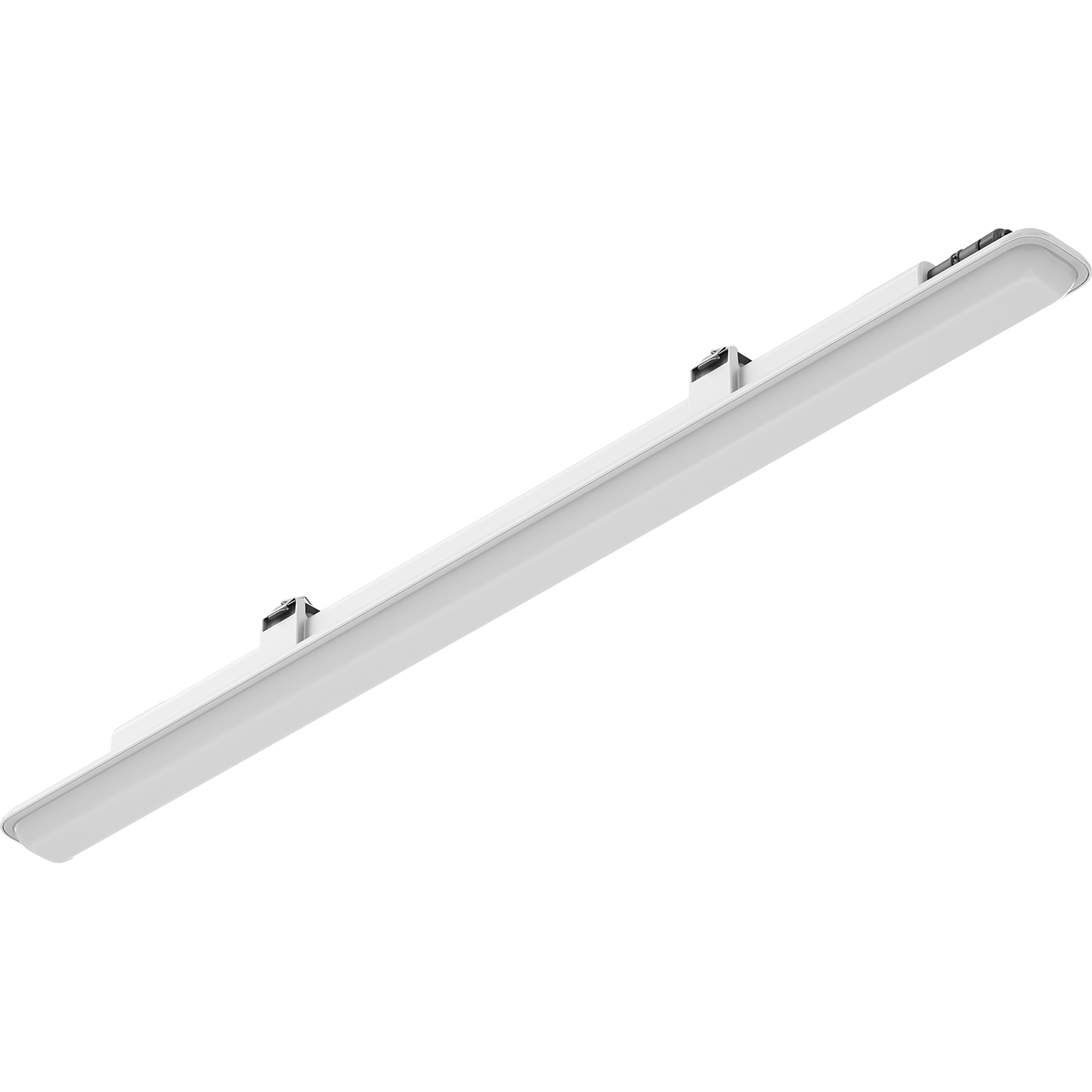

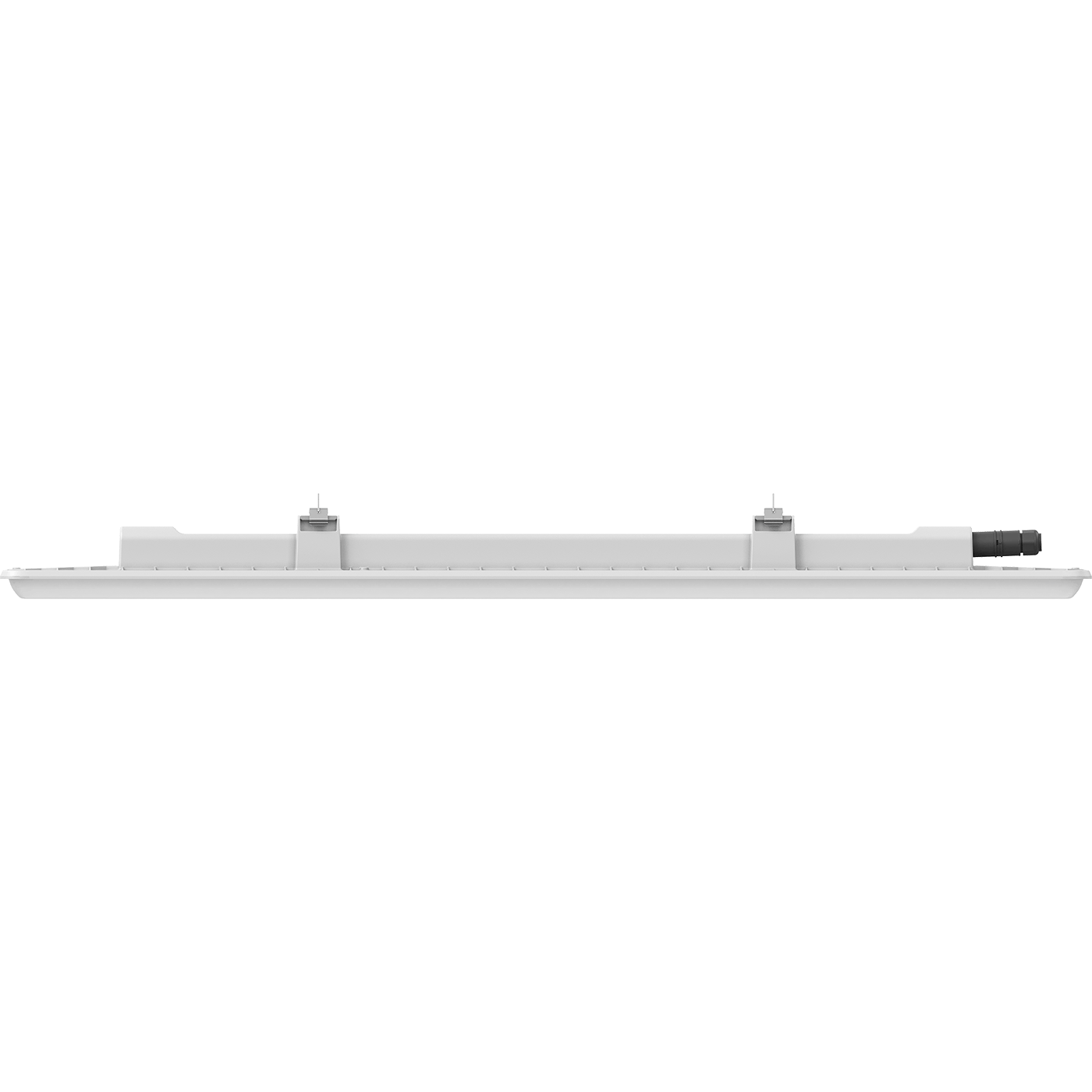

SLICK.PRS LED 35 (PC/SMC) 5000K
_5000k.jpg&w=1920&q=50)
_5000k.jpg&w=1024&q=50)
SLICK.PRS LED 35 (PC/SMC) 5000K
36 Wluminaire power
5400 lmlight flow
150 lm/Wenergy efficiency
code1631002800
color temperature5000
beam angleD120
weight1.75 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
36 Welectric shock protection
IIpower factor
> 0,96supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
36 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66/IP69
fire safety class
П-ІІ
material
Пластик
weight
1.75 kg
housing color
Серый
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5

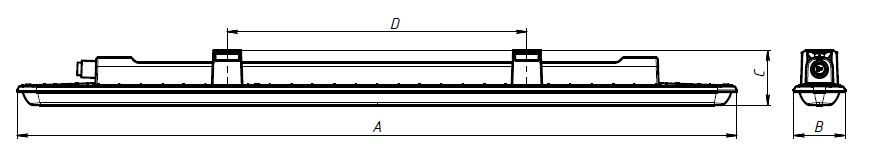

length, mm
1200 mm
width, mm
85 mm
height, mm
90 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
500 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1631002800
illuminating
light flow
5400 lm
flickering factor
<1%
energy efficiency
150 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

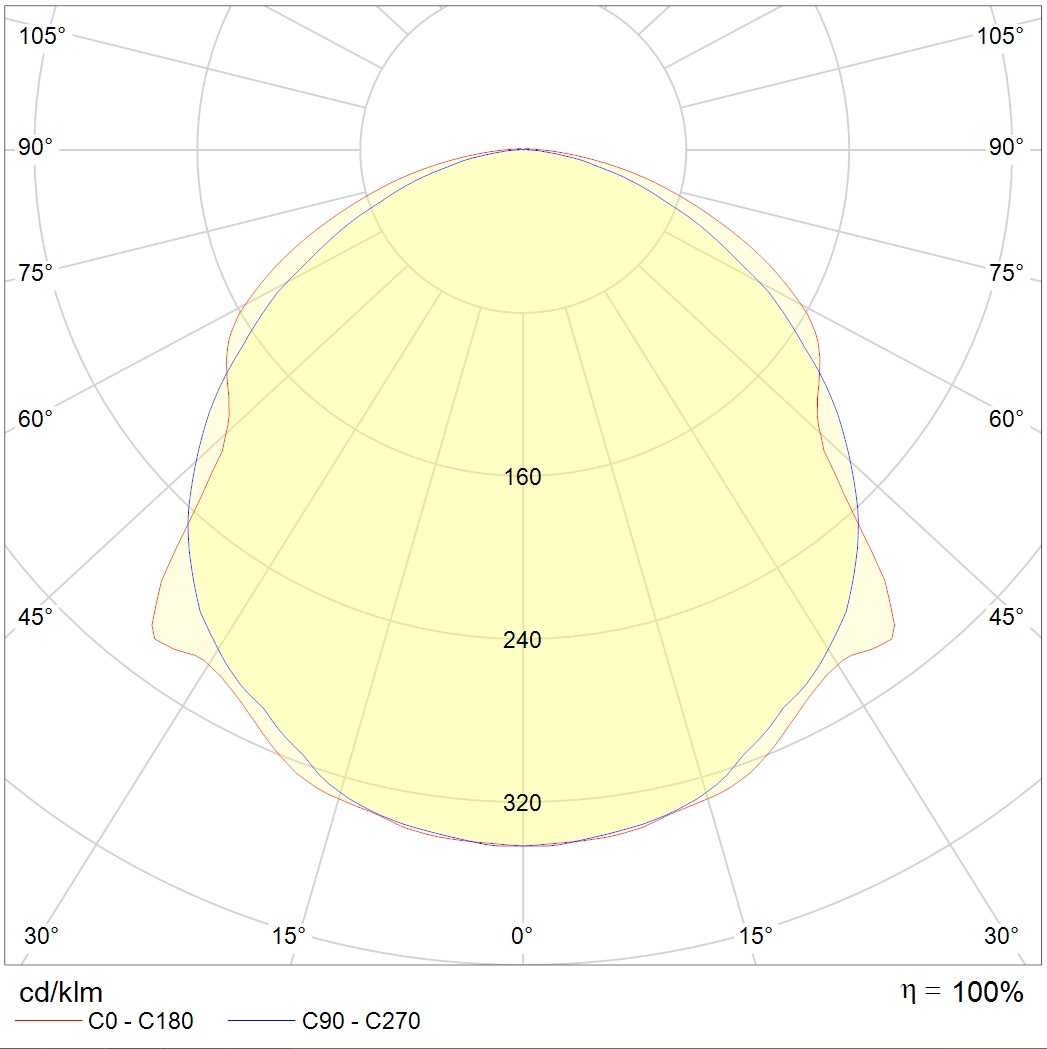

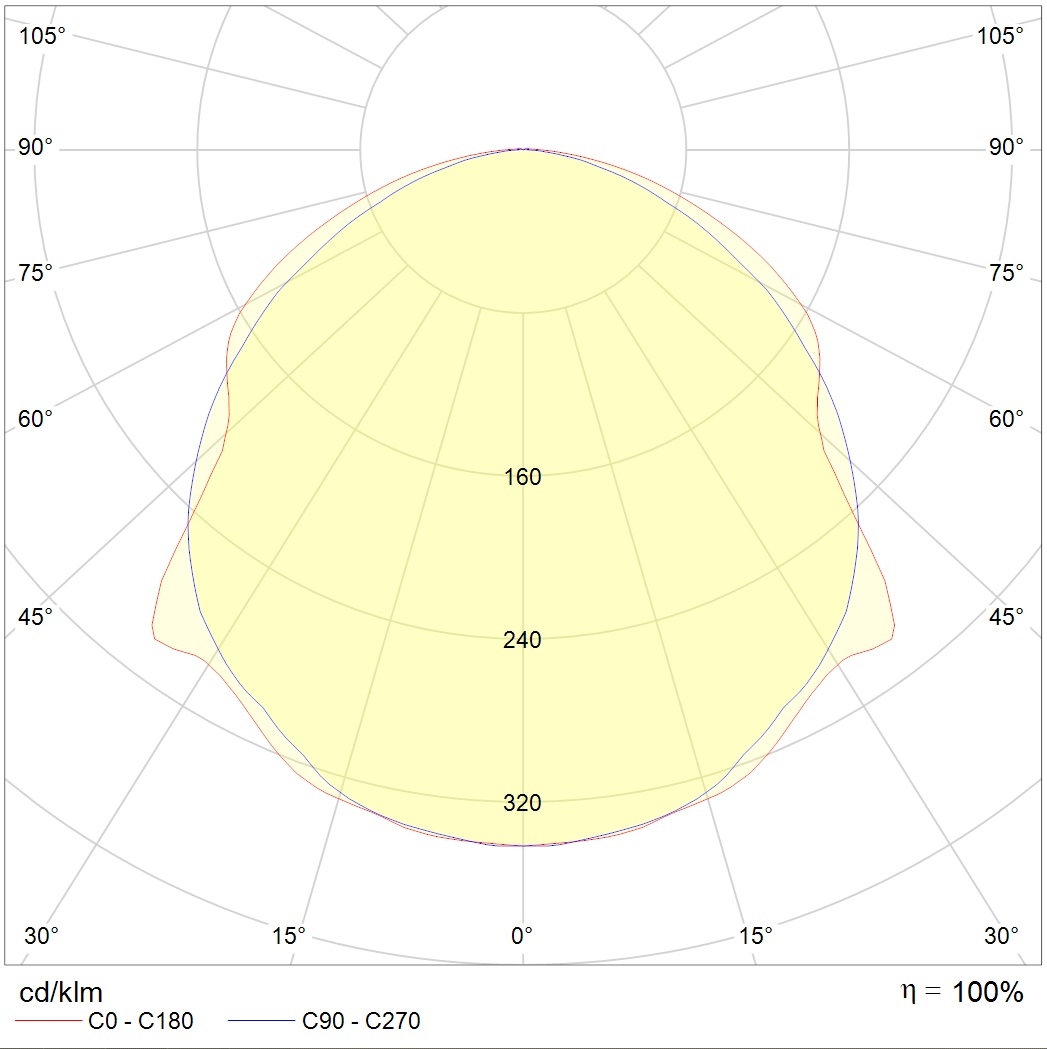

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg128.7 kB
ldt72.6 kB
documents
passport1.4 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
