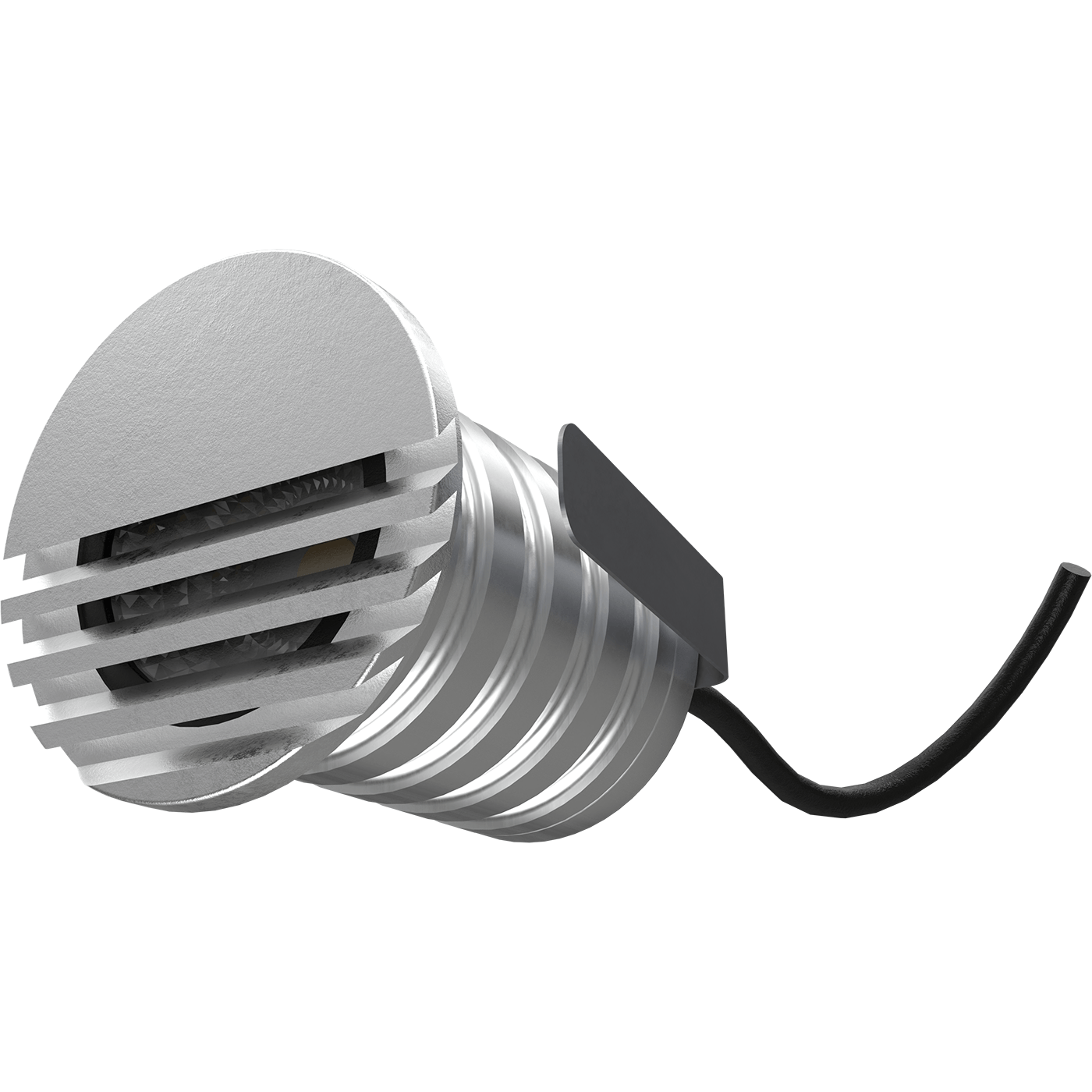

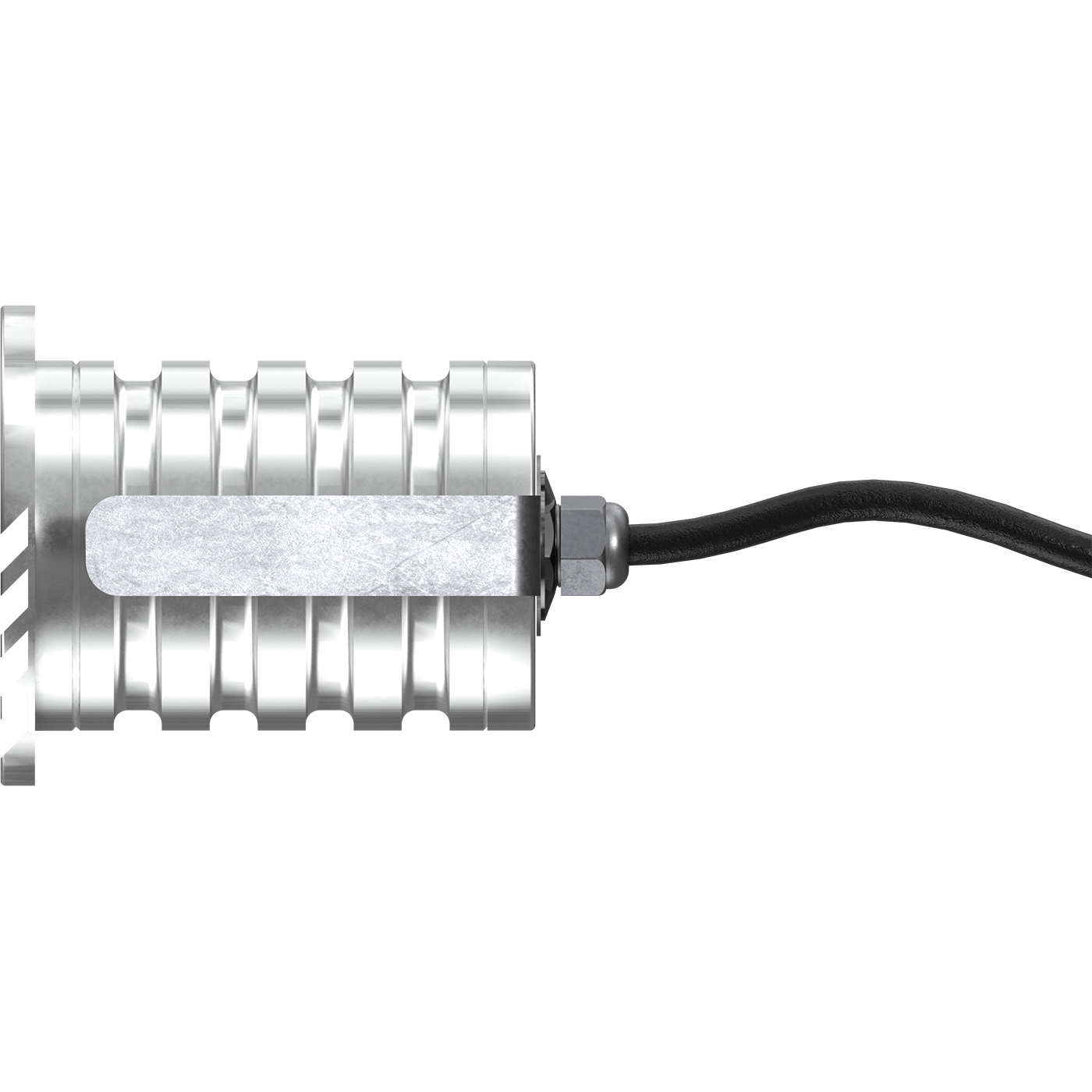

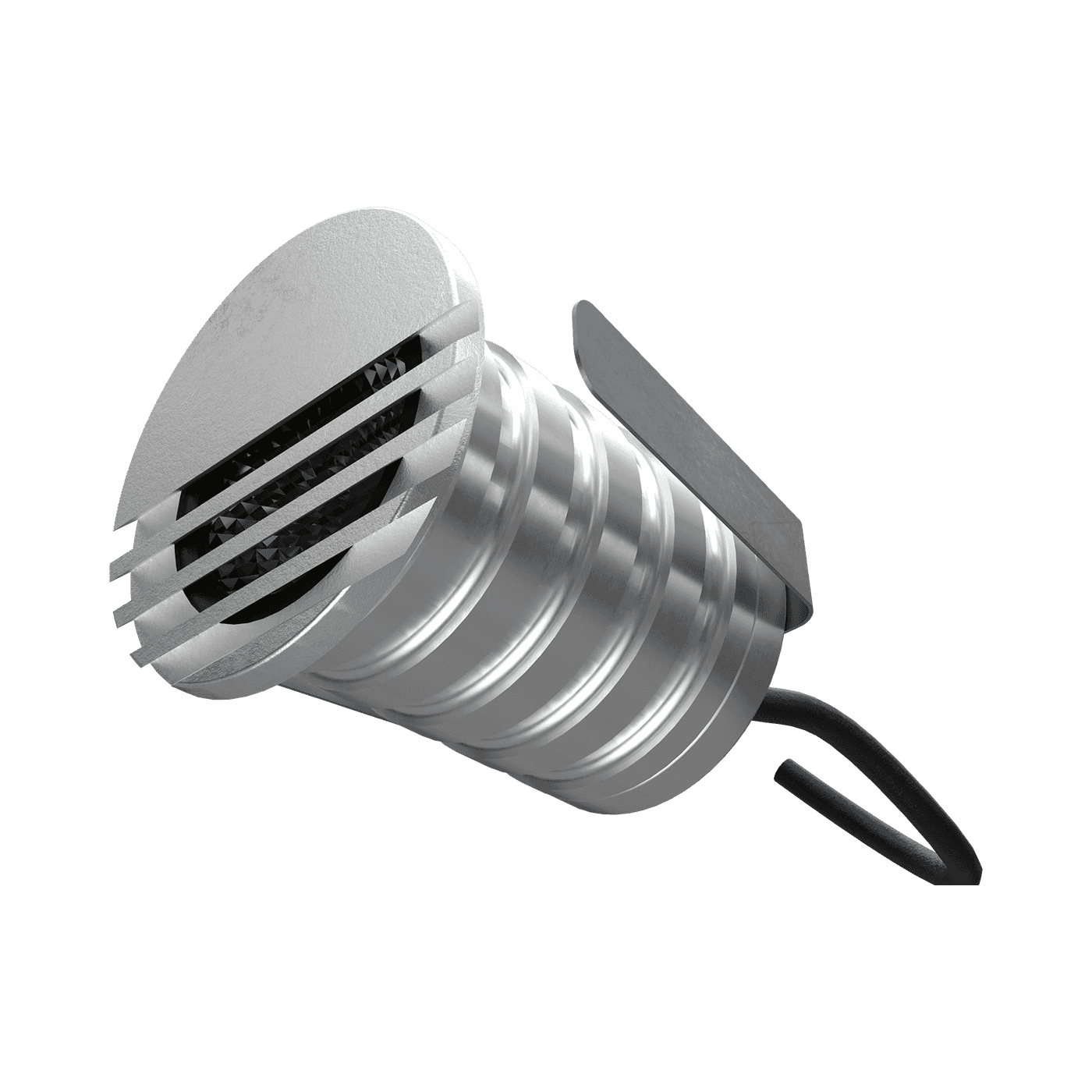

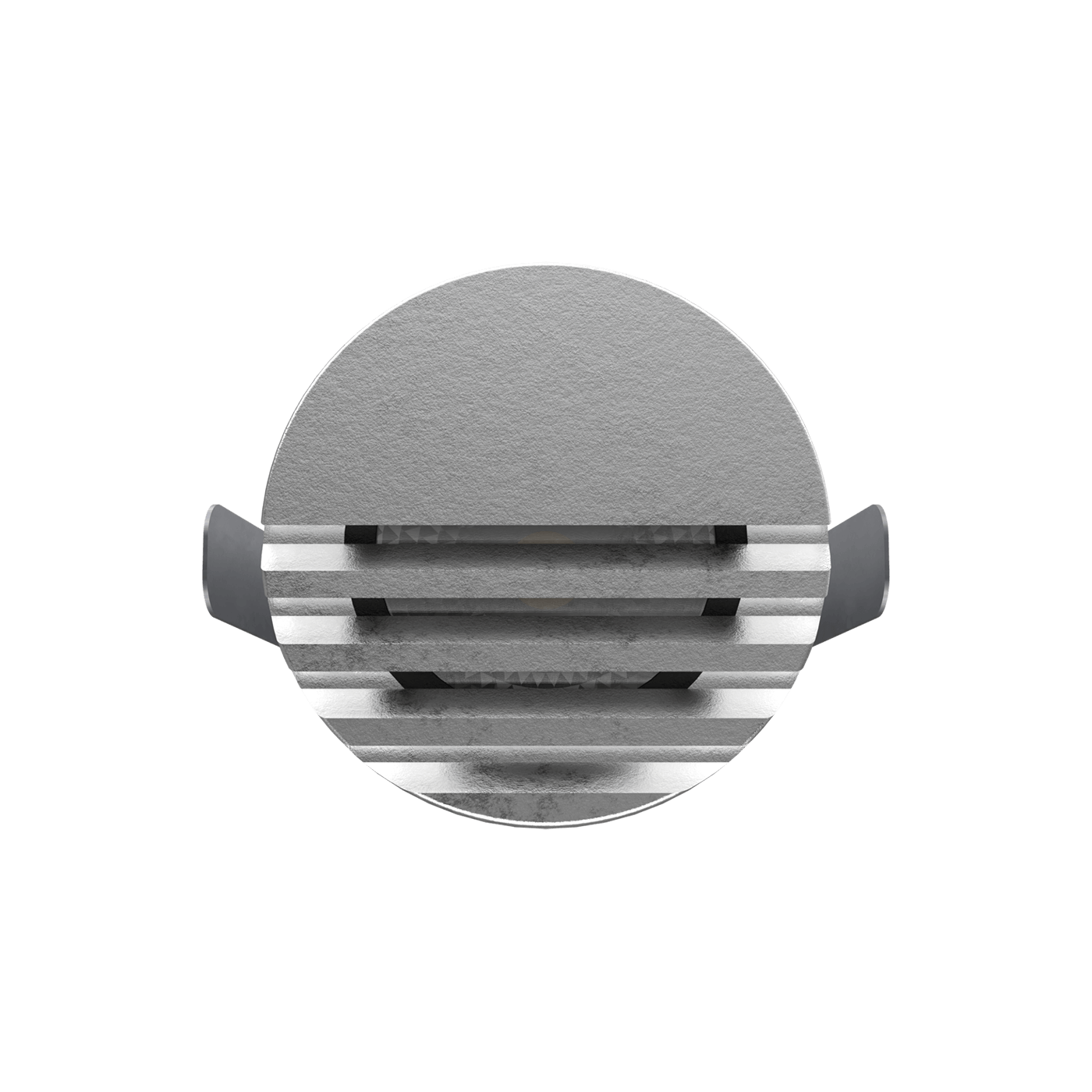

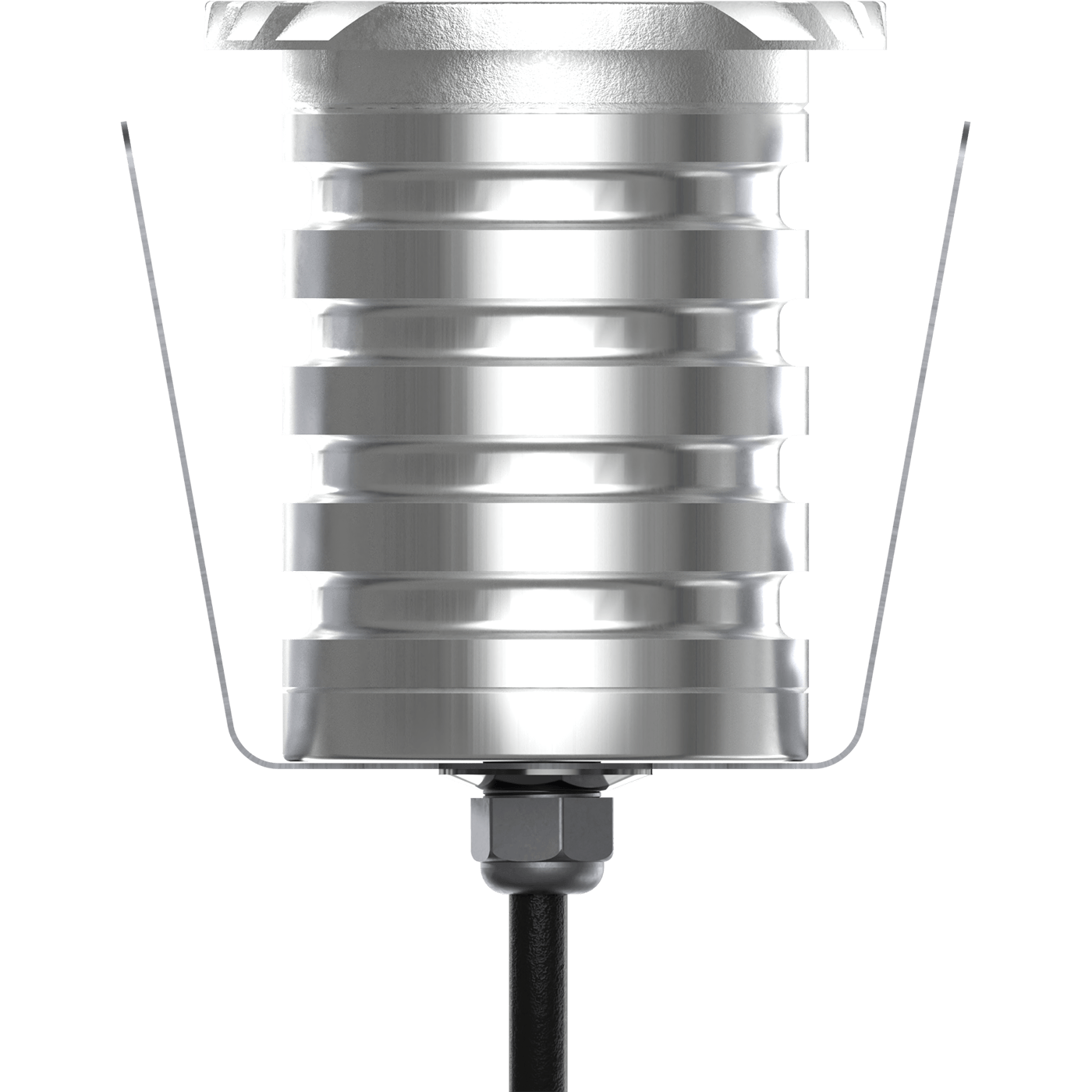

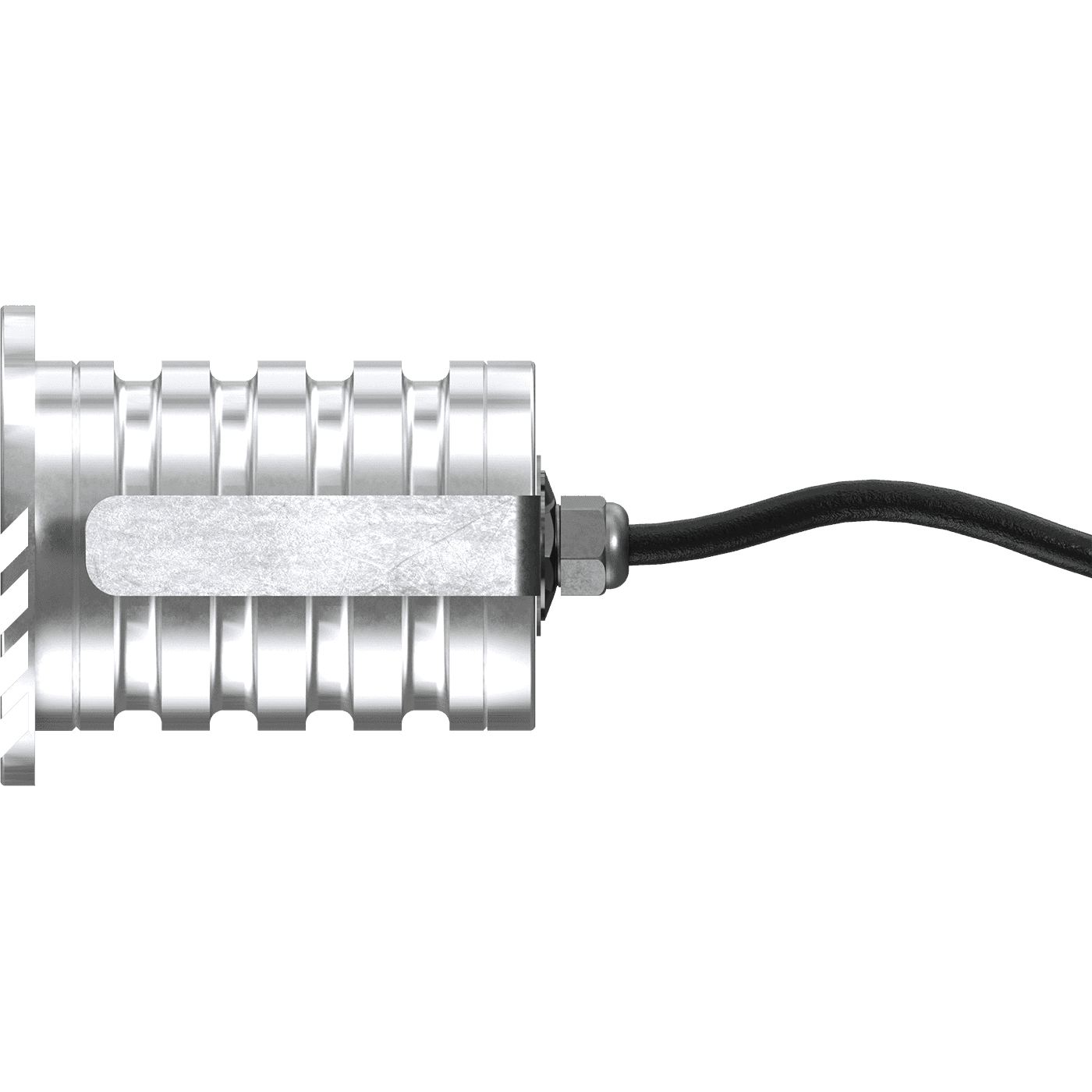

STARDUST LED 1W D70 840 SL T2
STARDUST LED 1W D70 840 SL T2
1 Wluminaire power
100 lmlight flow
100 lm/Wenergy efficiency
code1817000120
beam angleD70
color temperature4000
weight1 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, direct current
12 Vsupply voltage, direct current
12 Vluminaire power
1 Welectric shock protection
IIIsupply voltage
12 Velectrical
rated supply voltage, direct current
12 V
supply voltage, direct current
12 V
luminaire power
1 W
electric shock protection
III
supply voltage
12 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
1 kg
length, mm
195 mm
width, mm
90 mm
height, mm
63 mm
housing color
Металлик
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK08/5 Дж
installation width, mm
58 mm
installation length, mm
180 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1817000120
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
100 lm
flickering factor
<70%
beam angle
D70
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

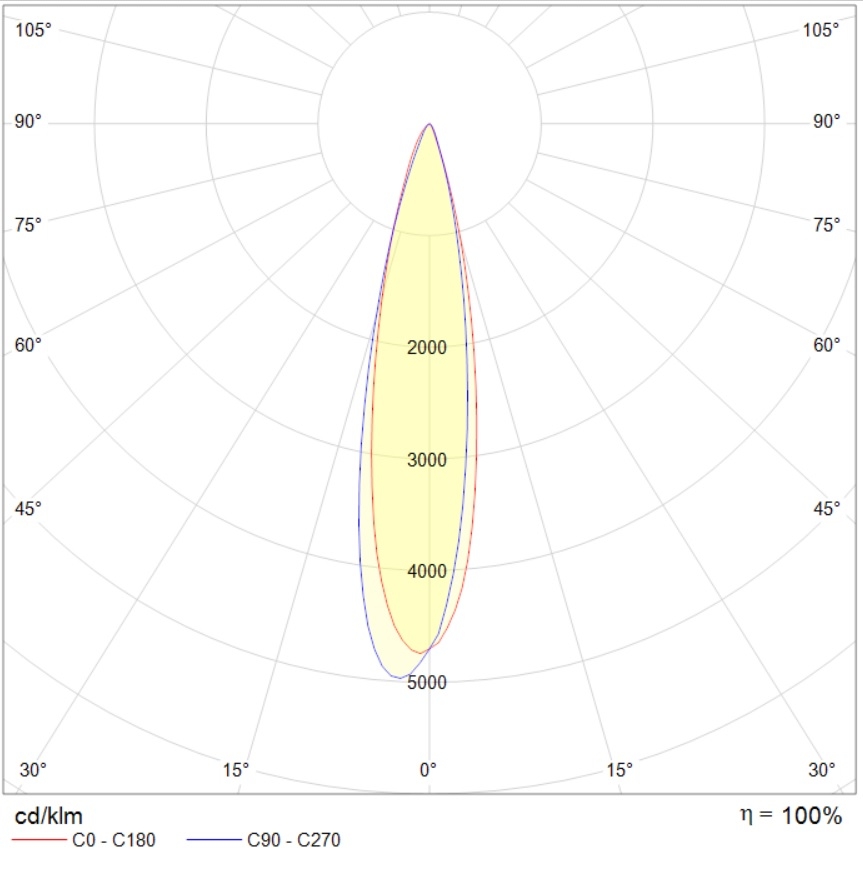

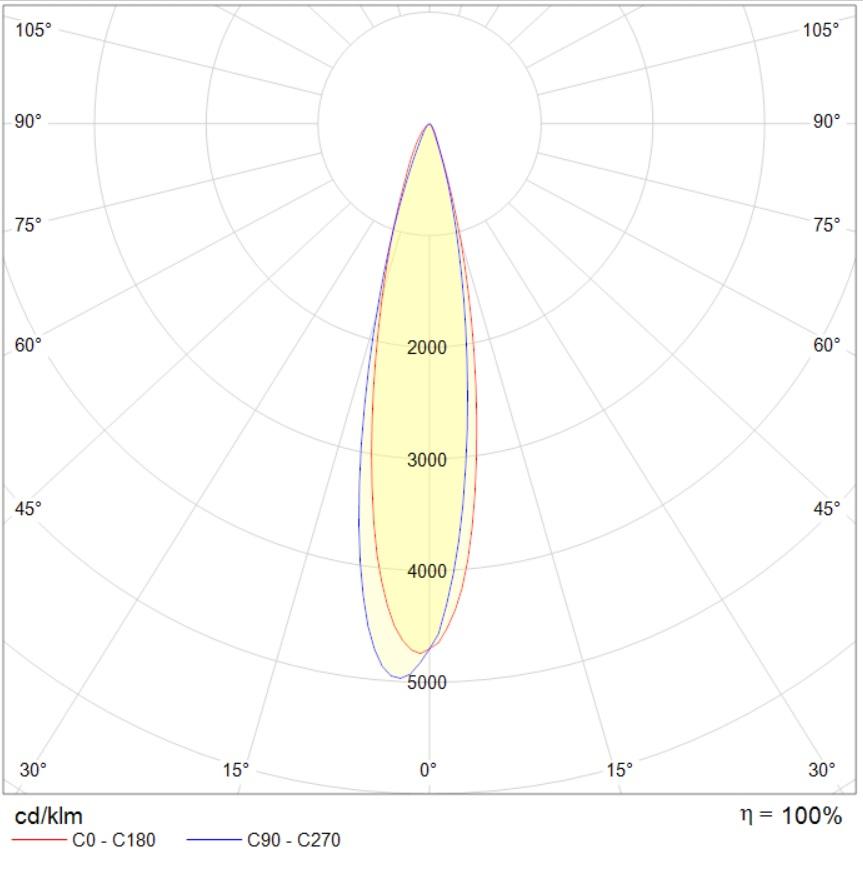

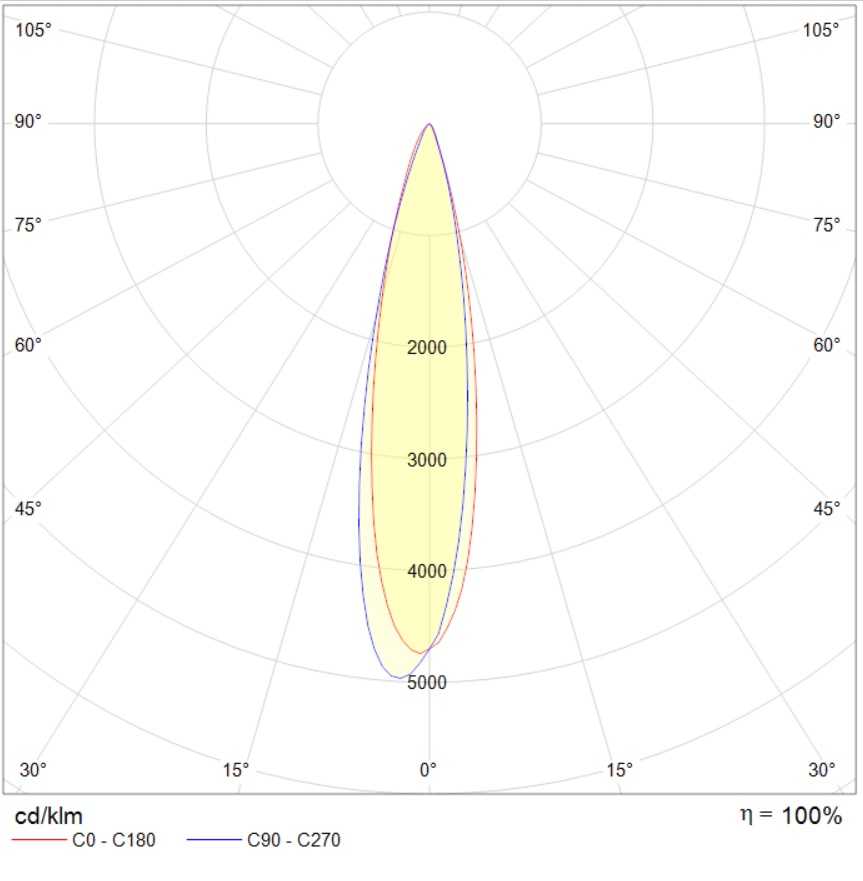

photometric files
сертификаты
photometric files
jpg80.3 kB
ldt847.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011677.5 kB
Declaration of Conformity EAEU TR 037/2016287.3 kB
