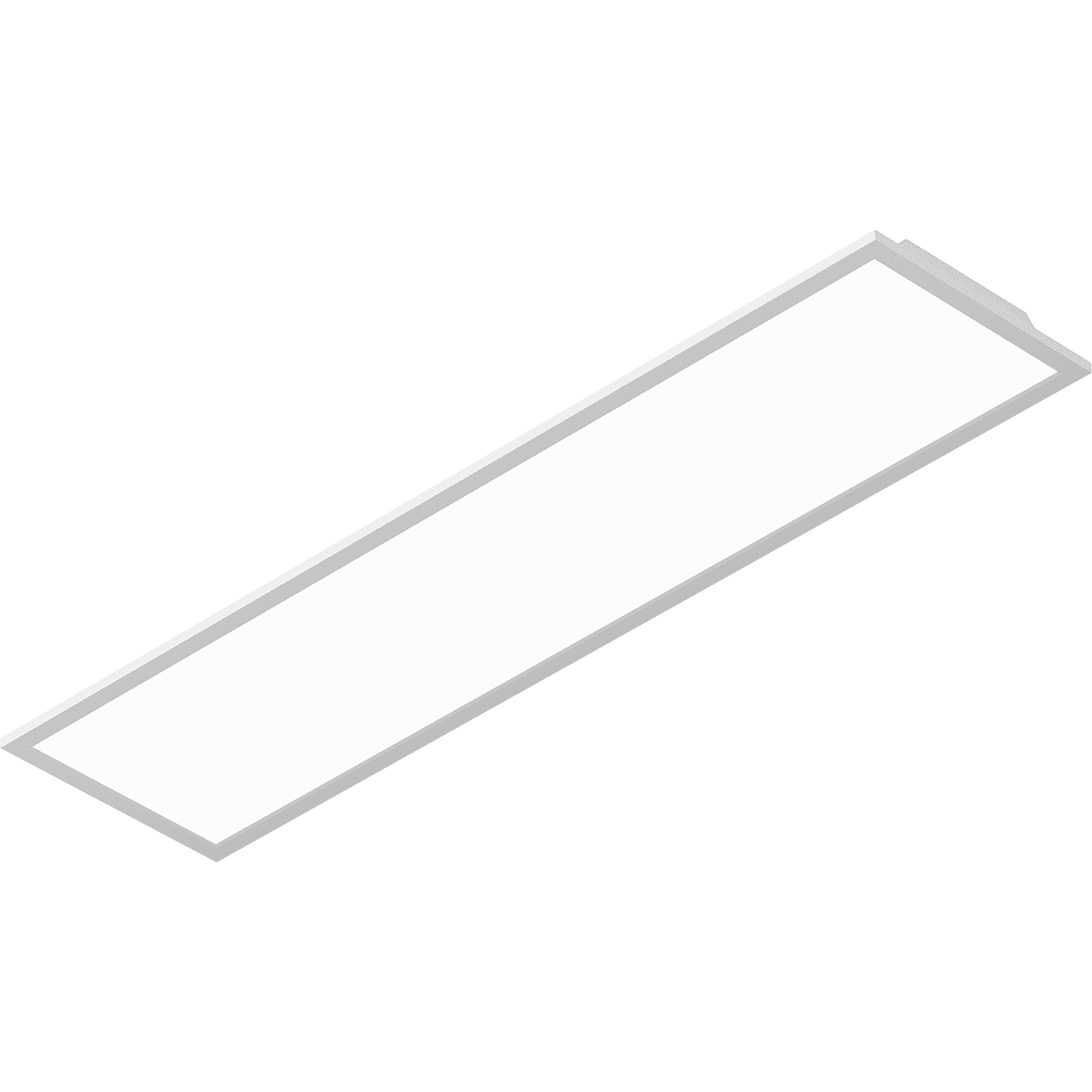

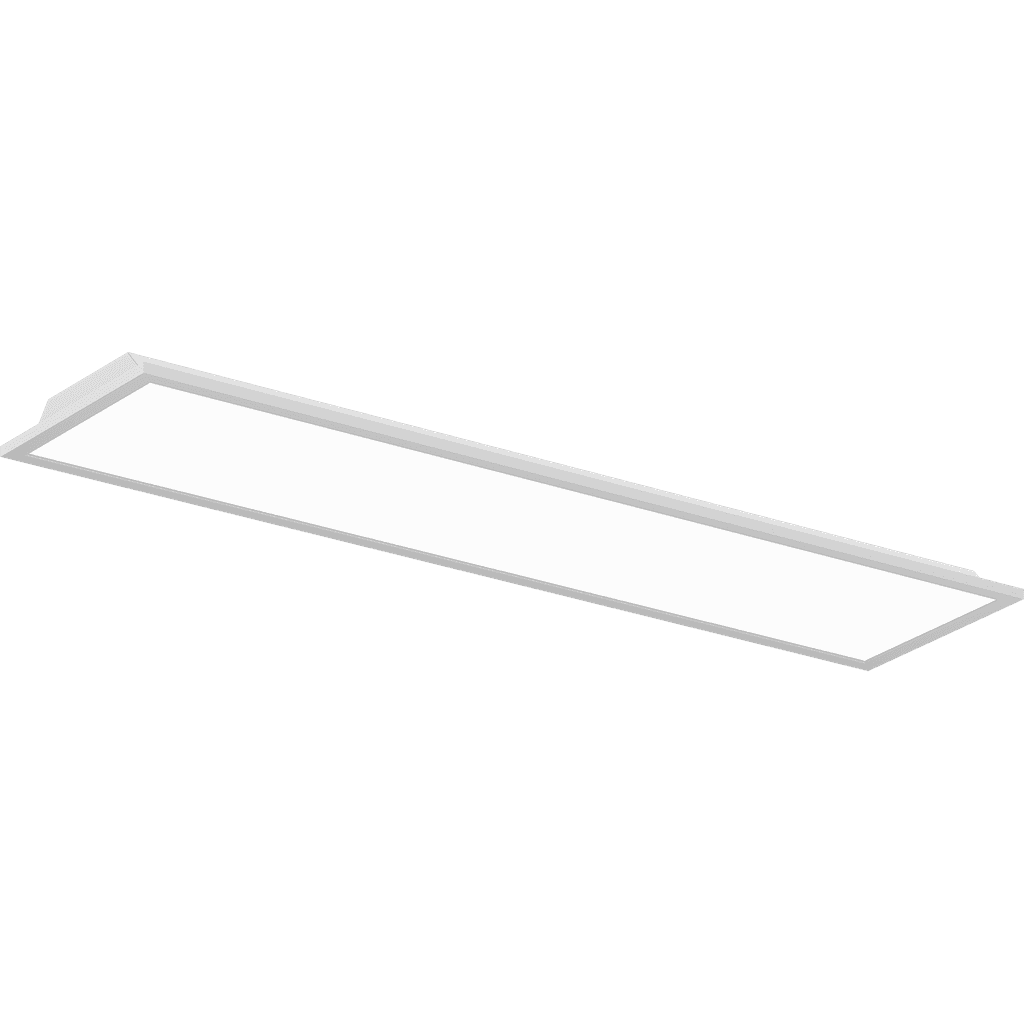

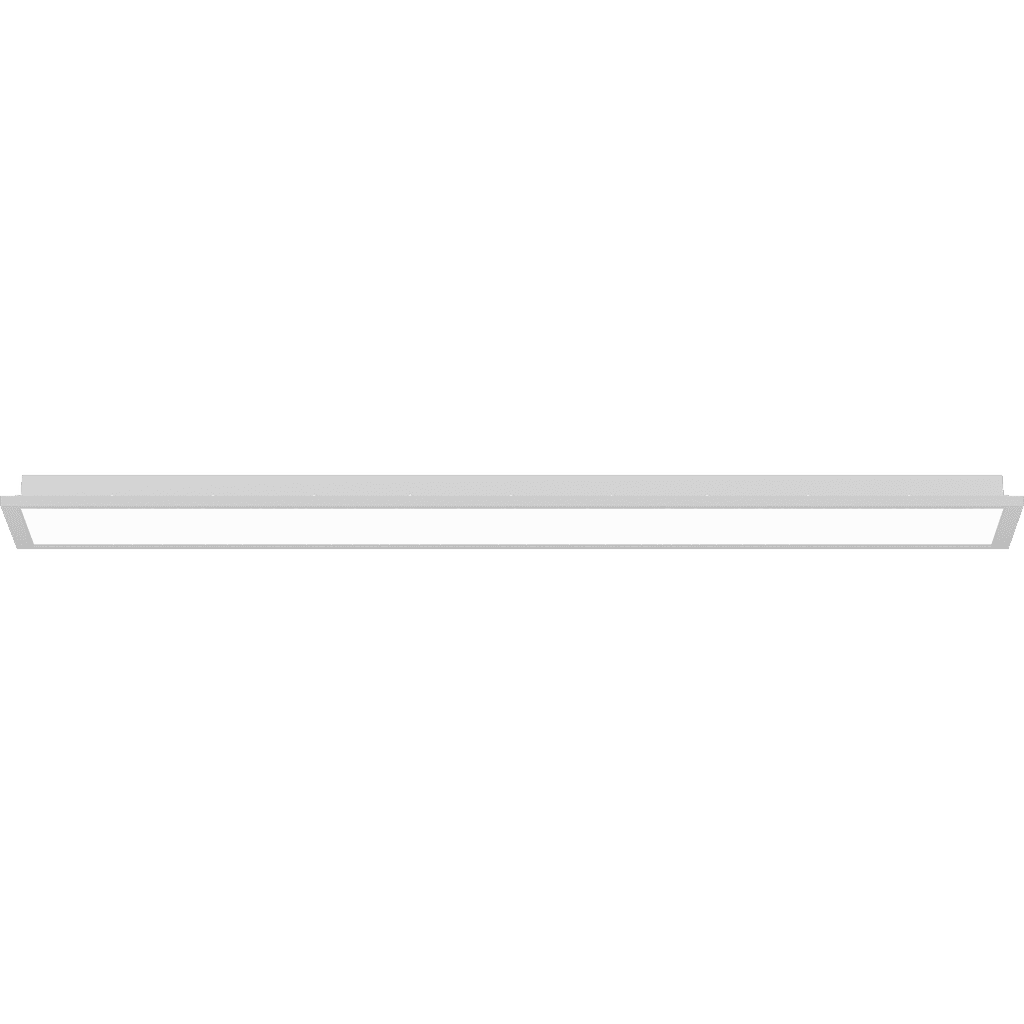

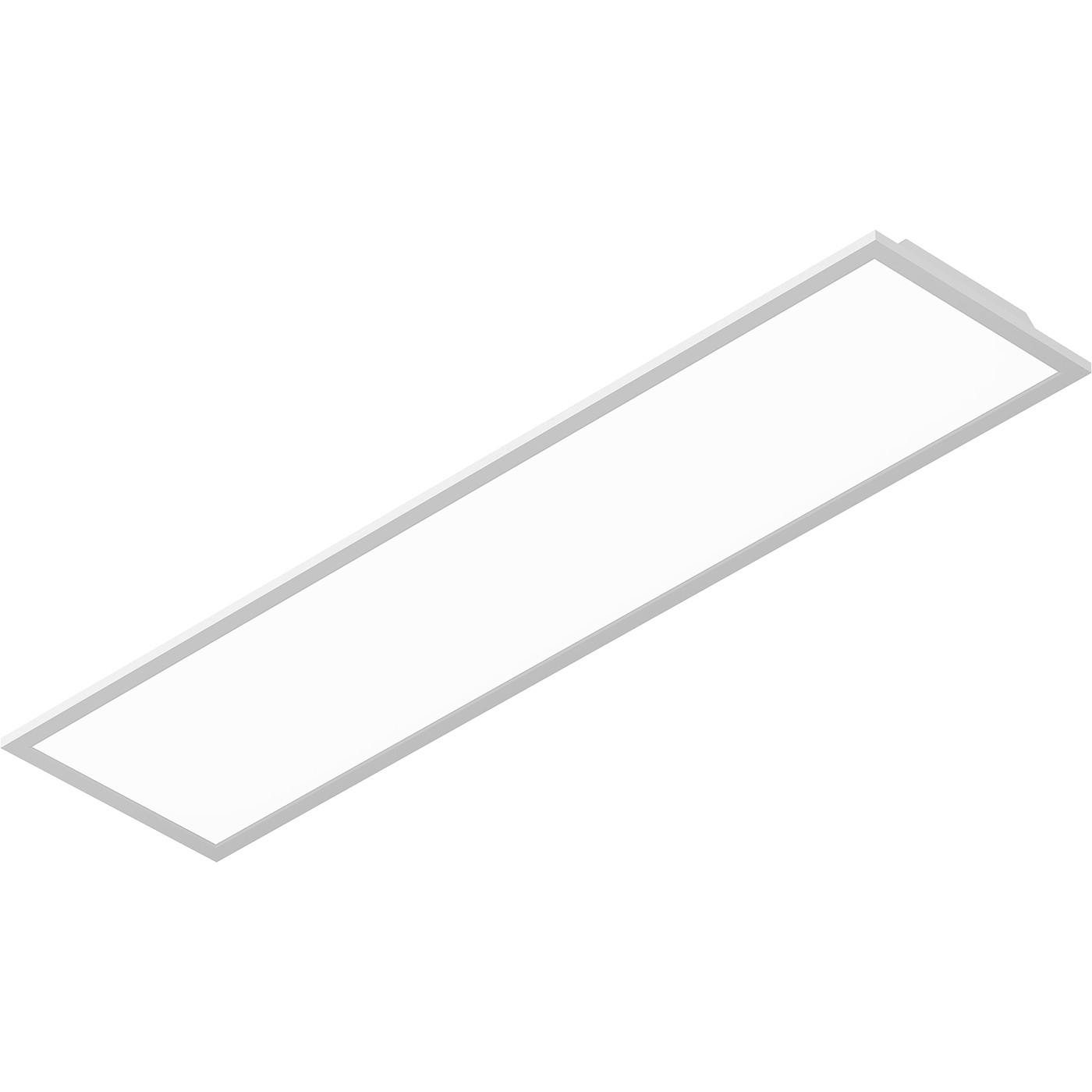

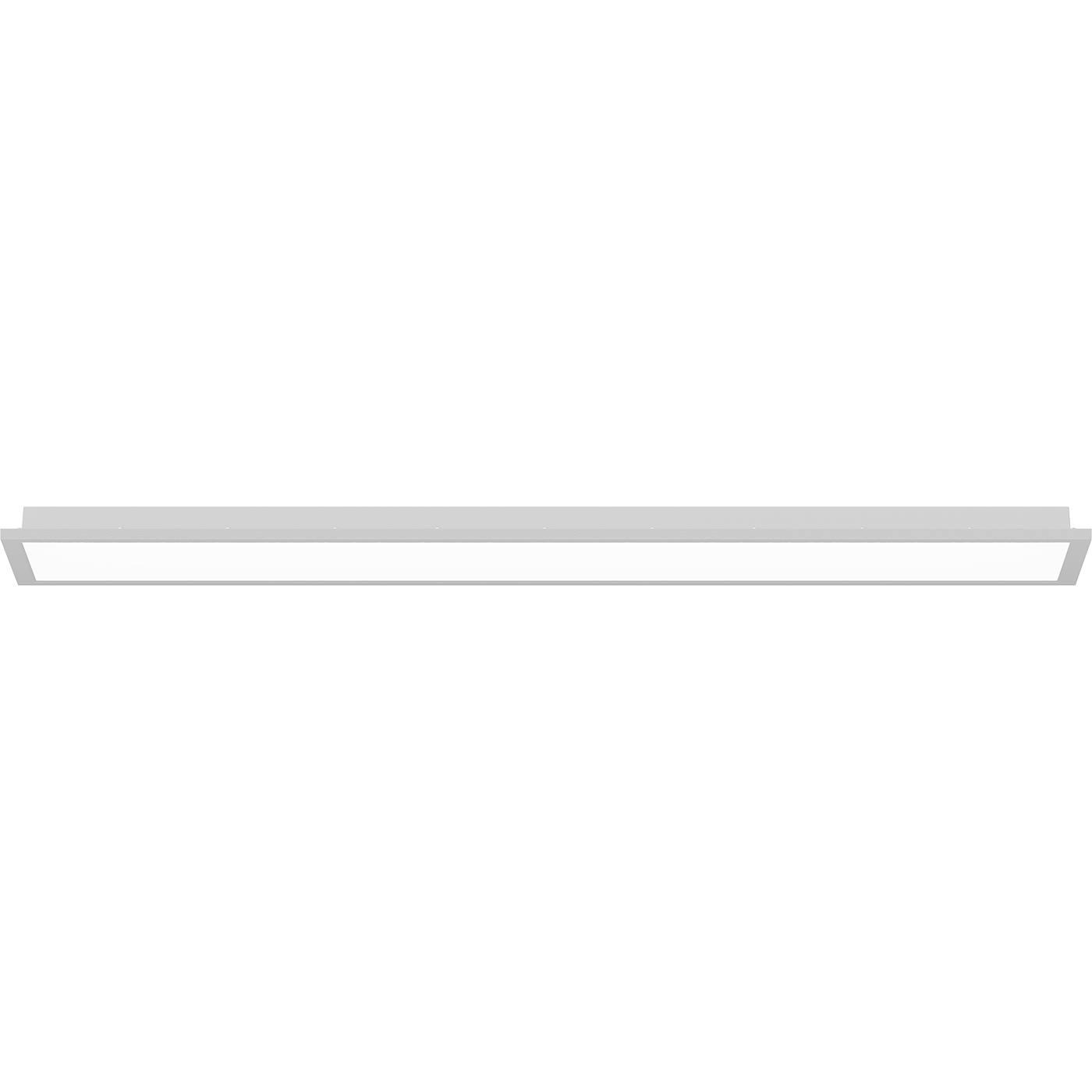

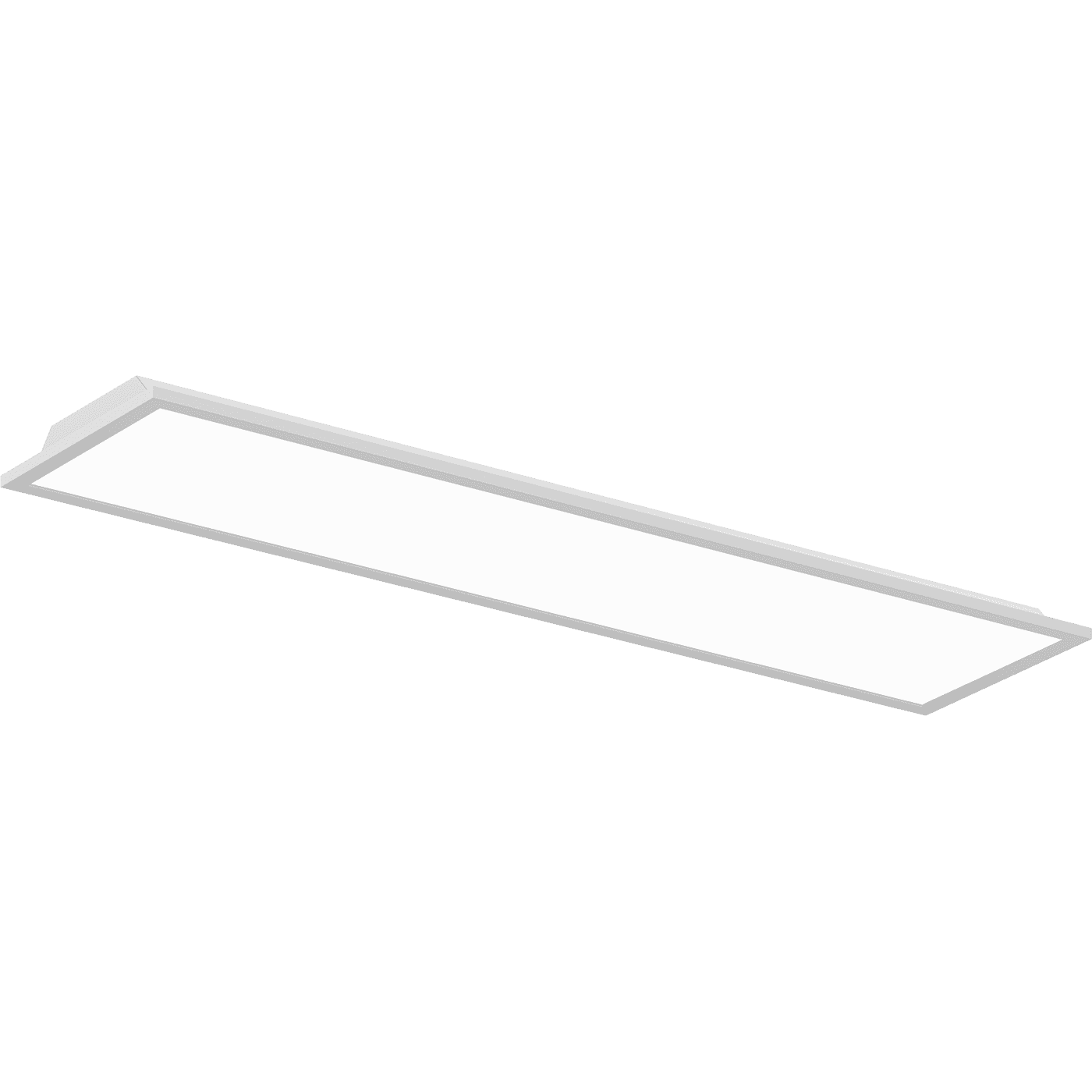

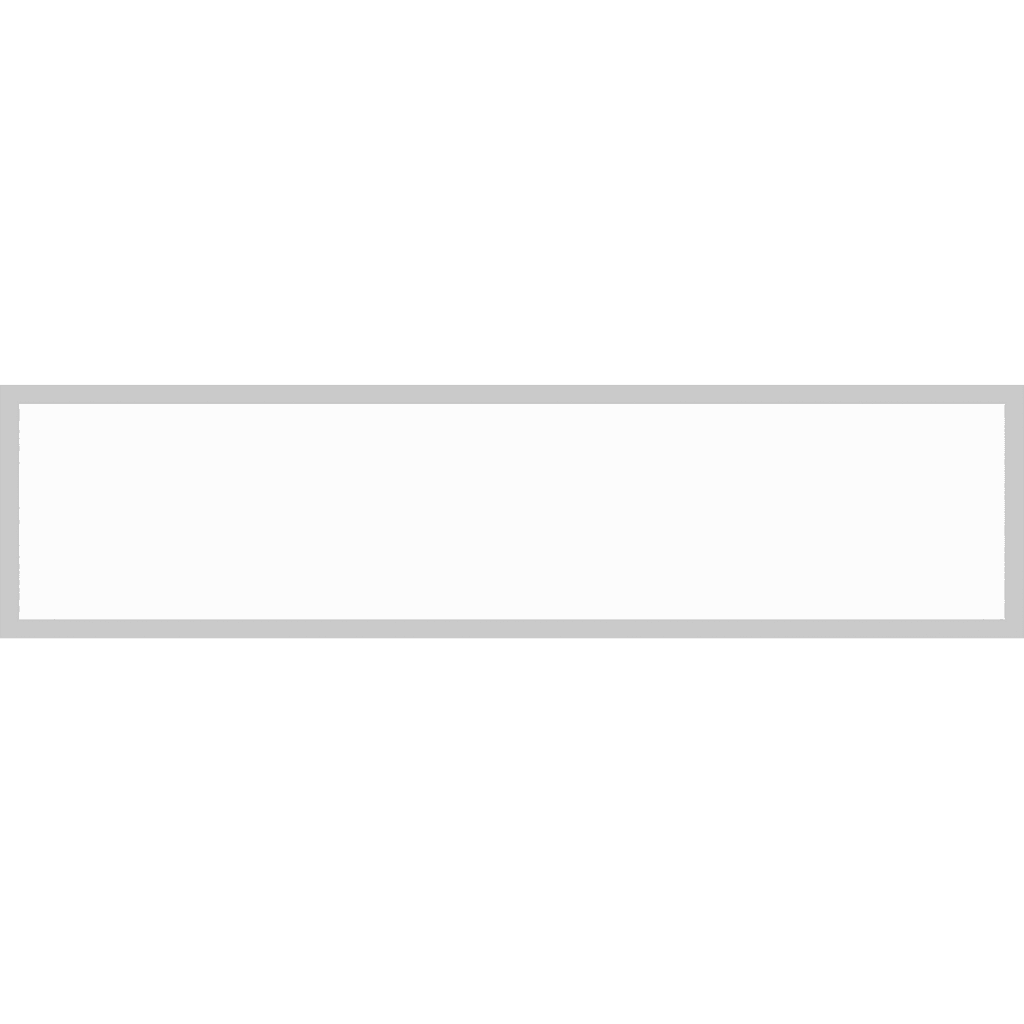

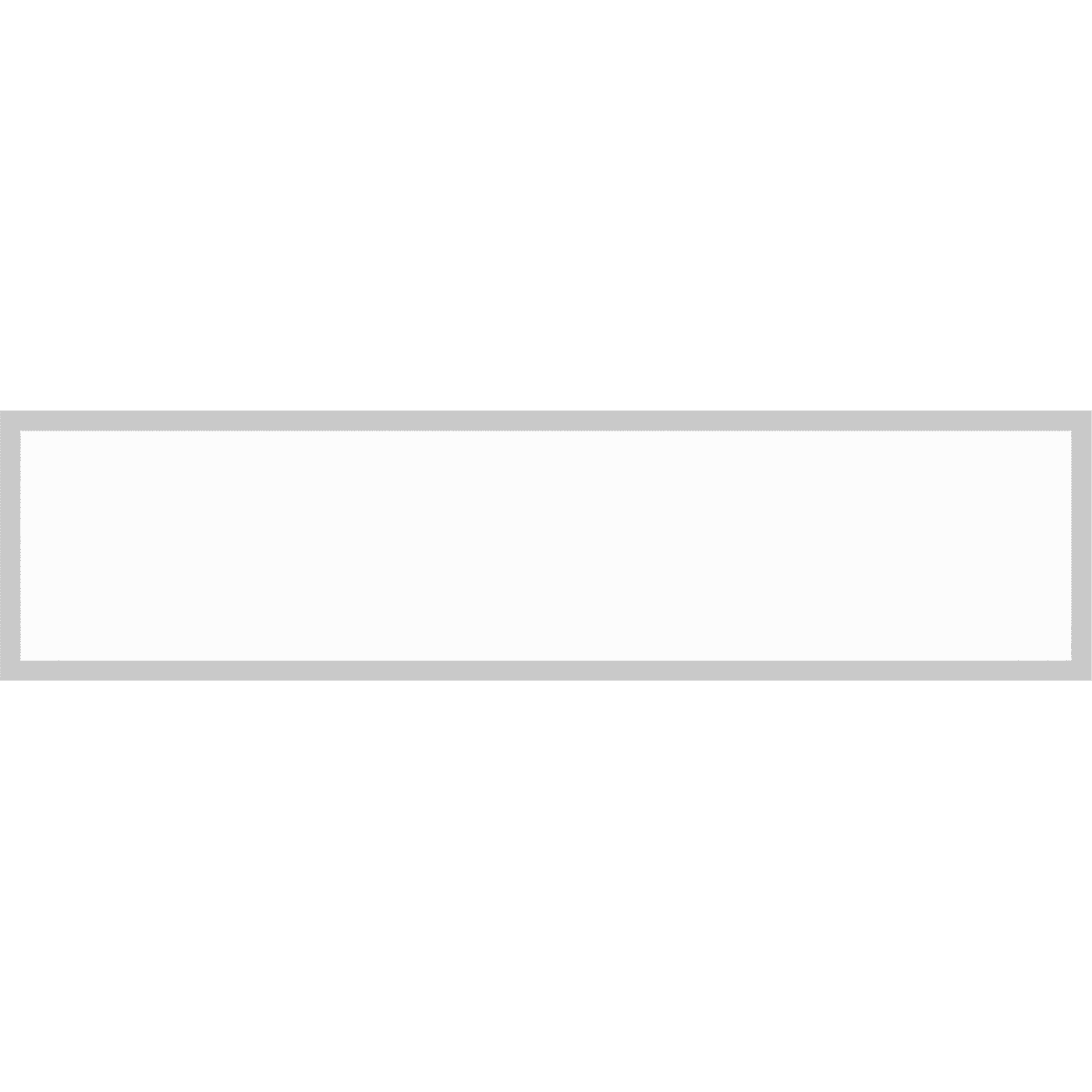

UNI/R EVO (1195x295) 30W OPL 930 WH DALI

UNI/R EVO (1195x295) 30W OPL 930 WH DALI
30 Wluminaire power
3300 lmlight flow
110 lm/Wenergy efficiency
code1884017030
color temperature3000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
110 lm/W
color rendition index (CRI)
>90
light flow
3300 lm
flickering factor
<5%

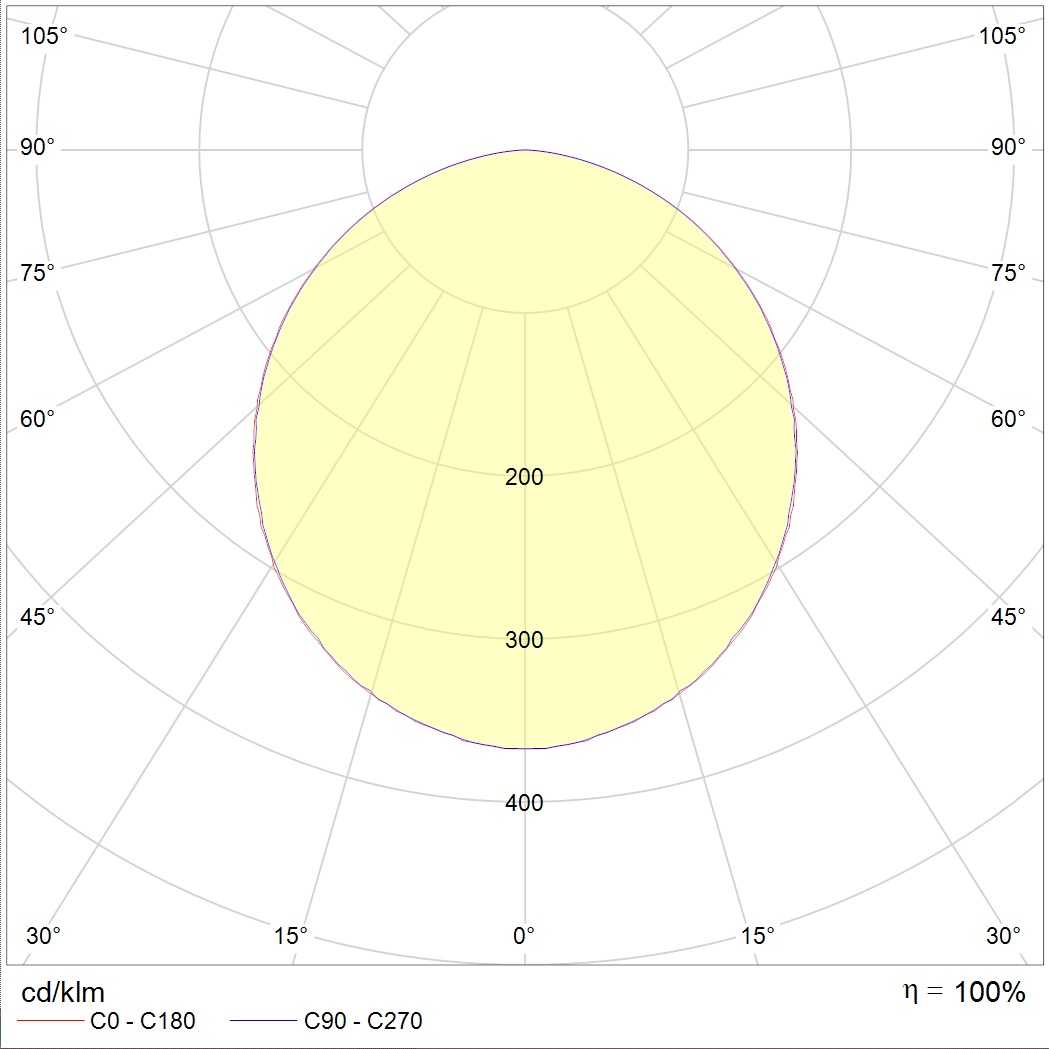

beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
illuminating
energy efficiency
110 lm/W
color rendition index (CRI)
>90
light flow
3300 lm
flickering factor
<5%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
30 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional
length, mm
1195 mm
width, mm
295 mm
height, mm
49 mm
installation length, mm
1175 mm
installation width, mm
275 mm
weight
3.1 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1884017030
