URAN LED Exd-W001 ВЫХОД НАЛЕВО Б/З

URAN LED Exd-W001 ВЫХОД НАЛЕВО Б/З
add to favorites
4 Wluminaire power
30 lmlight flow
8 lm/Wenergy efficiency
code1593000050
color temperature10350
gas marking1 Ex db IIC T6 Gb
dust markingEx tb IIIC T80 C Db
weight5.15 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. аварийные
  7. URAN LED Exd
  8. URAN LED Exd-W001 ВЫХОД НАЛЕВО Б/З
options
свернуть все
electricalconstructionalcommonilluminatingexplosion-proofemergency
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
luminaire power
4 W
supply voltage, alternating current
230-240 V
supply voltage, direct current
230-240 V
power factor
> 0,50
electrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
luminaire power
4 W
supply voltage, alternating current
230-240 V
supply voltage, direct current
230-240 V
power factor
> 0,50
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІа
material
Сплав алюминиевый
weight
5.15 kg

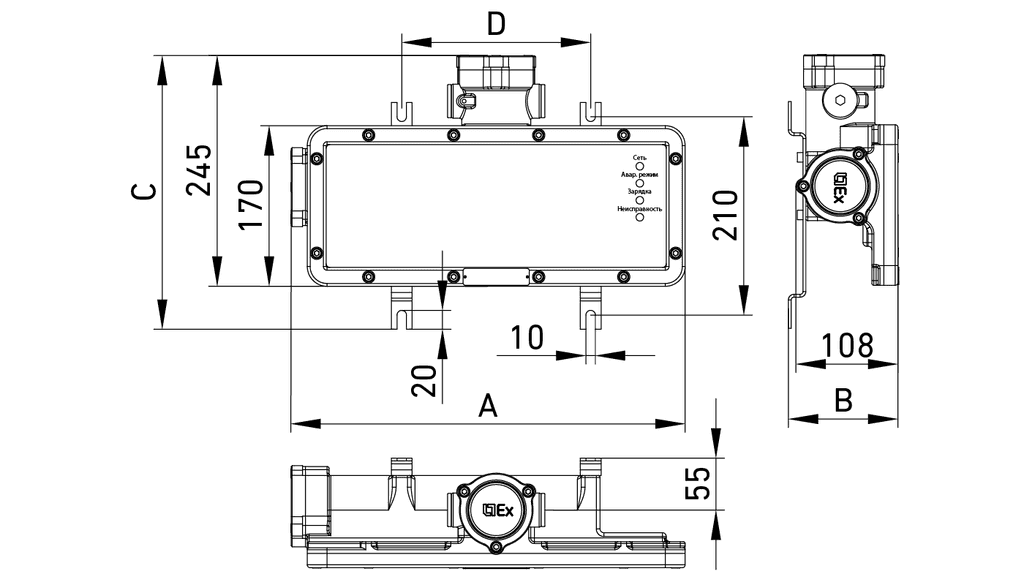

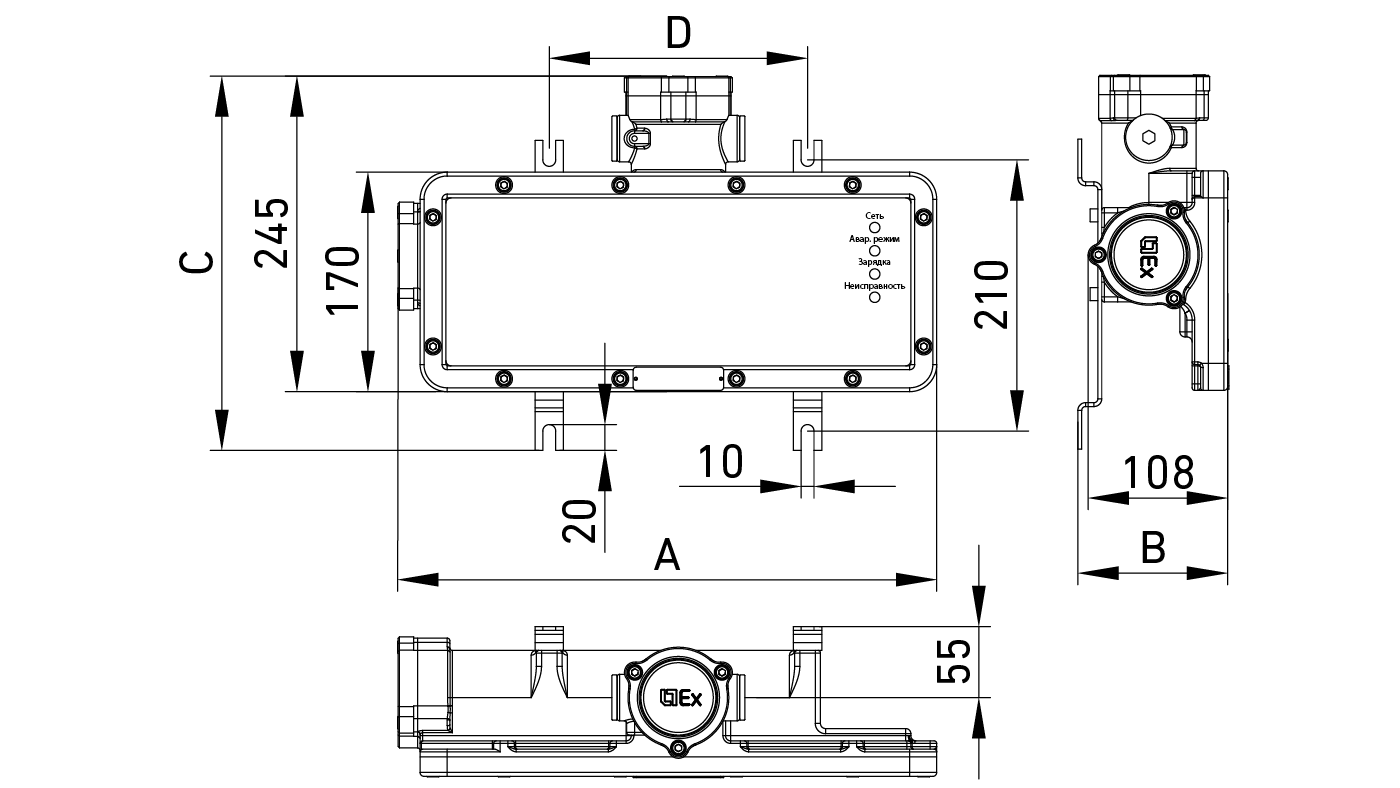

length, mm
410 mm
width, mm
320 mm
height, mm
110 mm
housing color
Серый
installation length, mm
200 mm
installation width, mm
200 mm
shock resistance (IK)
IK08/7 Дж
common
code
1593000050
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от 0 до +55 C
energy efficiency class
C
illuminating
light flow
30 lm
energy efficiency
8 lm/W
flickering factor
<5%
color temperature
10350
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
1 Ex db IIC T6 Gb
dust marking
Ex tb IIIC T80 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T6
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
30 lm
model files
model files
CAD/BIM files
CAD model 3DS687.6 kB
model 3dMax1.1 mB
photometric files
ies263.2 kB
jpg123.5 kB
ldt161.5 kB
documents
passport1 mB
сертификаты
Declaration of Conformity TRTS 004/2011114.6 kB
Certificate of conformity TRTS 012/2011366.5 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
CAD/BIM files
CAD model 3DS687.6 kB
model 3dMax1.1 mB
photometric files
ies263.2 kB
jpg123.5 kB
ldt161.5 kB
documents
passport1 mB
сертификаты
Declaration of Conformity TRTS 004/2011114.6 kB
Certificate of conformity TRTS 012/2011366.5 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
