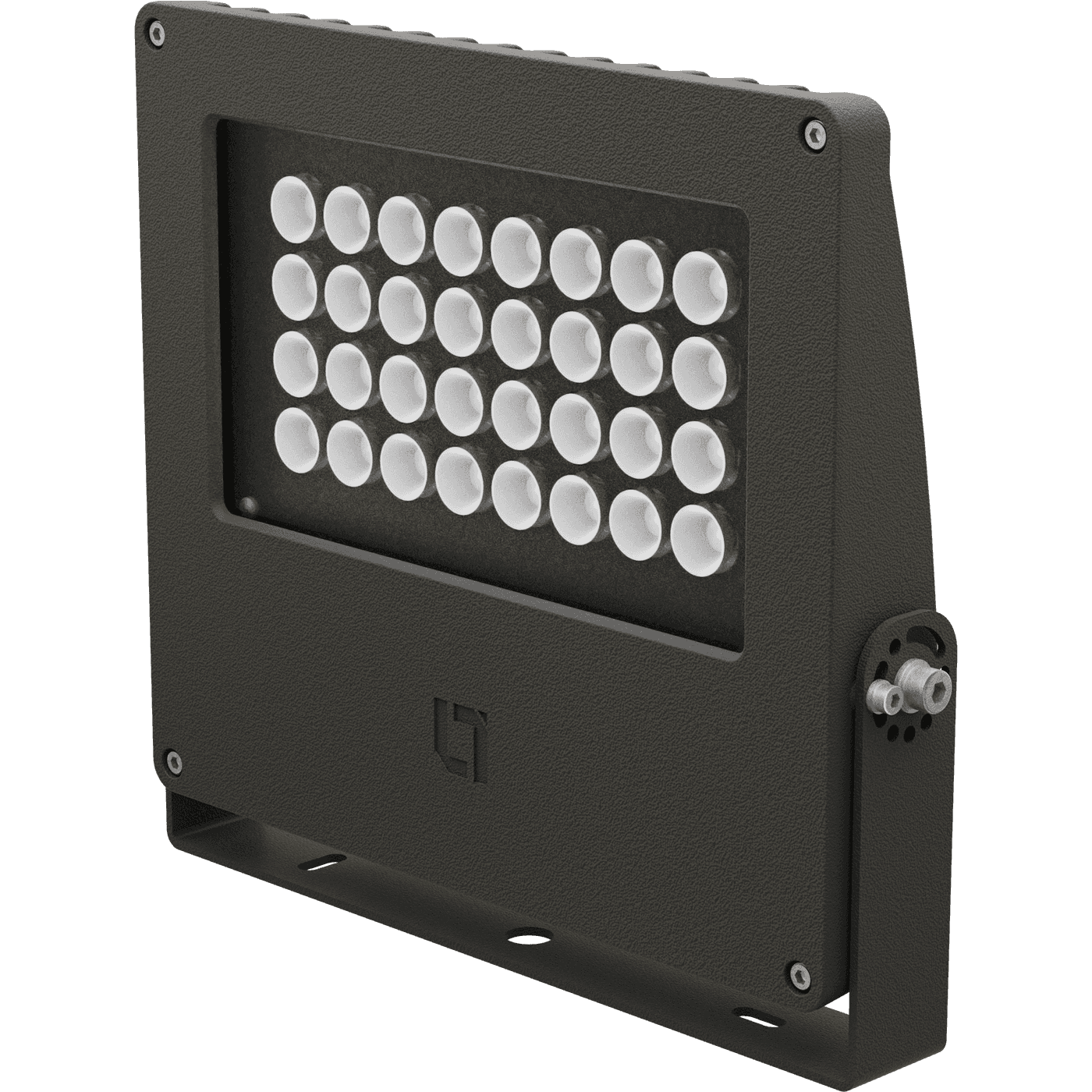

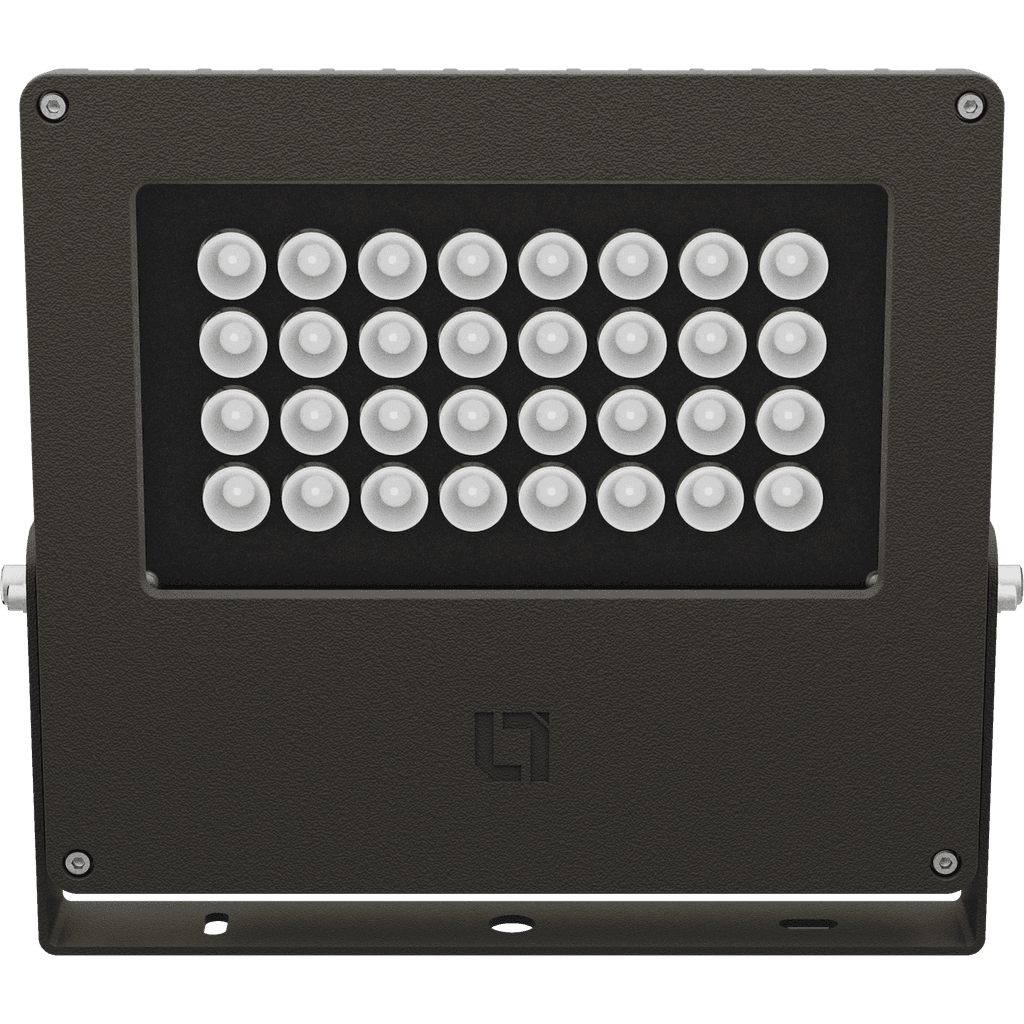

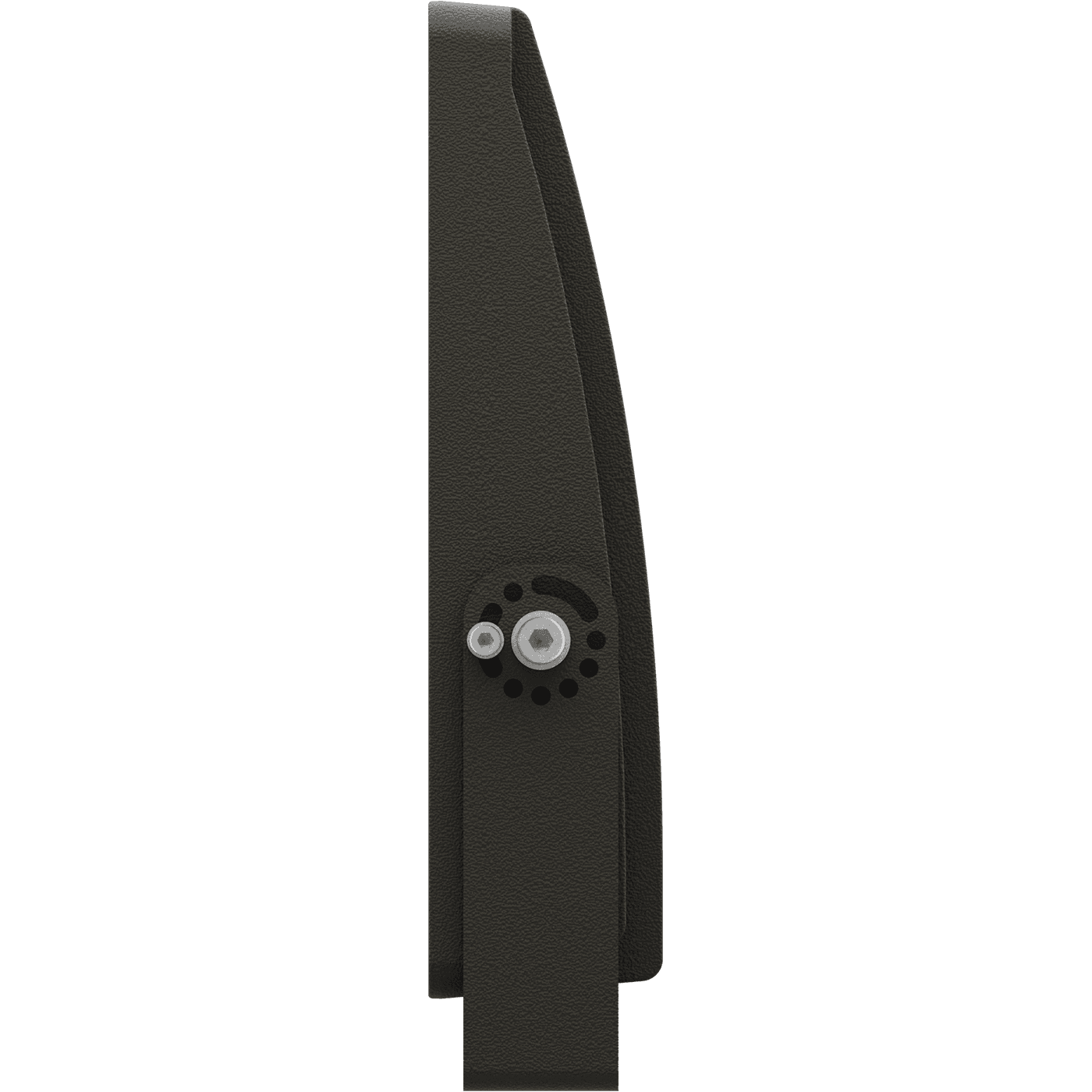

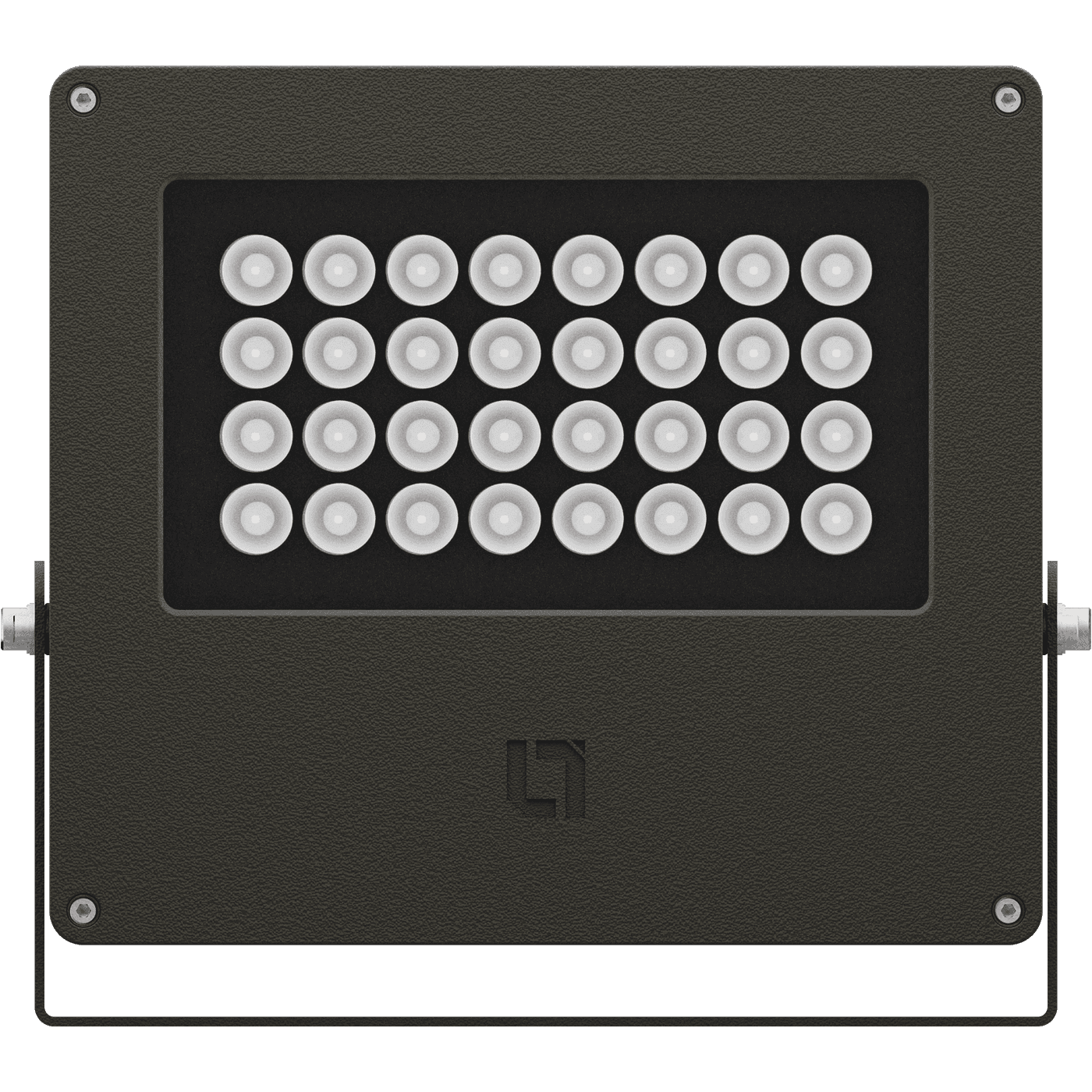

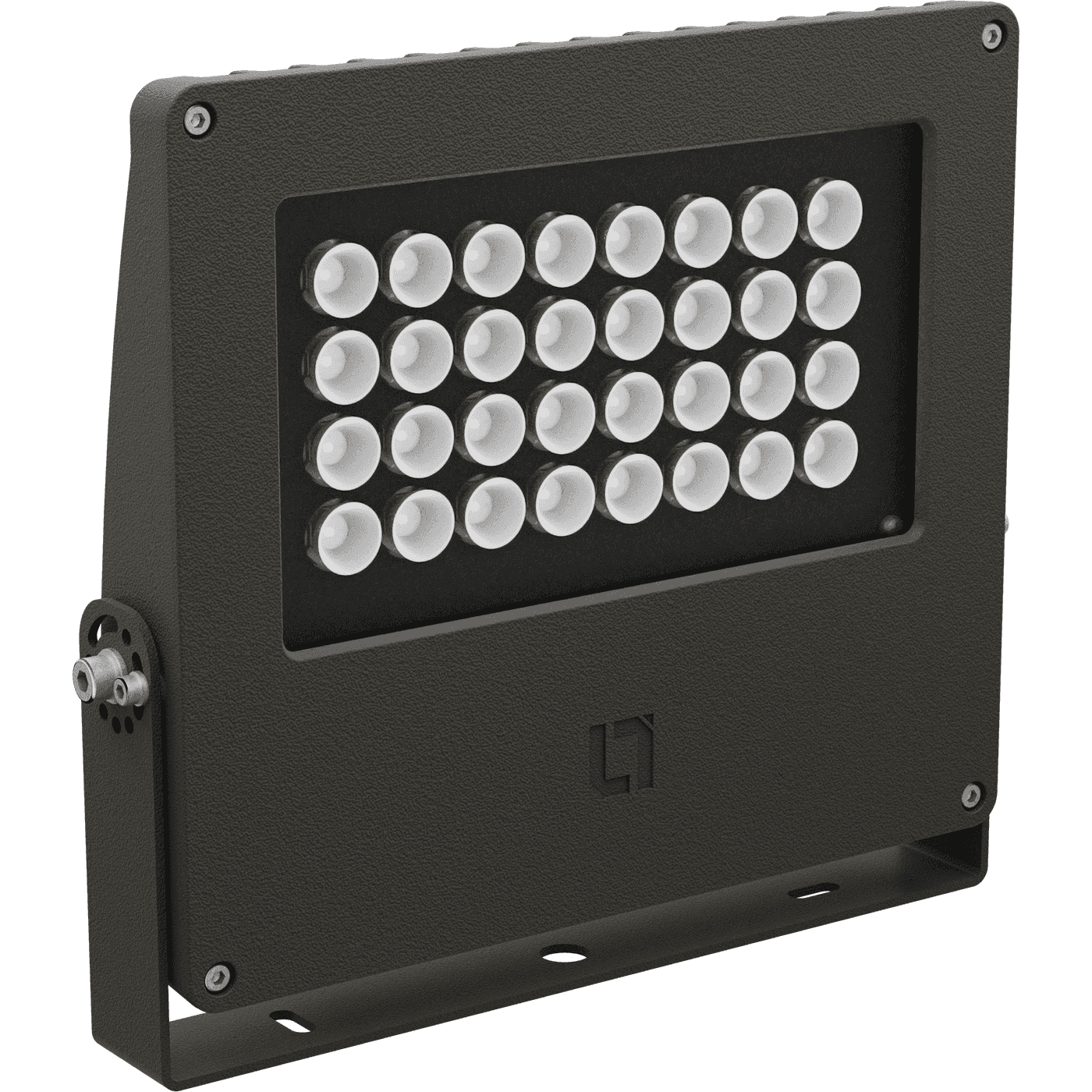

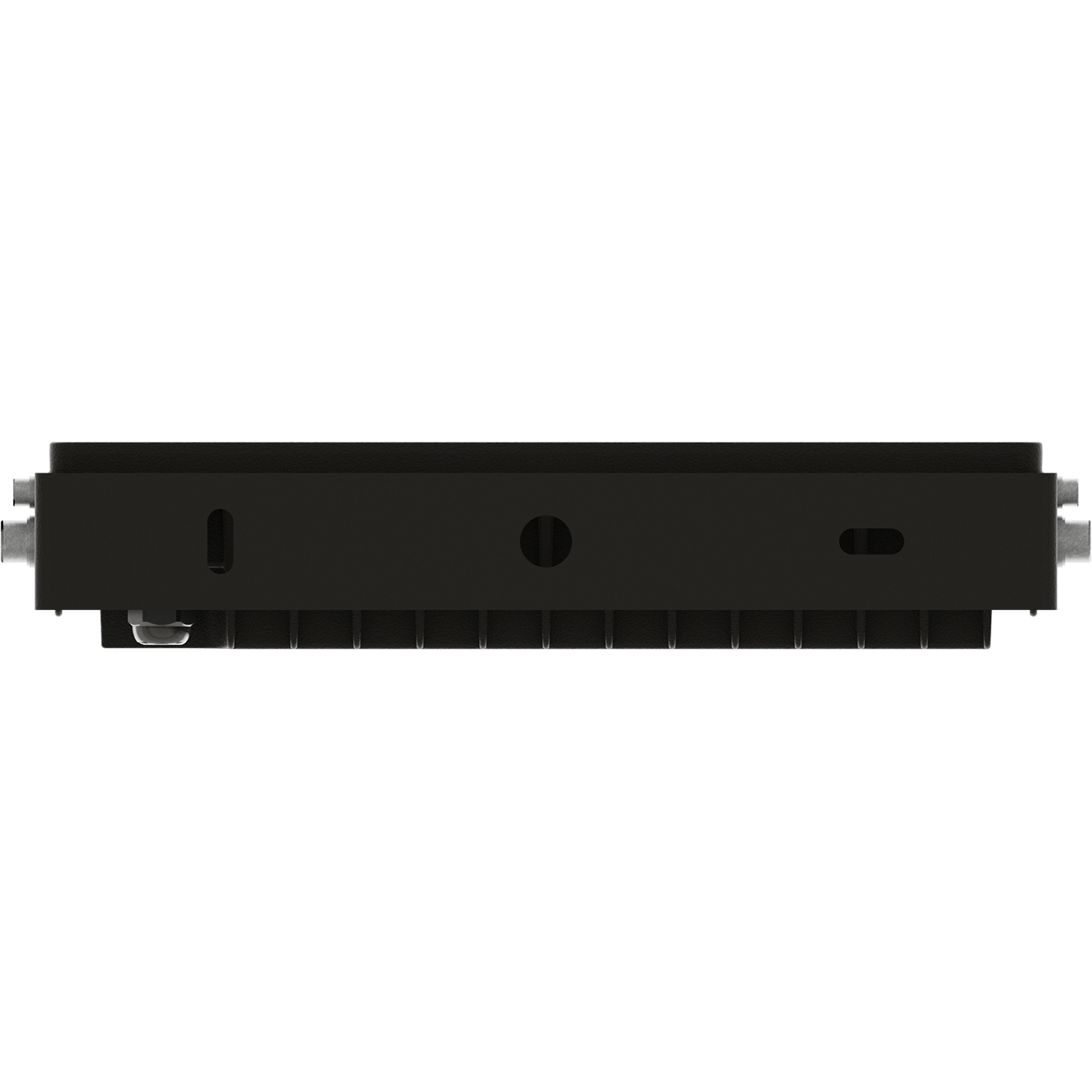

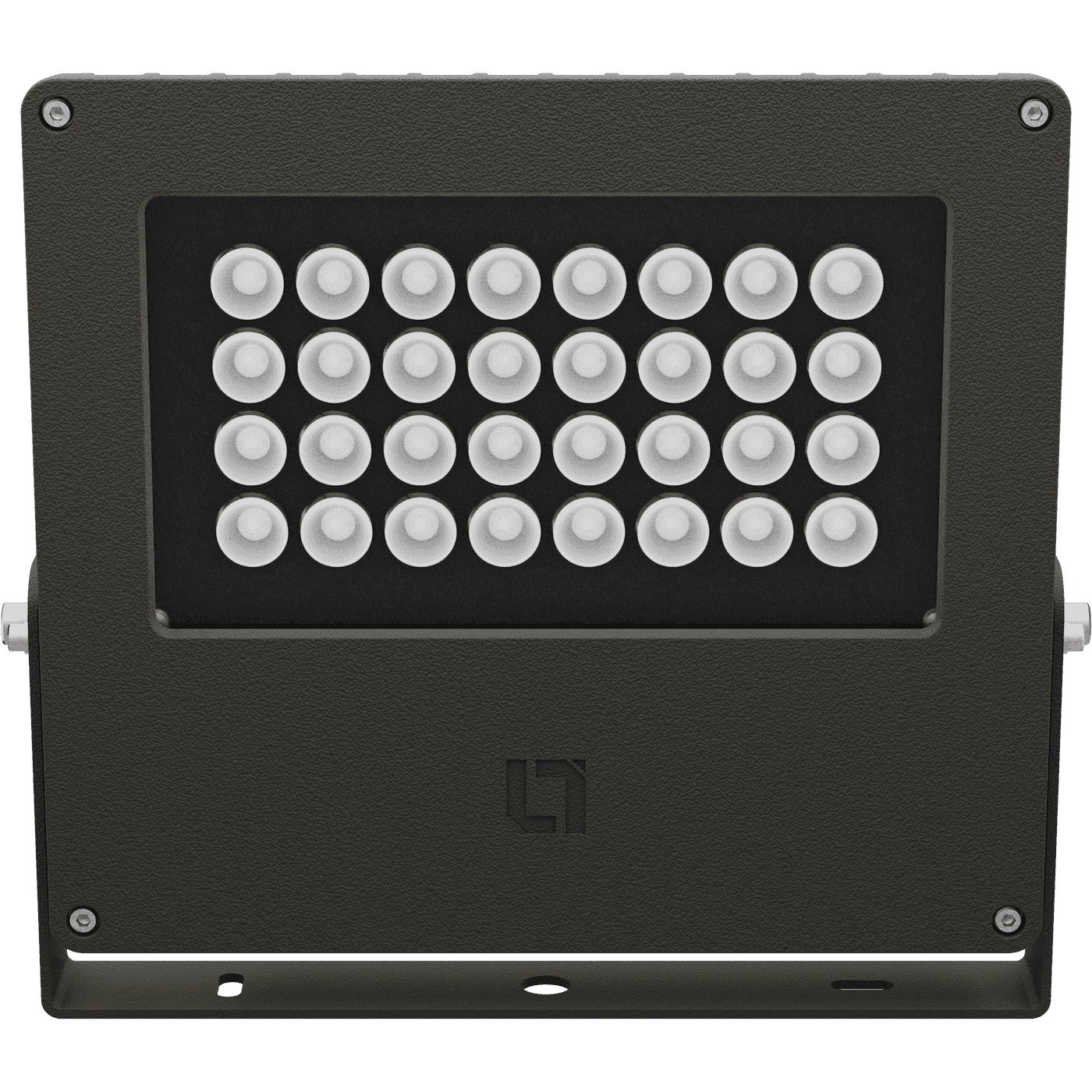

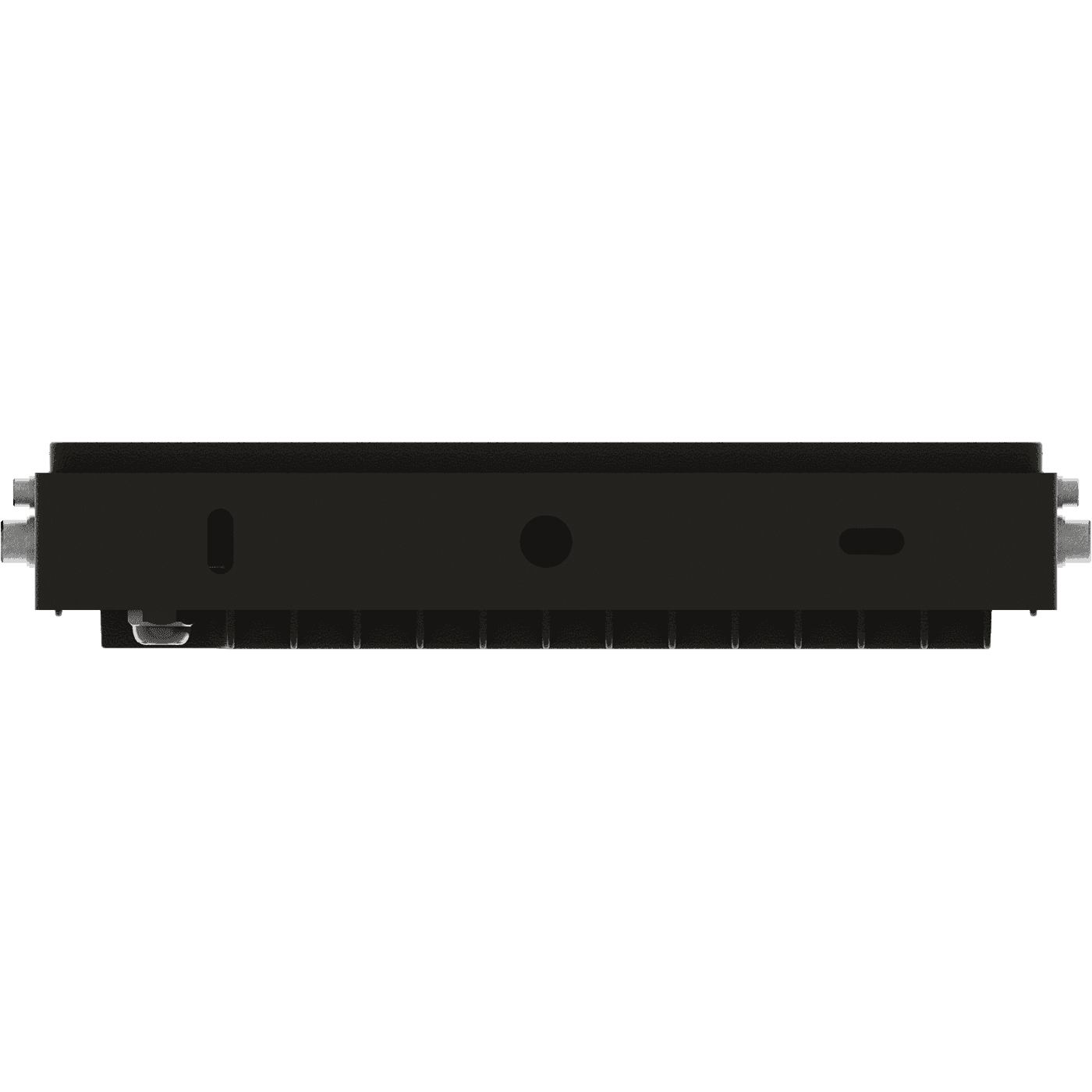

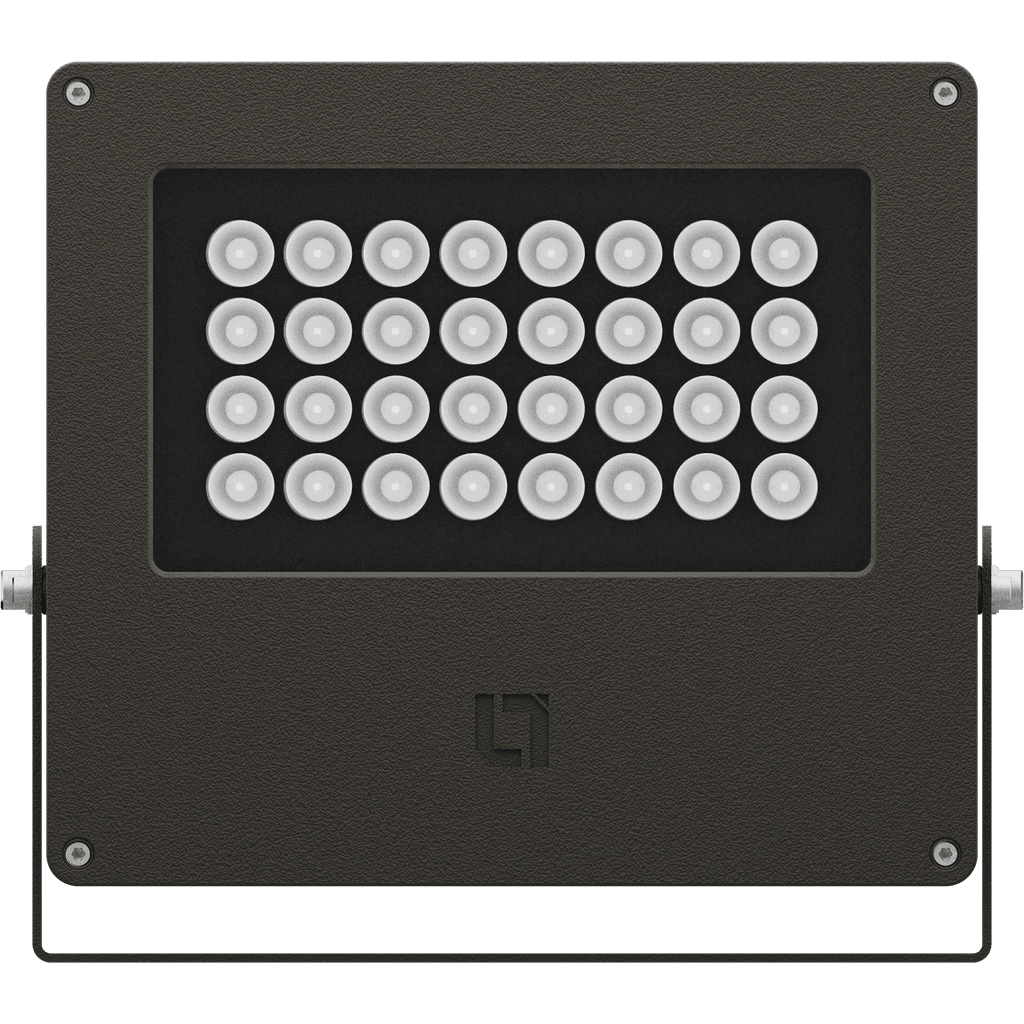

VIZOR LED 30W D15 840 RAL7022
VIZOR LED 30W D15 840 RAL7022
28 Wluminaire power
2400 lmlight flow
86 lm/Wenergy efficiency
code1717000100
beam angleD15
color temperature4000
weight4.4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
86 lm/Wemission color
Белыйcolor rendition index (CRI)
>80light flow
2400 lmflickering factor
<5%beam angle
D15color temperature
4000light source type
LEDilluminating
energy efficiency
86 lm/W
emission color
Белый
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<5%
beam angle
D15
color temperature
4000
light source type
LED
electrical
luminaire power
28 W
power factor
> 0,95
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
electric shock protection
I
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
length, mm
335 mm
width, mm
295 mm
height, mm
64 mm
installation length, mm
200 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
fire safety class
П-ІІІ
material
Алюминий
shock resistance (IK)
IK07/2 Дж
weight
4.4 kg
common
code
1717000100
warranty
36 month
energy efficiency class
A
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

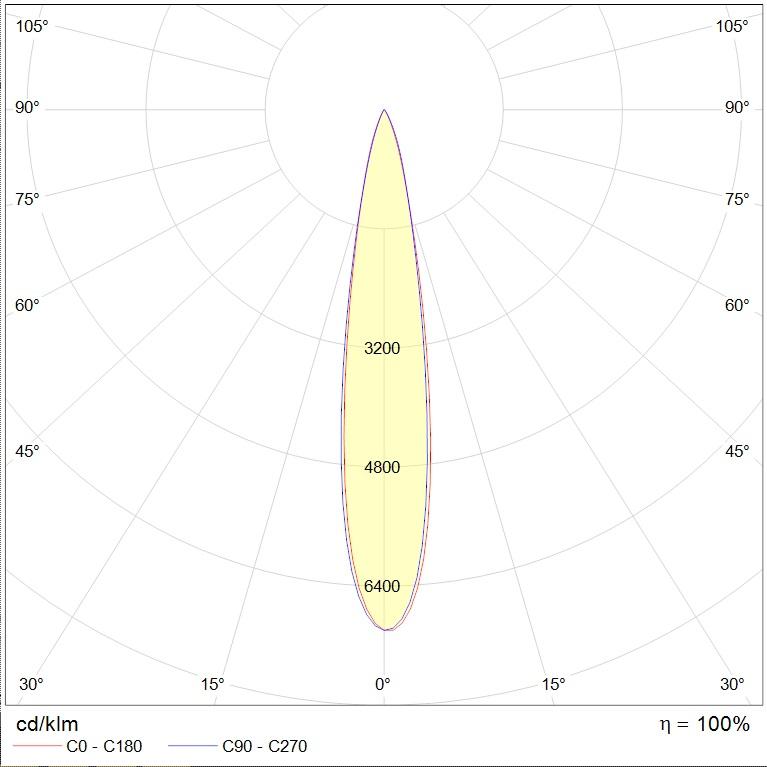

photometric files
documents
сертификаты
photometric files
ies31.4 kB
jpg80 kB
ldt16.3 kB
documents
passport3.4 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
