VIZOR LED 30W D15 RGBA RAL7022 DMX RDM
VIZOR LED 30W D15 RGBA RAL7022 DMX RDM
26 Wluminaire power
1600 lmlight flow
62 lm/Wenergy efficiency
code1717000420
beam angleD15
weight5.1 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
62 lm/Wemission color
RGBAlight flow
1600 lmflickering factor
<5%beam angle
D15light source type
LEDilluminating
energy efficiency
62 lm/W
emission color
RGBA
light flow
1600 lm
flickering factor
<5%
beam angle
D15
light source type
LED
electrical
luminaire power
26 W
power factor
> 0,95
starting current pulse time, µs
1.18 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
129 A
maximum cross-section of the connected cable, sq. mm
1
supply voltage, direct current
190-250 V
supply voltage, alternating current
176-305 V
electric shock protection
I
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
length, mm
335 mm
width, mm
295 mm
height, mm
85 mm
installation length, mm
200 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
fire safety class
П-ІІІ
material
Алюминий
shock resistance (IK)
IK07/2 Дж
weight
5.1 kg
LMS options
dimming
DMX RDM
common
code
1717000420
warranty
36 month
energy efficiency class
B
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

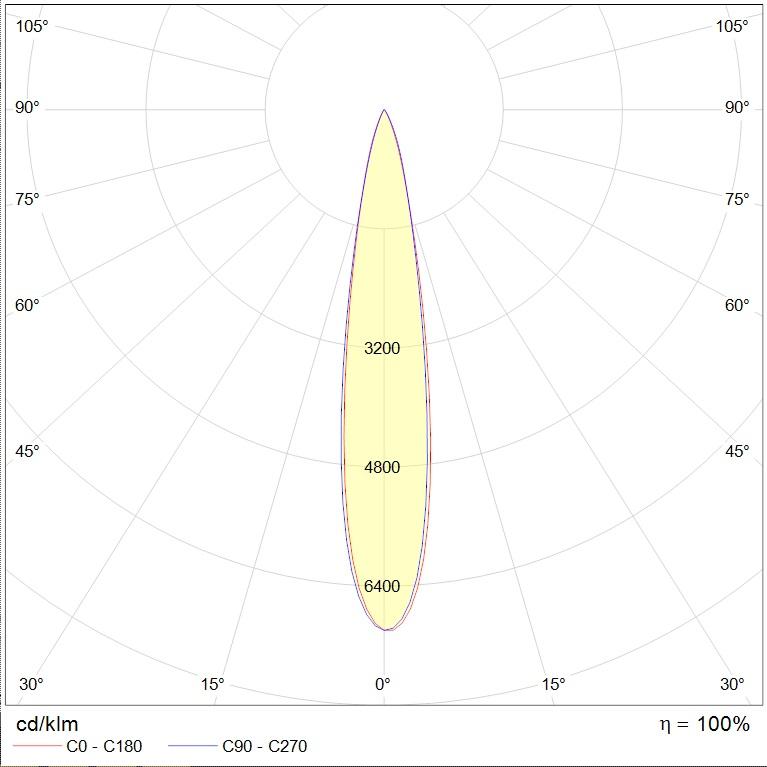

photometric files
documents
сертификаты
photometric files
ies31.4 kB
jpg80 kB
ldt16.4 kB
documents
passport3.4 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
