VIZOR LED 30W D15 RGBW RAL7022 DMX RDM
VIZOR LED 30W D15 RGBW RAL7022 DMX RDM
26 Wluminaire power
1600 lmlight flow
62 lm/Wenergy efficiency
code1717000410
beam angleD15
weight5.1 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
129 Astarting current pulse time, µs
1.18 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-305 Vsupply voltage, direct current
190-250 Vluminaire power
26 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
129 A
starting current pulse time, µs
1.18 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-305 V
supply voltage, direct current
190-250 V
luminaire power
26 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
5.1 kg
length, mm
335 mm
width, mm
295 mm
height, mm
85 mm
housing color
Серый
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK07/2 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1717000410
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
B
service life, hour
50 000 h
illuminating
energy efficiency
62 lm/W
light flow
1600 lm
flickering factor
<5%
beam angle
D15
light source type
LED
emission color
RGBW
LMS options
dimming
DMX RDM
model files
model files

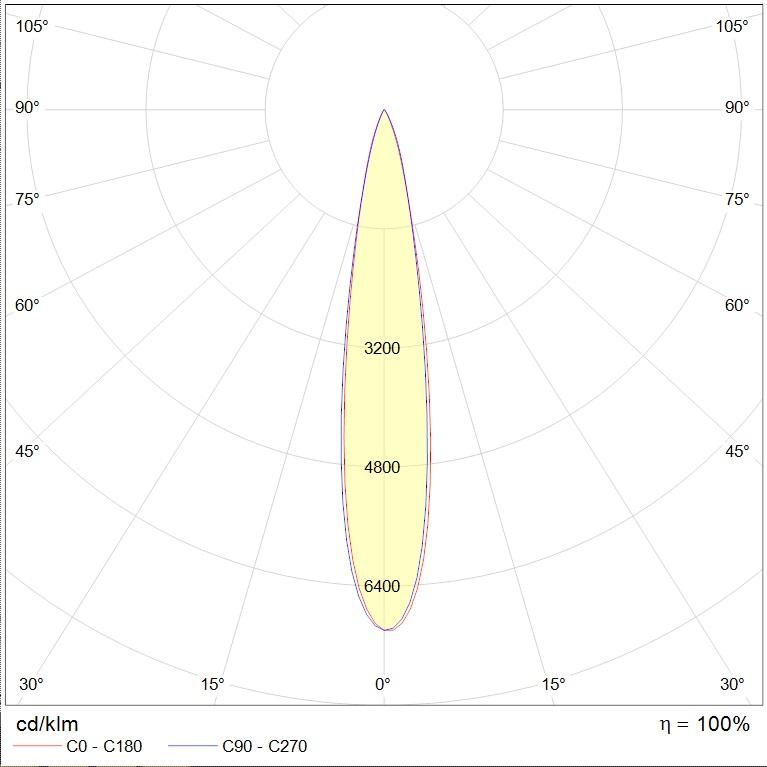

photometric files
documents
сертификаты
photometric files
ies31.4 kB
jpg80 kB
ldt16.4 kB
documents
passport3.4 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
