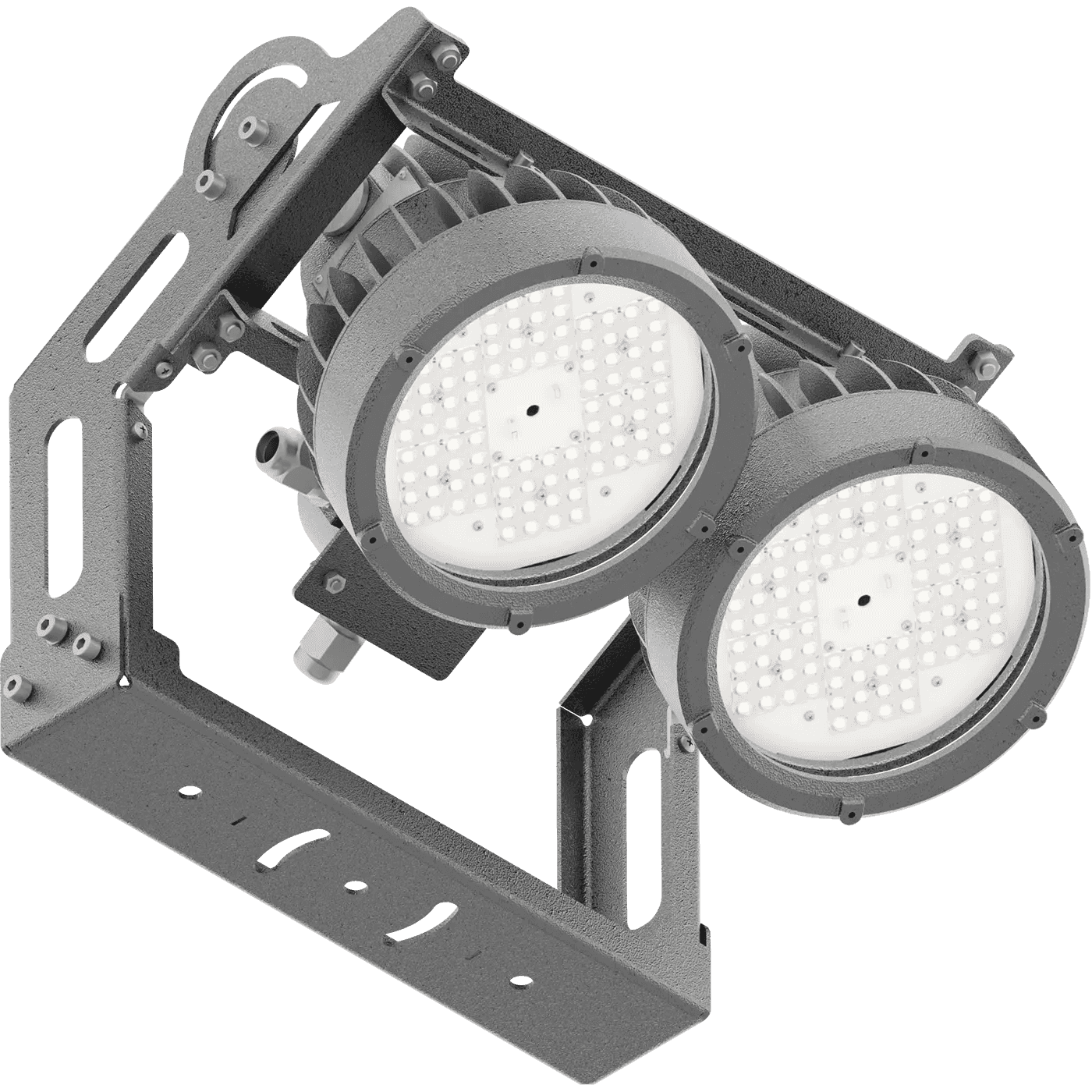

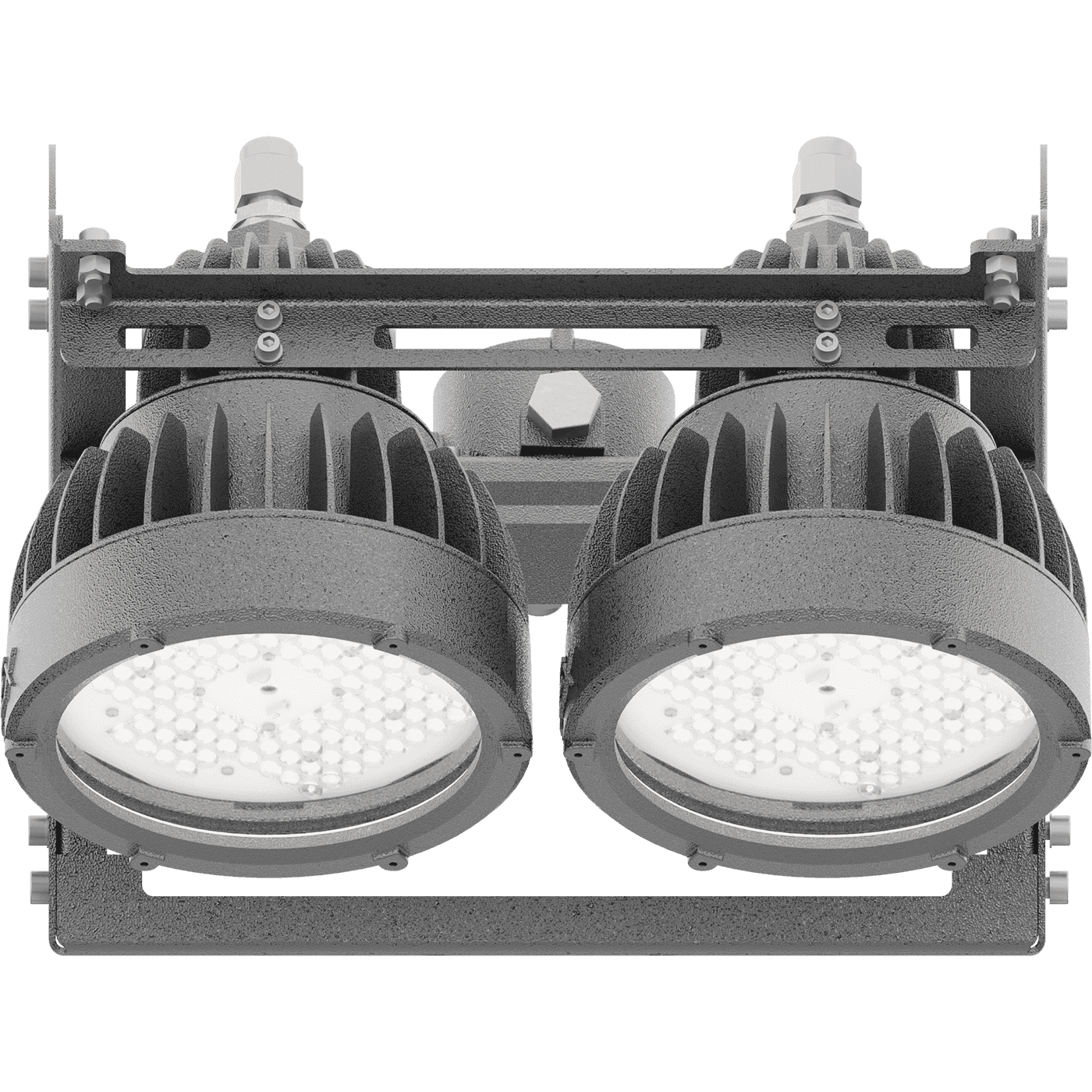

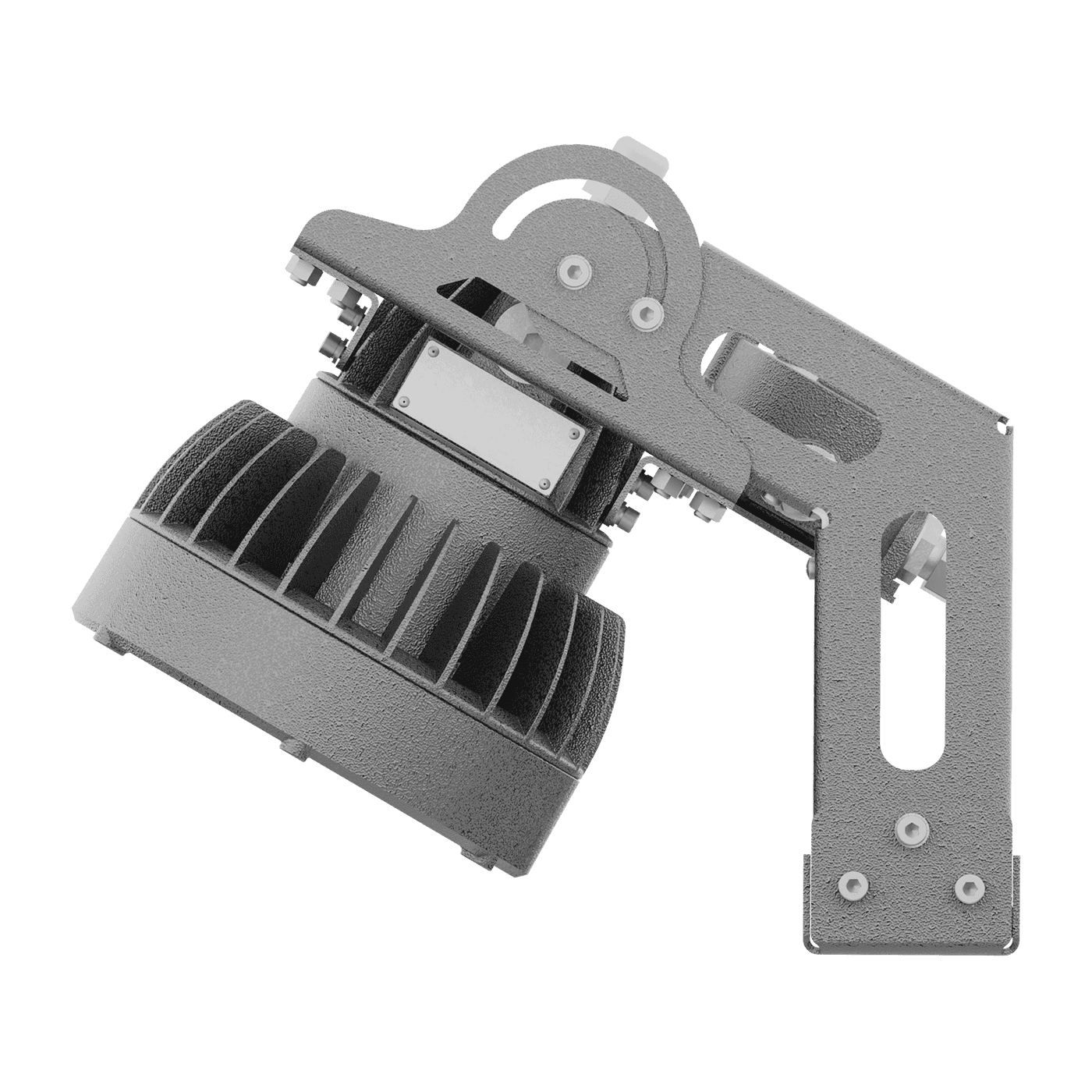

ZENITH LED Ex FLOODLIGHT G2/B 130Wх2 D30 850 HG (DA)

ZENITH LED Ex FLOODLIGHT G2/B 130Wх2 D30 850 HG (DA)
add to favorites
270 Wluminaire power
32000 lmlight flow
119 lm/Wenergy efficiency
code1226001000
color temperature5000
gas marking1 Ex db IIC T5 Gb
dust markingEx tb IIIC T100 C Db
beam angleD30
weight21.05 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 1
  7. ZENITH LED Ex FLOODLIGHT G2
  8. ZENITH LED Ex FLOODLIGHT G2/B 130Wх2 D30 850 HG (DA)
options
свернуть все
electricalconstructionalcommonilluminatingexplosion-proof
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
5 A
starting current pulse time, µs
3300 mks
luminaire power
270 W
supply voltage, alternating current
90-300 V
supply voltage, direct current
90-300 V
power factor
> 0,95
electrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
5 A
starting current pulse time, µs
3300 mks
luminaire power
270 W
supply voltage, alternating current
90-300 V
supply voltage, direct current
90-300 V
power factor
> 0,95
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1
fire safety class
П-ІІа
material
Сплав алюминиевый
weight
21.05 kg

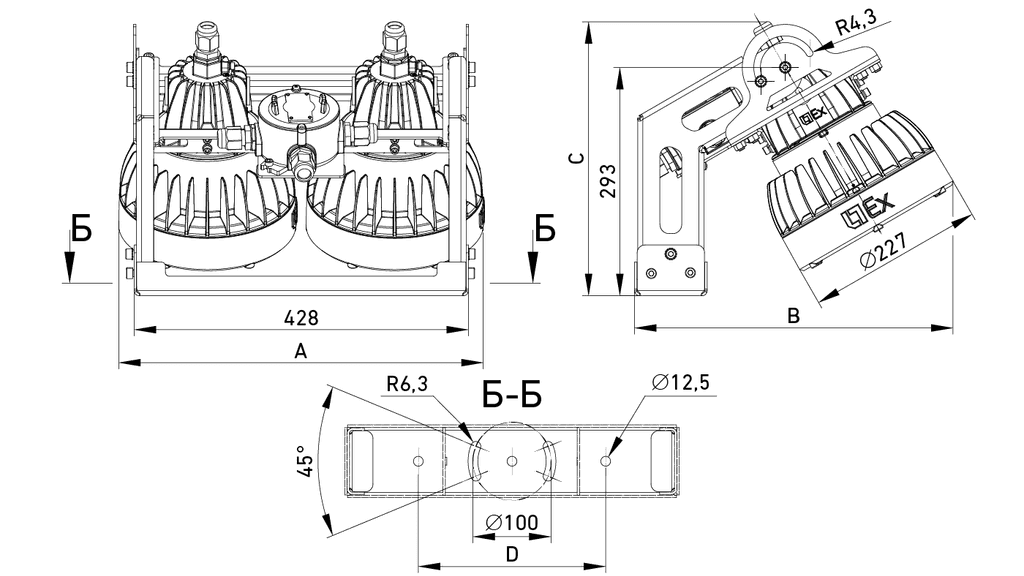

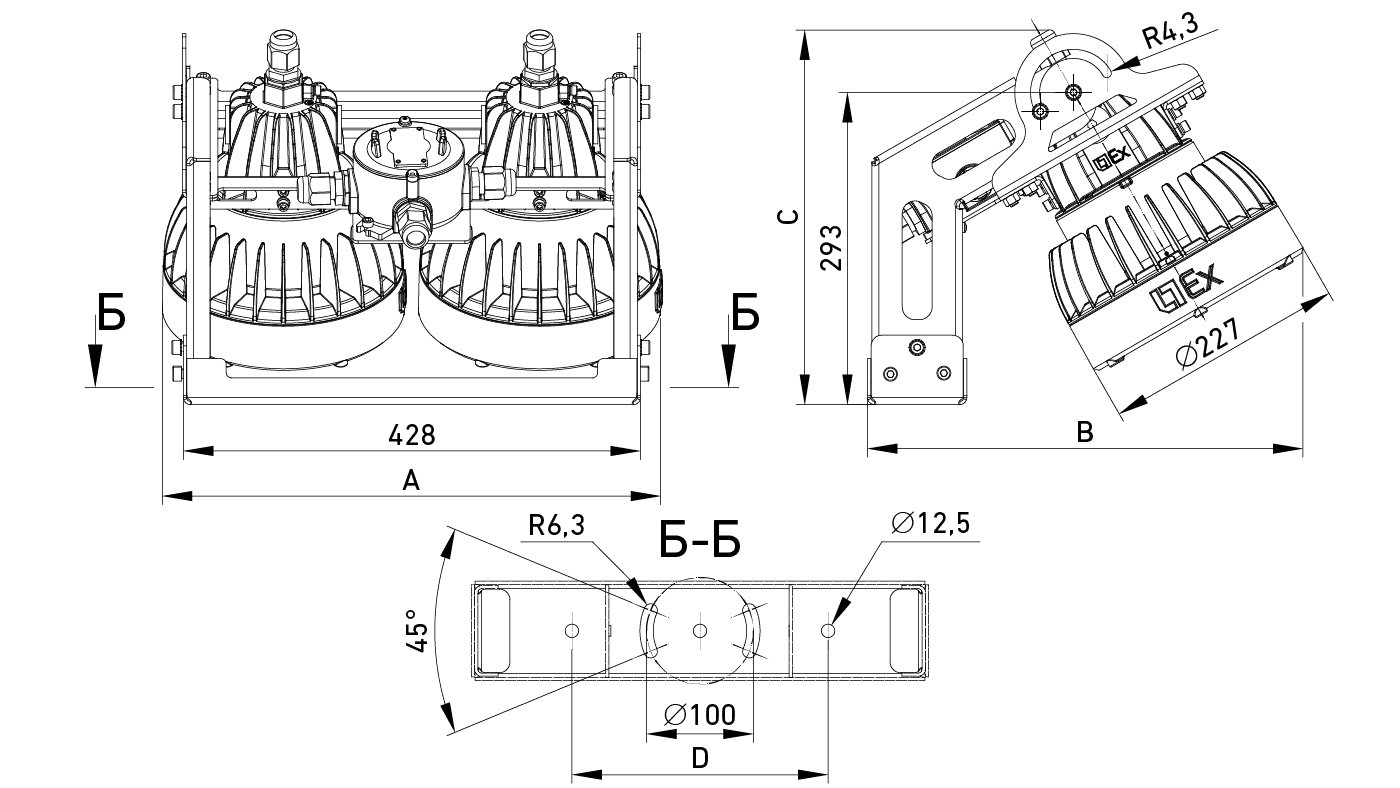

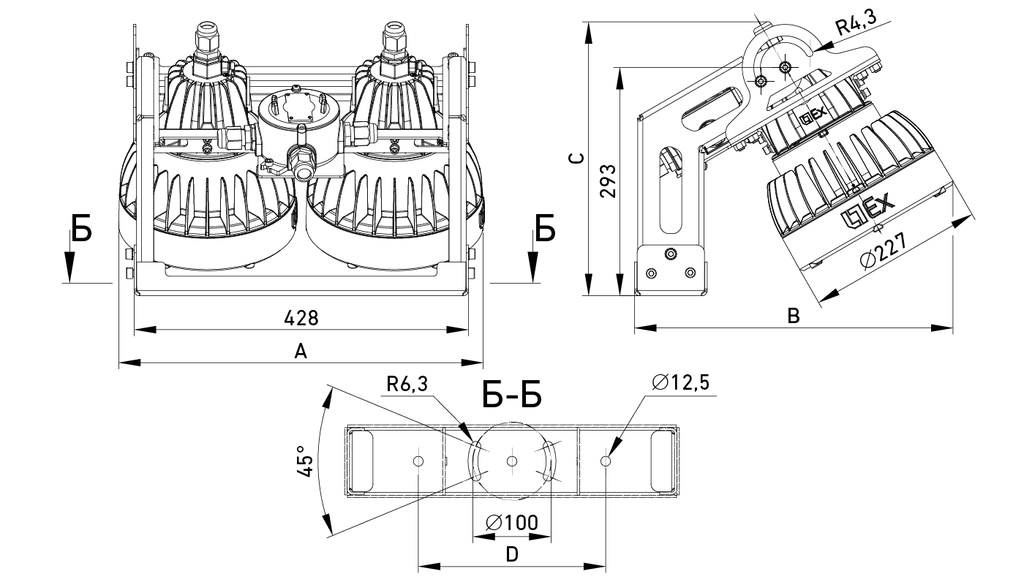

length, mm
408 mm
width, mm
467 mm
height, mm
350 mm
housing color
Серый
installation length, mm
240 mm
shock resistance (IK)
IK08/7 Дж
common
code
1226001000
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
12 month
temperature range
от -60 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
32000 lm
energy efficiency
119 lm/W
flickering factor
<1%

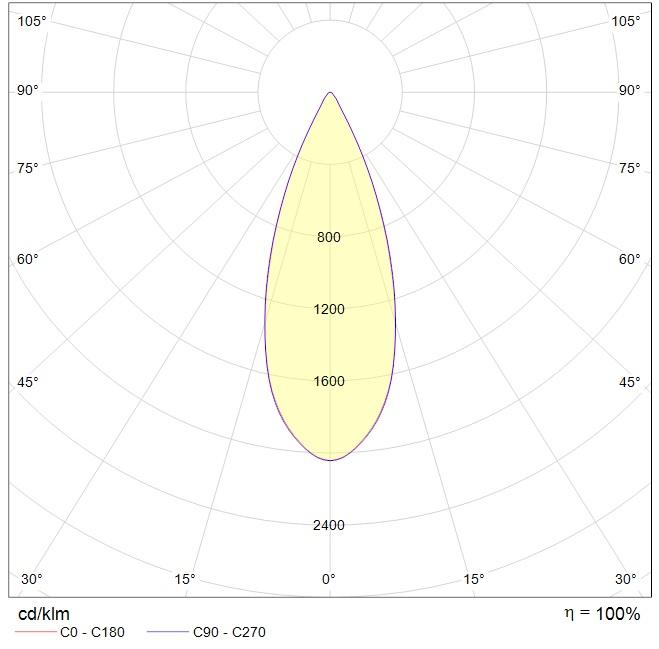

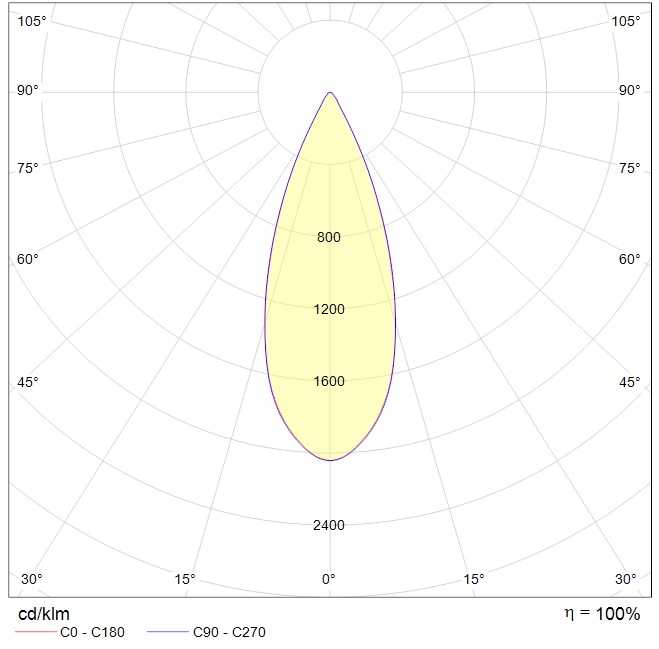

beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
1 Ex db IIC T5 Gb
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex db
gas explosion-proof (zones)
1
gas explosion-proof (groups of equipment)
IIC
T6 - temperature class
T5
model files
model files
documents
passport993.2 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011421.8 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
documents
passport993.2 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011421.8 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories

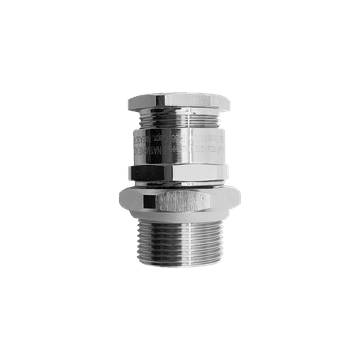

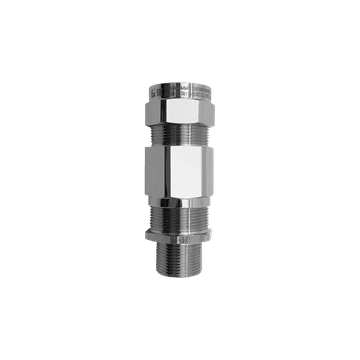

Cable entry explosion-proof М20х1,5 NA1MBNS0.056kgarticle: 2327009370color: Неокрашенныйø cable internal: 6,5-13,9
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М20х1,5 DSA1MBNS0.164kgarticle: 2327010060color: Неокрашенныйø cable internal: 6,5-13,9ø cable external: 12,5-20,9
