hinged group
![hinged group - проектирование освещения от компании Световые Технологии](/_next/image?url=https%3A%2F%2Fapibeta.ltcompany.com%2Fupload%2Fiblock%2Ffa7%2Fxqfj68uqrci8cd0j3jgghfg1rgnf2jq0.png&w=1920&q=75)
features and approaches to lighting

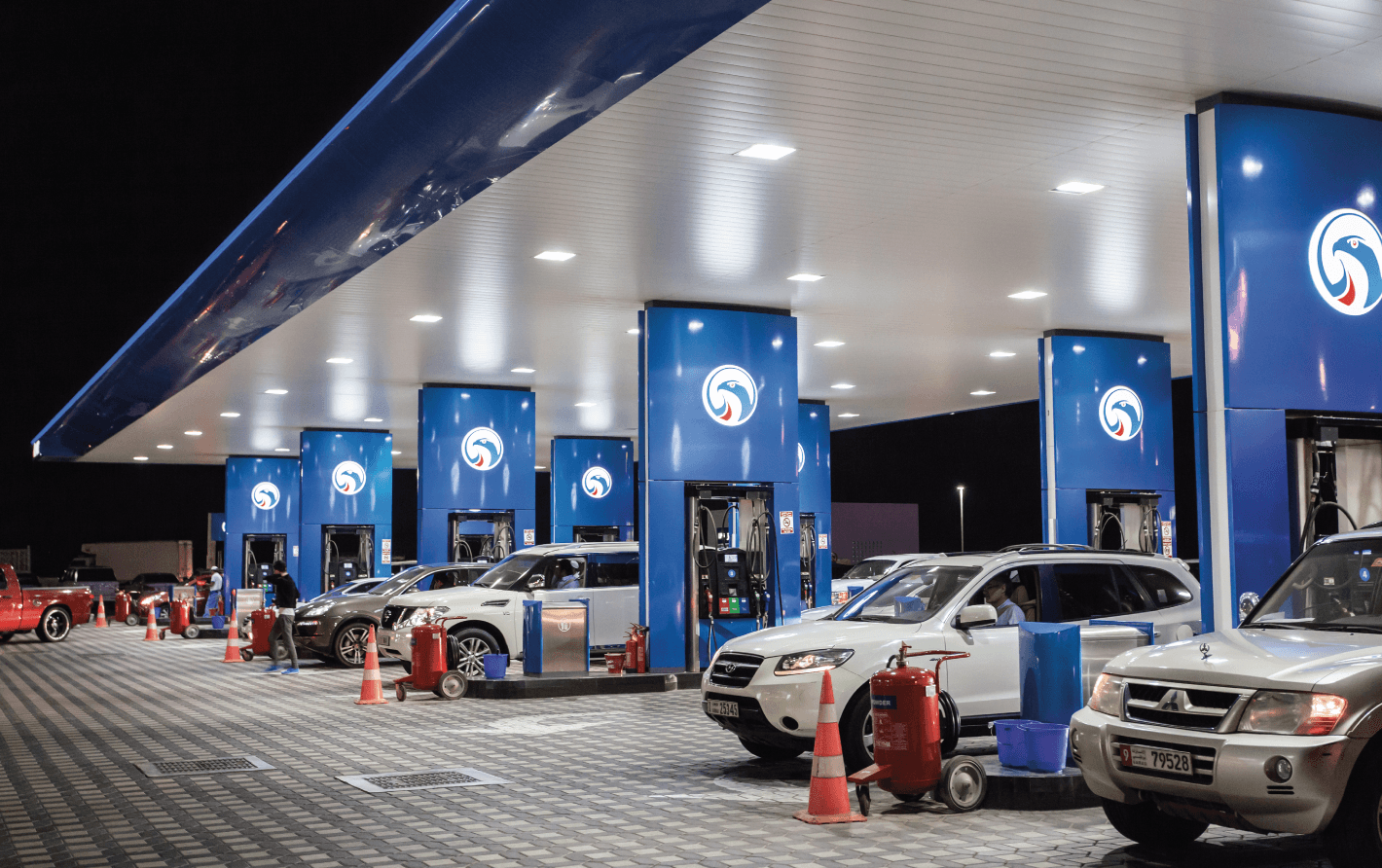

Depending on the format and number of fuel dispensers, the filling station's throughput can reach up to 650 vehicles per day, which, of course, affects the decrease in the concentration of employees and their efficiency. It is obvious that the lighting of the hinged group must provide a safe and comfortable working environment under any flow load.
Recommended illumination levels are 200 lux at ground level (horizontal illumination) and 100 lux at fuel dispenser level (vertical illumination). As mentioned above, the specifics of work in this area requires a high concentration of attention of the gas station employees during the entire working time, so preference should be given to light sources with a cold color temperature of 5000 K. The color rendering index should be at least 70. The technological process of servicing the hinged group provides regular washing of luminaires from below, which imposes increased requirements on the IP protection of lighting equipment and the tightness of its design - it is recommended to use luminaires with IP66 and higher.
Since the lighting equipment is operated outdoors, there are special requirements for its climatic version: UHL1, temperature range -40/+50 °С.
Recommended illumination levels are 200 lux at ground level (horizontal illumination) and 100 lux at fuel dispenser level (vertical illumination). As mentioned above, the specifics of work in this area requires a high concentration of attention of the gas station employees during the entire working time, so preference should be given to light sources with a cold color temperature of 5000 K. The color rendering index should be at least 70. The technological process of servicing the hinged group provides regular washing of luminaires from below, which imposes increased requirements on the IP protection of lighting equipment and the tightness of its design - it is recommended to use luminaires with IP66 and higher.
Since the lighting equipment is operated outdoors, there are special requirements for its climatic version: UHL1, temperature range -40/+50 °С.
